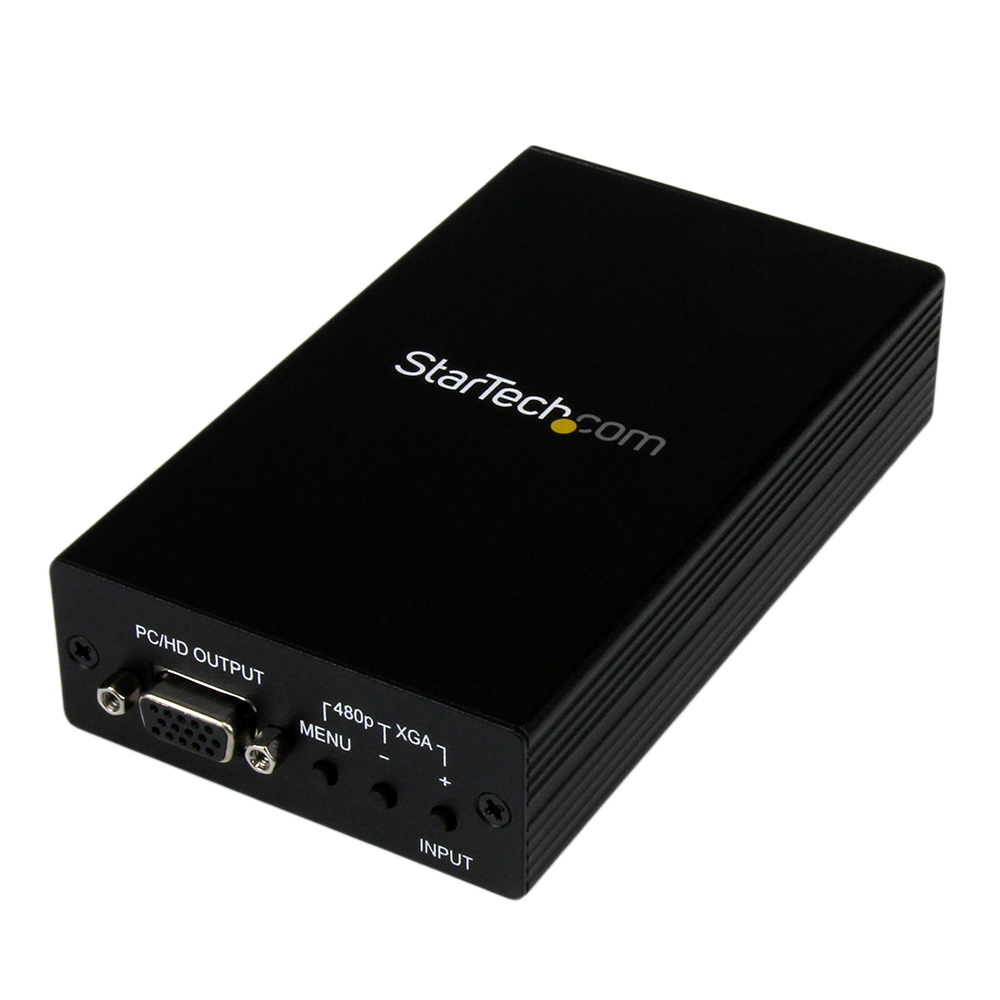

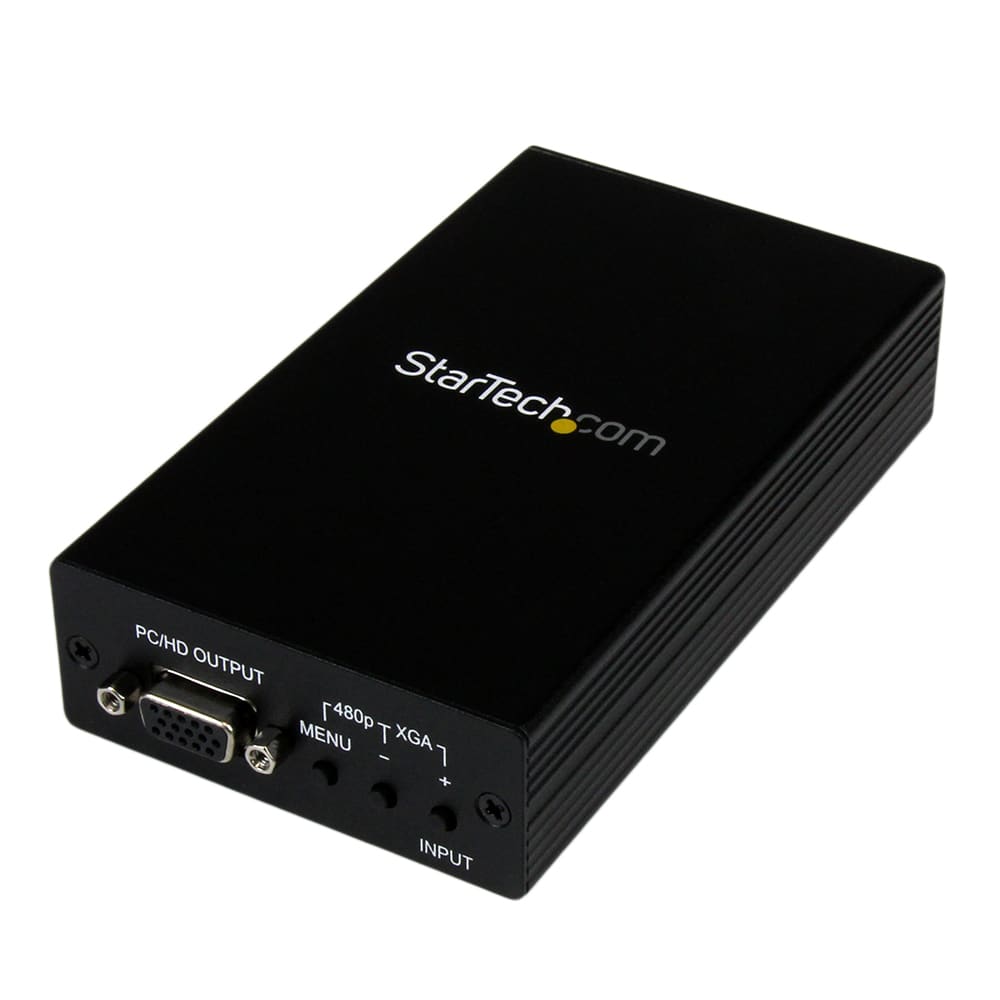

VID2VGATV
Video to VGA/HDTV Scaler/ Video Converter
Convert and scale a composite or S-Video signal to work with a VGA monitor
Main Image
Product Images
Product Images
BOM Image
Product Name Video to VGA/HDTV Scaler/ Video Converter Product Number VID2VGATV UPC 065030812009 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) Composite S-Video to VGA Video Converter Product Title (Medium) x Product Title (Standard) StarTech.com Composite and S-Video to VGA Video Converter Product Title (Long) Composite and S-Video to VGA Video Converter Product Title (AMZ) Composite and S-Video to VGA Video Converter - composite to VGA - Video to VGA Converter - s Video to VGA (VID2VGATV) Title Ingram (Part 1) Composite and S-Video to VGA Vid Title Ingram (Part 2) eo Converter Website Product Headline Convert and scale a composite or S-Video signal to work with a VGA monitor Bullet 1 Adjust picture brightness, contrast, color, RGB level and horizontal/vertical positioning Bullet 2 Output is analog RGBHV or YPbPr via the HD-15 VGA connector Bullet 3 Compatible with input from broadcast formats worldwide, including NTSC and PAL Bullet 4 A 48 MByte frame buffer eliminates image tear/video hiccups Bullet 5 Includes a memory recall feature that automatically reinstates the setting last used Bullets (Consolidated) Video converter - 48 MB - RGB - component video - composite video - S-video - component video - VGA - black Marketing Copy Applications - Display video feeds from DVD players on VGA input projectors and HDTV sets
- Monitor Security cameras with s-video or composite signaling using VGA monitors or televisions
- Adapt VHS tapes in the classroom to show videos on newer televisions
- Convert legacy Medical imaging equipment to display on computer monitors
- Use in the Conference Room to adapt legacy video equipment and connect to newer projectors
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Multiple refresh rates supported on PC output - See product manual for full list Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HD15CPNTMM3
- HD15CPNTMF
- SVIDHQ50
- SVA5M3NEUA
Related Products - VID2DVIDTV
- VGA2TV2WAY
Replacement Product VID2VGATV2 Output Current 2.6A Output Voltage (V) 5 DC Power Consumption (In Watts) 13 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 20 - 90% (non-condensing) Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 146.000 Product Width (mm) 77.000 Product Height (mm) 30.000 Product Weight (g) 240.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Supported Resolutions Active or Passive Adapter Active Audio No AV Input - Composite
- S-Video
- Component
AV Output - VGA
- Component

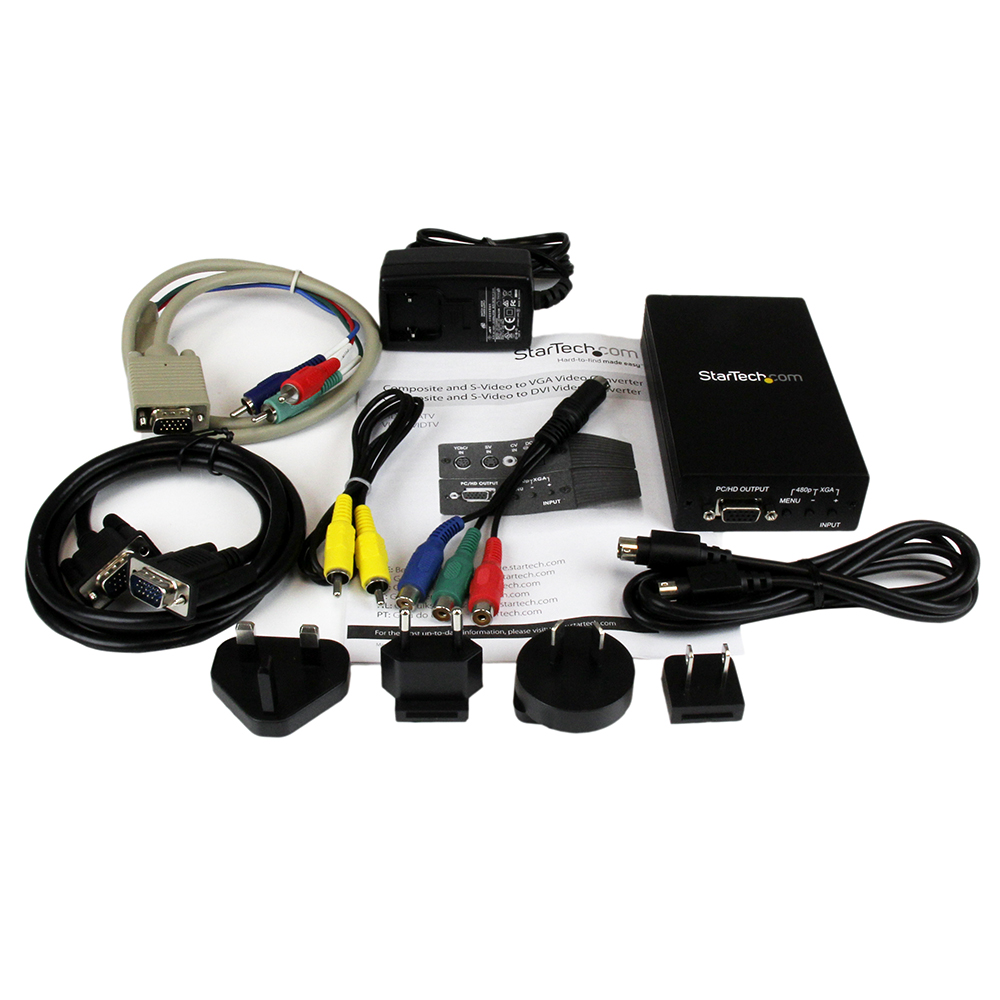

Converter Type Scaler Carton Depth (mm) 422 Carton Height (mm) 334 Carton Quantity 15 Carton Weight Gross (g) 14550 Included in Package - 1 - Video to HDTV/VGA Scaler
- 1 - 3ft (1m) Composite RCA Cable
- 1 - YCbCr RCA to 8 pin DIN adapter
- 1 - 4ft (1.2m) VGA cable M-M
- 1 - Universal Power Adapter (US/UK/EU/AUS)
- 1 - User Manual
- 1 - Plastic Bracket
- 1 - 4ft (1.2m) S-Video cable
- 1 - 3ft (1m) VGA to YPbPr M/M
Package Depth (mm) 62 Package Height (mm) 138 Package Width (mm) 252 Package Quantity 1 Package Weight (g) 890 Packaging Description Composite and S-Video to VGA Video Converter Packaging Description India Composite and S-Video to VGA Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Composite Video) Connector 1 (Quantity) 1 Connector 2 RCA (Component Video, YPbPr) Connector 2 (Quantity) 1 Connector 3 S-Video (Y/C) Connector 3 (Quantity) 1 Connector 4 VGA Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,JP,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
