VID2VGATV2
Composite and S-Video to VGA Video Converter
Convert and Scale a Composite or S-Video Signal to Work with a VGA Display
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Composite and S-Video to VGA Video Converter Product Number VID2VGATV2 UPC 065030844345 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > AV Converters Category Level 1 Video Display Connectivity Category Level 2 AV Converters and Scalers Category Level 3 Legacy Converters Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Short) Composite S-Video to VGA Video Converter Product Title (Standard) Composite and S-Video to VGA Video Scan Converter, TAA Product Title (Long) Composite and S-Video to VGA Video Scan Converter - TAA Product Title (AMZ) Composite and S-Video to VGA Video Scan Converter - composite to VGA - scan Converter - s-Video to VGA , TAA (VID2VGATV2) Title Ingram (Part 1) Composite and S-Video to VGA Vid Title Ingram (Part 2) eo Scan Converter Website Product Headline Convert and Scale a Composite or S-Video Signal to Work with a VGA Display Bullet 1 Convert and scale Composite/S-Video input to VGA/Component output Bullet 2 Accepts NTSC and PAL input Bullet 3 On-Screen Display for simple output setting selection Bullet 4 50 Hz to 60 Hz frame rate conversion Bullet 5 Plug & Play installation - no drivers or software required Bullets (Consolidated) Convert and Scale a Composite or S-Video Signal to Work with a VGA Display - Video Converter - S-Video to VGA - RCA to VGA - Composite to VGA - Scan Converter - Convert and scale Composite/S-Video input to VGA/Component output Marketing Copy Applications - Perfect for displaying video from DVD players, VCRs or legacy Game Consoles on VGA projectors and HDTV sets
- Monitor security cameras with S-Video or composite signaling using VGA monitors or televisions
- Adapt VHS video in the classroom to newer televisions
- Convert legacy Medical Imaging equipment for display on computer monitors
- Use in boardrooms for adapting legacy video equipment to work with new projectors
- Display camcorder output on televisions or monitors equipped with VGA input
Website Search Keyword - CV to VGA
- SV to VGA
- S-Vid to VGA
- Composite to VGA
- Composite Video to VGA
- Composite scaler
- composite video scaler
- s-video scaler
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HD15CPNTMM3
- HD15CPNTMF
- SVIDHQ50
- SVA5M3NEUA
Related Products - VID2DVIDTV
- VID2HDMITV
- COMP2VGA
- VGA2NTSCPRO
- VGA2VID
Output Current 1A Output Voltage (V) 5 DC Power Consumption (In Watts) 2.5 Power Source AC Adapter Included Color Black Humidity 0~60% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Plastic Product Length (mm) 112 Product Width (mm) 64 Product Height (mm) 26 Product Weight (g) 86 Storage Temperature 0°C to 60°C (32°F to 140°F) TAA Compliant Yes Supported Resolutions Active or Passive Adapter Active Audio No AV Input - S-Video
- Composite
AV Output - VGA
- Component

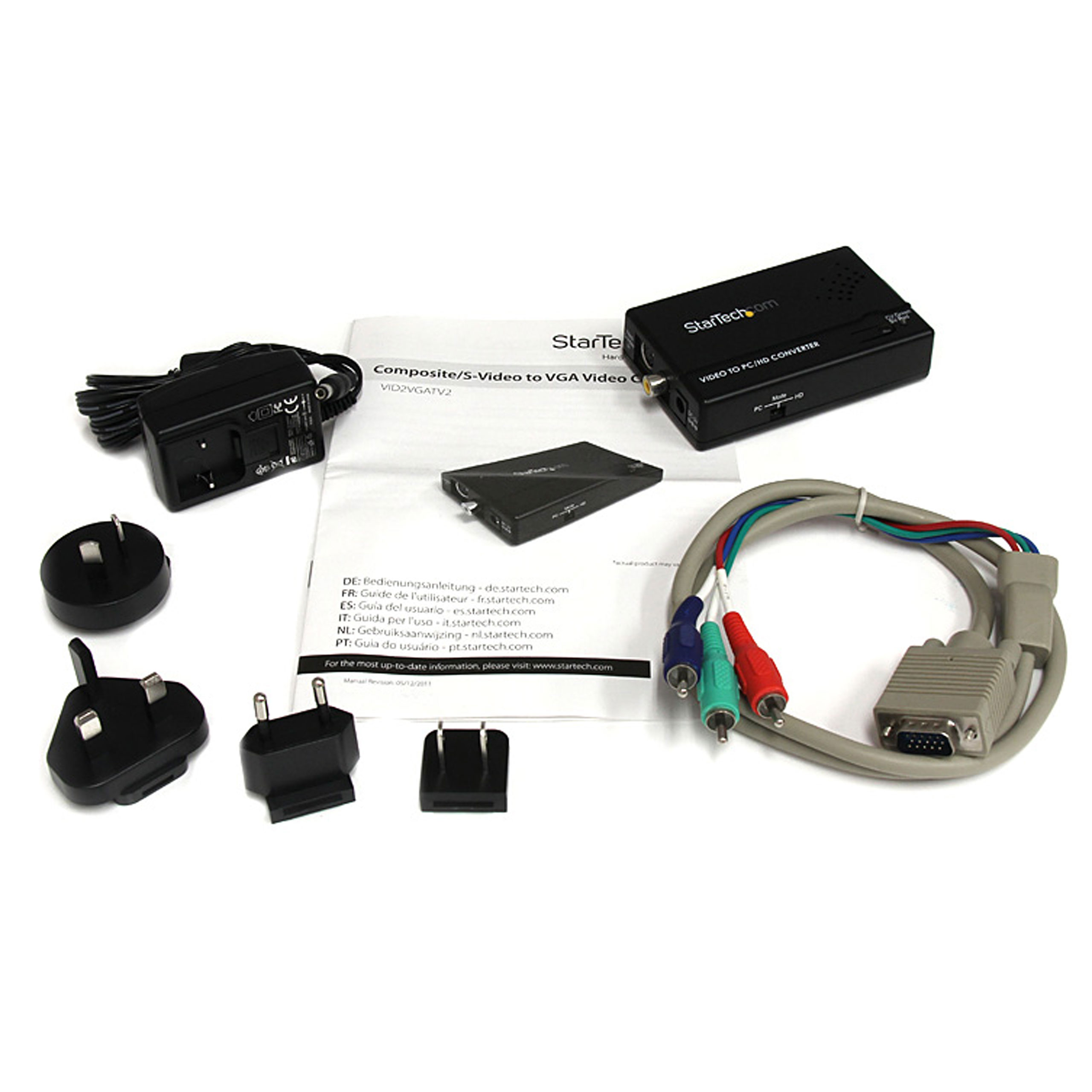

Converter Type Scaler LED Indicators 1 - Composite (Yellow) / S-Video (Red) input indicator Carton Depth (mm) 384 Carton Height (mm) 336 Carton Quantity 30 Carton Weight Gross (g) 14448 Included in Package - 1 - Video Converter/Scaler
- 1 - Universal Power Adapter
- 1 - Instruction Manual
- 1 - VGA to Component (RCA) breakout cable
Package Depth (mm) 117 Package Height (mm) 62 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 444 Packaging Description Composite S-Video to VGA Video Converter Packaging Description India Composite S-Video to VGA Video Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RCA (Composite Video) Connector 1 (Quantity) 1 Connector 2 S-Video (Y/C) Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,MX,NL,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
