VID2VGATVGB

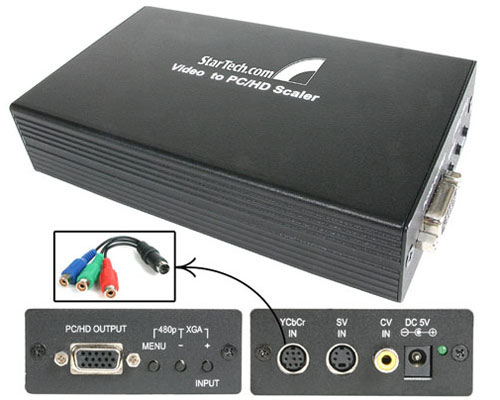

Component / Composite / S-Video to VGA / HDTV Scaler / Converter
Convert and scale a composite or S-Video signal to work with a VGA monitor
Main Image
Product Name Component / Composite / S-Video to VGA / HDTV Scaler / Converter Product Number VID2VGATVGB UPC 065030812047 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Long) Component / Composite / S-Video to VGA / HDTV Scaler / Converter Website Product Headline Convert and scale a composite or S-Video signal to work with a VGA monitor Bullet 1 A 48 MByte frame buffer eliminates image tear/video hiccupping Bullet 2 Adjust picture brightness, contrast, colour, RGB level and horizontal/vertical positioning Bullet 3 Compatible with input from broadcast formats worldwide, including NTSC and PAL Bullet 4 Includes a memory recall feature that automatically reinstates the setting last used Bullet 5 Output is analog RGBHV or YPbPr via the HD-15 VGA connector Marketing Copy Applications - Display video feeds from DVD players on VGA input projectors and HDTV sets
- Monitor Security cameras with s-video or composite signaling using VGA monitors or televisions
- Adapt VHS tapes in the classroom to show videos on newer televisions
- Convert legacy Medical imaging equipment to display on computer monitors
- Use in the Conference Room to adapt legacy video equipment and connect to newer projectors
Accessory Products - COMPHQ12
- COMPHQ25
- COMPHQ3
- COMPHQ50
- COMPHQ6
- MXT101MMHQ
- MXT101MMHQ25
- MXT101MMHQ50
- MXT105MMHQ
- SVIDHQ12
- SVIDHQ25
- SVIDHQ3
- SVIDHQ50
- SVIDHQ6
Related Products - VGA2TV2WAY
- VID2DVIDTV
Color Black Product Length (mm) 146 Product Width (mm) 77 Product Height (mm) 30 Product Weight (g) 240 TAA Compliant No General Specifications - Input Formats: Composite, S-Video, YCbCr component or RGB interlaced
- Input Signal Levels: Video @ 1V p-p, 75 ohm
- : Y @ 1 V p-p, 75 ohm
- : Colour @ 0.7V p-p, 75 ohm
- : YcbCr
- : RGBH
- Output Format: YPbPr/HDTV
- Power Adapter Specifications: 5V DC @ 2A, center positive
- VGA: 640 x 480 @ 50/60/72/75/85 Hz, RGBHV, progressive scan
- SVGA: 800 x 600 @ 50/56/60/72/75/85 Hz, RGBHV, progressive scan
- XGA: 1024 x 768 @ 50/60/70/75/85 Hz, RGBHV, progressive scan
- WXGA: 1280 x 768 @ 50/60 Hz, RGBHV, progressive scan
- SXGA: 1280 x 1024 @ 50/60 Hz, RGBHV, progressive scan
- 480p: 720 x 480, 50/60 Hz, YPbPr/RGBHV, progressive scan
- 576p: 720 x 576, 50/60 Hz, YPbPr/RGBHV, progressive scan
- 720p: 1280 x 720, 50/60 Hz, YPbPr/RGBHV, progressive scan
- 1080i: 1920 x 1080, 50/60 Hz, YPbPr/RGBHV, pseudo-interlaced
AV Input - Composite
- S-Video
- Component
AV Output VGA Included in Package - 1 - 3 foot (1 meter) Composite RCA Cable
- 1 - 4’ (1.2 meter) VGA cable M-M
- 1 - User’s manual
- 1 - Video to HDTV/VGA Scaler
- 1 - Wall-mount power adapter
- 1 - YCbCr RCA to 8 pin DIN adapter
Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 RCA (Stereo Audio) Connector 2 (Quantity) 4 Connector 3 S-Video (Y/C) Connector 3 (Quantity) 1 en-US Content Approved Yes
