VS123HD

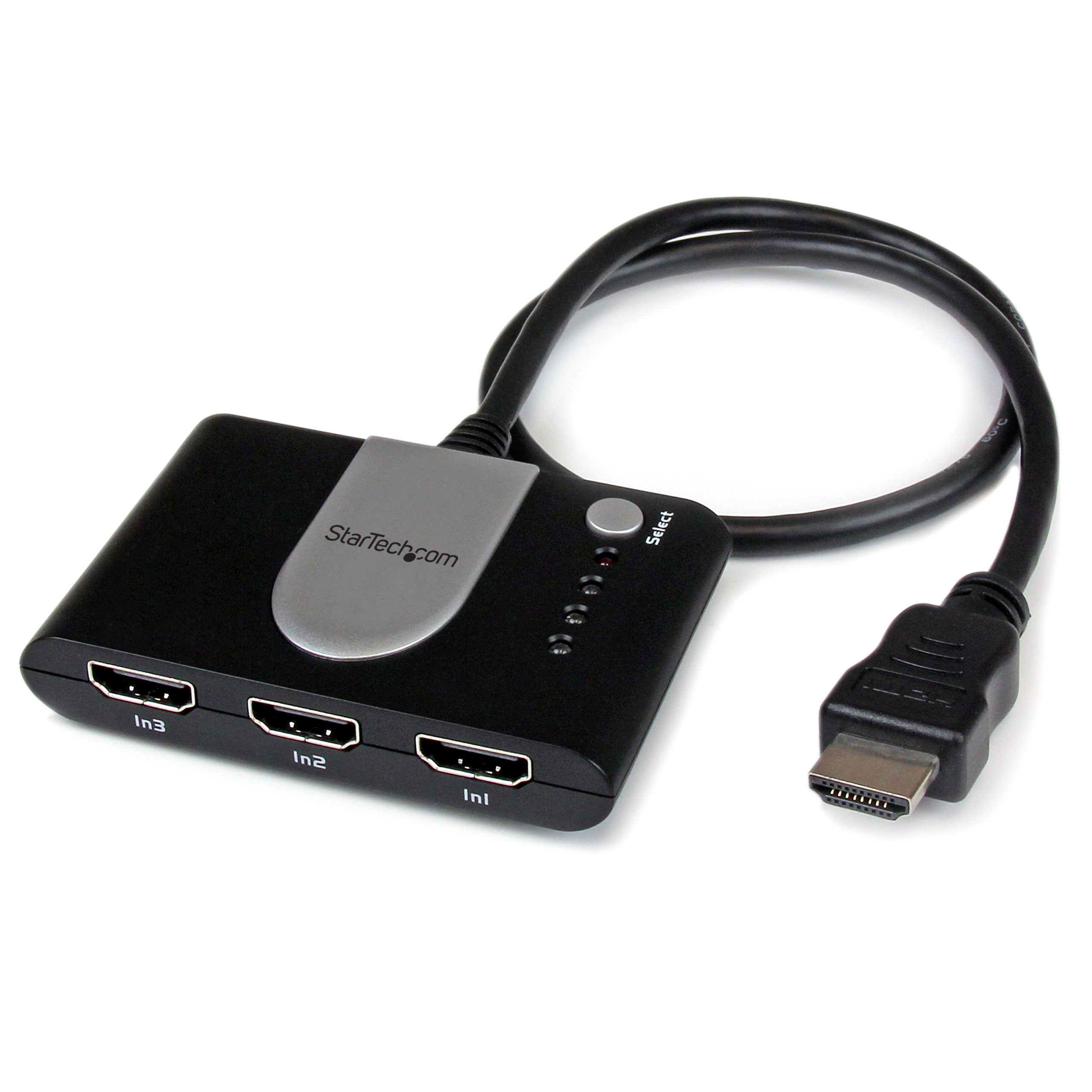

3 port HDMI auto switcher with remote control
Share a single HDMI® display or projector between three HDMI® video sources - with device priority and signal loss switching
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 3 port HDMI auto switcher with remote control Product Number VS123HD UPC 065030849548 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Switchers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX090X Product Title (Ultra-Short) 3 Port HDMI Switch Product Title (Short) 3 Port HDMI® Auto Switch w/ IR Remote Product Title (Medium) x Product Title (Standard) 3 Port HDMI® Auto Switch w/ IR Remote Control Product Title (Long) 3 Port HDMI Auto Switch w/ IR Remote Control Product Title (AMZ) 3 Port HDMI® Auto Switch w/ IR Remote Control - Automatic 3 in 1 out HDMI Switcher (VS123HD) Title Ingram (Part 1) 3x1 HDMI Switch Title Ingram (Part 2) with Automatic Switching Website Product Headline Share a single HDMI® display or projector between three HDMI® video sources - with device priority and signal loss switching Bullet 1 Transparent, automatic HDMI switching Bullet 2 Easy installation and set up in minutes Bullet 3 Supports HDTV resolutions up to 1080p Bullet 4 Supports PC resolutions up to 1920x1200 Bullet 5 Allows for cables up to 30ft (10m) in length Bullets (Consolidated) Share a single HDMI display or projector between three HDMI Video sources - with device priority and signal loss Switching - 3 port HDMI auto Switch - auto HDMI Switch - auto HDMI Switcher - 3x1 HDMI Switch - 3 in 1 out HDMI Switch Marketing Copy Applications - Switching between High-Definition audio-video devices e.g Blu-ray players, satellite receivers, video game consoles or computers with HDMI output
- Digital signage scenarios that require a signal always be available to a display
Website Search Keyword - 2 Port HDMI Switch
- 2 Port HDMI Switcher
- Auto Sensing Switch
- Auto Switch
- Automatic Switch
- Priority
- HDMI Switch
- HDMI Switcher
- HDMI Audio and Video Switch
- HDMI 1.3 Auto Switch
- HDMI 1.3 Auto Switcher
- High-Speed HDMI
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement

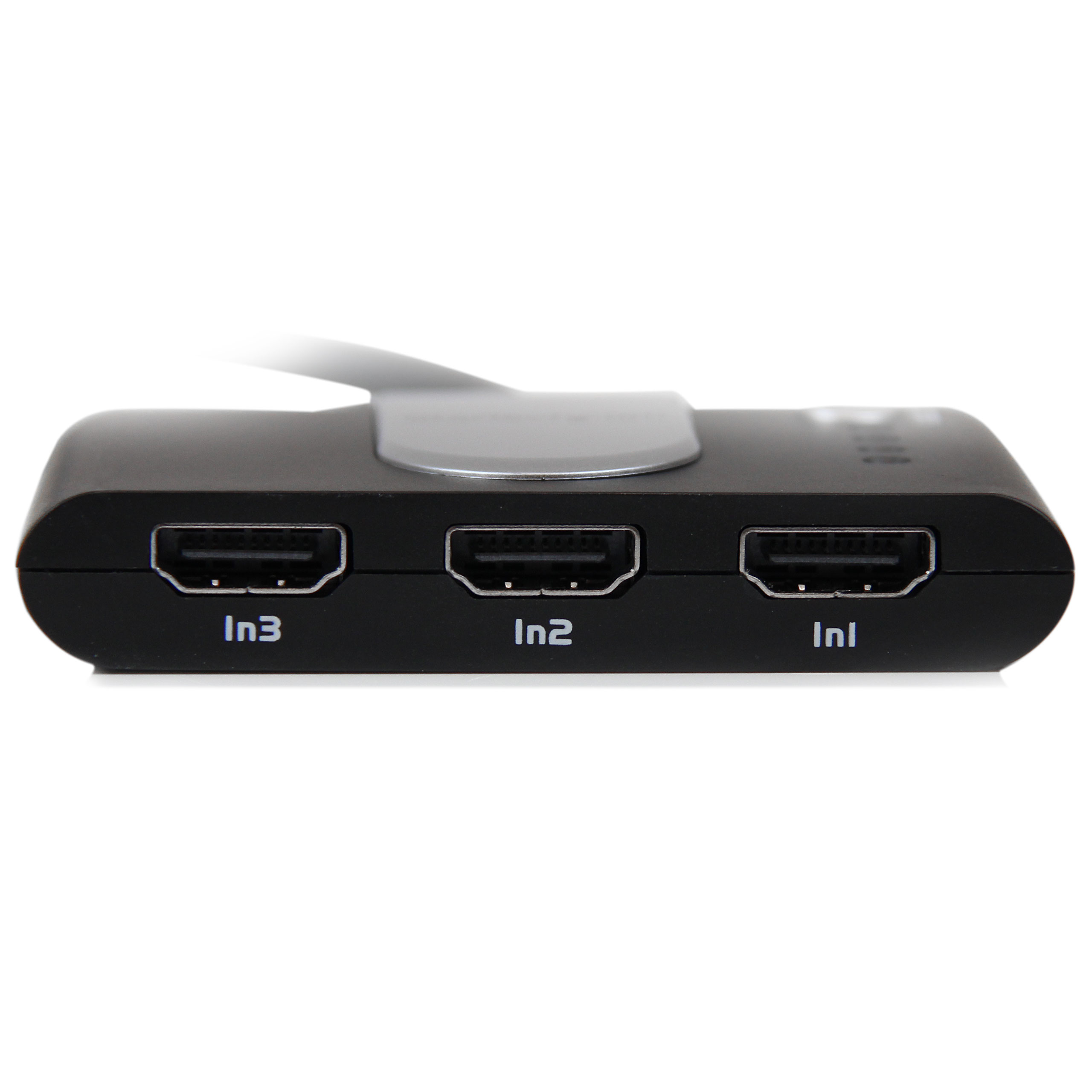

Special Notes Port 1 is set to have higher priority than port 2 or port 3 when all signals are on. Port 2 is set to have higher priority than port 3 when both signals are on, but Port 1 is off. Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15

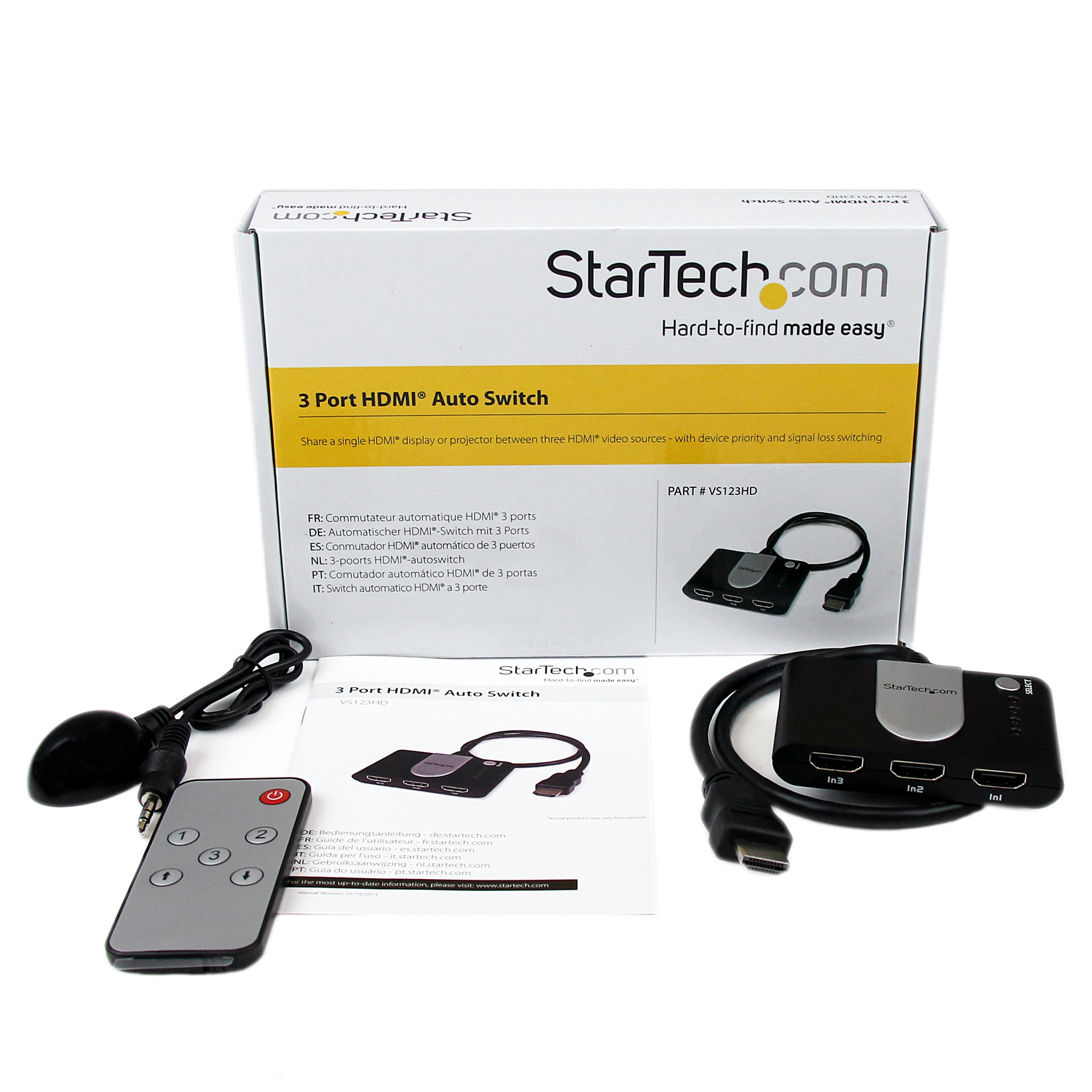

Related Products VS410HDMIE Color Black Humidity 10% to 85%RH Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 81 Product Width (mm) 55 Product Height (mm) 25 Product Weight (g) 68 Storage Temperature -65°C to 150°C (-85°F to 302°F) TAA Compliant No Max Distance 10m [33ft] Maximum Digital Resolutions 1920x1200 Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Industry Standards High Speed HDMI®, HDCP LED Indicators 3 - Two Green for Display Status, and one red for power. Matrix Video Switch (Filter) No Carton Depth (mm) 370 Carton Height (mm) 260 Carton Quantity 24 Carton Weight Gross (g) 5938 Included in Package - 1 - 3 Port High Speed HDMI® Auto Switch
- 1 - Instruction Manual
- 1 - Remote Control
- 1 - IR Extender Cable
Package Depth (mm) 145 Package Height (mm) 40 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 214 Packaging Description 3 Port HDMI® Auto Switch Packaging Description India 3 Port HDMI® Auto Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 3 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-04-09 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) AU,BE,CA,DE,DK,ES,EU,FR,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy
