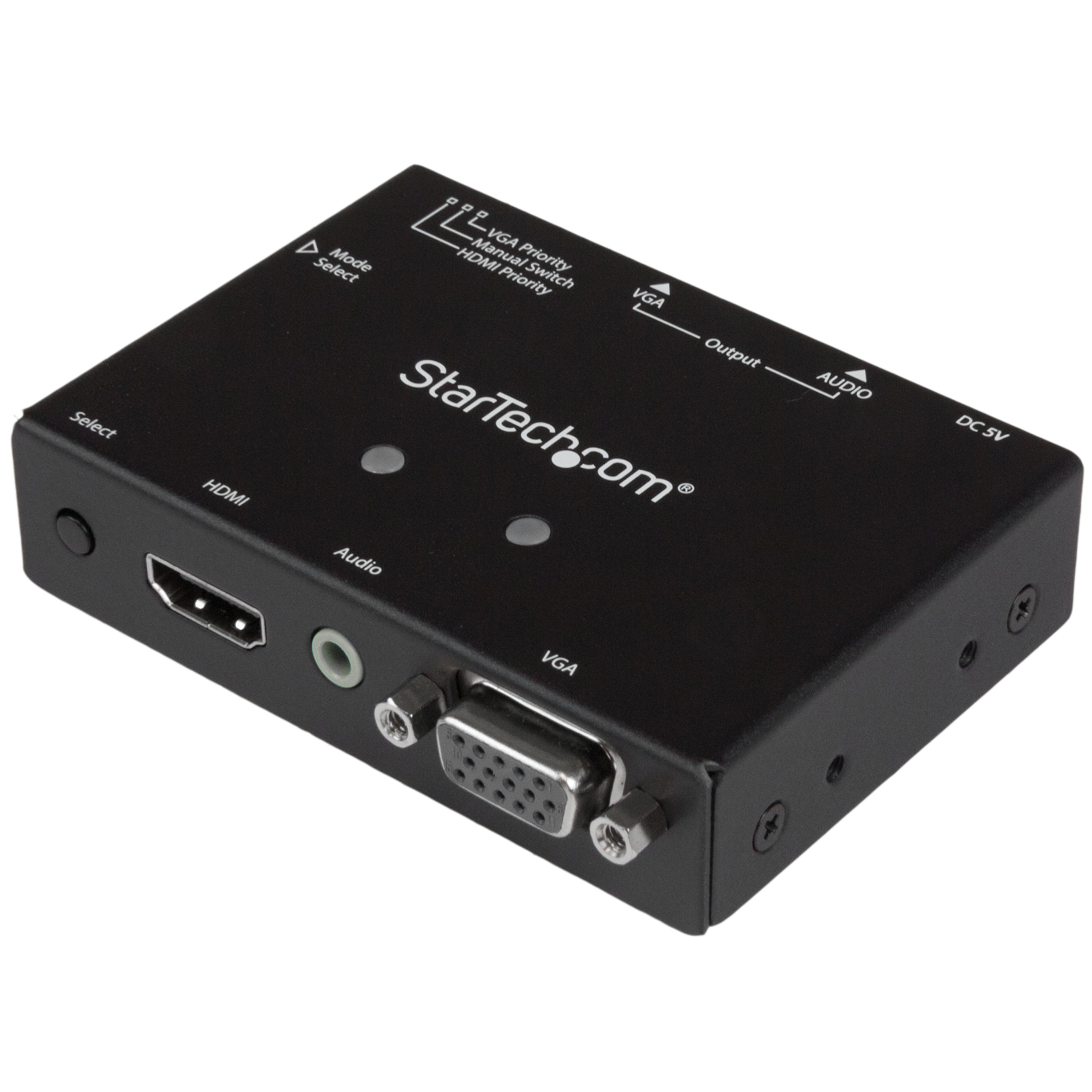

VS221HD2VGA
VGA HDMI Auto Switch to VGA
Share a VGA display/projector between a VGA and HDMI audio/video source, with priority switching
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name VGA HDMI Auto Switch to VGA Product Number VS221HD2VGA UPC 065030858410 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 Multi-Input Switchers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) VGA + HDMI AV Switch Product Title (Short) 2x1 VGA + HDMI to VGA Converter Switch Product Title (Medium) 2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching – 1080p Product Title (Standard) 2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching – 1080p Product Title (Long) 2x1 VGA + HDMI to VGA Converter Switch with Priority Switching - 1080p - TAA Product Title (AMZ) 2x1 VGA + HDMI to VGA Converter Switch w/ Priority Switching – Multi-format VGA and HDMI to VGA Selector – 1080p (VS221HD2VGA) Title Ingram (Part 1) 2x1 VGA+HDMI to VGA Converter Title Ingram (Part 2) Switch - Priority Switching Website Product Headline Share a VGA display/projector between a VGA and HDMI audio/video source, with priority switching Bullet 1 Accommodates both VGA and HDMI input devices in a single switch with VGA output, saving hassle and expense by reducing the need for adapters Bullet 2 Effortless control with priority port selection Bullet 3 Supports video resolutions up to 1920x1200 / 1080p Bullet 4 Supports EDID pass-through, EDID Copy and EDID Emulation Bullet 5 Mounting hardware included Bullets (Consolidated) Share a VGA monitor/projector between a VGA and HDMI audio/video source with priority switching - Compatible with HDMI and VGA enabled computer systems and VGA enabled monitors or projecotrs - HDMI to VGA/VGA Switch/HDMI to VGA Switch Box/VGA Converter Switch box with HDMI/HDMI to VGA Selector/HDMI to VGA Converter Switch - Share a classroom or conference room projector with VGA and HDMI video sources Marketing Copy Applications - Automatically switch between your set-top box or computer in a home theatre environment
- Share a classroom or conference room projector with VGA and HDMI video sources
- Connect and switch between VGA and HDMI video sources on a test bench, for troubleshooting computers
- Switch between VGA and HDMI video sources on your digital signage display in hospitals, shopping centers, or schools
Website Search Keyword - vga to hdmi
- hdmi to vga
- hdmi switch
- hdmi switch box
- vga switch
- hdmi selector
- convert vga to hdmi
- AV switch box
- hdmi auto switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Special Notes Digitally encrypted content from the HDMI video source will not be displayed on the VGA display Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVA5N3NEUA
Related Products - VS410RVGAA
- VS410HDMIE
- ST122VGA
- ST122VGAU
- VS721MULTI
- VS123HD
- VS221HDQ
- VS122HDMIU
- VS221VGA2HD
Constrained SKU Alternatives (Limited Stock) VS221VGA2HD Input Current 0.4 A Input Voltage 100 - 240 AC Output Current 2 A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Color Black Humidity 0%~80% Material Steel Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Steel Product Length (mm) 84.000 Product Width (mm) 59.000 Product Height (mm) 20.000 Product Weight (g) 172.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Analog Resolutions 1920x1200 Maximum Digital Resolutions 1920x1200 Supported Resolutions Supports resolutions up to 1920x1200 / 1080p Wide Screen Supported Yes Audio Yes AV Input - HDMI
- VGA
AV Output VGA LED Indicators - 1 - VGA Port Selected
- 1 - HDMI Port Selected

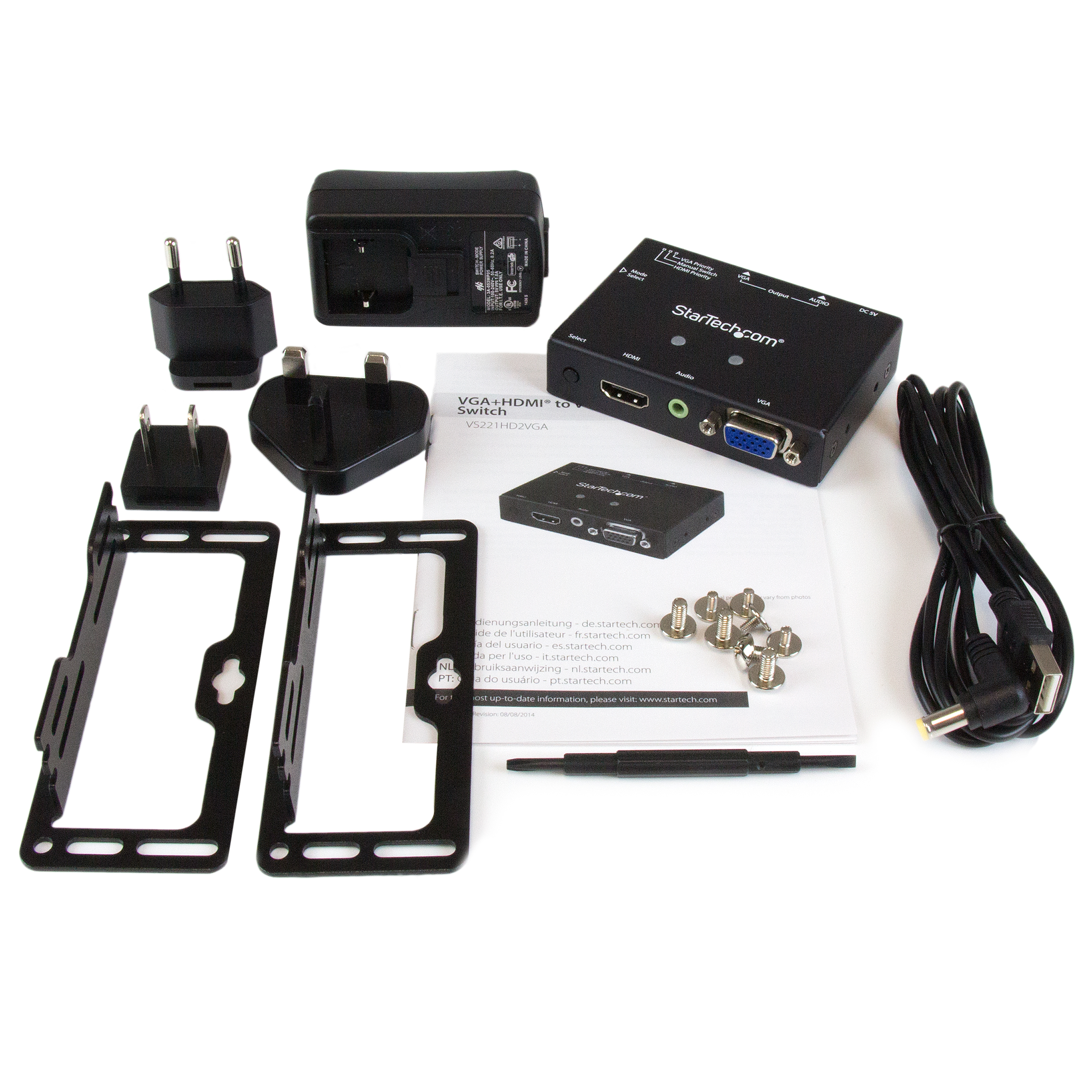

Matrix Video Switch (Filter) No Carton Depth (mm) 322 Carton Height (mm) 266 Carton Quantity 12 Carton Weight Gross (g) 7700 Included in Package - 1 - VGA+HDMI to VGA converter switch
- 1 - mounting brackets
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 1 - instruction manual
Package Depth (mm) 158 Package Height (mm) 65 Package Width (mm) 237 Package Quantity 1 Package Weight (g) 566 Packaging Description VGA+HDMI® to VGA Audio/Video Converter Switch Packaging Description India VGA+HDMI® to VGA Audio/Video Converter Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 1 Connector 3 VGA Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-05-23 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None
