VS221HD4K

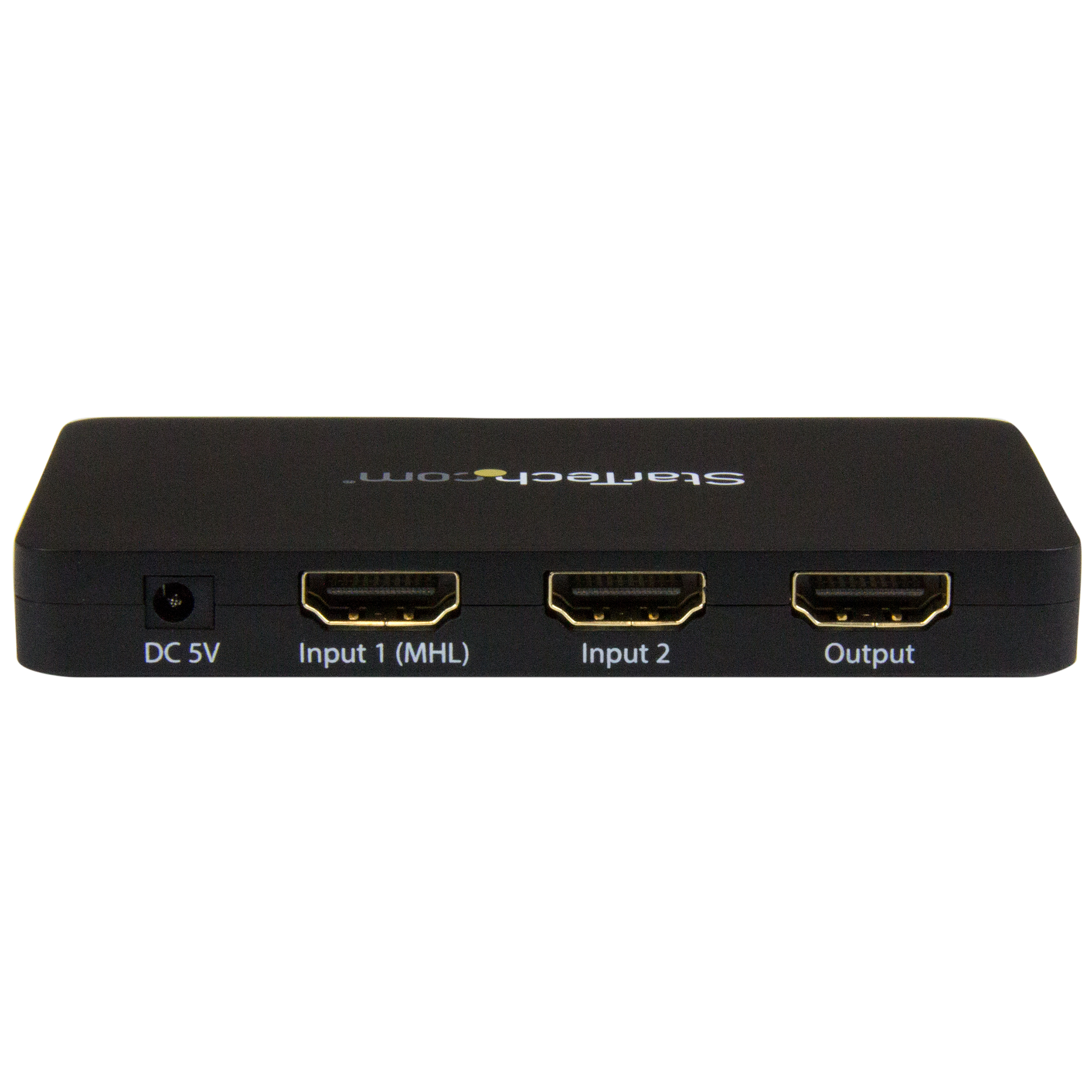

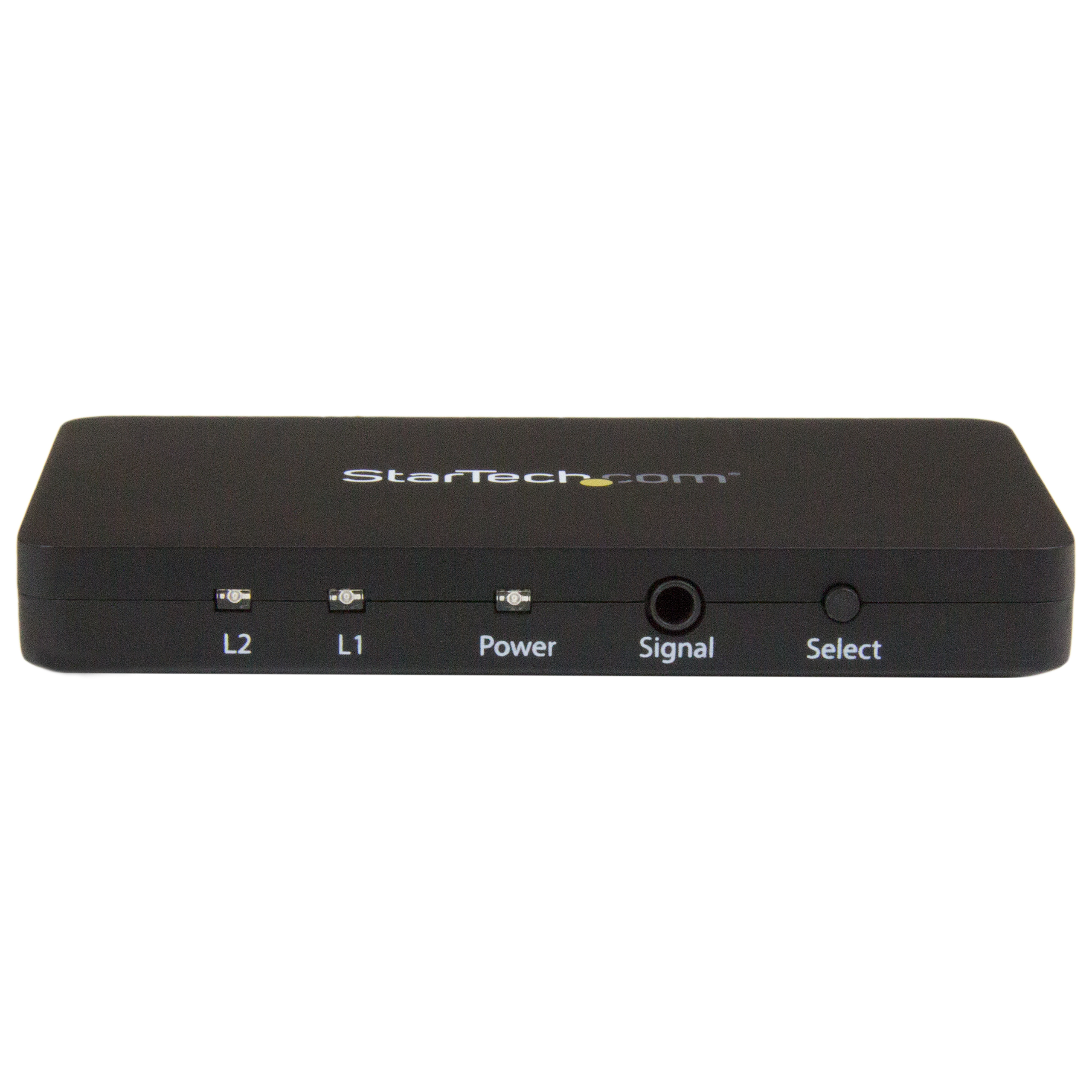

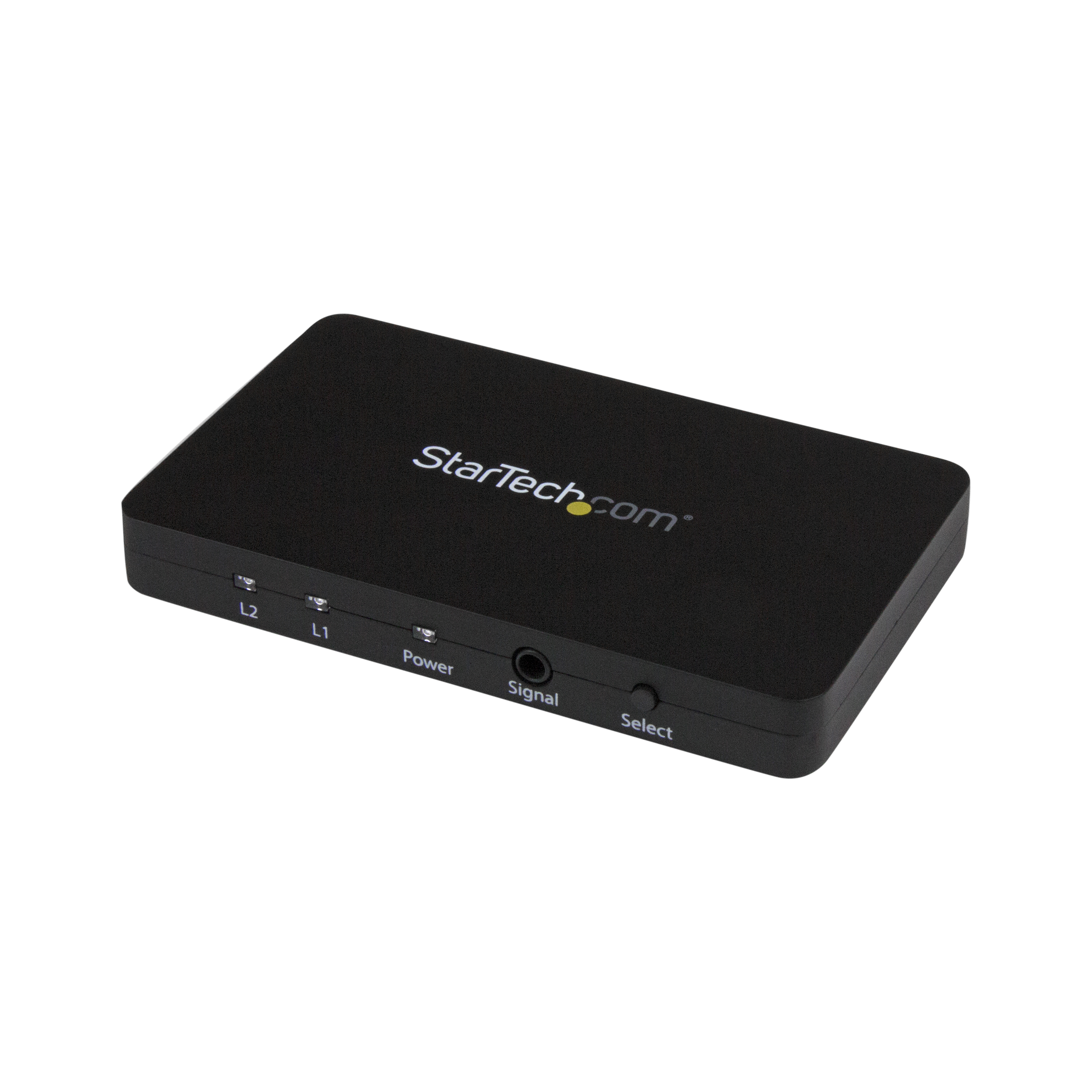

HDMI Super Slim 4K HDMI 2x1 switch
Switch between two HDMI sources on a single HDMI display, with support for MHL and video resolutions up to 4K
Main Image
Product Images
Product Images
BOM Image
Product Name HDMI Super Slim 4K HDMI 2x1 switch Product Number VS221HD4K UPC 065030859646 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Switchers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX078X Manual https://images.salsify.com/image/upload/s--P8xrRjiJ--/6cc202293be62d41d930b50480643a3d831971b1.pdf Material Safety Data Sheet (MSDS) Product Title (Ultra-Short) 2x1 4K HDMI switch Product Title (Short) 2-Port HDMI automatic video switch – 4K Product Title (Medium) 2-Port HDMI Automatic Video Switch w/ Aluminum Housing and MHL Support - 4K 30Hz Product Title (Standard) 2-Port HDMI Automatic Video Switch w/ Aluminum Housing and MHL Support - 4K 30Hz Product Title (Long) 2-Port HDMI Automatic Video Switch w/ Aluminum Housing and MHL Support - 4K 30Hz Product Title (AMZ) 2 Port HDMI Switch - Aluminum Housing and MHL Support - 2x1 HDMI Switcher Box with Support for 4K at 30Hz - HDMI Selector Switch (VS221HD4K) Title Ingram (Part 1) 2x1 HDMI automatic video switch Title Ingram (Part 2) with MHL support – 4K at 30Hz Website Product Headline Switch between two HDMI sources on a single HDMI display, with support for MHL and video resolutions up to 4K Bullet 1 Astonishing picture quality with support for Ultra HD 4K Bullet 2 Solid aluminum housing ensures fixed positioning Bullet 3 Hassle-free operation with automatic 2-port switching Bullet 4 2x1 HDMI switch with MHL support Bullet 5 IR remote control included Bullets (Consolidated) Switch between two HDMI sources on a single HDMI display with support for MHL and video resolutions up to 4K - HDMI switch - Compatible with HDMI enabled devices such as Blu-ray players and computer systems, and HDMI displays and projectors - HDMI selector switch/2 port HDMI switch/2x1 HDMI switch/4k HDMI switch/2 to 1 HDMI/ - Collaborate with colleagues by sharing two HDMI or MHL devices (adapter required) with a single display in a boardroom or classroom and switch between devices Marketing Copy Marketing Copy (No HTML) Applications - Share a 4K television or projector with two different 4K video sources
- Collaborate with colleagues by connecting multiple users to the same display, and switch between input devices
- Use in digital signage applications to display multiple source devices at different times
- Use in your home theater to connect two A/V devices to your television, such as Blu-ray players, cable and satellite set-top boxes, and computers
Website Search Keyword - hdmi switch
- hdmi switcher
- 2 port hdmi switch
- hdmi selector
- 4k
- hdmi 4k switch
- 4k switcher box
- hdmi switcher box
- ultra hd
- boardroom switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- SVA5H2NEUA
Related Products VS421HD4K Input Current 1 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Center Tip Polarity Positive Color Black Humidity 5% to 90% Material Aluminum Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Aluminum Product Length (mm) 100.000 Product Width (mm) 61.500 Product Height (mm) 14.000 Product Weight (g) 180.000 Storage Temperature -10°C to 80°C (14°F to 176°F) TAA Compliant No Maximum Digital Resolutions 4K @ 30 Hz OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Industry Standards HDMI 1.4 LED Indicators - 1 - Power LED
- 2 - Port selected LED (1 / 2)

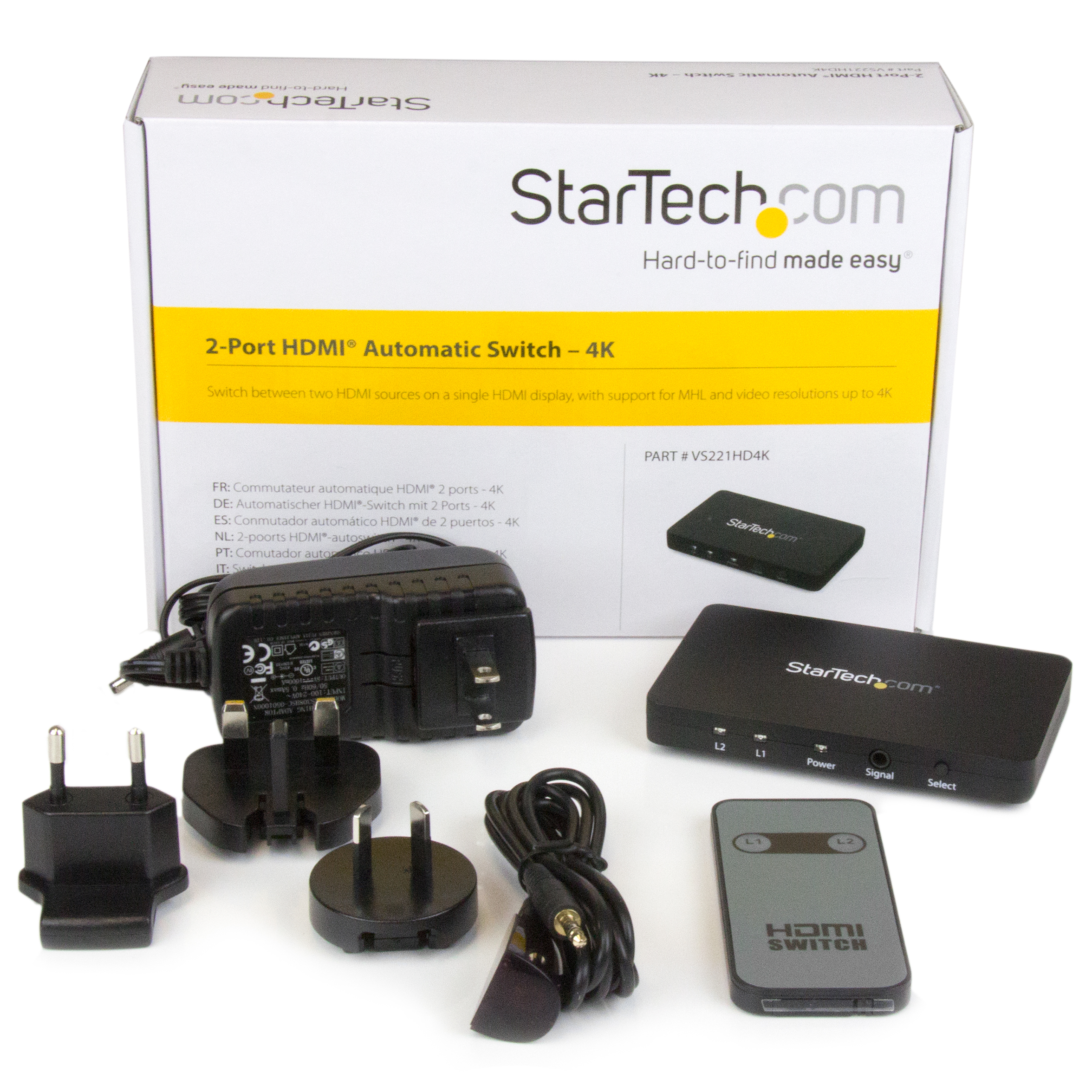

Matrix Video Switch (Filter) No Carton Depth (mm) 280 Carton Height (mm) 160 Carton Quantity 10 Carton Weight Gross (g) 5468 Included in Package - 1 - 2-port 4K HDMI switch
- 1 - IR cable
- 1 - remote control
- 1 - universal power adapter (NA, EU, UK, AU)
Package Depth (mm) 149 Package Height (mm) 54 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 464 Packaging Description 2-Port HDMI® Automatic Switch – 4K Packaging Description India 2-Port HDMI® Automatic Switch – 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-30 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CO,DE,DK,ES,EU,FR,IE,IT,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None
