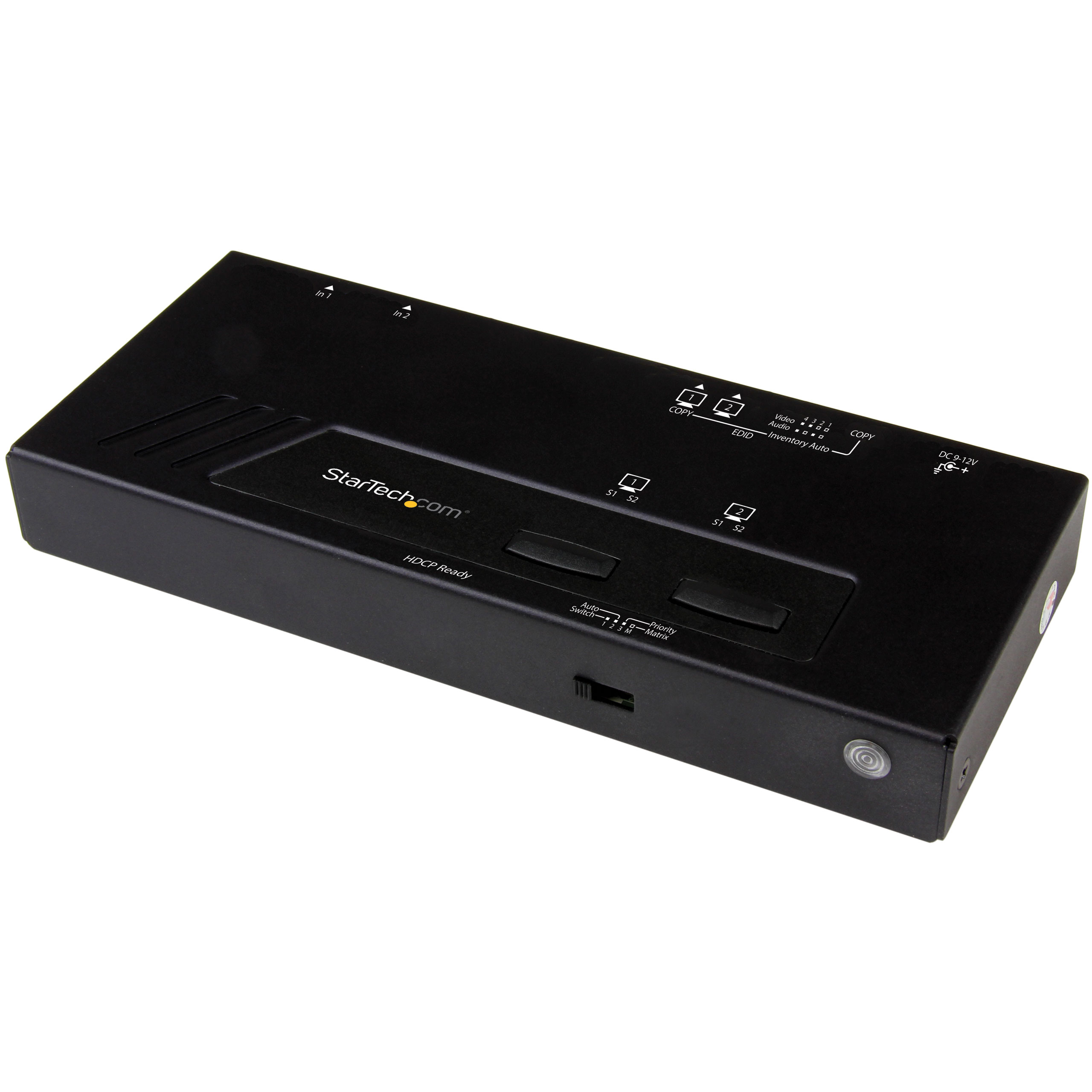

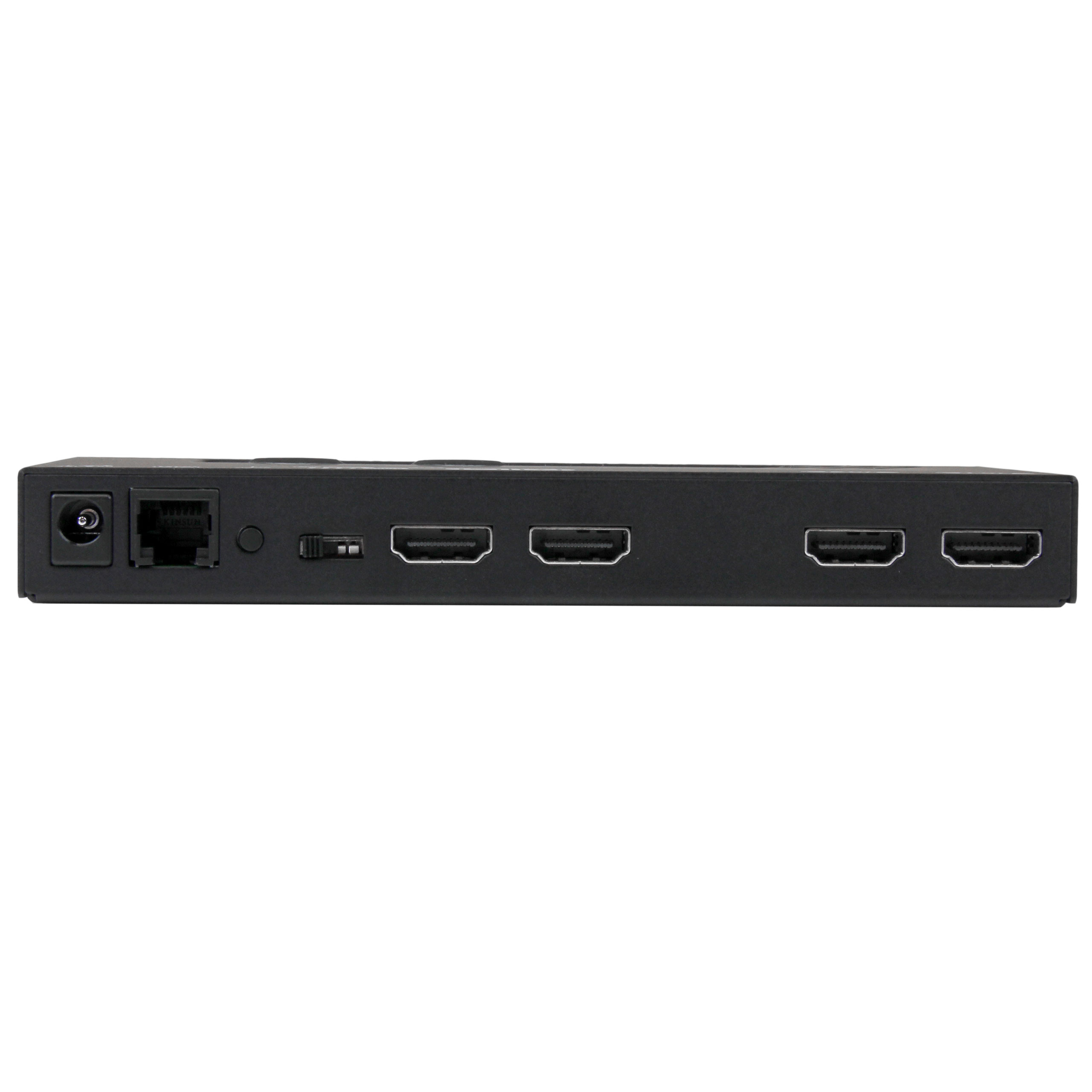

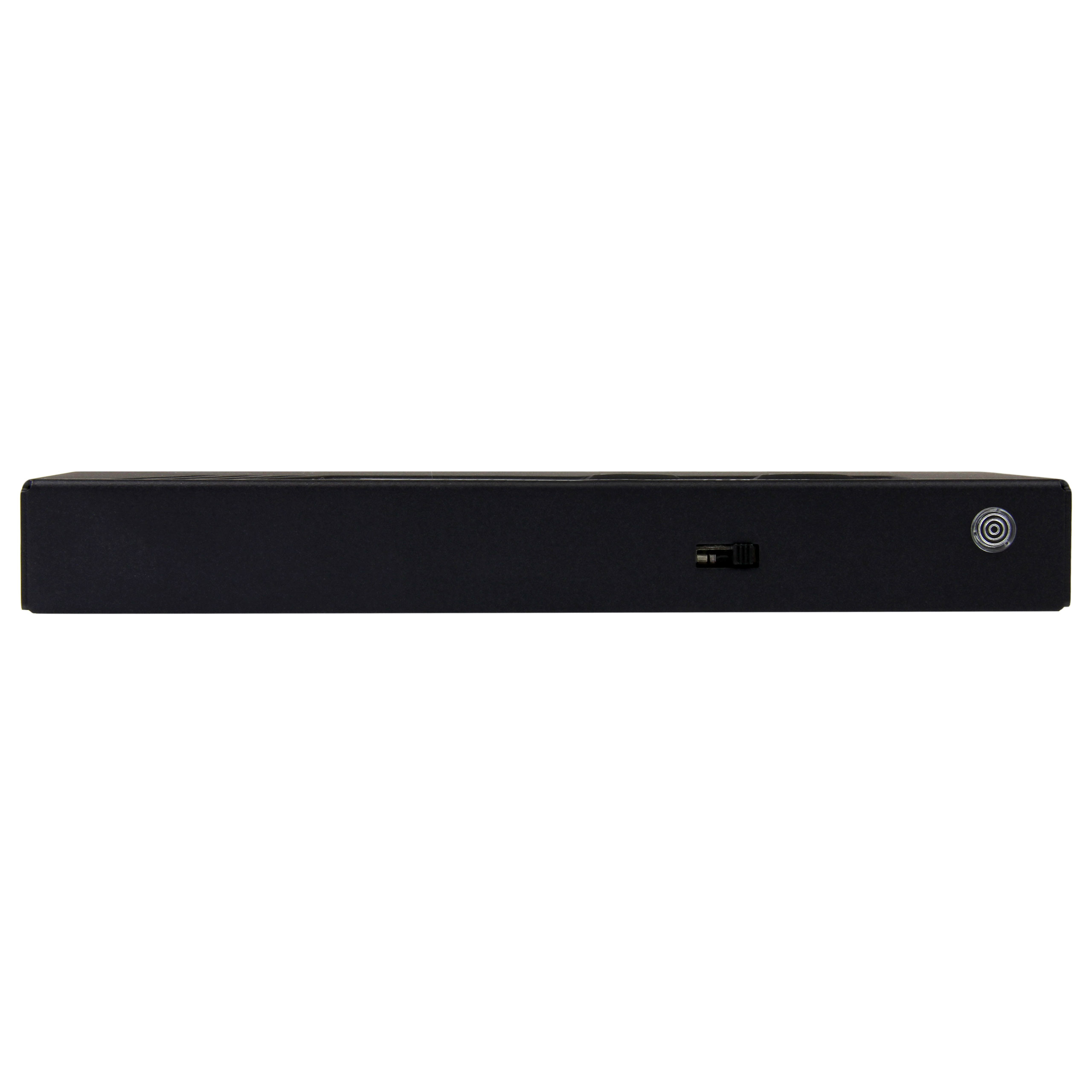

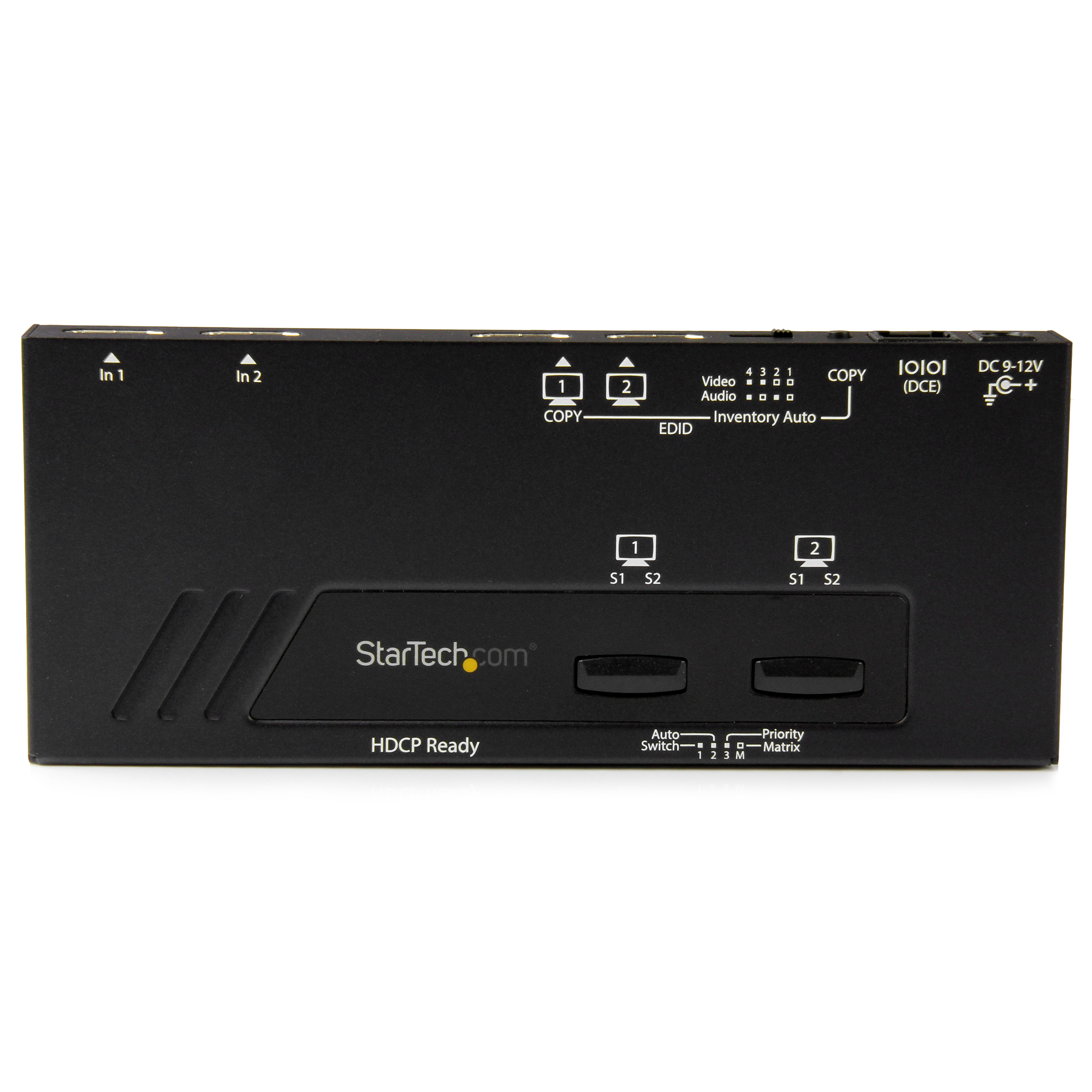

VS222HD4K
2X2 HDMI matrix Switch
Automatically switch between two 4K video sources on two displays, utilizing fast-switching technology
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 2X2 HDMI matrix Switch Product Number VS222HD4K UPC 065030862271 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Matrix Family 2X2 HDMI Matrix Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) 2x2 4K HDMI Switch Product Title (Short) 2x2 HDMI Matrix Switch - Ultra HD 4K Product Title (Medium) 2x2 HDMI Matrix Switch - 4K with Fast Switching, Auto-Sensing and Serial Control Product Title (Standard) 2x2 HDMI Matrix Switch, 4K with Fast Switching, Auto-Sensing and Serial Control, TAA Product Title (Long) 2x2 HDMI Matrix Switch - 4K with Fast Switching and Auto-Sensing - TAA Product Title (AMZ) 2x2 HDMI Matrix Switcher - 4K UltraHD HDMI Switch with Fast Switching, Auto-Sensing and Serial Control , TAA (VS222HD4K) Title Ingram (Part 1) 2x2 4K HDMI Matrix Switch with Title Ingram (Part 2) Fast Switching and Auto-Sensing Website Product Headline Automatically switch between two 4K video sources on two displays, utilizing fast-switching technology Bullet 1 Impressive image quality with support for Ultra HD 4K Bullet 2 Easy operation with automatic, priority and manual switching between HDMI sources Bullet 3 Access two HDMI source devices on two independent HDMI displays, with 2 x 2 matrix switching Bullet 4 IR remote control included Bullet 5 RS-232 serial control interface Bullets (Consolidated) Automatically switch between two video sources on two displays w/ fast switching for minimal video disruption - 4K 2x2 HDMI Matrix Switch - UltraHD 4K w/ fast switching and auto-sensing - 4K HDMI matrix switch w/ remote control switching - 2x2 matix switch w/ UltraHD 4K support - RS-232 serial control interface - Versatile audio configuration w/ support for 5.1 or 7.1 surround sound - Support for EDID copy ensures accurate display output - Backward compatible w/ high-definition 1080p Marketing Copy Marketing Copy (No HTML) Applications - Run Ultra HD 4K multimedia presentations on two monitors in conference rooms, commercial settings or at trade shows
- Switch between different video sources on your digital signage displays in hospitals, shopping centers, or schools
- Connect and switch between two video sources and two displays on a test bench, for troubleshooting computers
- Automatically switch between your Blu-ray player, set-top box, or gaming console in a home theatre environment
Website Search Keyword - 4K HDMI switch
- 4K HDMI matrix switch
- UltraHD HDMI switch
- UltraHD HDMI matrix switch
- 2x2 HDMI switch 4K
- 2x2 HDMI matrix switch 4K
- 4K HDMI switch RS232
- 4K HDMI switch serial
- HDMI switch
- video switch
- matrix switch
- B119-2X2
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM610PK
- HDMM610PK
Related Products - VS221VGA2HD
- VS421HD4K
- VS221HD4K
- VS221HD2VGA
- VS421HDPIP
- VS424HDPIP
- VS222HDQ
- VS221HDQ
- ST424HDBT
- ST122VGA
Constrained SKU Alternatives (Limited Stock) VS222HDQ Input Voltage 100 - 240 AC Output Current 1.5 Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Color Black Humidity 0% ~ 80% Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 156.000 Product Width (mm) 65.000 Product Height (mm) 20.000 Product Weight (g) 296.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Max Distance 10m [33ft] Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 4K @ 30 Hz OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Industry Standards HDMI 1.4 LED Indicators - 2 - Active port LED
- 1 - Power LED

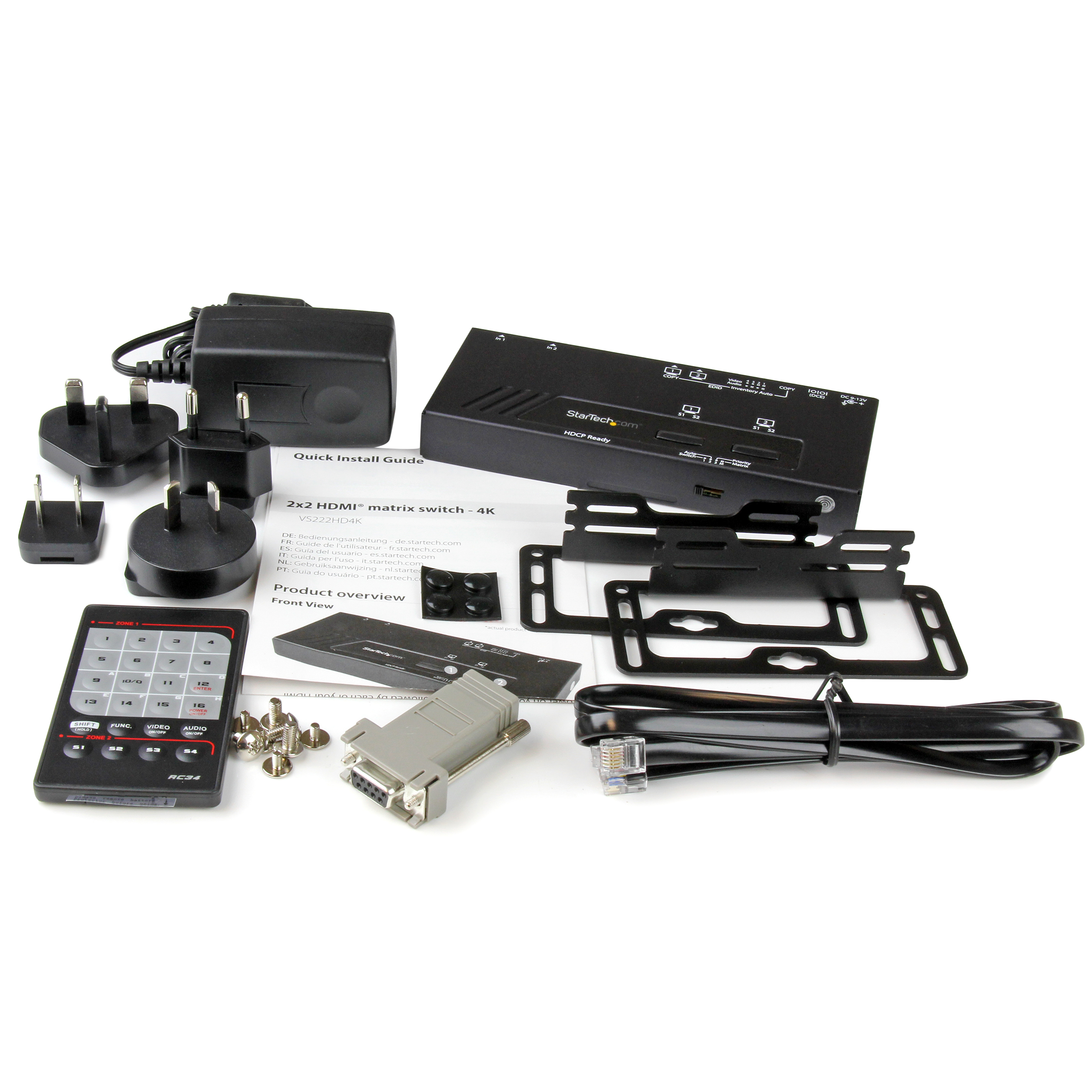

Matrix Video Switch (Filter) Yes Carton Depth (mm) 326 Carton Height (mm) 268 Carton Quantity 12 Carton Weight Gross (g) 10800 Included in Package - 1 - 2x2 HDMI matrix switch
- 1 - remote control
- 1 - universal power adapter (NA/EU/UK/AU)
- 1 - RJ11 cable (1200mm)
- 1 - RJ11 to DB-9 serial adapter
- 1 - quick start guide
- 1 - mounting kit
Package Depth (mm) 236 Package Height (mm) 67 Package Width (mm) 158 Package Quantity 1 Package Weight (g) 830 Packaging Description 2x2 HDMI® matrix switch - 4K Packaging Description India 2x2 HDMI® matrix switch - 4K Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 2 Connector 2 HDMI Connector 2 (Quantity) 2 Connector 3 RJ-11 Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-03-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2015-08-14 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None
