Product Name 3 to 1 DVI Switcher with Remote Product Number VS310DVIR UPC 065030818209 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Long) 3x1 HDCP Compliant DVI Switcher w/Remote Control Bullet 1 Connect up to three devices to your TV or other display using a single set of inputs Bullet 2 Includes an easy-to-use remote control for easy switching between devices Bullet 3 Maintains clear audio and video signals for excellent performance Bullet 4 Signal enhance feature improves signal quality for longer length transmissions. Marketing Copy Applications - Presentations
- Tradeshow/Conferences
- Retail
- Entertainment
Website Search Keyword - DVI
- Switch
System and Cable Requirements - A display that has at least one DVI input
- A DVI cable to connect your display to the switch (if not already included with the display)
- Male-to-male DVI cables for each device to be connected to the switch
Accessory Products - ZENDVI1
- ZENDVI2
- ZENDVI4
Power Source AC Adapter Included Center Tip Polarity Positive Material Aluminum Product Length (mm) 20 Product Width (mm) 25 Product Height (mm) 105 Product Weight (g) 0.57 TAA Compliant No General Specifications - Frequency Bandwidth: 1.65 Gbps

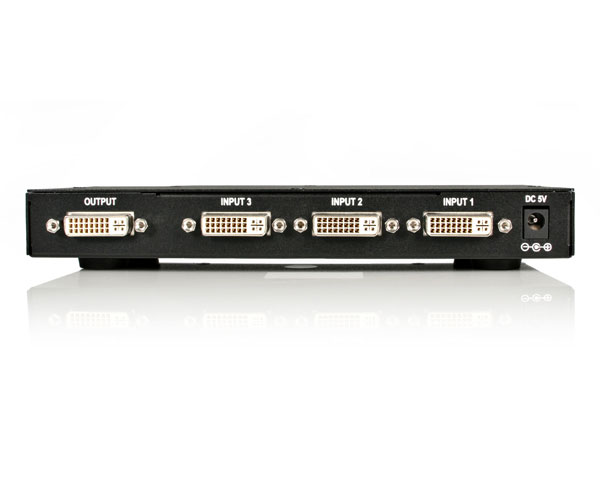

- Input Connectors: 3 DVI-I Female Ports
- Output Connectors: 1 DVI-I Female Ports
- Maximum Resolution PC: 1600x1200
- Maximum Resolution HD: 1080p
- NOTE: All DVI-I ports on the VS310DVIR accept digital signals only.

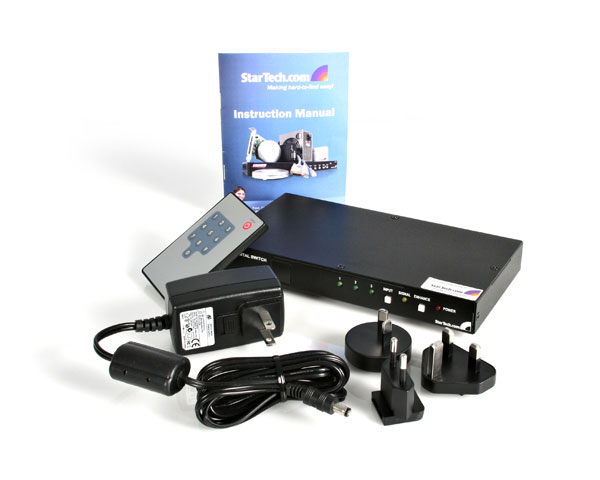

AV Input DVI AV Output DVI Carton Depth (mm) 382 Carton Height (mm) 384 Carton Quantity 10 Carton Weight Gross (g) 11900 Included in Package - 1 - DVI Switcher
- 1 - Remote Control
- 1 - Manual
- 1 - Universal Power Adapter
Package Depth (mm) 72 Package Height (mm) 183 Package Width (mm) 280 Package Weight (g) 1070 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 en-US Content Approved Yes Product Manager Eric Roth
