VS321HDBTK
3 Port HDMI Auto Switch with HDBaseT Extender
HDBaseT™ Extender| 4K 30Hz | Automatic Switch | Mac & Windows
Main Image

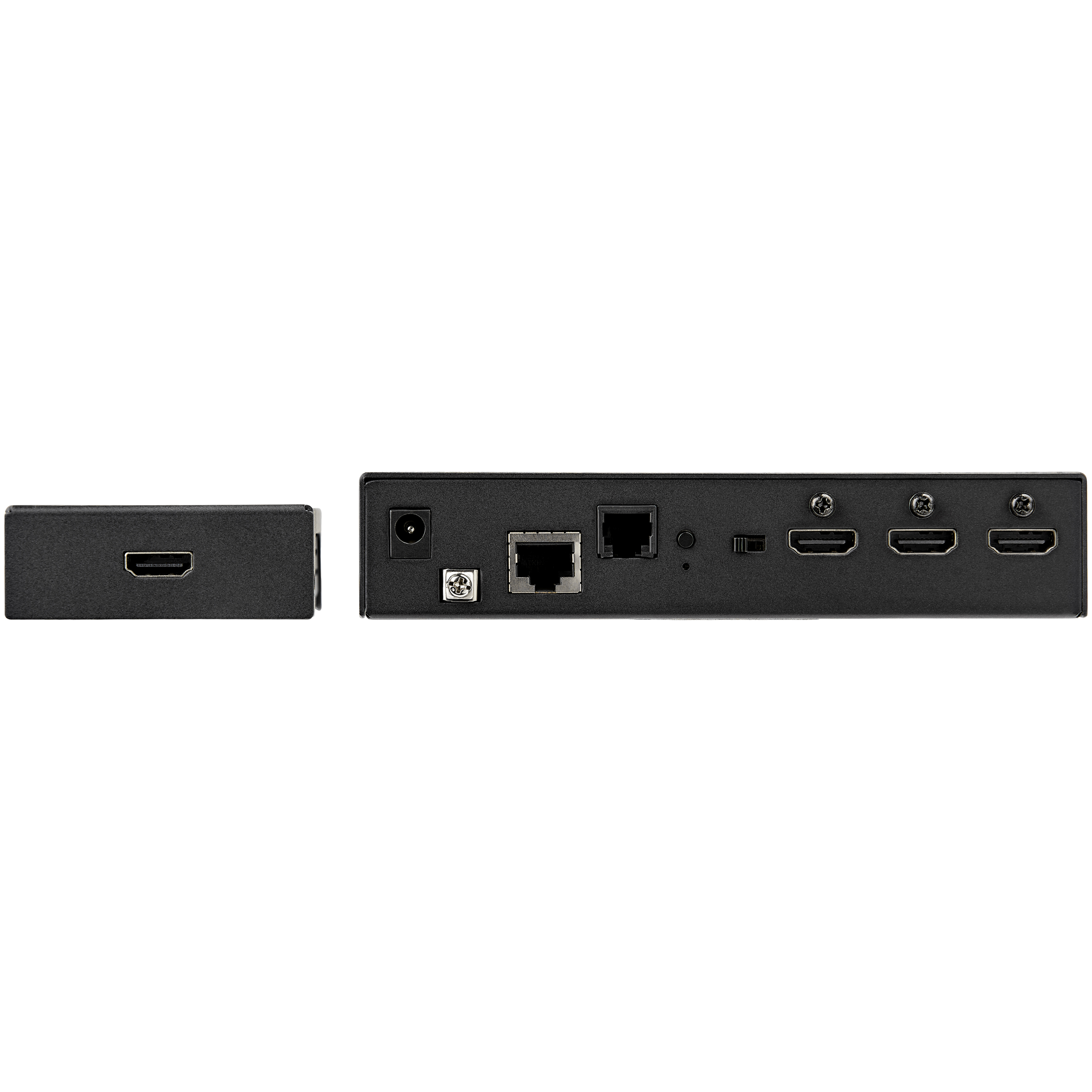

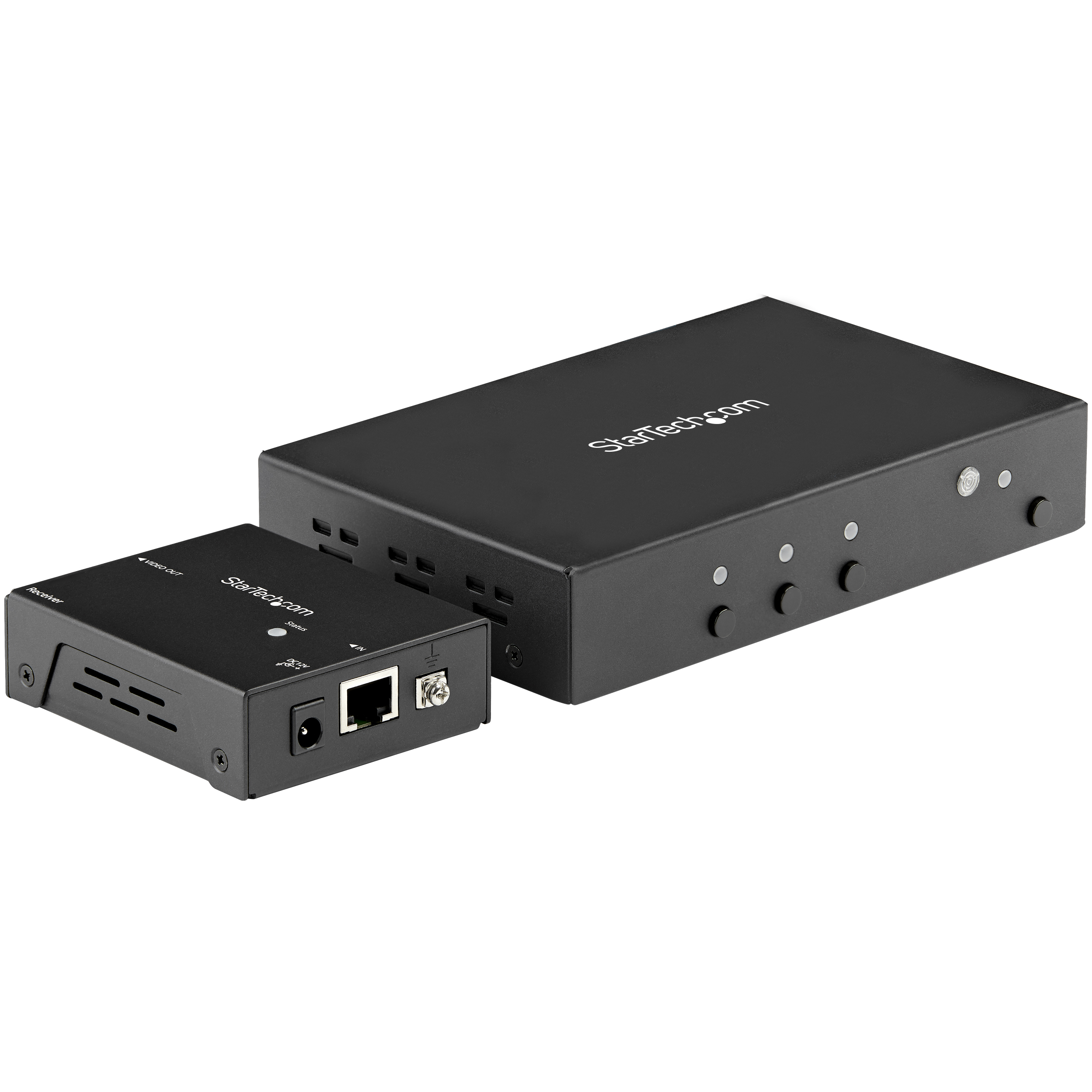

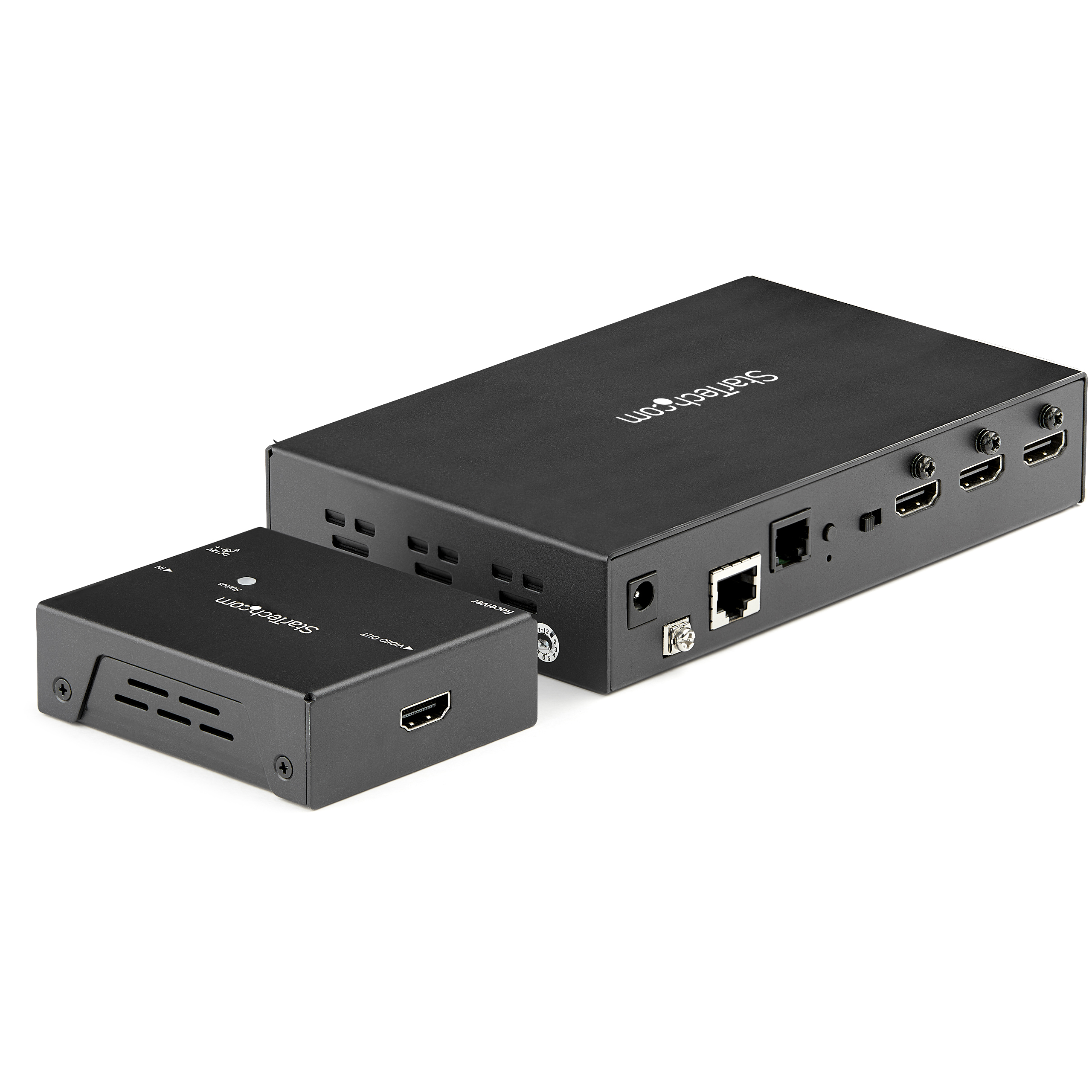

Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 3 Port HDMI Auto Switch with HDBaseT Extender Product Number VS321HDBTK UPC 065030880091 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Switchers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Ultra-Short) HDMI Extender Switch Product Title (Short) HDMI Extender over CAT6 w/ 3 Port Switch Product Title (Medium) HDMI Extender over CAT6 with 3 Port HDMI Switch - 4K 30Hz - Automatic Switch Product Title (Standard) HDMI Extender over CAT6/5e with 3 Port Video Switch 4K 30Hz, 115ft, HDMI Switch Box, Video over HDBaseT w/Auto Switcher, TAA Product Title (Long) HDMI Extender over CAT6 with 3 Port Video Switch, 4K 30Hz/115ft, HDBaseT HDMI Extender Kit, IR Control, 4K Video over Ethernet w/ Automatic HDMI Switcher, HDMI Switch Box - TAA Product Title (AMZ) HDMI Extender over CAT6 with 3 Port Video Switch, 4K 30Hz/115ft, HDBaseT HDMI Extender Kit, IR Control, 4K Video over Ethernet w/ Automatic HDMI Switcher, HDMI Switch Box , TAA Title Ingram (Part 1) HDMI over CAT6 Extender with Title Ingram (Part 2) 3 Port HDMI Switch - 4K 30Hz Website Product Headline HDBaseT™ Extender| 4K 30Hz | Automatic Switch | Mac & Windows Bullet 1 HDMI EXTENDER WITH SWITCH: This 3 Port HDMI Switch Box extends 4K 30Hz resolutions up to 115ft (35m) or 1080p up to 230ft (70m) using CAT6/CAT5e cabling | Receiver Unit included | 4:4:4 Chroma Subsampling | 7.1ch Audio | HDCP 1.4 | HDBaseT | TAA Compliant Bullet 2 HDBASET CERTIFIED: 4K HDMI Automatic Switch and Extender is tested and certified by the HDBaseT Alliance to help ensure quality and compatibility | Great for Digital Signage and AV installers/integrators for commercial and professional environments Bullet 3 CONFIGURATION AND CONTROL: Manual, Priority or Auto-Detect Switching Options | Push Button, IR Remote Control (Batteries Not Included) and Serial Commands allow for a variety of control options | Manual or Auto EDID Copy Bullet 4 SINGLE POWER ADAPTER FLEXIBILITY: The power adapter can be placed at either the remote or local side in areas where power outlets may be limited; Power is delivered to the HDMI Video Switcher transmitter and receiver kit over the Ethernet cable (PoC) Bullet 5 EASY INSTALLATION: Durable metal housing with built-in grounding bolts and included optional mounting brackets make it ideal for many environments. The unit features DB9 RS232 ports for serial control, an RJ11 cable and an RJ11 to DB9 adapter is included Bullets (Compact) HDMI Over CAT6 Extender w/ 3 Port Switch; 4K 30Hz/115ft (35m); 1080p/230ft (70m) over CAT5e/6; Manual/Priority/Auto Switching; Multiple Control Methods; Power over Cable; HDBaseT; TAA Compliant; IR Remote (No Batteries incl.); Mounting Brackets Incl. Bullets (Consolidated) HDMI Over CAT6 Extender with 3 Port Switch; 4K 30Hz resolutions up to 115ft (35m) or 1080p up to 230ft (70m) using CAT5e/CAT6 cables; 7.1ch Audio; HDCP 1.4; HDBaseT Certified; TAA Compliant - Manual/Priority/Auto-Detect Switching Options; Push Button IR Remote Control (Batteries Not Incl.) and Serial Command Control Options; Mounting Brackets and DB9 adapter Incl.; Manual/Auto EDID Copy - Single Power Adapter for Transmitter and Receiver w/ Power over Cable; Metal Housing w/ Grounding Bolts Marketing Copy Marketing Copy (No HTML) Applications - Enable presenters to connect a wide range of devices to one display
- Great for remote entertainment displays in restaurants, bars, or hotels
- Create brilliant digital signage displays in large commercial settings
- Optimize the location of your demo stations at tradeshows and in auditoriums
Website Search Keyword - 3 port hdmi switch
- 4k HDMI ethernet extender
- 4k hdmi switch
- 4k video over cat6
- automatic hdmi switch
- hdbaset hdmi extender
- hdmi auto switcher
- hdmi extender over cat6
- hdmi switch box
- hdmi transmitter and receiver
- hdmi transmitter and receiver kit
- hdmi video switcher
- HDMI cat5 extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - HDMM1MP
- HDMM1MLS
- HDMM3MP
- HDMM2MLS
Related Products - VS421HD20
- VS221HD4KA
- VS421HD4KA
- VS221HD4K
- VS421HD4K
- VS221HD20
- STDHVHDBT
Input Current 600 mA Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% to 90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 161.000 Product Width (mm) 103.000 Product Height (mm) 32.000 Product Weight (g) 568.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes General Specifications Lower resolutions are also supported Max Distance 70m [230ft] Maximum Digital Resolutions OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Chipset ID Industry Standards HDCP 1.4 LED Indicators - 1 - Power LED
- 3 - Input LEDs
- 1 - EDID Copy LED
Matrix Video Switch (Filter) No Carton Depth (mm) 410 Carton Height (mm) 275 Carton Quantity 6 Carton Weight Gross (g) 9700 Included in Package - 1 - HDMI Extender
- 1 - Remote Control
- 3 - Mounting Brackets
- 1 - Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 - RJ11 Cable
- 1 - RJ11 to RS232 Converter
- 1 - Quick-Start Guide
- 1 - HDMI Receiver
- 1 - Set of Mounting Screws
- 8 - Rubber Feet
Package Depth (mm) 216 Package Height (mm) 69 Package Width (mm) 296 Package Quantity 1 Package Weight (g) 1488 Packaging Description Multi-Input HDMI Extender with Built-In Switch Packaging Description India Multi-Input HDMI Extender with Built-In Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 3 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Host Connector 3 RJ-11 Host Connector 3 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-04-18 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2022-01-07 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) CA,US Primary Technology - None
