Main Image
VS415RVGAEU
Main Image
Product Images
Product Images
Product Images

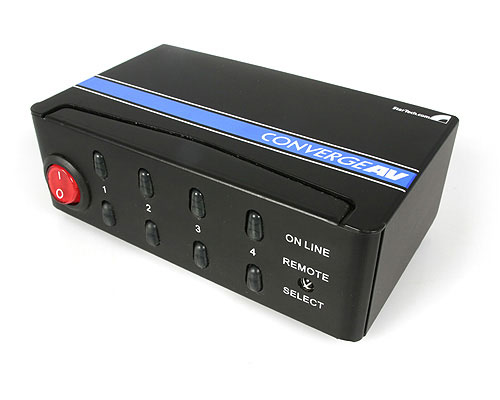

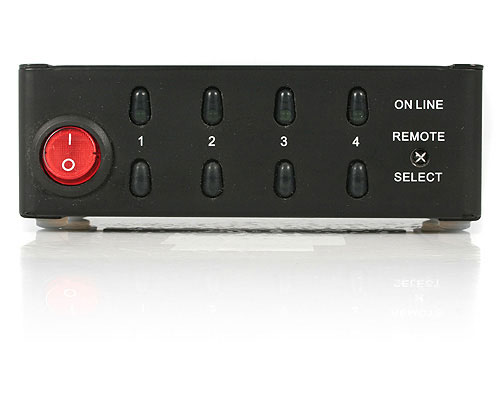

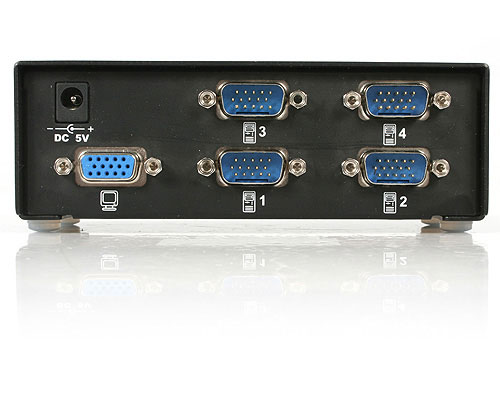

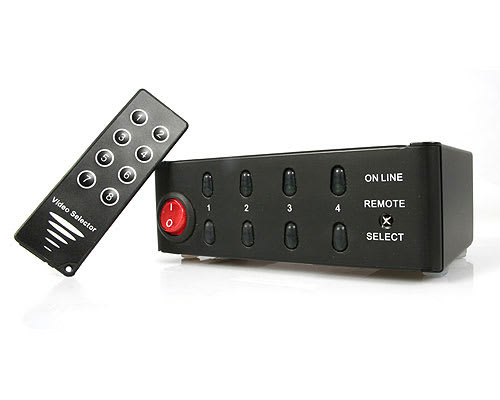

Product Name 4/ port VGA Video Selector Switch with Remote Product Number VS415RVGAEU UPC 065030822022 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 4 Port VGA Video Switch with IR Remote Bullet 1 Connect to your display at a maximum distance of 65 meters Bullet 2 Solid construction in a metal enclosure Bullet 3 Supports a maximum resolution of 2048x1536 with 450 Mhz bandwidth Bullet 4 Switch between PC’s by using the controls on the switcher or the included remote control Marketing Copy Switch between up to four separate VGA video signals, for output to a single monitor or projector. The perfect solution for situations where VGA input ports are at a premium, VS415RVGA eliminates the hassle of having to swap out connections to your display, and allows you to select your video source at the push of a button. The included IR remote control allows you to quickly make your input selection from a distance, making this a convenient addition to presentation displays, trade shows, security environments and more. Applications - Excellent solution for connecting and switching between multiple PC’s to one display.
- Great for use in presentations, tradeshows, conferences, retail, and entertainment applications.
Website Search Keyword - 4 Port
- 450MHz
- Converge A/V
- Selector
- Switch
- VGA
Accessory Products - MXT101HQ10
- MXT101LP10
- MXT101LP6
- MXT101MMHQ
- MXT101MMHQ25
- MXT101MMLP10
- MXT101MMLP6
- MXT105HQ
- MXT105MMHQ
Related Products - VS310DVIREU
- VS310HDMIREU
- VS815RVGAEU
Color Black Product Length (mm) 127 Product Width (mm) 67 Product Height (mm) 42 Product Weight (g) 500 TAA Compliant No General Specifications - Bandwidth: 450MHz
- Cable Distance (Selector to Monitor): 65 meters (max.)
- Operating Temperature: 0 - 40 degrees (Celsius)
- Power Adapter: 5V DC, 1A
- Signal Type: VGA, SVGA, XGA, Multi sync.
- Storage Temperature: -50 - 70 degrees (Celsius)
AV Input VGA AV Output VGA Carton Depth (mm) 570 Carton Height (mm) 160 Carton Quantity 20 Carton Weight Gross (g) 15400 Included in Package - 1 - 4 Port Video Selector
- 1 - Power Adapter (5V DC, 1A)
- 1 - Remote Control
- 1 - User Manual
Package Depth (mm) 55 Package Height (mm) 139 Package Width (mm) 182 Package Weight (g) 650.01 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 4 en-US Content Approved Yes Product Manager Eric Roth
