Main Image
VS420RDVIA

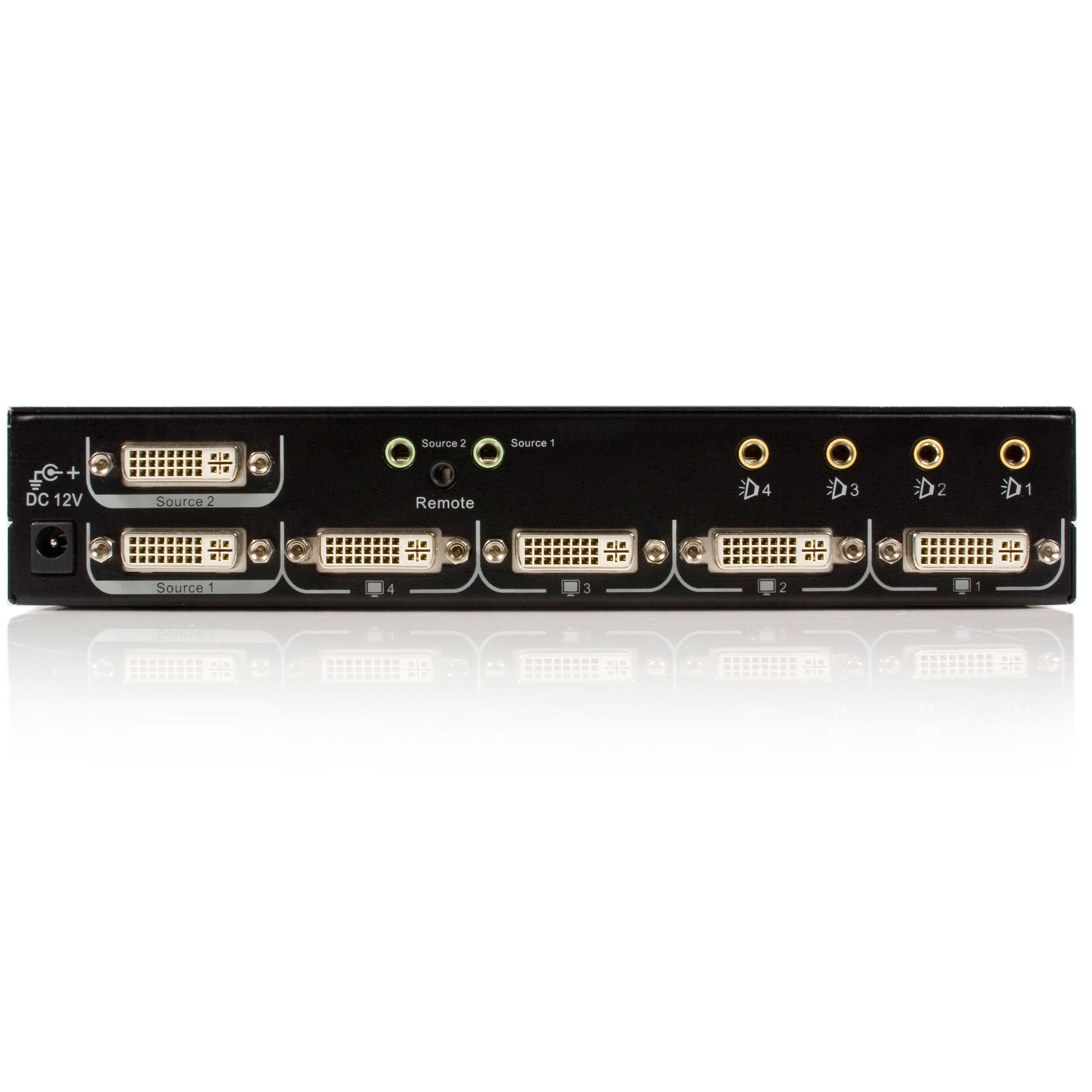

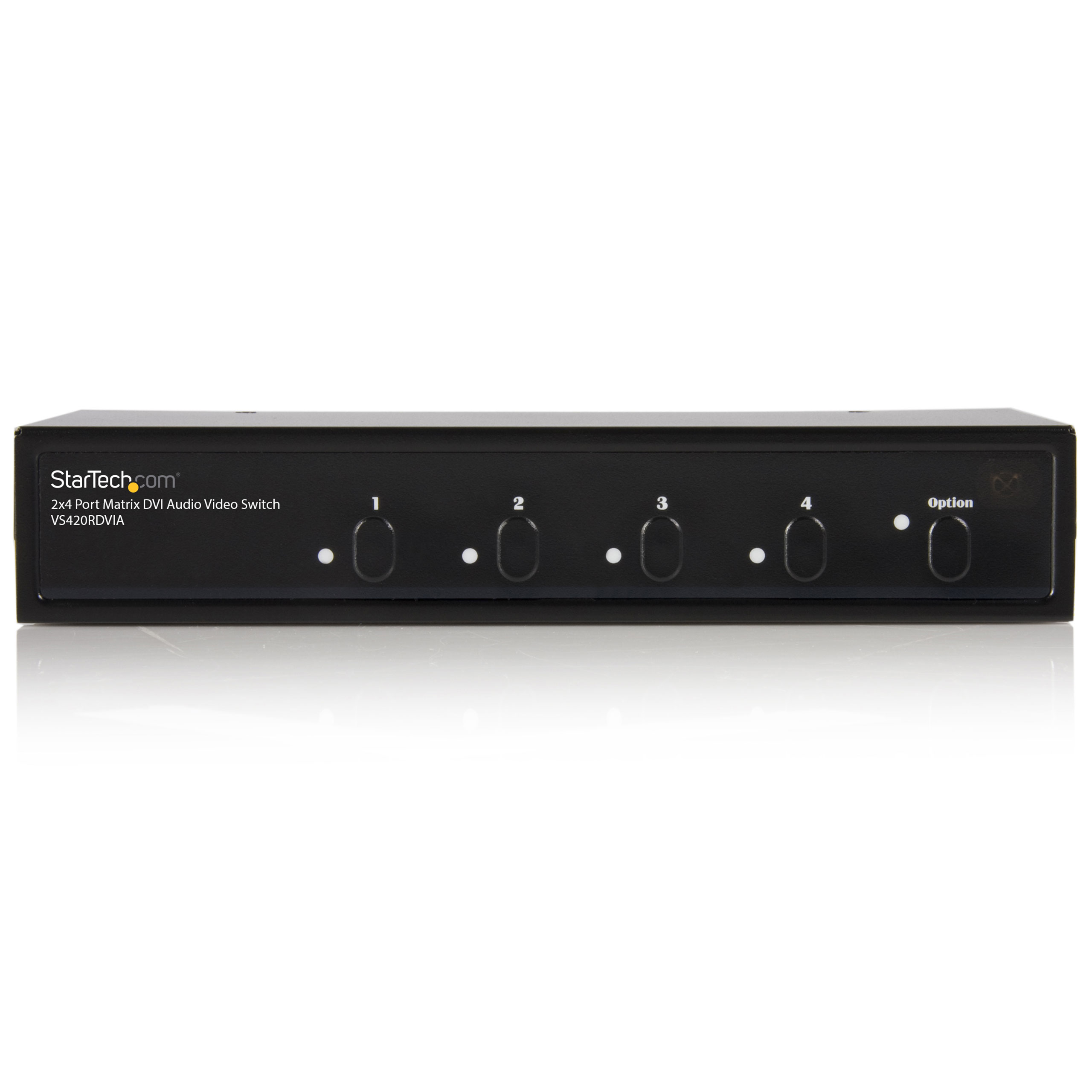

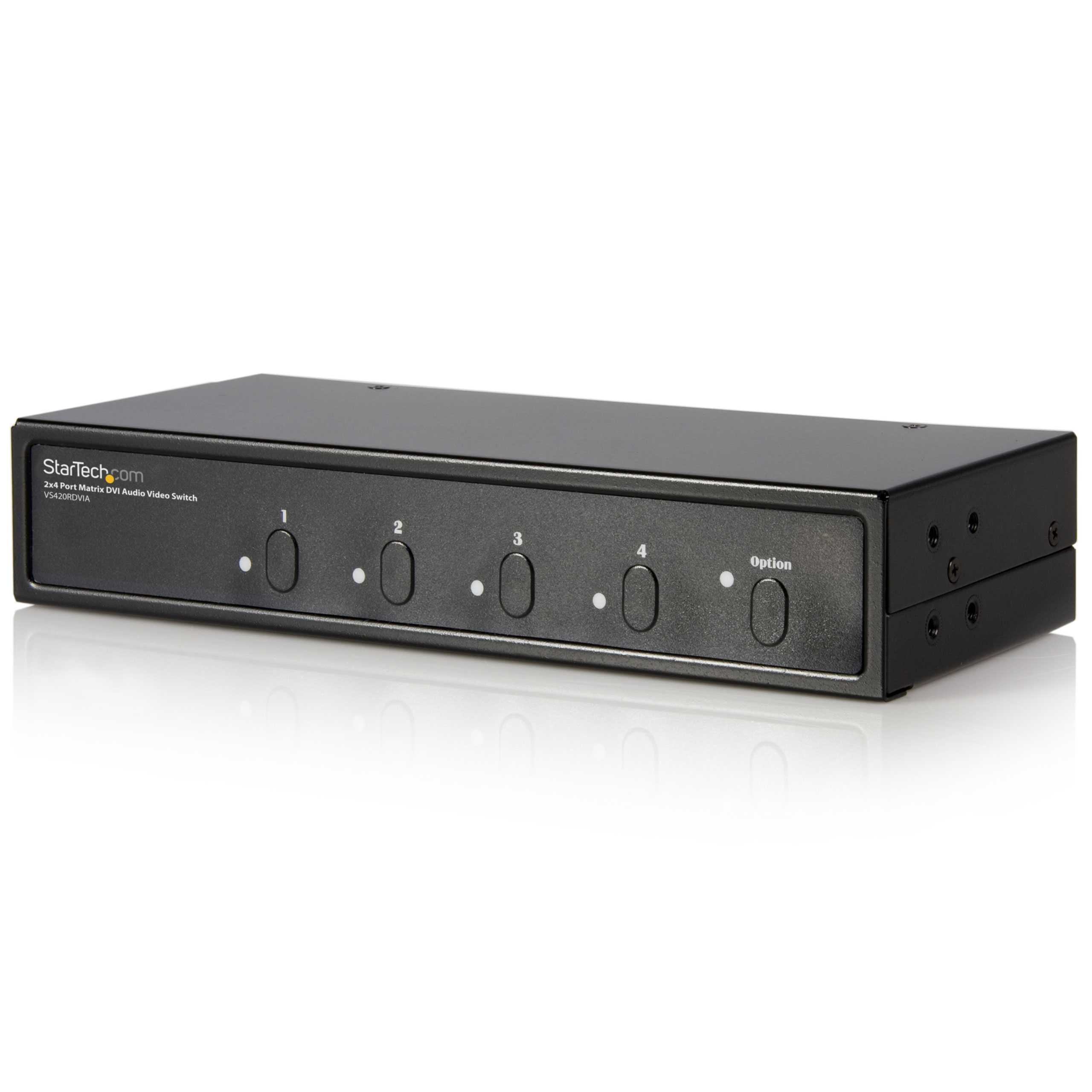

2x4 Matrix DVI-I Video Switcher With Remote
Share two distinct DVI inputs with audio between four displays
Main Image
Product Images
Product Images
BOM Image
Product Name 2x4 Matrix DVI-I Video Switcher With Remote Product Number VS420RDVIA UPC 065030831000 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX066X Product Title (Short) 2x4 Port Matrix DVI Audio Video Switch Product Title (Standard) StarTech.com 2x4 DVI Video Switch - Video/Audio - 2x4 Ports - Matrix Product Title (Long) 2x4 Port Matrix DVI Audio Video Switch Product Title (AMZ) 2x4 Port Matrix DVI Audio Video Switch - Cascadable Matrix DVI A/V Switch (VS420RDVIA) Title Ingram (Part 1) 2x4 Port Matrix DVI Audio Video Title Ingram (Part 2) Switch Website Product Headline Share two distinct DVI inputs with audio between four displays Bullet 1 Allows two DVI computers to provide video input to display on four different monitors with audio Bullet 2 Allows you to switch video input signals or toggle video and audio on/off on all four displays Bullet 3 Cascadable with other switchers, units allow use of one remote control (remote control included) Bullet 4 Equipped with easy to use front panel selection buttons Bullet 5 Supports video resolutions up to 1600x1200 Marketing Copy Applications - Demos and tradeshows that include video presentation with multiple inputs and outputs
- In-store product merchandising
- Information kiosks
- Digital Signage
Website Search Keyword Signal Management Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - DVIMM6
- DVIDSMM10
- DVIDSMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- SVA12M2NEUA
- SVA12M5NA
Related Products - ST222MX
- ST224MX

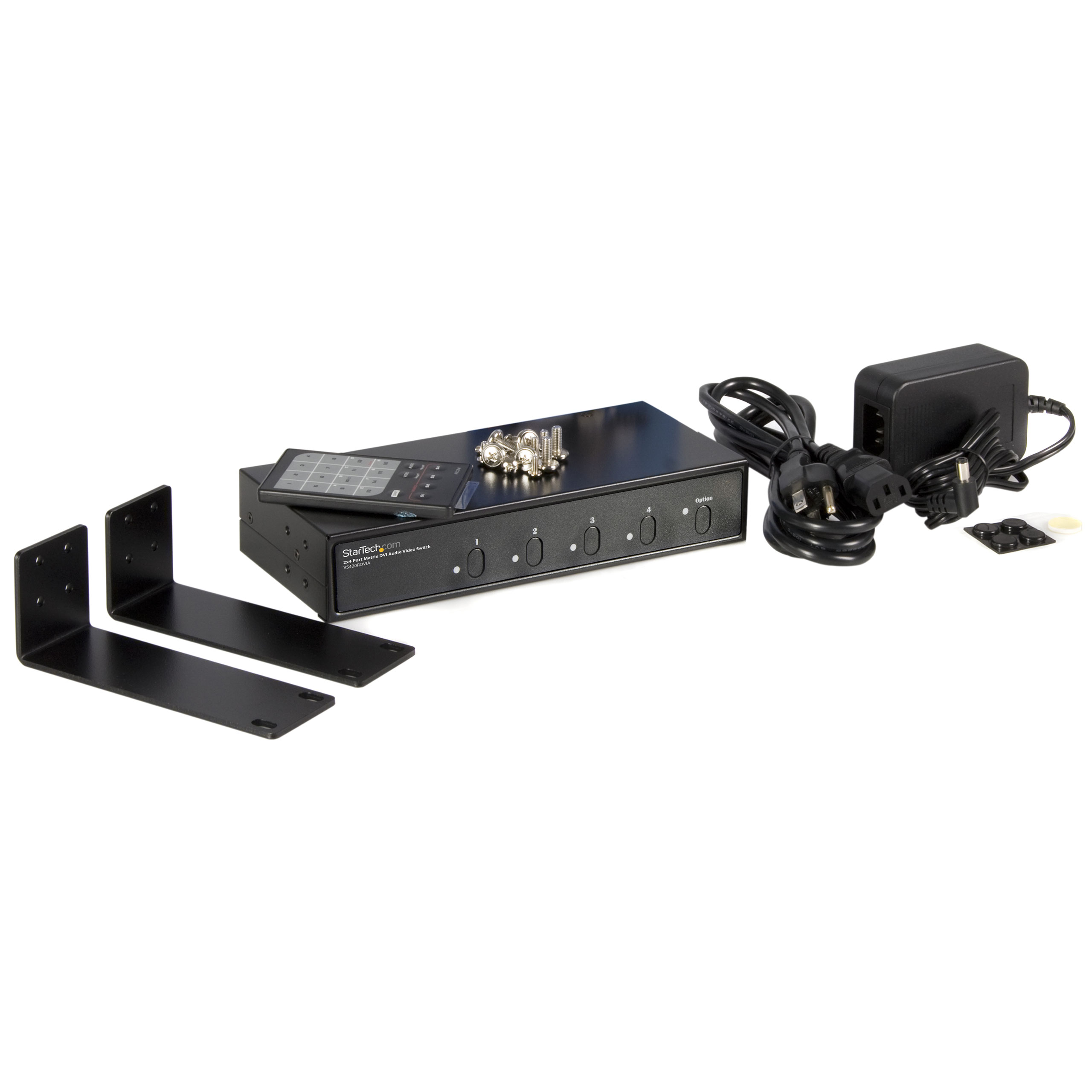

Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Color Black Material Aluminum Operating Temperature 5 to 40 Product Length (mm) 97.000 Product Width (mm) 220.000 Product Height (mm) 41.000 Product Weight (g) 744.000 Storage Temperature -20 to 60 TAA Compliant Yes Maximum Cable Length (mm) 5000 Audio Yes Cascadable Yes Matrix Video Switch (Filter) Yes Rack-Mountable Yes Carton Depth (mm) 564 Carton Height (mm) 325 Carton Quantity 6 Carton Weight Gross (g) 8640 Included in Package - 1 - DVI A/V Matrix Switcher
- 1 - Set of Ear-Mounts for Rack Mounting
- 1 - IR External Sensor
- 1 - Remote Control
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 278 Package Height (mm) 121 Package Width (mm) 298 Package Quantity 1 Package Weight (g) 1240 Packaging Description 2x4 Port DVI Matrix Audio Video Switch Packaging Description India 2x4 Port DVI Matrix Audio Video Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DVI-I Dual-Link (29-Pin) Connector 1 (Quantity) 2 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 2 Connector 3 DVI-I Dual-Link (29-Pin) Connector 3 (Quantity) 4 Connector 4 3.5mm (3 Conductors, TRS) Connector 4 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
