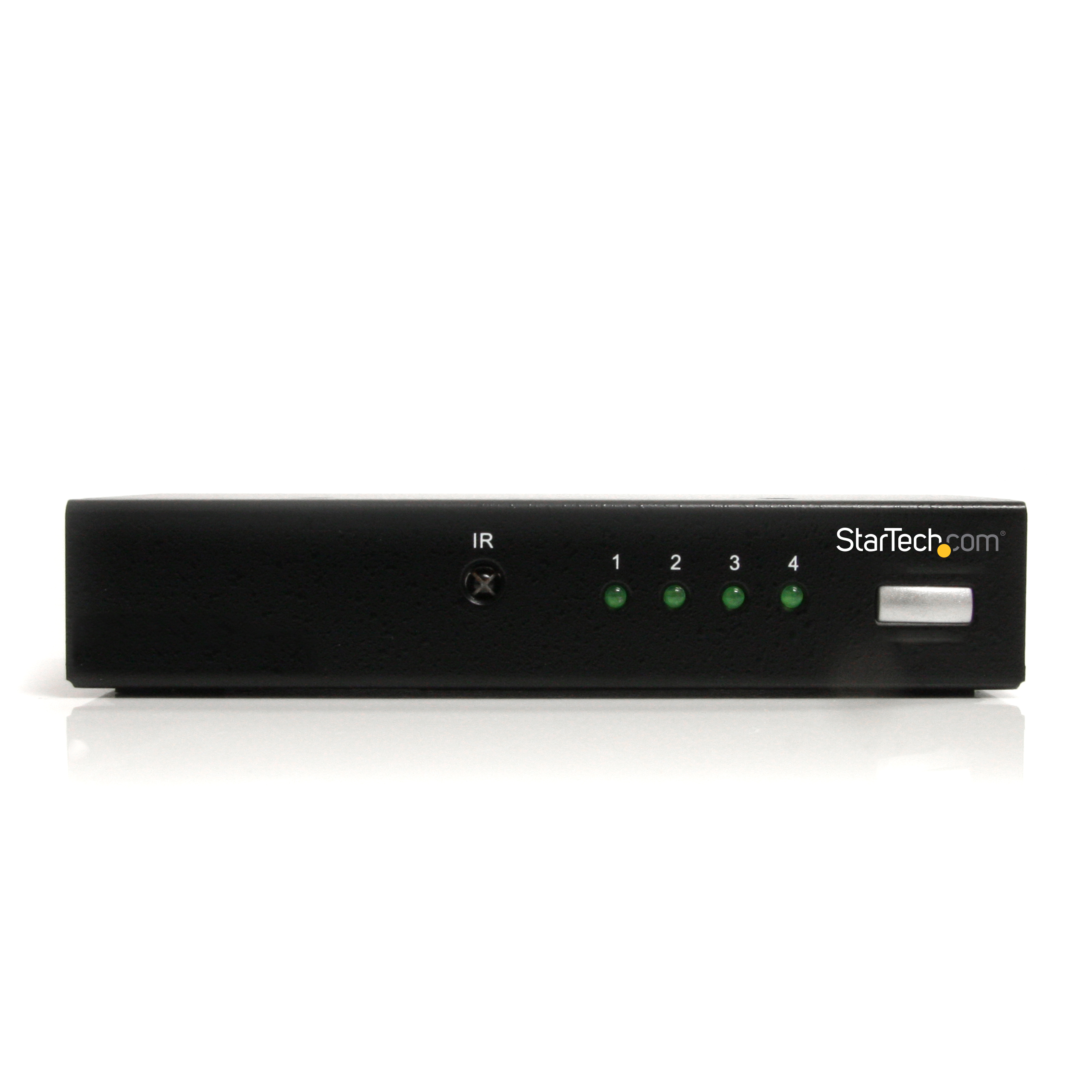

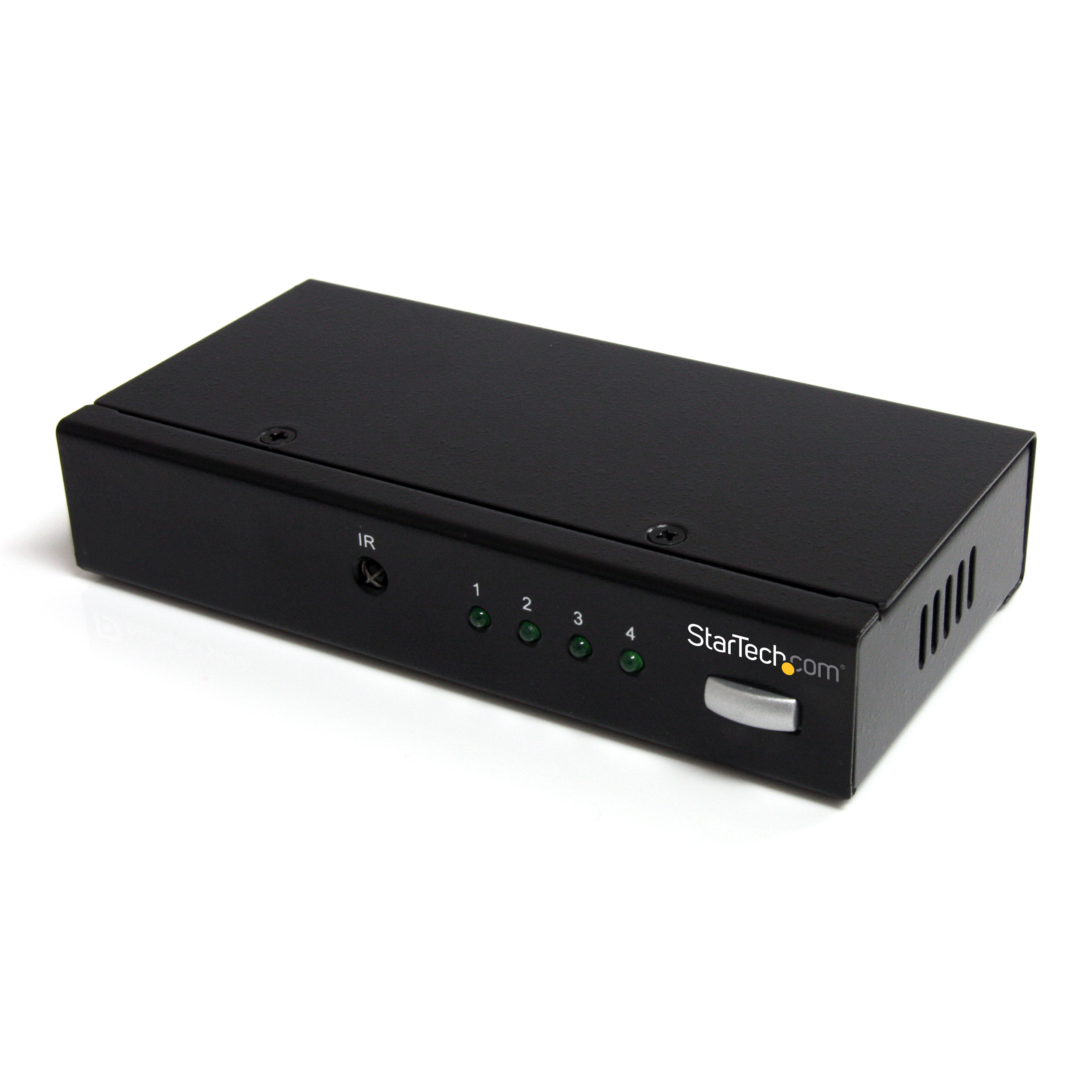

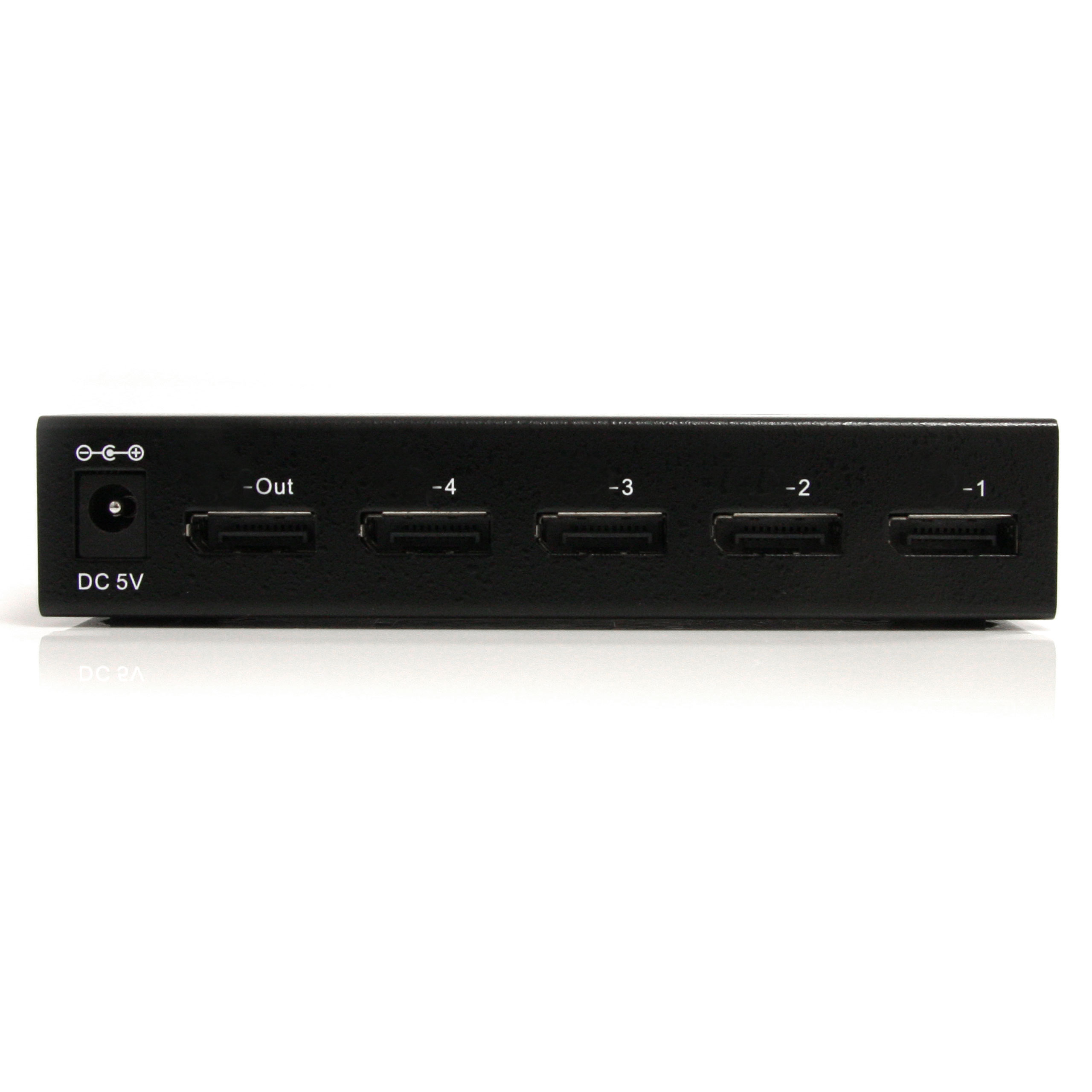

VS421DP
4 Port DisplayPort Switch
Switch between four distinct DisplayPort sources on a single DisplayPort monitor
Main Image
Product Images
Product Images
BOM Image
Product Name 4 Port DisplayPort Switch Product Number VS421DP UPC 065030839556 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX083X Product Title (Short) 4 Port DisplayPort Switch with IR Remote Product Title (Standard) 4 Port DisplayPort Video Switch & IR Remote Control Product Title (Long) 4 Port DisplayPort Video Switch with Audio & IR Remote Control Product Title (AMZ) 4 Port DisplayPort DP Video Switch with Audio & IR Remote Control (VS421DP) Title Ingram (Part 1) 4 Port DisplayPort Video Switch Title Ingram (Part 2) w/ Audio & IR Remote Control Website Product Headline Switch between four distinct DisplayPort sources on a single DisplayPort monitor Bullet 1 7.1 Channel High Definition Audio pass-through (with displays and sources that support DisplayPort audio) Bullet 2 Supports resolutions up to 2560 x 1600 @ 60Hz, beyond 1080p Bullet 3 Supports DDC2B monitor detection Bullet 4 Supports native DisplayPort computer connections - no adapter required Bullet 5 DisplayPort 1.1 Compliant Bullets (Consolidated) Switch between four distinct DisplayPort sources on a single DisplayPort monitor - Works with DisplayPort video source devices such as laptops Ultrabooks and desktop computers - Works with DisplayPort monitors and projectors - Supports resolutions up to 2560x1600 at 60Hz - Supports 7.1 channel audio - 4-Port DisplayPort video switch/4-Port DP video switch/DisplayPort switch/DP switcher/Display Port video switcher - Perfect for multi-location high resolution digital signage distribution Marketing Copy Applications - High resolution medical imaging and Health care display, such as MRI and Xray display.
- High resolution digital signage requiring multiple sources with one display.
- Multimedia design, multimedia post-production and video editing.
- High resolution digital images in education in the classroom, lecture halls, and conference rooms with multiple sources to one DisplayPort monitor.
Website Search Keyword - 1080p Switch
- Apple Displayport Switch
- Cinemaview Switch
- Display port
- DisplayPort ++
- DisplayPort Plus
- four port
- HD Switch
- High Definition Switch
- DisplayPort to DVI
- DisplayPort to VGA
- DisplayPort to HDMI
- DisplayPort Switch with Audio
Special Notes Source (PC) and display must both support audio pass through for audio functionality Accessory Products - SVA5M3NEUA
- DISPLPORT6L
- DISPLPORT10L
- DISPLPORT15L
- MDP2DPMM6
- MDP2DPMM10
- DP2VGA
- DP2DVI
- DP2HDMI
Related Products - VS410RVGAA
- VS410HDMIE

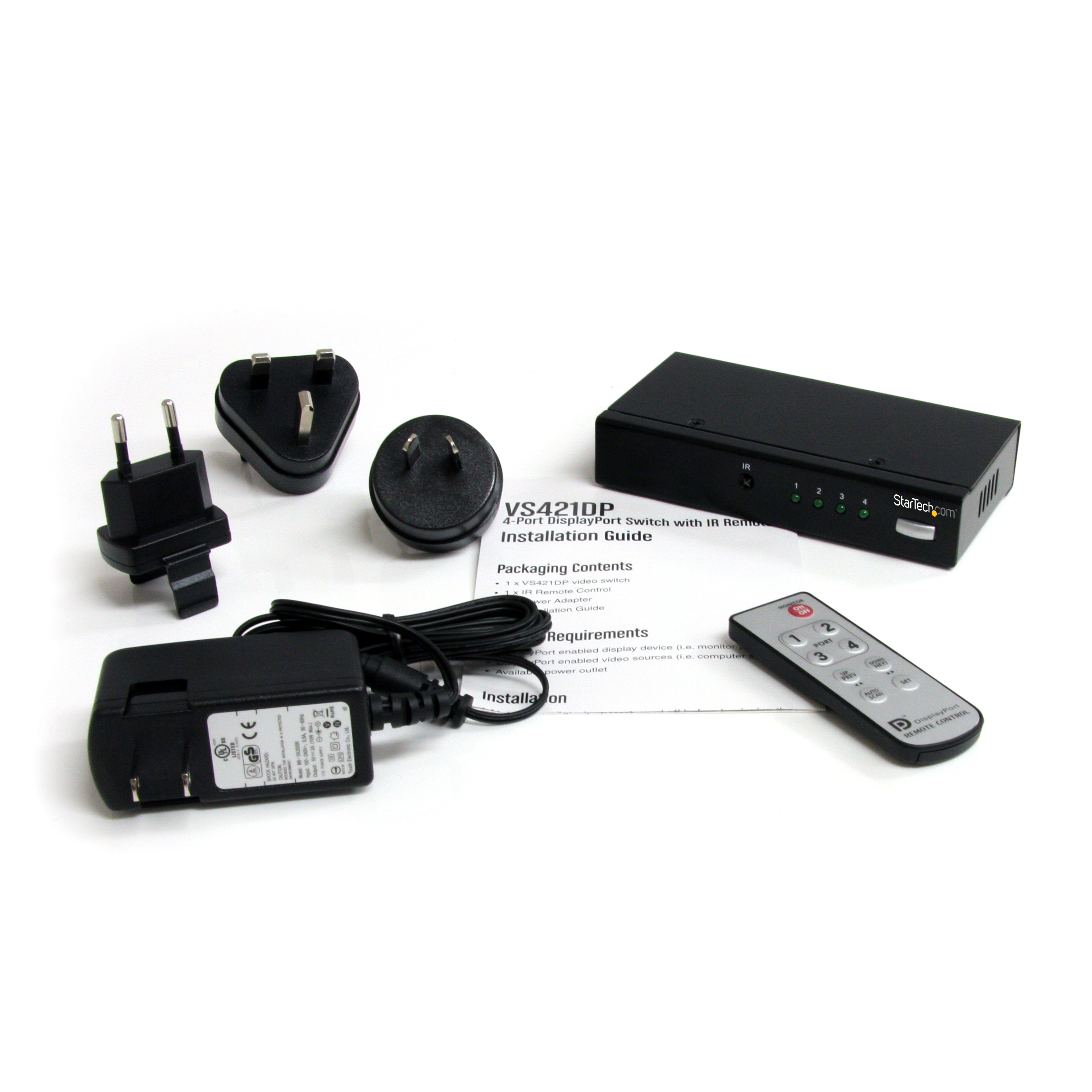

Input Voltage 110V-240V AC Output Current 2A Output Voltage (V) 5 DC Power Consumption (In Watts) 10 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~80% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 131 Product Width (mm) 65 Product Height (mm) 26 Product Weight (g) 500 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Maximum Cable Length (mm) 10000 Maximum Digital Resolutions 2560x1600 @ 60Hz Wide Screen Supported Yes Audio Yes AV Input DisplayPort AV Output DisplayPort Industry Standards DDC, EDID, DisplayPort 1.1 LED Indicators 4 - Green - Online and Display indicator (One LED per port) Matrix Video Switch (Filter) No Carton Depth (mm) 394 Carton Height (mm) 294 Carton Quantity 10 Carton Weight Gross (g) 7000 Included in Package - 1 - 4 Port DisplayPort Switch
- 1 - Manual
- 1 - Universal Power Adapter (NA/UK/EU/AUS)
- 1 - IR Remote Control
Package Depth (mm) 186 Package Height (mm) 80 Package Width (mm) 270 Package Quantity 1 Package Weight (g) 600 Packaging Description 4 Port DisplayPort® A/V Switch w/ Remote Packaging Description India 4 Port DisplayPort® A/V Switch w/ Remote Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DisplayPort Connector 1 (Quantity) 4 Connector 2 DisplayPort Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
