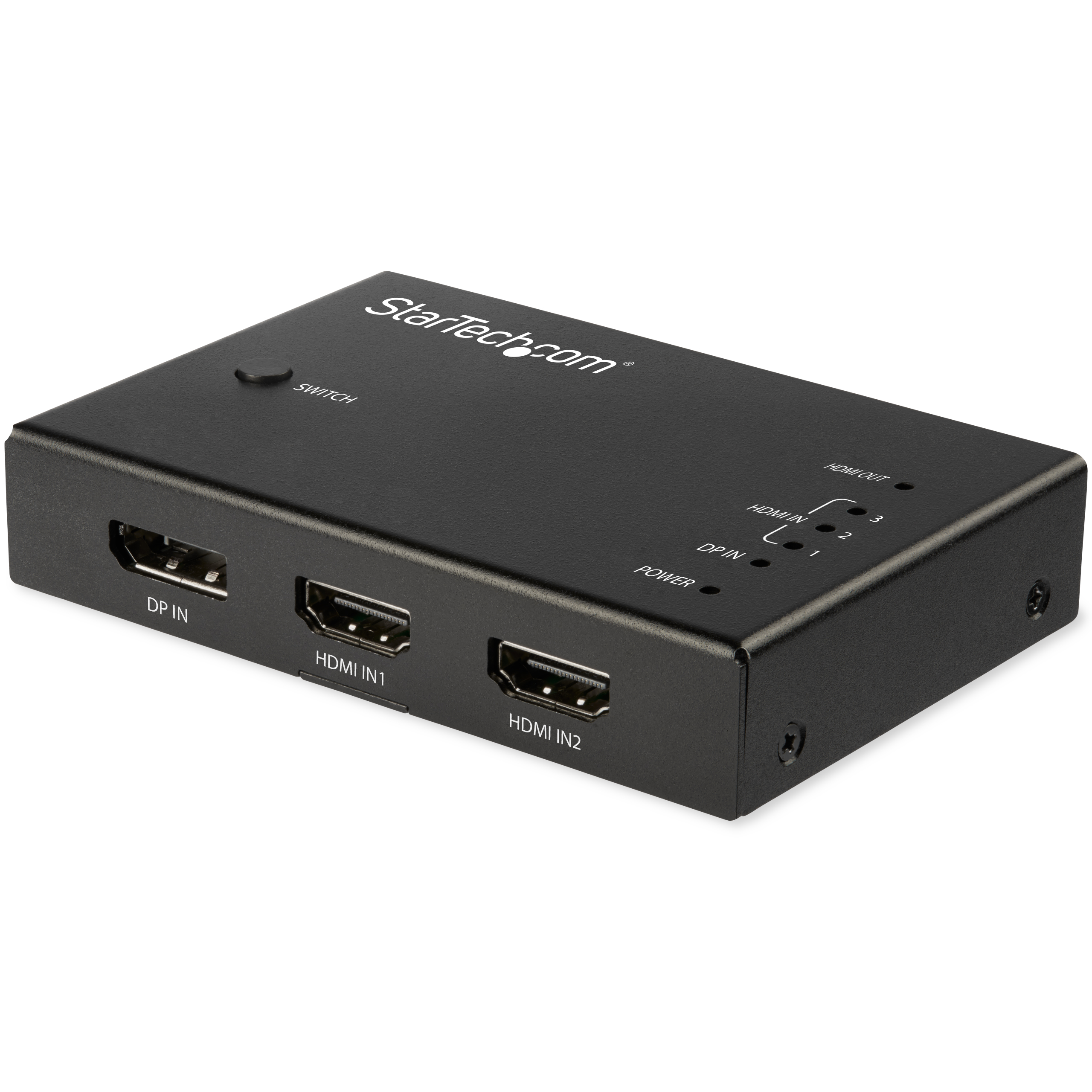

VS421HDDP
3 X HDMI 1 X DP HDMI 2 0 switch
Multi-Port HDMI Switch Box | Automatic Switcher | IR Remote Control
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 3 X HDMI 1 X DP HDMI 2 0 switch Product Number VS421HDDP UPC 065030881883 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 Multi-Input Switchers Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX099X Quick-Start Guide https://images.salsify.com/image/upload/s--OU_ldz4Q--/eef381cd751be40ec4a4ea0f6a0b595ef87a9ad2.pdf Material Safety Data Sheet (MSDS) Product Title (Ultra-Short) HDMI Video Switch Product Title (Short) Video Switch - HDMI / DisplayPort - 4K60 Product Title (Medium) 4 Port HDMI Video Switch - 3x HDMI & 1x DisplayPort - 4K - Multi Port Switch Box Product Title (Standard) 4 Port HDMI Video Switch - 3x HDMI & 1x DisplayPort - 4K 60Hz - Multi Port HDMI Switch Box w/ Automatic Switcher (VS421HDDP) Product Title (Long) 4-Port HDMI Video Switch - 3x HDMI and 1x DisplayPort - 4K 60Hz Product Title (AMZ) 4 Port HDMI Video Switch - 3x HDMI & 1x DisplayPort - 4K 60Hz - Multi Port HDMI Switch Box w/ Automatic Switcher (VS421HDDP) Title Ingram (Part 1) 4 Port HDMI Video Switch Title Ingram (Part 2) 3x HDMI & 1x DisplayPort - 4K 60Hz Website Product Headline Multi-Port HDMI Switch Box | Automatic Switcher | IR Remote Control Bullet 1 Experience astonishing picture quality with support for resolutions up to 4K 60Hz Bullet 2 Hassle-free operation with automatic 4-port switching and an included IR remote control Bullet 3 Unique input combination with both HDMI and DisplayPort ports Bullet 4 Compact form factor ensures this HDMI video switch can be placed virtually anywhere Bullet 5 Backward compatible with 4K 30Hz and 1080p displays Bullets (Compact) Multi port HDMI video switch has a 4 input combination with HDMI and DisplayPort ports - HDMI switcher box supports 4K resolution at 60Hz - Connect 4 sources to a display with limited HDMI 2.0 ports - Automatic 4 port switching and IR remote control Bullets (Consolidated) Multi port HDMI video switch features a unique 4 input combination w/ both HDMI and DisplayPort ports - HDMI switcher box features four independent video inputs that can each support 4K resolution at 60Hz - Perfect solution for connecting four video sources to a display that has a limited number of HDMI 2.0 ports - Enjoy hassle-free operation with automatic 4 port switching and an included IR remote control - Designed to be compact, this HDMI switcher with remote control can be used anywhere Marketing Copy Marketing Copy (No HTML) Applications - Share your projector between multiple sources for on-the-fly collaboration among colleagues
- Ideal for boardrooms, classrooms and lecture halls
- Share a 4K 60Hz display with four different video sources
- Use in digital signage applications to display multiple source devices at different times
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - HDMM1MP
- HDMM2MP
- HDMM3MP
Related Products - VS421HD20
- HDVGADP2HD
- VS221HD20
- VS221HD4KA
- VS421HD4KA
- VS221HD4K
- VS421HD4K
Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1000 mA Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Color Black Humidity 10% to 90% RH Material Steel Operating Temperature 0°C to 45°C (32°F to 113°F) Primary Material Steel Product Length (mm) 100.000 Product Width (mm) 71.000 Product Height (mm) 20.000 Product Weight (g) 428.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No General Specifications Lower resolutions are also supported Maximum Digital Resolutions 4K @ 60 Hz MTBF (hours) 3,409,065 Hours Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input - HDMI
- DisplayPort
AV Output HDMI Industry Standards LED Indicators - 4 - Input LEDs
- 1 - Power LED

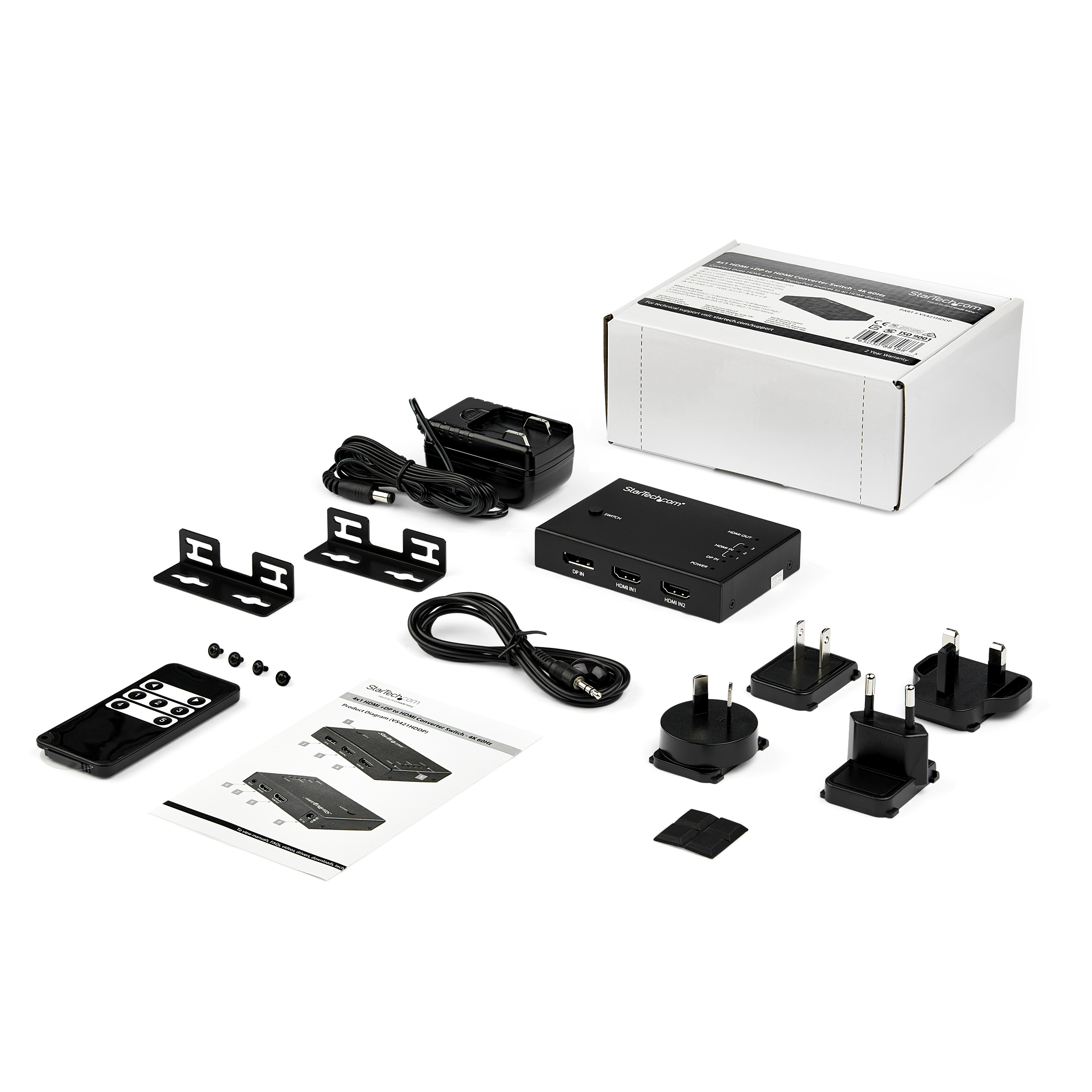

Carton Depth (mm) 354 Carton Height (mm) 302 Carton Quantity 28 Carton Weight Gross (g) 16316 Included in Package - 1 - 4-Port HDMI Switch
- 1 - Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 - Remote Control
- 1 - IR Receiver
- 2 - Mounting Brackets
- 1 - User Manual
- 2 - Mounting Screws
- 4 - Rubber Foot Pads
Package Depth (mm) 127 Package Height (mm) 68 Package Width (mm) 167 Package Quantity 1 Package Weight (g) 546 Packaging Description 4x1 HDMI +DP to HDMI Converter Switch Packaging Description India 4x1 HDMI +DP to HDMI Converter Switch Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 3 Connector 2 DisplayPort Connector 2 (Quantity) 1 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2019-04-11 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2019-05-24 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2019-06-26 Target Production Release 2019-07-12 Tech Lead Justin Weaver Technical Writer Evan Hanbidge Technology Lifecycle None
