VS421HDPIP
4x1 hdmi seamless swicher with PIP

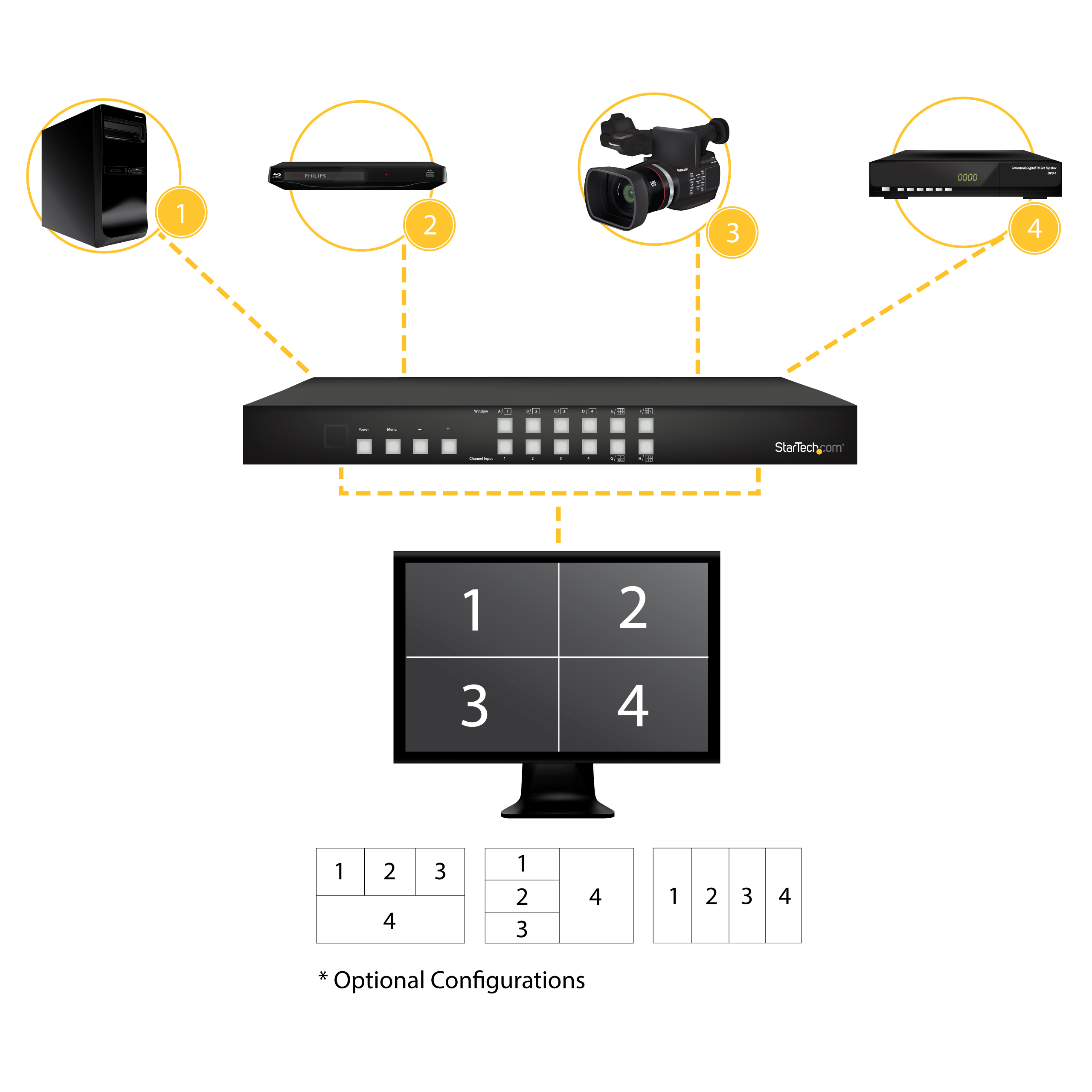

Share an HDMI display between four distinct HDMI audio/video sources, with optional Picture-and-Picture
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 4x1 hdmi seamless swicher with PIP Product Number VS421HDPIP UPC 065030858472 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Switchers Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Manual Material Safety Data Sheet (MSDS) https://images.salsify.com/image/upload/s--hrcjawwq--/7264b40c8d56470360aaf0f03a9cabc2414139ed.pdf Product Title (Ultra-Short) HDMI Switch with PAP Product Title (Short) 4-Port HDMI Switch w/Picture-and-Picture Product Title (Medium) 4-Port HDMI Switch with Picture-and-Picture Multiviewer - 1080p Product Title (Standard) 4-Port HDMI Switch with Picture-and-Picture Multiviewer Product Title (Long) 4-Port HDMI Switch with Picture-and-Picture Multiviewer - TAA Product Title (AMZ) 4-Port HDMI Switch with Picture-and-Picture Multiviewer - 4x1 HDMI Video Switch with PAP Video Combining - 1920x1200 / 1080p (VS421HDPIP) Title Ingram (Part 1) 4-Port HDMI Switch with Title Ingram (Part 2) Picture-and-Picture Multiviewer Website Product Headline Share an HDMI display between four distinct HDMI audio/video sources, with optional Picture-and-Picture Bullet 1 Save cost and screen real estate by combining multiple inputs on a single HDMI display Bullet 2 Support for video resolutions up to 1920x1200 / 1080p Bullet 3 Remote control using Telnet (TCIP/IP Network), or IR (remote control included) Bullet 4 Customize your output with multiple display modes for combining video Bullet 5 Choose which audio source is outputted with your combined video sources Bullets (Consolidated) Share an HDMI display between four distinct HDMI audio/video sources with optional Picture-and-Picture - HDMI Switch - Compatible with HDMI enabled video source devices such as computer systems and Blu-ray players and HDMI enabled video display devices such as televisions, monitors and projectors - HDMI Switcher/Switch HDMI/4 way HDMI Switch/4x1 HDMI Switch/Picture-and-Picture Switch/Fast HDMI Switch/Fast Switching/Combine 4 HDMI inputs on a Single HDMi Display for Digital Signage Marketing Copy Applications - Add to your boardroom to allow for multi-screen configurations and share more ideas
- Use in your digital signage applications to provide multiple video sources on the same screen
- Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks and video broadcasting facilities
Website Search Keyword - HDMI Switcher
- Switch HDMI
- 4 way HDMI sWitch
- 4x1 HDMI Switch
- Picture-and-Picture Switch
- Fast HDMI Switch
- Fast Switching
- Picture in Picture
- Picture-in-Picture
- PIP
- PAP
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M5NA
Related Products - VS424HDPIP
- VS222HDQ
- VS440HDMI
- VS410HDMIE
- ST424HDBT

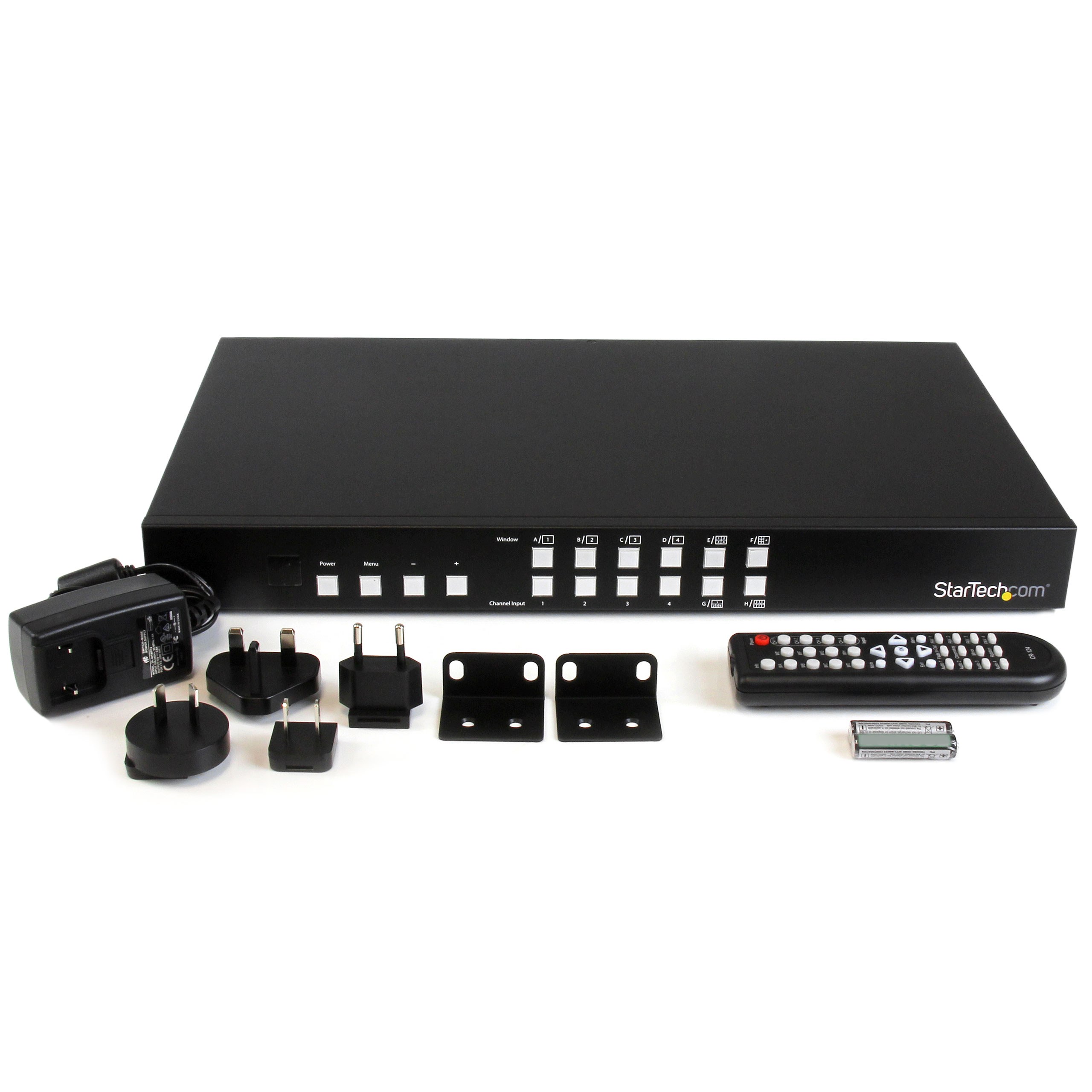

Input Current 1 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Color Black Material Aluminum Product Length (mm) 435.000 Product Width (mm) 250.000 Product Height (mm) 44.000 Product Weight (g) 2825.000 TAA Compliant Yes Maximum Digital Resolutions 1920x1200 Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Matrix Video Switch (Filter) No Carton Depth (mm) 451 Carton Height (mm) 446 Carton Quantity 3 Carton Weight Gross (g) 14670 Included in Package - 1 - 4-port HDMI switch
- 1 - remote control
- 1 - universal power adapter (NA, UK, EU, ANZ)
- 2 - mounting brackets
- 1 - instruction manual

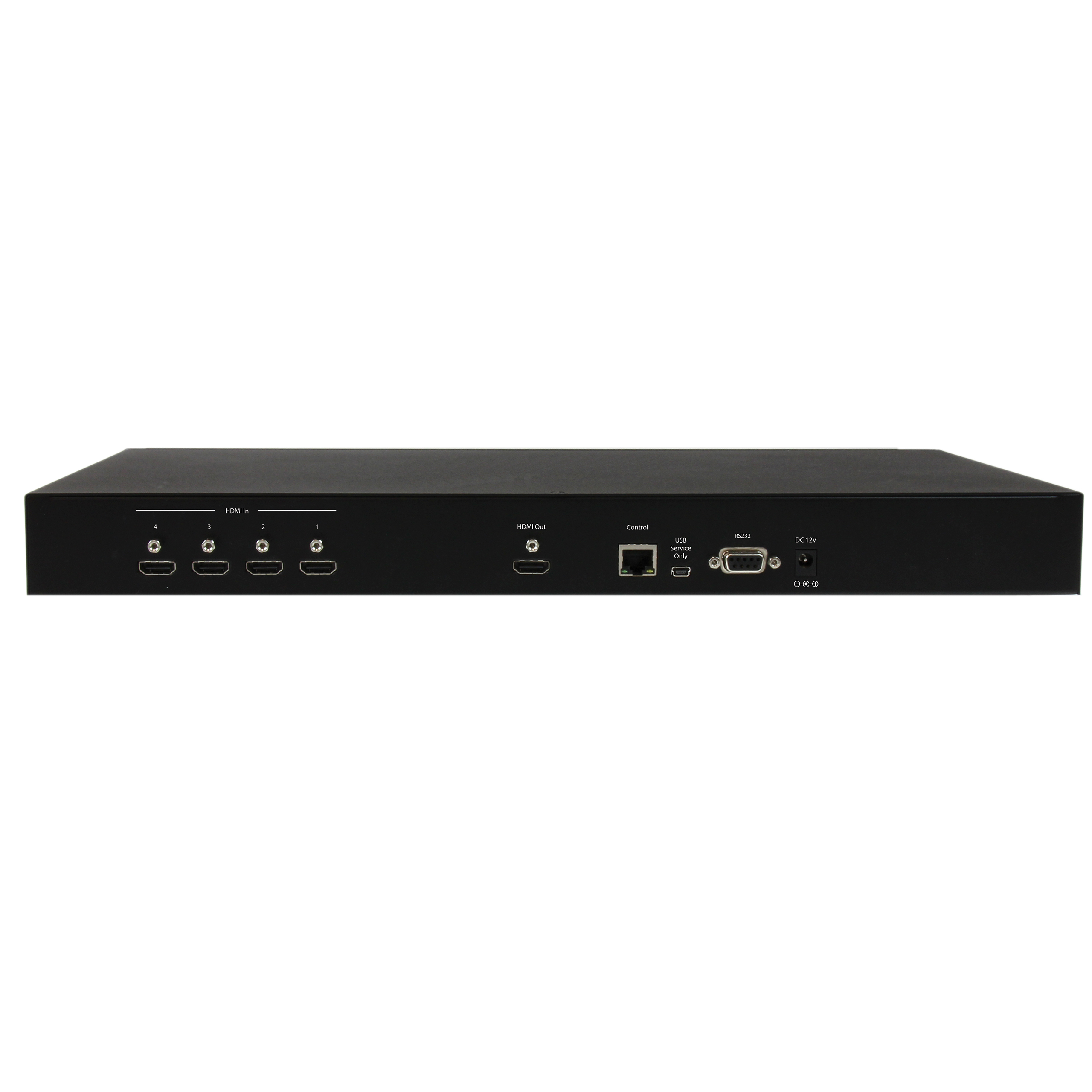

Package Depth (mm) 414 Package Height (mm) 141 Package Width (mm) 581 Package Weight (g) 4328 Packaging Description 4-Port HDMI® Switch w/ Picture-and-Picture – 1080p Packaging Description India 4-Port HDMI® Switch w/ Picture-and-Picture – 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Infrared (IrDA) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 4 Connector 5 HDMI Connector 5 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-05-30 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,EU,MX,NZ,UK,US Primary Technology None Product Development Specialist Greg Visser Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
