VS424HDPIP
4x4 seamless HDMI matrix switcher with PIP
Share and switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-and-Picture

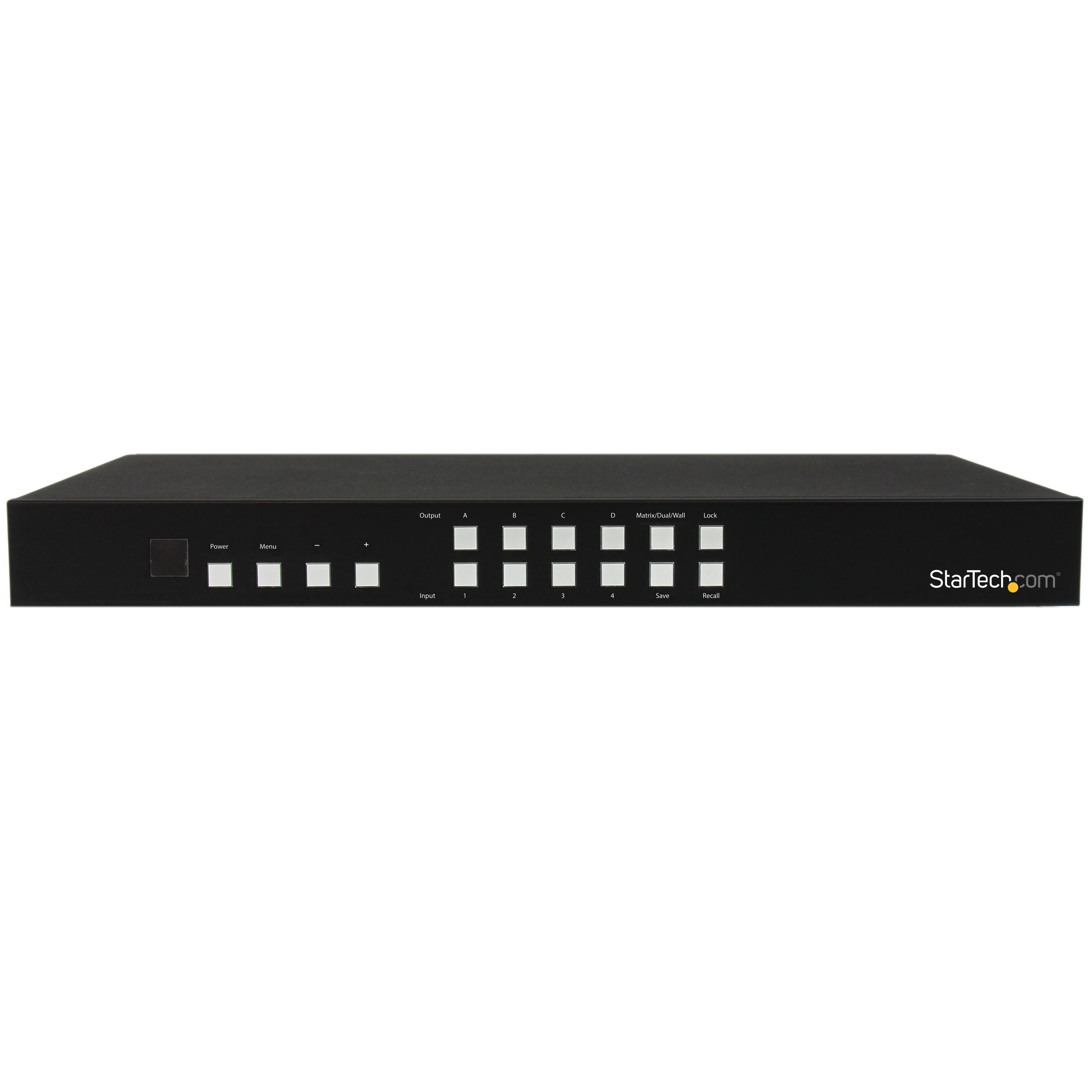

Main Image

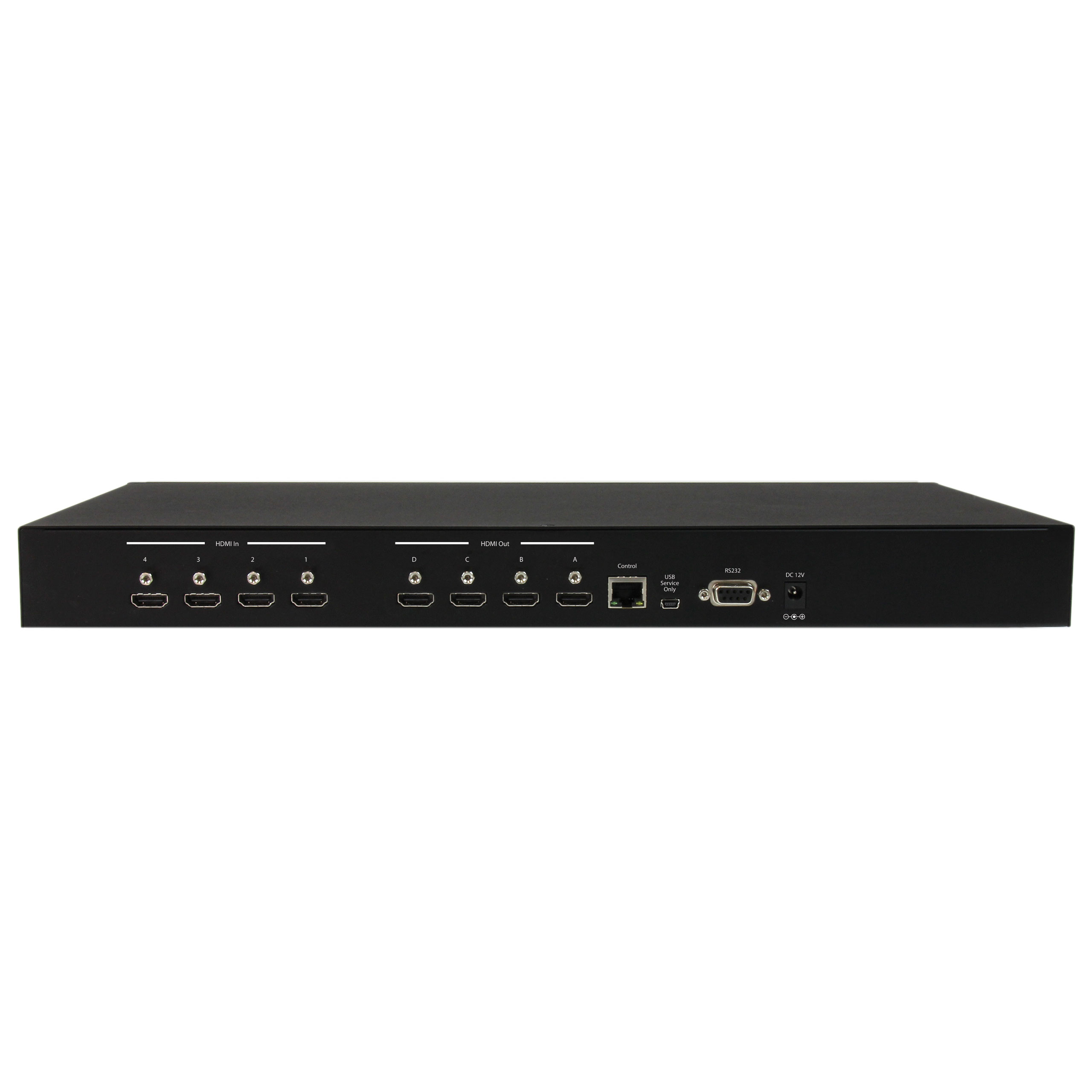

Product Images

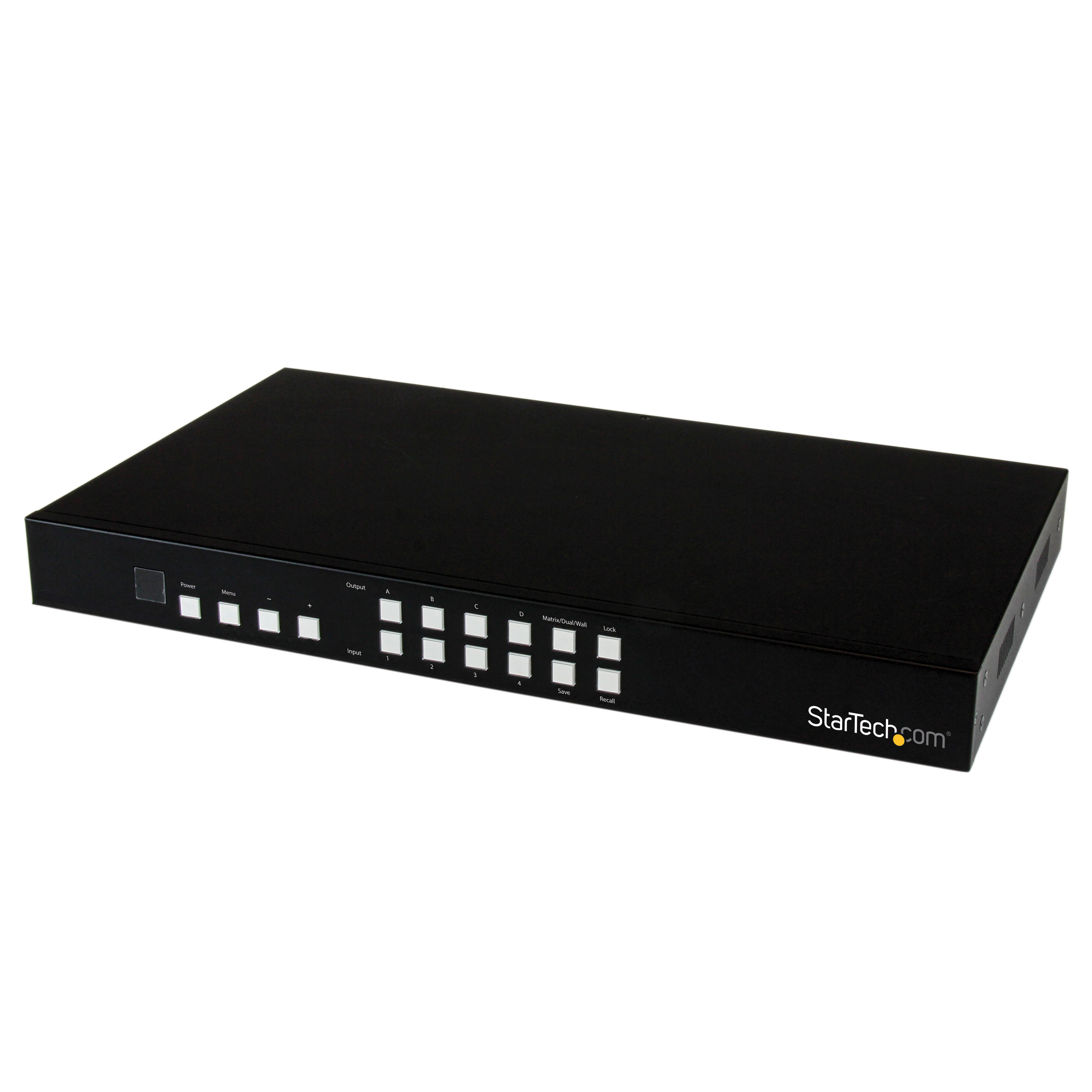

Product Images
Product Images
Product Images
BOM Image
Product Name 4x4 seamless HDMI matrix switcher with PIP Product Number VS424HDPIP UPC 065030858403 Lifecycle status Active Warranty 2 Years Taxonomy Product > KVMs, Switches & Splitters > Video Switches & Splitters Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Matrix Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX017X Product Title (Ultra-Short) HDMI Matrix Switch Product Title (Short) 4x4 HDMI Matrix Switch w/ PAP Product Title (Medium) 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall Product Title (Standard) 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall, TAA Product Title (Long) 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall - TAA Product Title (AMZ) 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall - 4x4 Matrix Switch with Video Combining , TAA (VS424HDPIP) Title Ingram (Part 1) 4x4 HDMI Matrix Switch with Title Ingram (Part 2) PAP Multiviewer or Video Wall Website Product Headline Share and switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-and-Picture Bullet 1 Increase your communication power by linking four HDMI audio/video sources with four HDMI displays Bullet 2 Get the whole picture by outputting multiple inputs on the same display or mix-and-match inputs across multiple displays Bullet 3 Save cost and screen real estate by combining multiple inputs per individual display with Full Matrix Picture-and-Picture support Bullet 4 Support for video resolutions up to 1920x1200 / 1080p Bullet 5 Full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4) Bullets (Consolidated) Share and switch four distinct HDMI audio/video sources between four HDMI displays with optional Picture-and-Picture - Compatible with HDMI enabled video source devices such as computer systems and Blu-ray players and HDMI enabled video display devices such as televisions, monitors and projectors - HDMI Switch/HDMI Matrix Switch/HDMI Switcher/4 way HDMI Splitter/HDMI Matrix with Picture and Picture/HDMI Matrix - Output a video input to four displays in a video wall setup Marketing Copy Marketing Copy (No HTML) Applications - Add multi-screen configurations to your boardroom, for improved collaboration and idea sharing

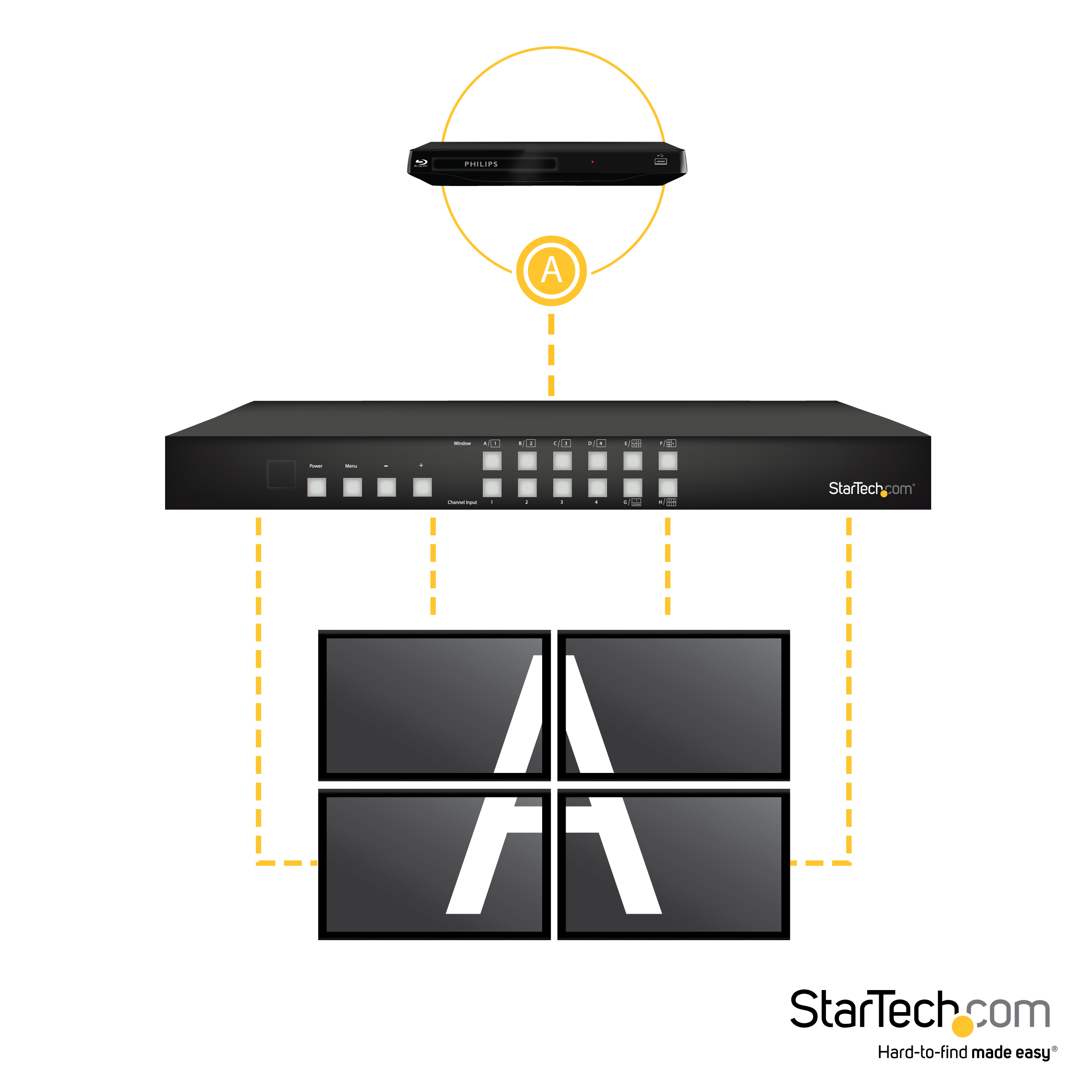

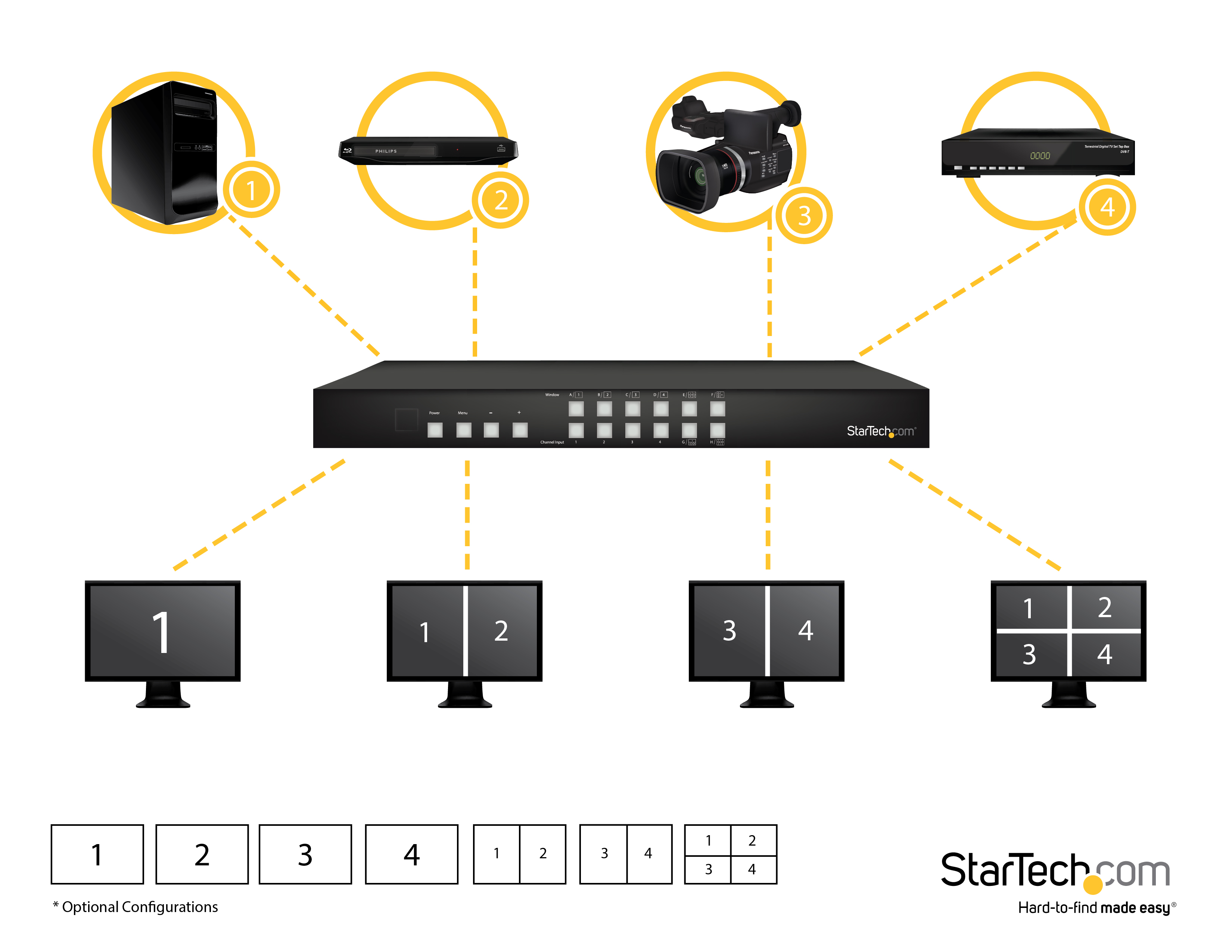

- Use in your digital signage applications to provide multiple video sources on the same screen, and distribute to four different locations
- Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
- Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks and video broadcasting facilities
- Monitor multiple security sources (cameras) simultaneously
Website Search Keyword - HDMI Switch
- HDMI Matrix Switch
- HDMI Switcher
- 4 way HDMI Splitter
- HDMI Matrix with Picture and Picture
- HDMI Matrix
- Picture in Picture
- Picture-in-Picture
- PIP
- PAP
- video wall matrix
- video wall
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + batteries
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Accessory Products - HDMM6
- HDMIDVIMM610PK
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- RJ45PATCH25
- RJ45PATCH50
- RJ45PATCH75
- RJ45PATCH100
- SVA12M5NA
- HDMM610PK
Related Products - VS421HDPIP
- VS222HDQ
- VS440HDMI
- VS410HDMIE
- ST424HDBT
Input Current 1 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 12V DC Power Consumption (In Watts) 36 Power Source AC Adapter Included Color Black Humidity 20% - 90 % RH (non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Primary Material Aluminum Product Length (mm) 436.000 Product Width (mm) 250.000 Product Height (mm) 40.000 Product Weight (g) 2807.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant Yes Maximum Digital Resolutions 1920x1200 Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI LED Indicators - 1 - Power LED
- 1 - Menu LED (OSD)
- 2 - Menu Operation LED (+ / -)
- 4 - Output Selection LED (A / B / C / D)
- 4 - Input Selection LED (1 / 2 / 3 / 4)
- 1 - Mode Selection LED (Matrix / Dual / Wall)
- 1 - Save LED
- 1 - Lock LED
Matrix Video Switch (Filter) Yes Carton Depth (mm) 445 Carton Height (mm) 430 Carton Quantity 3 Carton Weight Gross (g) 14050 Included in Package - 1 - 4x4 HDMI matrix switch

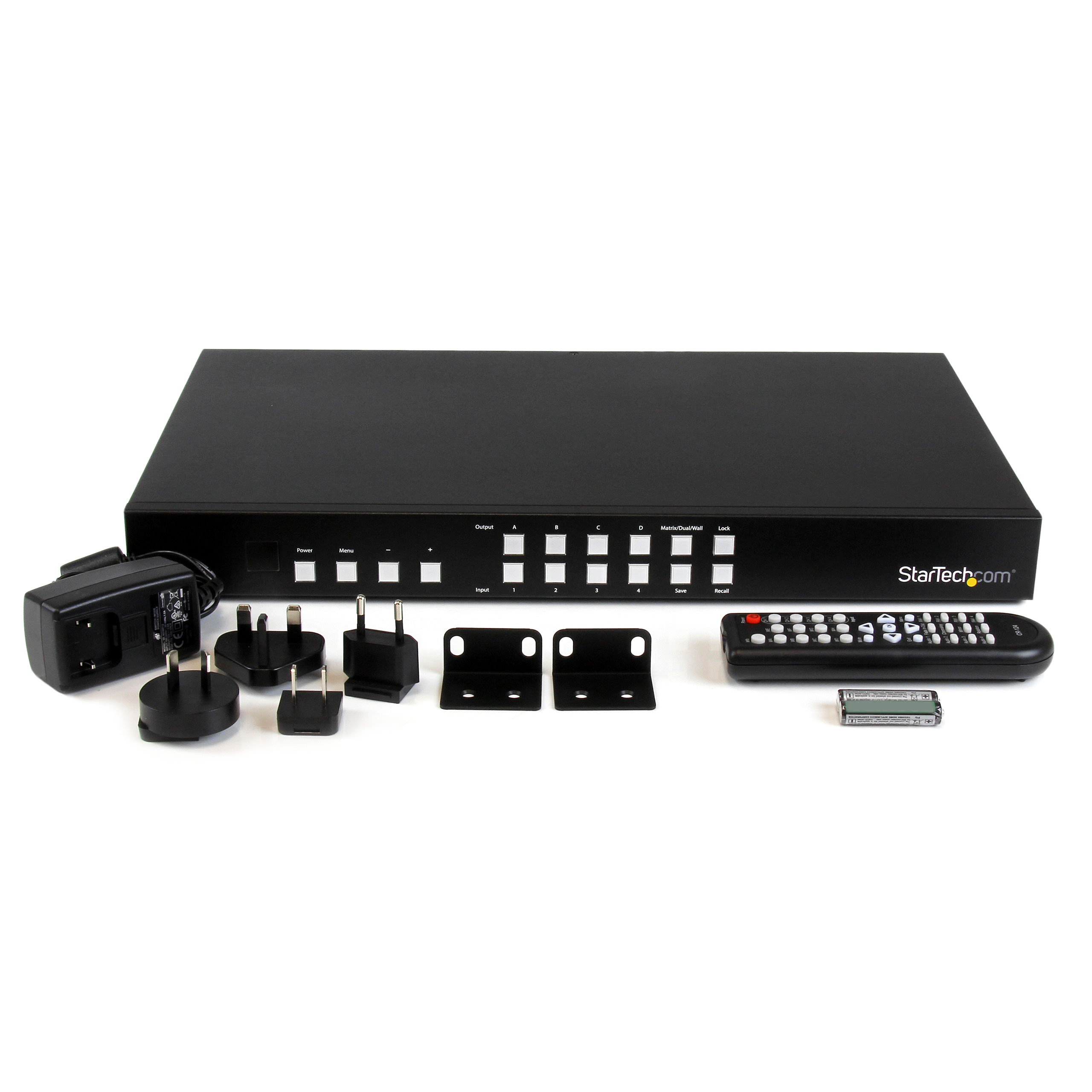

- 1 - remote control
- 1 - universal power adapter (NA, EU, UK, ANZ)
- 2 - mounting brackets
- 1 - instruction manual
- 1 - software installation disc
Package Depth (mm) 414 Package Height (mm) 144 Package Width (mm) 576 Package Weight (g) 4100 Packaging Description 4x4 HDMI Matrix Switch w/ Picture-and-Picture – 1080p Packaging Description India 4x4 HDMI Matrix Switch w/ Picture-and-Picture – 1080p Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 Infrared (IrDA) Connector 3 (Quantity) 1 Connector 4 HDMI Connector 4 (Quantity) 4 Connector 5 HDMI Connector 5 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-05-23 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
