VS440HDMI
4x4 Matrix HDMI Switcher with RS-232
Share and switch four distinct HDMI® audio/video signals between four displays
Main Image
Product Images
Product Images
BOM Image
Product Name 4x4 Matrix HDMI Switcher with RS-232 Product Number VS440HDMI UPC 065030842105 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 HDMI Matrix Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) 4x4 HDMI Matrix Video Switch Splitter Product Title (Medium) x Product Title (Standard) 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232 Product Title (Long) 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232 - TAA Product Title (AMZ) 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232 - 4x1 HDMI Video Switch - 4 Port HDMI Switcher (VS440HDMI) Title Ingram (Part 1) 4x4 HDMI Matrix Video Switch Spl Title Ingram (Part 2) itter with RS232 Website Product Headline Share and switch four distinct HDMI® audio/video signals between four displays Bullet 1 10m (32ft) Maximum cable length Bullet 2 Allows four PCs/Media Players to provide video to four displays Bullet 3 Equipped with easy to use front panel selection buttons Bullet 4 Supports resolutions up to 1920x1200 or 1080p Bullet 5 Front panel LCD for easy status monitoring Bullets (Consolidated) Video/audio switch - desktop Marketing Copy Applications - Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
- Ideal for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities
- Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected
- Run multimedia presentations with supporting data displayed on another monitor in business conference rooms or at trade shows
- Take full control of your A/V sources and displays/projectors - select any source on any display
Website Search Keyword - 4x4
- A/V Switch
- Audio
- Distribution Switch
- Matrix Video Switch
- Rack Mountable
- Switch
- HDMI
- Video Router
- Video Selector
- Video Switcher
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- IM12D1500P
- SVA12M2NEUA
- SVA12M5NA
Related Products - VS410HDMIE
- VS310HD2HDMI
Input Current 0.6A Input Voltage 100 - 240 AC Output Current 1.5A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0~95% Material Steel Operating Temperature 0°C to 70°C (32°F to 158°F) Primary Material Steel Product Length (mm) 440.000 Product Width (mm) 185.000 Product Height (mm) 42.000 Product Weight (g) 2350.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant Yes Bandwidth 225MHz Maximum Cable Length (mm) 10000 Supported Resolutions 1920x1200 or 1080p Wide Screen Supported Yes Audio Yes AV Input HDMI AV Output HDMI Cabling HDMI Matrix Video Switch (Filter) Yes Rack-Mountable Yes Carton Depth (mm) 485 Carton Height (mm) 296 Carton Quantity 5 Carton Weight Gross (g) 18020 Included in Package - 6 - Screws for rack mount brackets

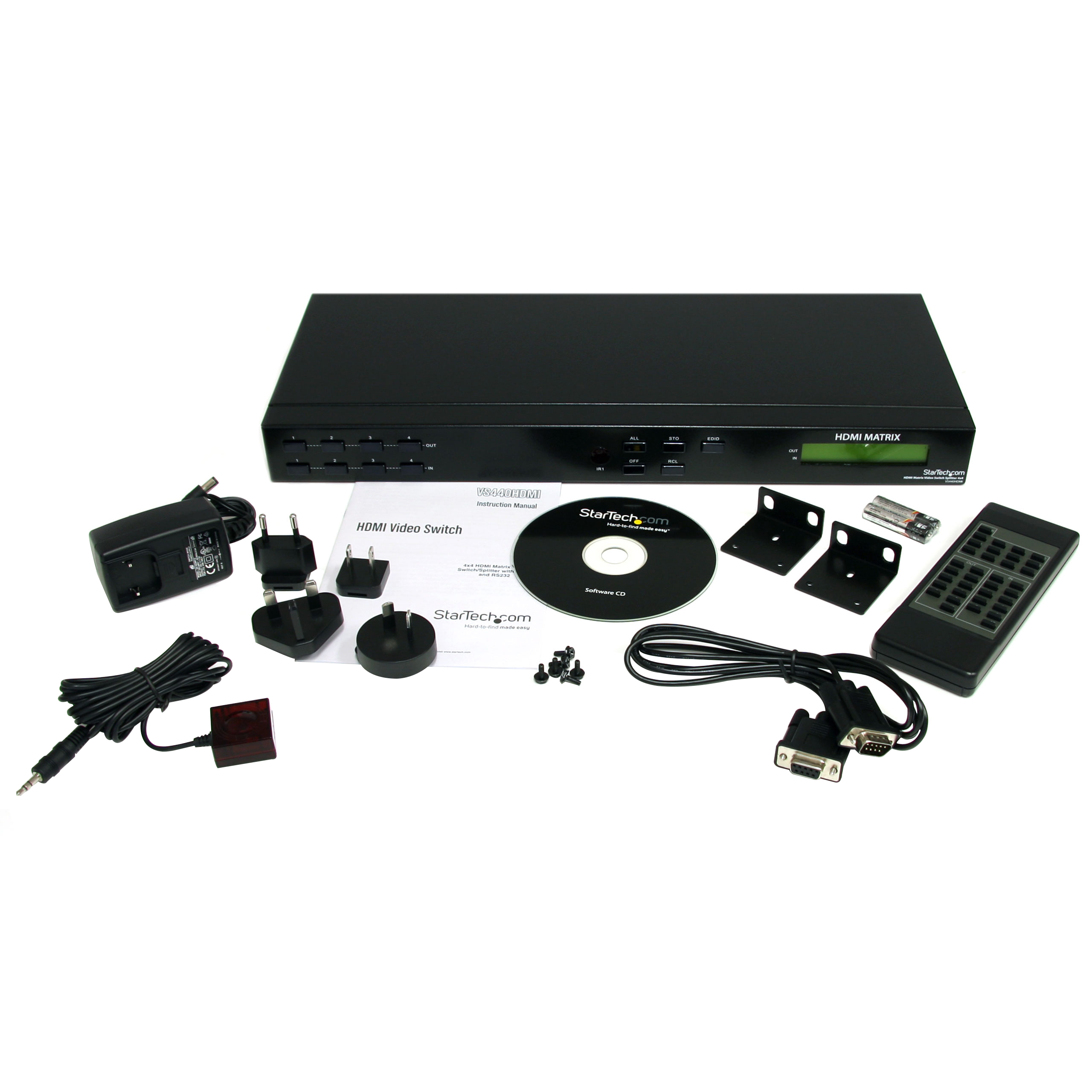

- 2 - Rack Mount Brackets
- 1 - Instruction Manual
- 1 - Universal Power Adapter (US/UK/EU/AU)
- 1 - HDMI Matrix Selector Switch
- 1 - 6 ft [1.83 m] RS232 Cable
- 1 - Software Installation CD
- 1 - IR Remote Control
- 1 - IR Extender
- 2 - AAA Batteries
Package Depth (mm) 263 Package Height (mm) 90 Package Width (mm) 581 Package Quantity 1 Package Weight (g) 3120 Packaging Description 4x4 HDMI® Matrix Video Switch with Audio Packaging Description India 4x4 HDMI® Matrix Video Switch with Audio Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 HDMI Connector 2 (Quantity) 4 Connector 3 HDMI Connector 3 (Quantity) 4 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
