VS721MULTI
Multiple Video Input with Audio to HDMI reg Switcher
Share an HDMI® display between multiple analog or digital video sources (e.g VGA, Component, S-Video, Composite, HDMI)
Main Image
Product Images
Product Images
BOM Image
Product Name Multiple Video Input with Audio to HDMI reg Switcher Product Number VS721MULTI UPC 065030848497 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Video Display Connectivity Category Level 2 Video Switchers Category Level 3 Multi-Input Switchers Family No Family Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX011X Product Title (Short) Multiple Video Input to HDMI Switcher Product Title (Medium) x Product Title (Standard) Multiple Video Input with Audio to HDMI® Switcher - HDMI / VGA / Component Product Title (Long) Multiple Video Input with Audio to HDMI Switcher - HDMI / VGA / Component - TAA Product Title (AMZ) Multiple Video Input with Audio to HDMI Switcher - HDMI / VGA / Component - HDMI Converter Switch (VS721MULTI) Title Ingram (Part 1) HDMI Converter Switch - HDMI / Title Ingram (Part 2) VGA / Component to HDMI Website Product Headline Share an HDMI® display between multiple analog or digital video sources (e.g VGA, Component, S-Video, Composite, HDMI) Bullet 1 Supports analog PC Resolution input and output up to WUXGA (1920x1200) @ 60Hz Bullet 2 HDMI® and HDCP compliant Bullet 3 Supports analog HDTV RGB/YPbPr/YCbCr input, output up to 1080p @ 60Hz Bullets (Consolidated) Share an HDMI display between multiple analog or digital video sources (e.g VGA - Component - S-Video - Composite - HDMI) - HDMI Switcher - HDMI Converter Switcher - HDMI Converter Switch - Component to HDMI Switch - VGA to HDMI Switch Marketing Copy Applications Convert analog and digital video to HDMI® for a variety of applications such as switching between consumer electronics devices (e.g. Blu-ray Disc™ players, satellite receivers, video game consoles and other devices) Website Search Keyword - HDMI Switch
- vga and hdmi switch
- component to hdmi switch
- component hdmi switch
- VGA to HDMI switch
- rgb hdmi switch
- ypbpr switch
- vga switch
- component switch
- ypbpr to hdmi switch
- multi switch
- multi input switch
- A/V switch
- av switch
- 7-to-1 video switch
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Accessory Products - MXT101MMHQ
- MXT101MMHQ10
- MXT105MMHQ
- HDMM6
- HDMM10
- HDMM15
- HDMIDVIMM6
- HDMIDVIMM10
- HDMIDVIMM15
- MU6MMS
- MU10MMS
- MU15MMS
- MU1MMRCA
- MU3MMRCA
- MU6MMRCA
- AUDIORCA15
- AUDIORCA30
- AUDIORCA50
- SVA12M2NEUA
- SVA12M5NA
Related Products - VS122HDMIU
- VS410HDMIE
- SV231HDMIUA
- VS440HDMI
- VS421DP
- VS410RVGAA
- ST122VGAU
- ST222MX
- ST224MX
Input Current 0.6 A Input Voltage 100 - 240 AC Output Current 1.5 A Output Voltage (V) 12V DC Power Consumption (In Watts) 18 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% to 95% RH Non-Condensing Material Aluminum Operating Temperature 0°c to 70°c (32°F to 158°F) Primary Material Aluminum Product Length (mm) 384.000 Product Width (mm) 173.000 Product Height (mm) 45.000 Product Weight (g) 1800.000 Storage Temperature -20°c to 85°c (-4°F to 185°F) TAA Compliant Yes Maximum Analog Resolutions VGA: 1920x1200</br> YPbPr: 1920x1080 Maximum Digital Resolutions 1920x1200 OS Compatibility - Windows 2008
- Windows 8
- Windows XP
- Windows 2000
- Windows 7
- Windows Vista
- Windows 10
- Windows 11
Supported Resolutions Wide Screen Supported Yes Audio Yes AV Input - HDMI
- S-Video
- Composite
- VGA
- Component

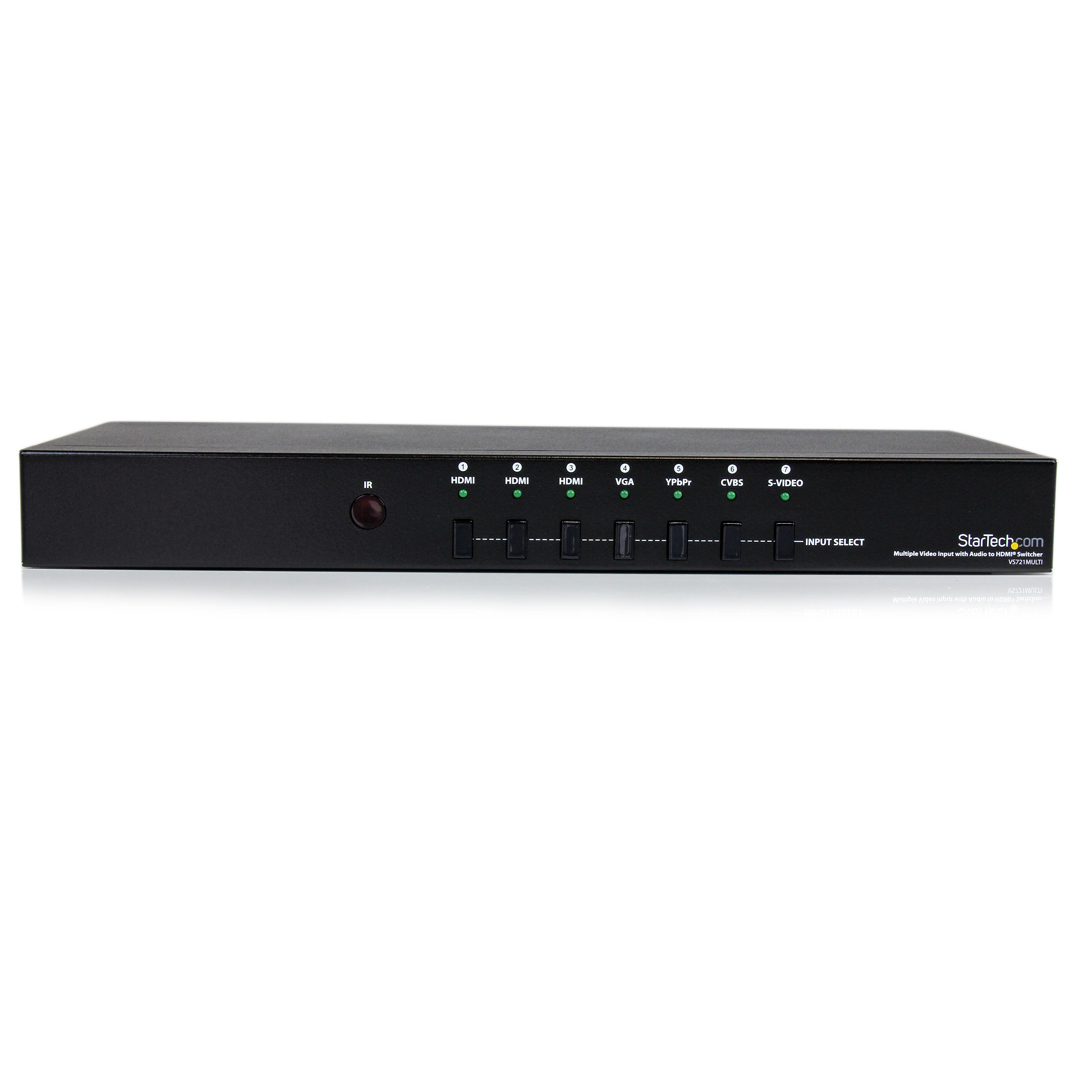

AV Output HDMI Cabling HDMI Industry Standards High Speed HDMI®, HDCP LED Indicators - 1 - 1 - HDMI
- 1 - 3 - HDMI
- 1 - 6 - CVSB
- 1 - 5 - YPbPr
- 1 - 2 - HDMI
- 1 - 7 - S-VIDEO
- 1 - 4 - VGA

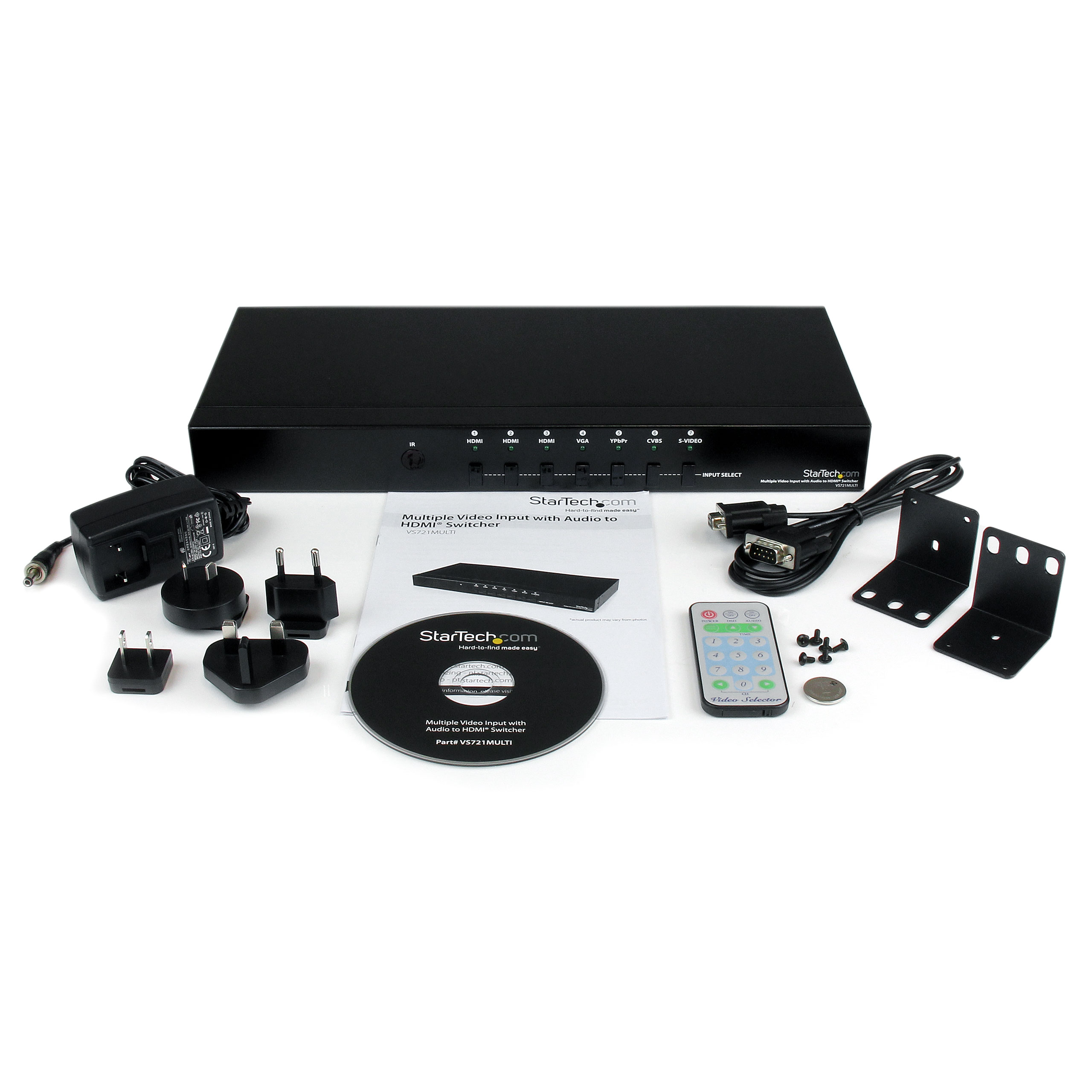

Matrix Video Switch (Filter) No Carton Depth (mm) 479 Carton Height (mm) 297 Carton Quantity 5 Carton Weight Gross (g) 14460 Included in Package - 1 - multiple format to HDMI audio video switch
- 1 - IR remote control
- 1 - mounting kit
- 1 - universal power adapter (NA, EU, UK, AU)
- 1 - RS232 serial cable (6 ft.)
- 1 - RS-232 control software CD
- 1 - instruction manual

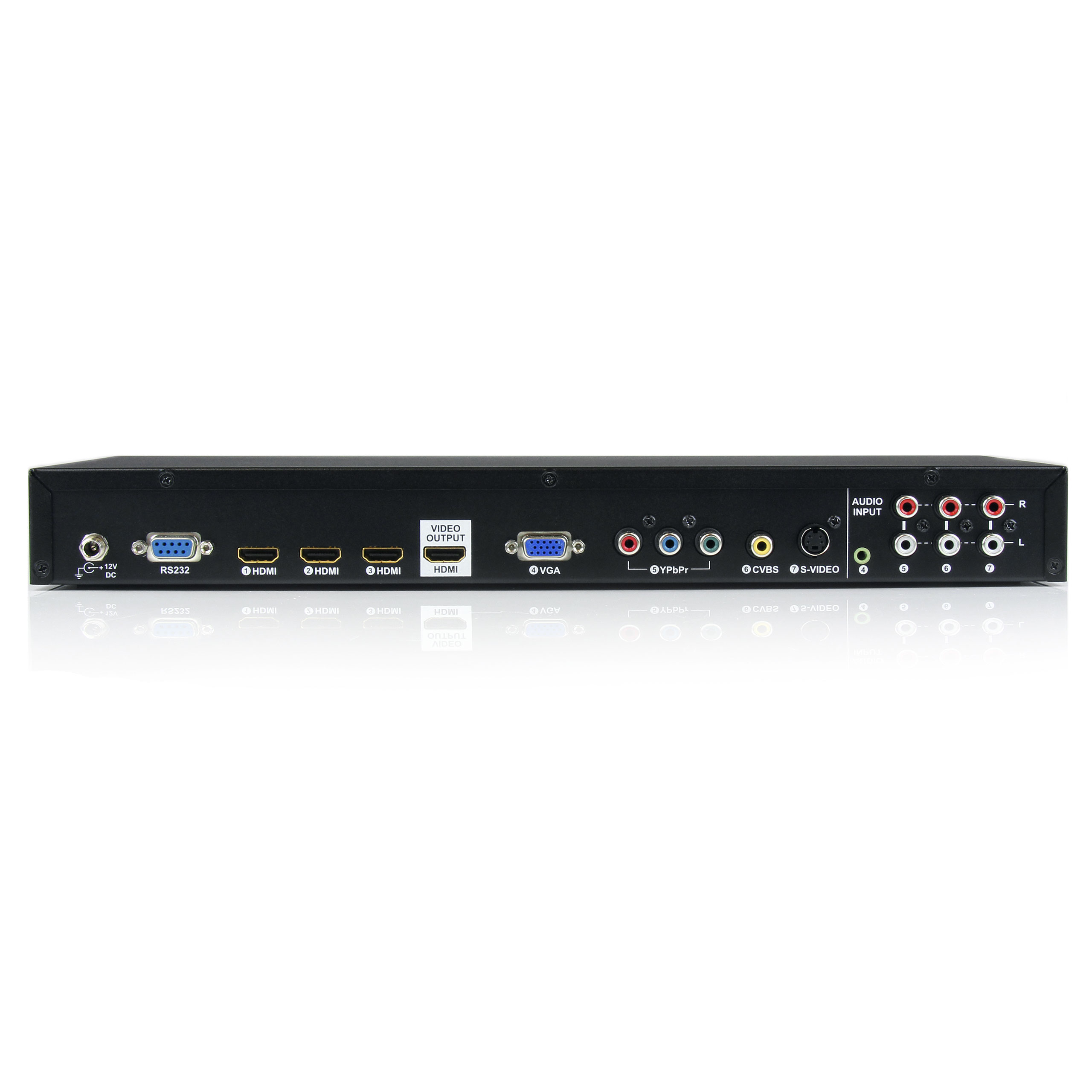

Package Depth (mm) 260 Package Height (mm) 90 Package Width (mm) 459 Package Weight (g) 2700 Packaging Description Multiple Video Input to HDMI® Switcher Packaging Description India Multiple Video Input to HDMI® Switcher Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 3 Connector 2 RCA (Component Video, YPbPr) Connector 2 (Quantity) 1 Connector 3 RCA (Composite Video, Stereo Audio) Connector 3 (Quantity) 3 Connector 4 RCA (Composite Video) Connector 4 (Quantity) 1 Connector 5 3.5mm (3 Conductors, TRS) Connector 5 (Quantity) 1 Connector 6 S-Video (Y/C) Connector 6 (Quantity) 1 Connector 7 VGA Connector 7 (Quantity) 1 Connector 8 HDMI Connector 8 (Quantity) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-02-13 Buying Center - AV & Collaboration Yes Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Greg Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
