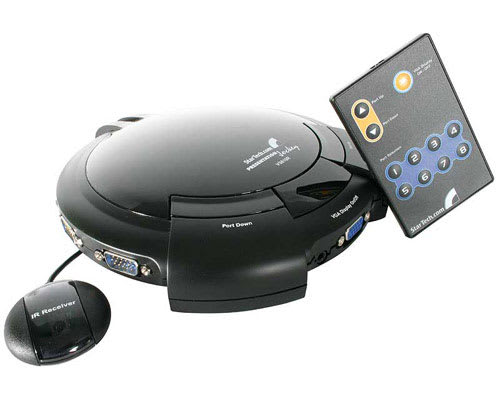

VS810R
Main Image
Product Name Presentation Jockey - 8 to 1 VGA Switch Product Number VS810R UPC 065030797016 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX006X Product Title (Long) Presentation Jockey - 8 to 1 VGA Video Switch with Remote Control Bullet 1 Push button or remote control switching suits any presentation style Bullet 2 Compact external infrared receiver lets you hide console Bullet 3 Portable and lightweight for off-site presentations Bullet 4 Circular console design for easy access to all 8 ports Bullet 5 High resolution up to 2048 x 1536 pixels Marketing Copy Applications - Connect up to 8 computers to a single monitor or projector
- Deliver impressive group presentations without stopping for A/V setups
- Ideal for boardrooms, lecture halls, tradeshows and more
Accessory Products - MXT101HQ
- MXT105HQ
- MXT101HQ_25
- MXT101HQ_50
- MXT101HQ_100
- ST121UTP
Related Products - AVS210
- DS152
- DS154
Replacement Product VS410RVGAA Input Current 1 Input Voltage 9 Power Source AC Adapter Included Color Black TAA Compliant No General Specifications - LED Indicators: Activity: 8 x online computers (Orange) & Selected Computer (Green)
- Video Resolution: 2048 x 1536, DDC, DDC2 & DDC2B
- VGA Bandwidth: 200 MHz
- Signal Type: VGA, SVGA, and Multisync monitors
- Port Selection: Push Button Switch & IR Remote Control
- Power Consumption: AC 9V (1A)
- Operating Temperature: 0 degrees Celsius ~ 50 degrees Celsius
- Storage Temperature: -20 degrees Celsius ~ 60 degrees Celsius
- Enclosure: Plastic
- Weight: 0.99 Lbs (0.45 Kg)
Maximum Analog Resolutions 2048 x 1536 AV Input VGA AV Output VGA Carton Depth (mm) 285 Carton Height (mm) 335 Carton Quantity 160 Carton Weight Gross (g) 10659.412 Package Depth (mm) 96 Package Height (mm) 226 Package Width (mm) 266 Package Weight (g) 1110 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 8 en-US Content Approved Yes Product Manager Eric Roth
