VS810RGB
Main Image

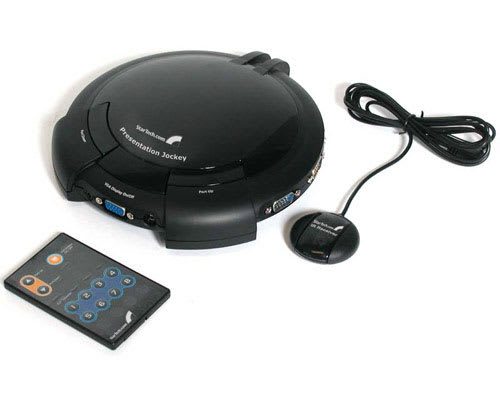

Product Name Presentation Jockey - 8 to 1 VGA Video Switch with Remote Product Number VS810RGB UPC 065030800792 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) 1 Product Title (Long) Presentation Jockey - 8 to 1 VGA Video Switch with Remote Bullet 1 Concentric 8 port design for quick and easy connector access Bullet 2 Push button or infrared (IrDA) remote control Bullet 3 A handy external infrared receiver for increased flexibility and maximum convenience when switching between computers Bullet 4 High video resolution up to 2048 x 1536 pixels Bullet 5 Supports VGA, SVGA, XGA and multisync monitors Marketing Copy Applications - Great for presentations, training sessions, tradeshows, meetings, lectures and more
- An ideal solution for applications where video signals from many computers need to be connected to a single display device
Input Current 1 Input Voltage 9 Power Source AC Adapter Included Color Black TAA Compliant No General Specifications - Connectors:
- : Video In: 8 x 15 pin HDB male
- : Video Out: 1 x 15 pin HDB female
- : Power In: 1 x Power adapter Jack
- : IR: 1 x Receiver Jack
- Compatibility:
- : CPU: PC and Mac with analog VGA display support
- : Operating System: All operating systems
- LED Indicators: Activity: 8 x online computers (Orange) & Selected Computer (Green)
- VGA Display: 1 x VGA Display ON/OFF (Blue)
- Video Resolution: 2048 x 1536, DDC, DDC2 & DDC2B
- VGA Bandwidth: 200 MHz
- Signal Type: VGA, SVGA, and Multisync monitors
- Port Selection: Push Button Switch & IR Remote Control
- Power Consumption: AC 9V (1A)
- Environmental Specification:
- : Operating Temperature: 0 degrees Celsius ~ 50 degrees
- : Storage Temperature: -20 degrees Celsius ~ 60 degrees
- Enclosure: Plastic
- Weight: 0.99 Lbs (0.45 Kg)
- System/Cable Requirements:
- : CPU: PC & Mac with Analog VGA Support
- : Cables: 8 x 15 Pin HDB Male
- : Monitors: VGA, SVGA, XGA and Multisync monitors
Maximum Analog Resolutions 2048 x 1536 AV Input VGA AV Output VGA Connector 1 VGA Connector 1 (Quantity) 1 Connector 2 VGA Connector 2 (Quantity) 8 en-US Content Approved Yes
