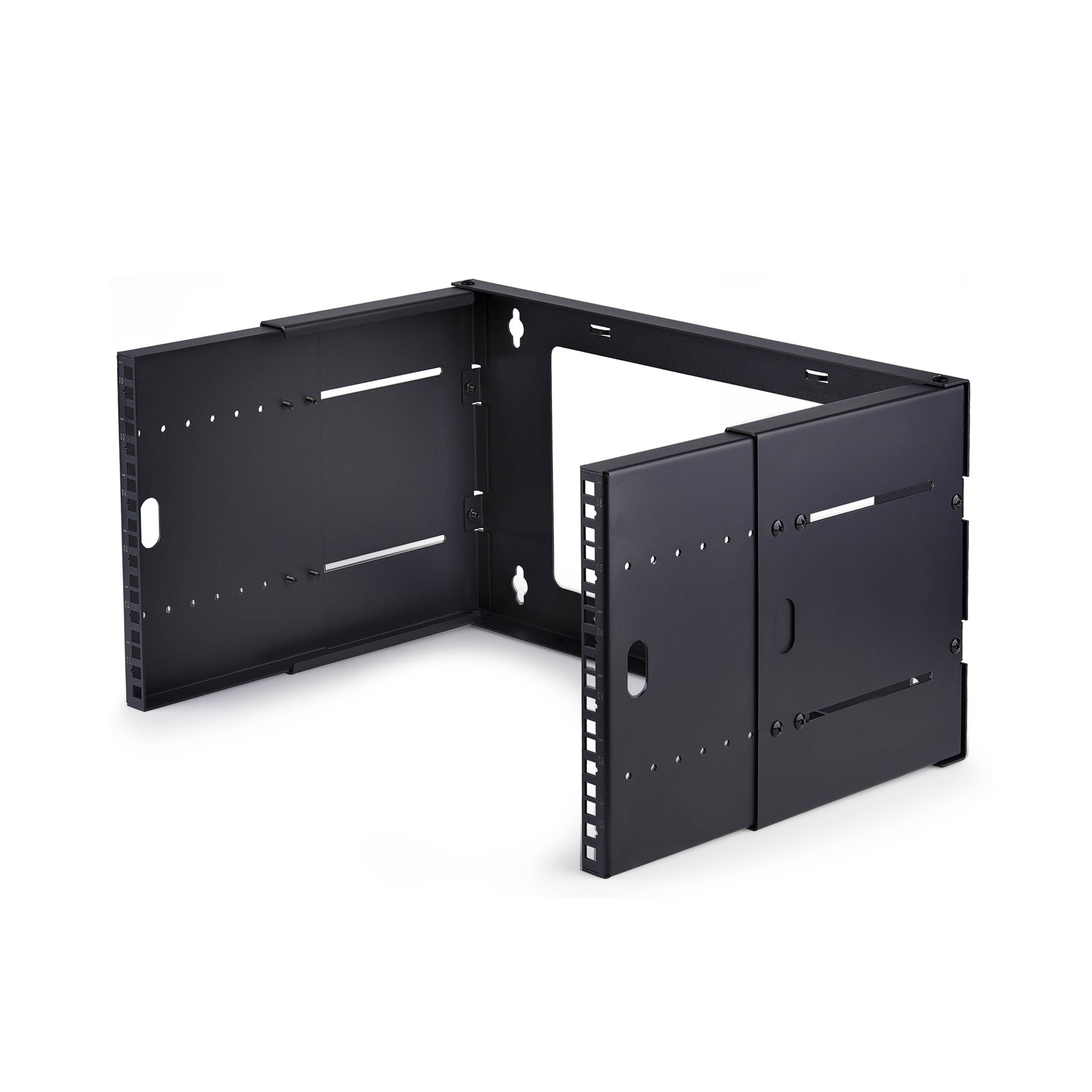

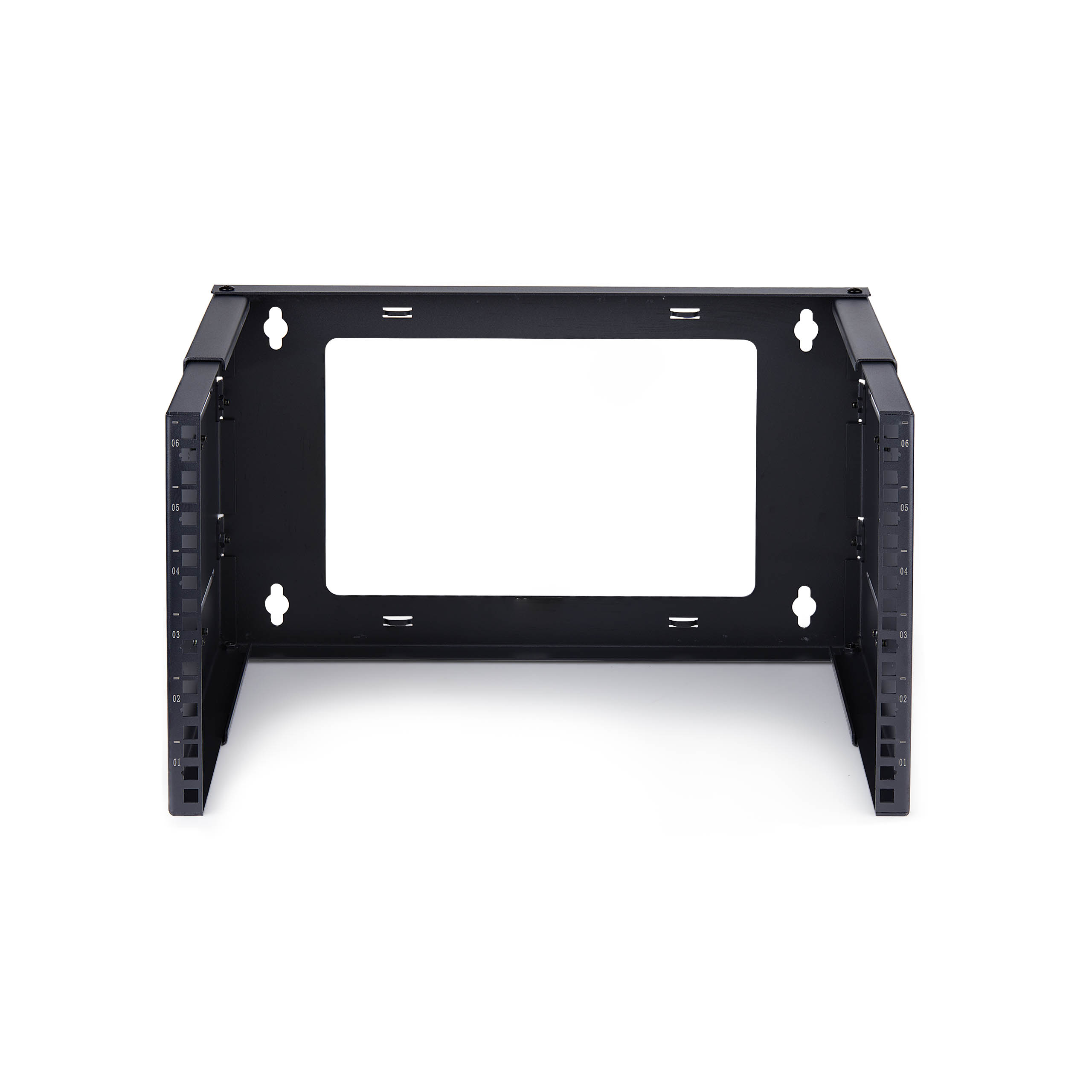

WALLMOUNT6-HAF
6U Wallmount Bracket Depth Adj max 14 88lb 40kg Wt Cap

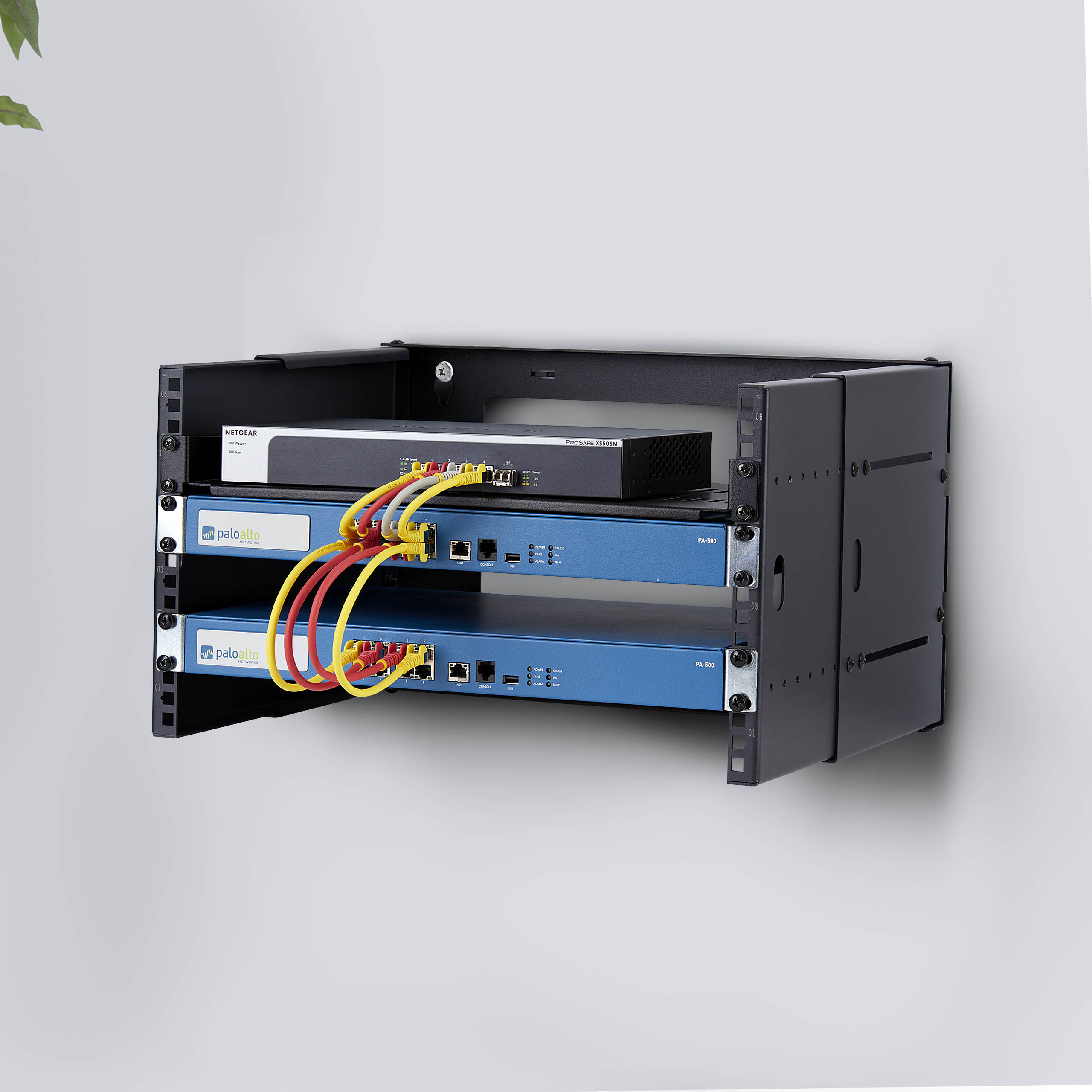

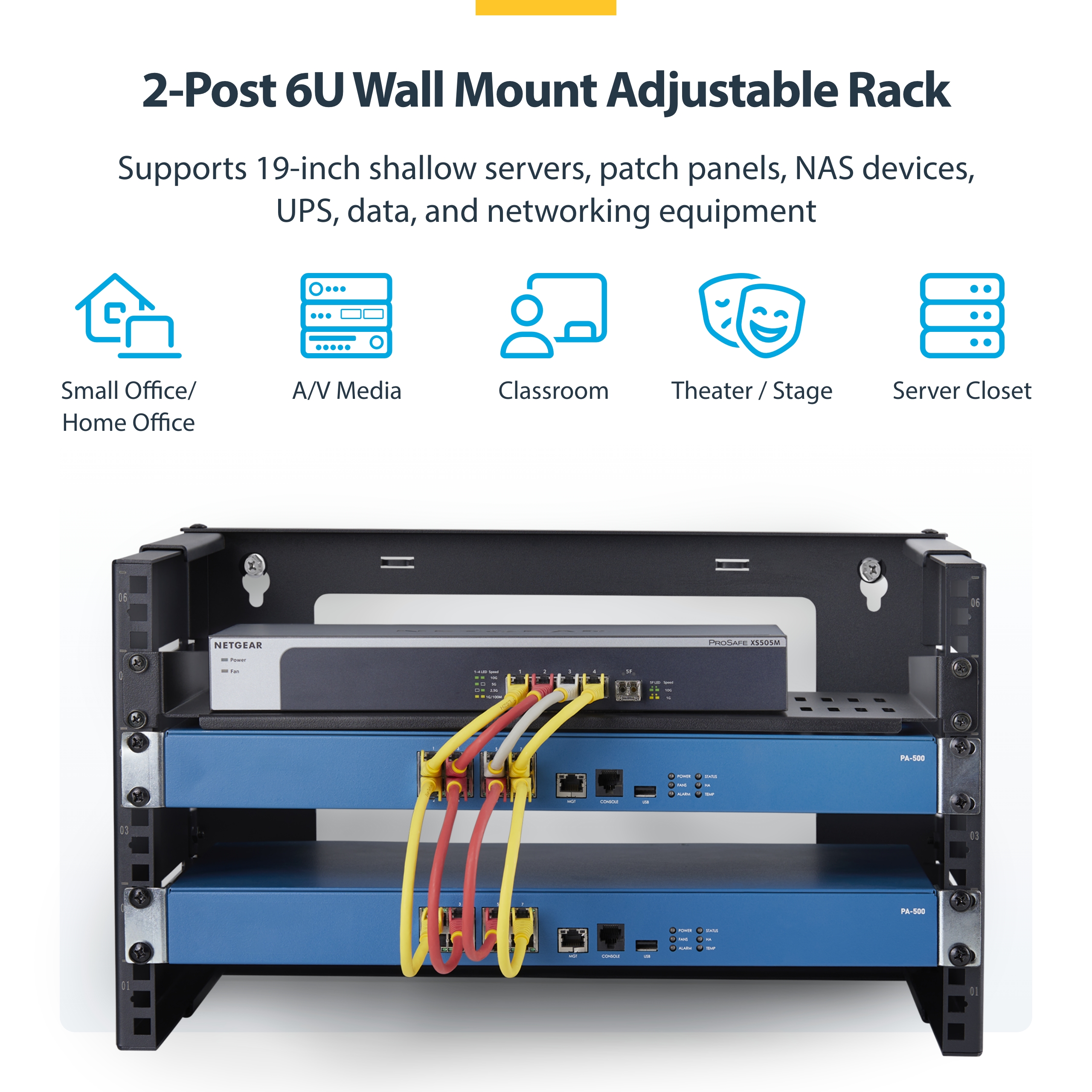

Mount a server or networking equipment to a wall with this open-frame bracket
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 6U Wallmount Bracket Depth Adj max 14 88lb 40kg Wt Cap Product Number WALLMOUNT6-HAF UPC 065030912860 Lifecycle status Active Warranty Lifetime Weighted Opportunity 350000 Taxonomy Product > Mechanical Products > Open Frame Racks Category Level 1 Racks and Enclosures Category Level 2 Wall-Mount Racks and Enclosures Category Level 3 Shallow Wall-Mount Brackets Family Wall-Mounting Bracket Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX144X Product Title (Ultra-Short) 2-Post 6U Wall Rack Product Title (Short) 2-Post 6U Wall Mount Rack, Adjustable Product Title (Medium) 2-Post 6U Wall Mount Rack, Adjustable Depth, Bracket for 19" Server, Max 88lb Product Title (Standard) 2-Post 6U Wall Mount Rack, Adjustable Depth up to 16in, Bracket for 19-inch Server/Data/Networking Equipment, Max 88lb Product Title (Long) 2-Post 6U Wall Mount Rack, Adjustable Depth up to 16in (40cm), Bracket for 19-inch Server/Data/Networking Equipment, Open Frame, Max 88lb (40kg) Product Title (AMZ) 2-Post 6U Wall Mount Rack, Adjustable Depth up to 16in, For 19-inch Server/Data/Networking Equipment, Max 88lb Title Ingram (Part 1) 2-Post 6U Wall Mount Rack - Title Ingram (Part 2) 19-inch Server Bracket, Open Frame Website Product Headline Mount a server or networking equipment to a wall with this open-frame bracket Bullet 1 6U WALL MOUNT ADJUSTABLE RACK: 2-Post 6U wallmount rack supports 19-inch shallow server racks, shelves, patch panels, UPS, data, and networking equipment; Adjustable mounting depth up to 15.6in (39.7cm) deep; EIA-310-compliant Bullet 2 READY TO USE: Wall-mount rack features fold-out sides for quick setup, ships fully assembled flat-packed, and includes wood stud screws, M5 cage nuts, and M5 screws; Four keyhole mounting holes ensure easy installation and removal Bullet 3 ADJUSTABLE DEPTH: Customize the mounting depth from 9.6 to 15.6in (24.5 to 39.7cm) to accommodate different sized equipment; The side panels feature handles and preset adjustment holes for easy depth customization Bullet 4 WEIGHT CAPACITY AND MOUNTING: This wall bracket can hold up to 88lb (40kg), providing a reliable solution for equipment mounting; Wall mounting holes are spaced 16" (40.6cm) apart enabling secure anchoring to existing construction framework Bullet 5 DURABLE STEEL CONSTRUCTION: Built from 14-gauge (2mm) solid steel with a powder-coated finish, this open-frame rack delivers exceptional strength and durability for long-term mounting; Wall mount bracket is backed for life and 24/5 technical assistance Bullets (Compact) 2-post 6U wall-mount rack for 19-inch server/data/networking equipment -Adjustable depth 9.6 to 15.6in - Ships flat-packed; Includes wood mounting screws/M5 cage nuts and screws - Bracket supports up to 88lb; Keyhole mounting holes; 14-gauge steel Bullets (Consolidated) - 2-post 6U wall-mount rack supports 19-inch server racks/shelves/patch panels/UPS/data and networking equipment; EIA-310 compliant - Adjustable mounting depth from 9.6 to 15.6in (24.5 to 39.7cm) for a tailored fit - Ships assembled in a flat-pack; Includes wall mounting screws for wooden studs/M5 cage nuts/M5 screws - Supports up to 88lb (40kg); 16" (40.6cm) spaced keyhole mounting holes - Open frame bracket with 14-gauge (2mm) steel construction for a sturdy and stable wall mount solution Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + foam
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Accessory Products - CABCAGENUTS
- CABCAGENUTS6
- CABCAGENUTS1032
- CABSCREW1032
- CABSCREWM5
- CABSCREWM6B
- CABSCREWSM6
- CABSCREWSM6B
- CABSCRWS1032
- B506I-HOOK-LOOP-TIES
- CABLE-TAG-HLWH
- CBMMCTTOOL
- CBMZT6N
- CBMZT6B
- HKLP10
- CBMZTRB6BK
Related Products - WALLMOUNT8-HAF
- WALLMNT12

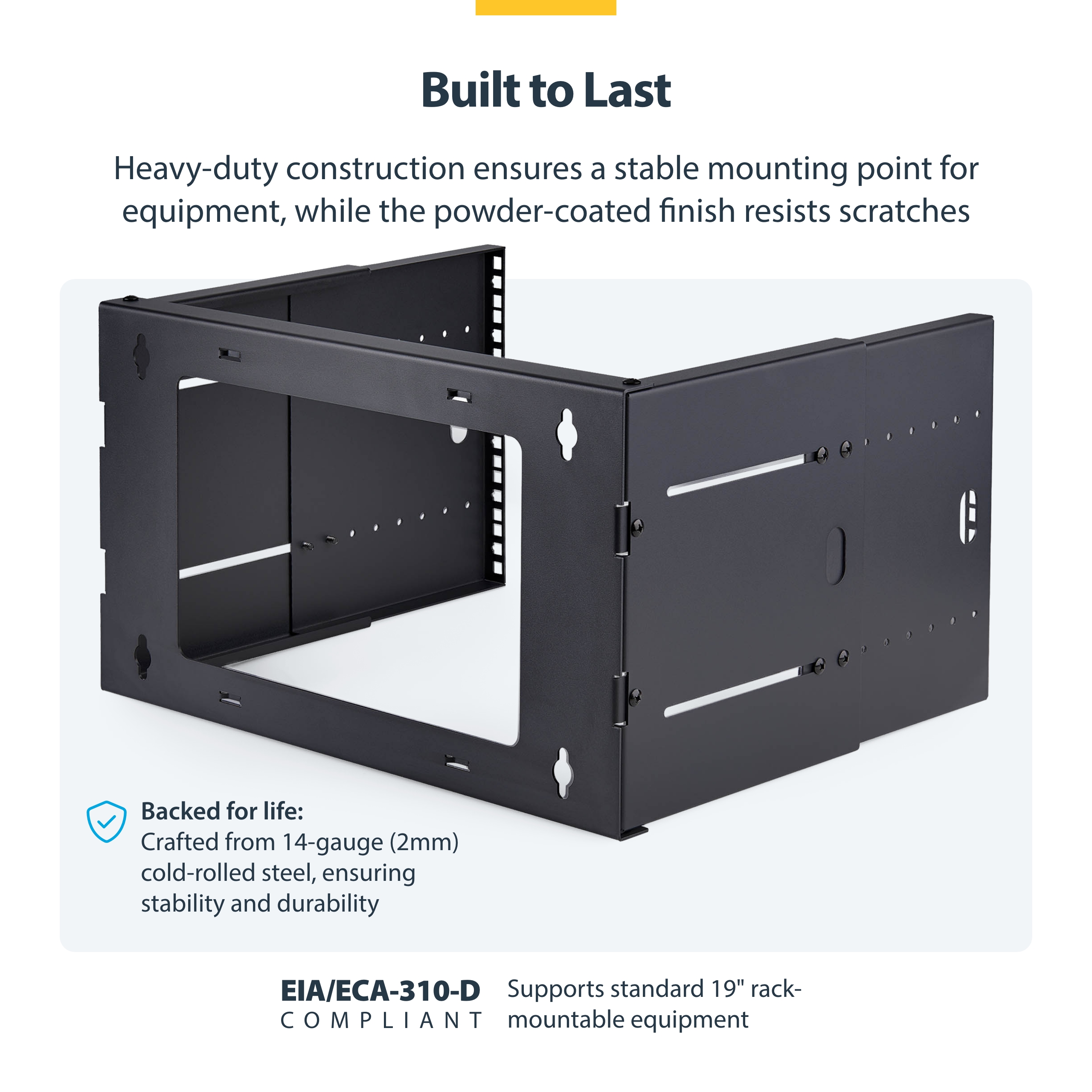

Color Black Construction Material Steel Depth Capacity (Filter) Less Than 6 in. (152mm) Maximum Mounting Depth (mm) 397.7 Minimum Mounting Depth (mm) 245.3 Product Length (mm) 510 Product Width (mm) 300 Product Height (mm) 33 Product Weight (g) 6572 TAA Compliant No Weight Capacity for Racks with No Casters (g) 40000 Frame Type Open Frame Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Rack Special Features - Ships Fully Assembled
- Wall-Mountable

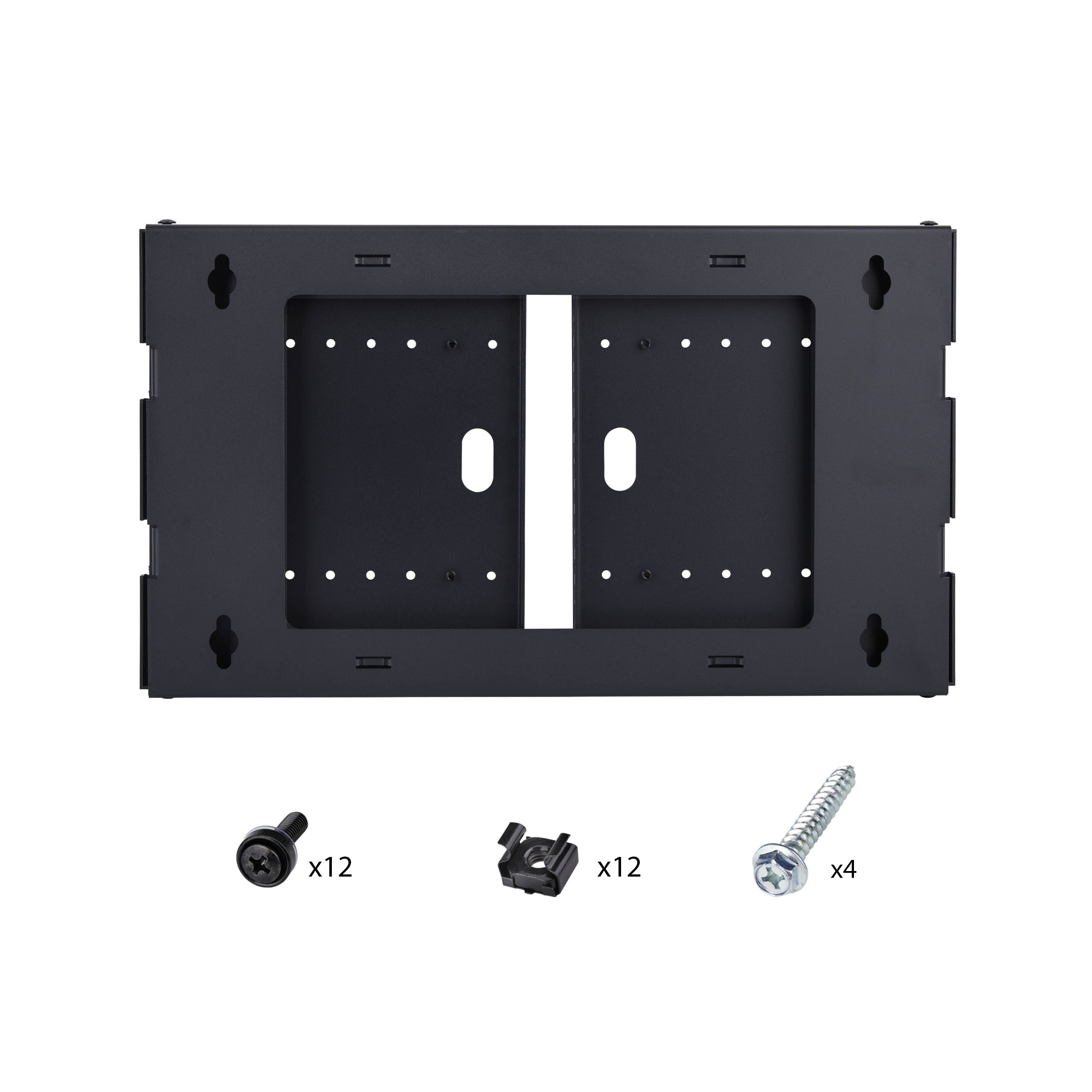

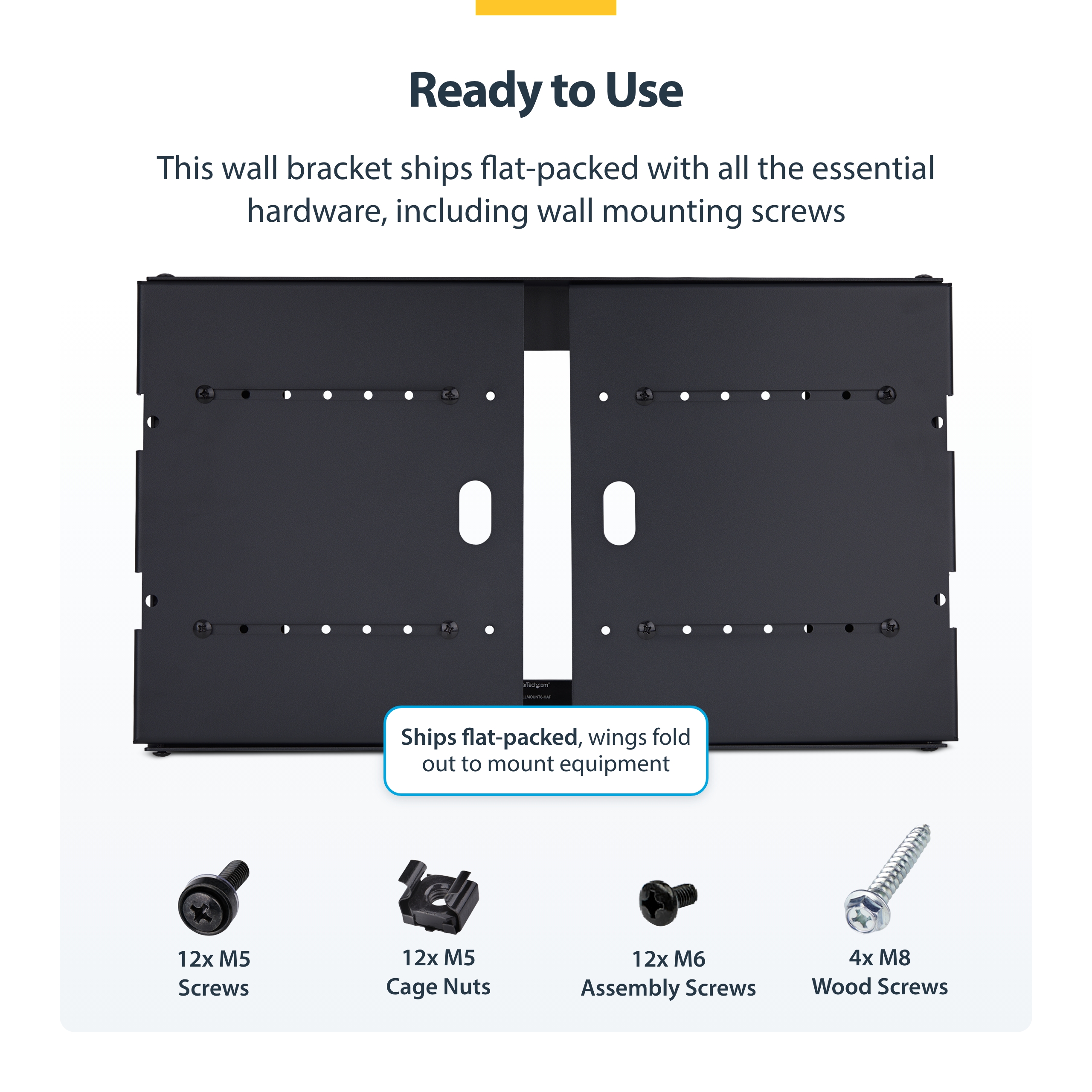

Rack Type 2-Post Rack U Height Ranges 6-10U U Height 6U Wallmountable Yes Carton Depth (mm) 375 Carton Height (mm) 100 Carton Quantity 1 Carton Weight Gross (g) 7300 Included in Package - 1 - 6U Wall Mount Rack
- 12 - M5x15 Screws
- 12 - M5 Cage Nuts
- 4 - M8x50 Screws
- 1 - Quick-Start Guide
- 4 - M6x12 Screws
Package Depth (mm) 375 Package Height (mm) 100 Package Width (mm) 565 Package Weight (g) 7300 Packaging Description 6U Adjustable Wall Mount Bracket - 15.35" Deep - 88lb (40kg) Capacity Rack Flatpack Yes Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Amazon Only SKU Yes Application Photos Uploaded Artwork Due Date 2024-09-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 6U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 44lbs/20kg Weight Capacity, Black Comparable SKU 2 Comment NA Digital Content Due Date 2025-03-21 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 37x20mm Launch Markets (concatenated) AU,CA,DE,ES,FR,IN,IT,JP,MX,NL,SE,UK,US Primary Technology None Priority New Product High Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-11-14 Target Production Release 2024-12-06 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Latest Vending Machine Not Compatible with Vending Machine
