WFRAP433ACD

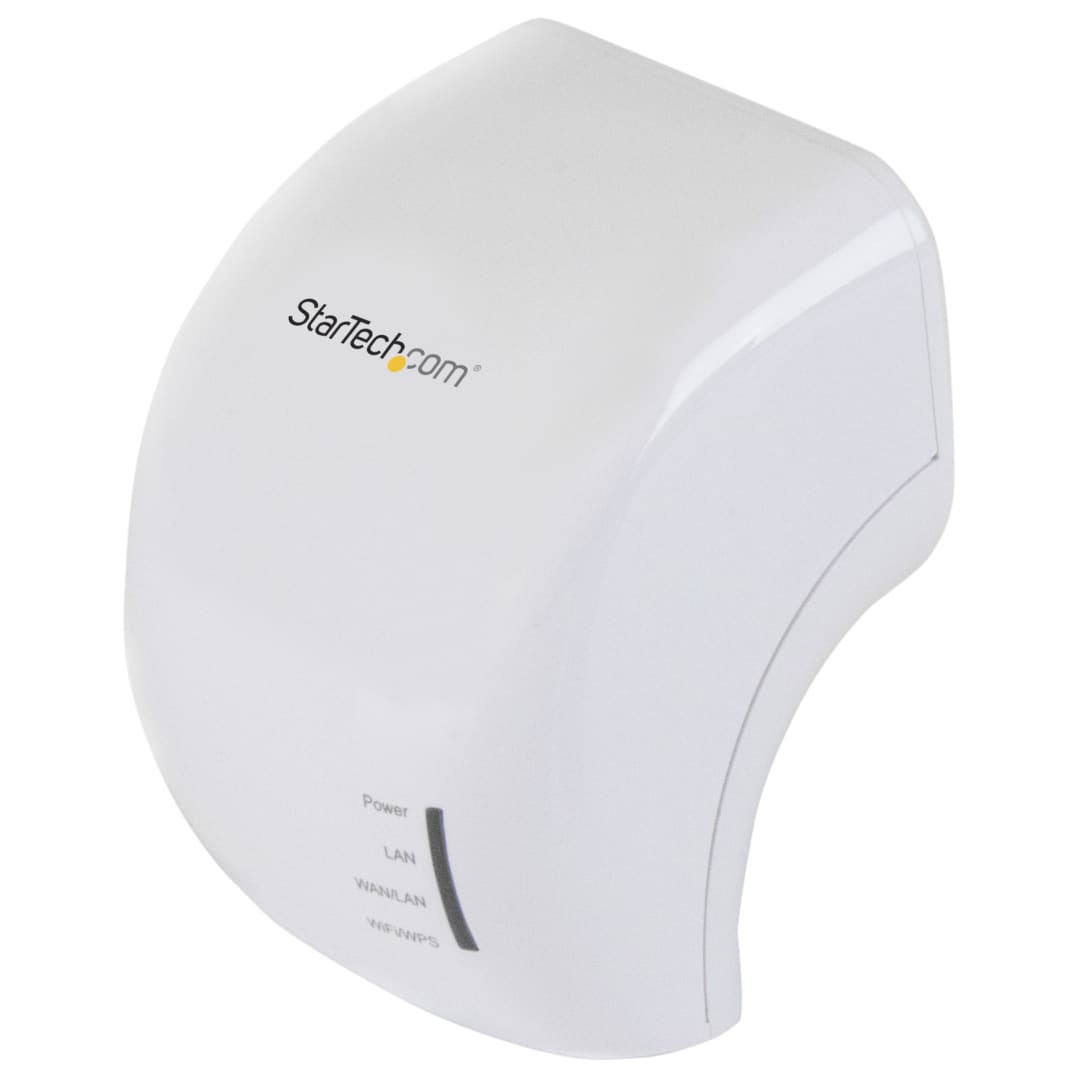

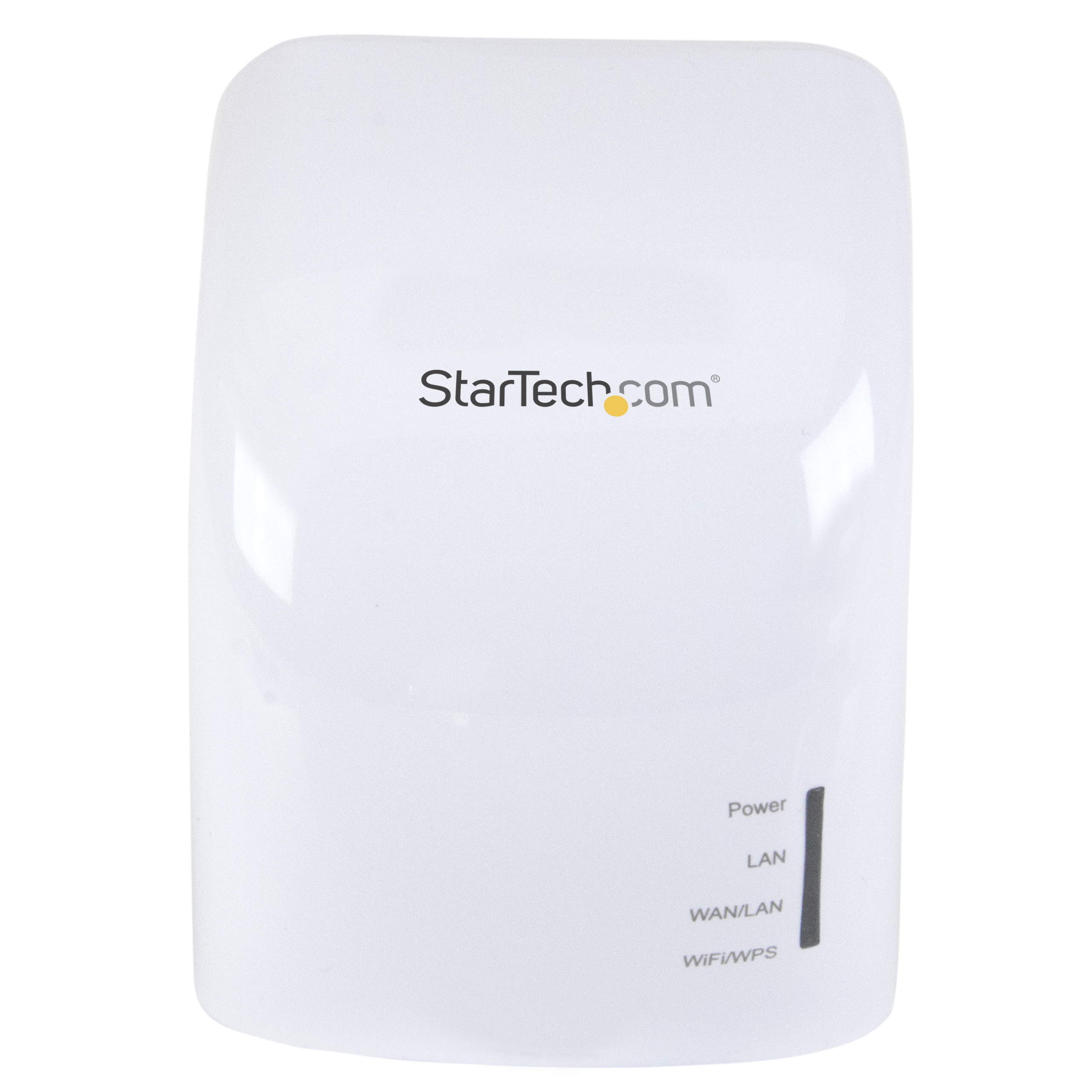

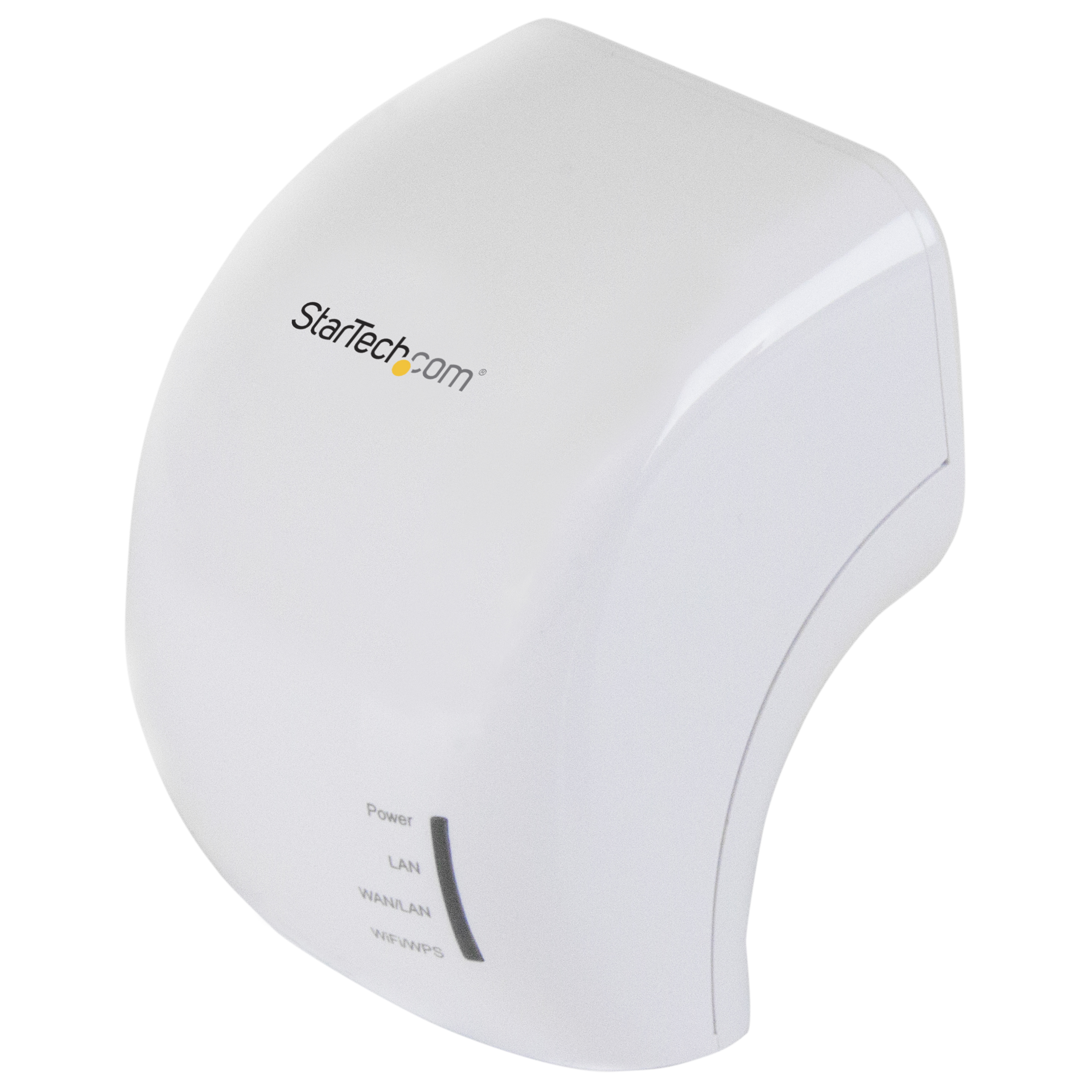

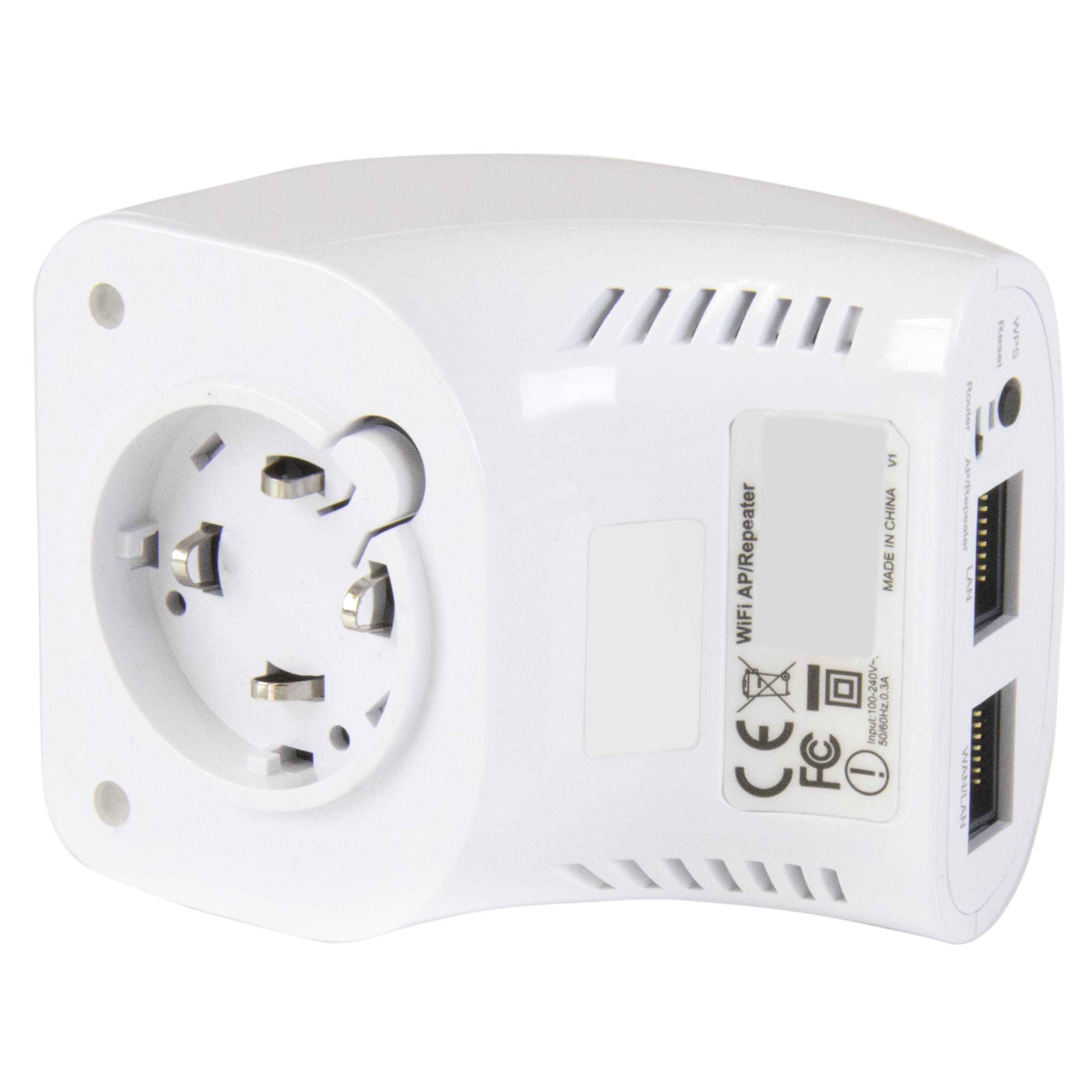

Dual band 2.4GHz/5GHz wireless extender- wall plug
Create a Wireless-AC hot spot from a wired network connection, or extend the range of your existing Wi-Fi network
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Dual band 2.4GHz/5GHz wireless extender- wall plug Product Number WFRAP433ACD UPC 065030859783 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Ultra-Short) DualBand Wireless AP Product Title (Short) Dual Band Wireless-AC AP/Router/Repeater Product Title (Medium) AC750 Dual Band Wireless-AC Access Point, Router and Repeater - Wall Plug Product Title (Standard) AC750 Dual Band Wireless-AC Access Point, Router and Repeater - Wall Plug - 2.4GHz and 5GHz Wi-Fi Extender Product Title (Long) AC750 Dual Band Wireless-AC Access Point, Router and Repeater - Wall Plug Product Title (AMZ) AC750 Dual Band Wireless-AC Access Point, Router and Repeater - Wall Plug - 2.4GHz and 5GHz Wi-Fi Extender (WFRAP433ACD) Title Ingram (Part 1) Dual Band 2.4GHz/5GHz Wireless Title Ingram (Part 2) Extender with Wall Plug Design Website Product Headline Create a Wireless-AC hot spot from a wired network connection, or extend the range of your existing Wi-Fi network Bullet 1 Add versatile performance options to your Wi-Fi network, with 3 wireless modes: Extender, Router and Access Point Bullet 2 Compact wall-plug design with no need for an additional power adapter Bullet 3 Simultaneous 2.4GHz (300Mbps) and 5GHz (450Mbps) connections Bullet 4 Compatible with IEEE 802.11ac/802.11a /802.11n/802.11g/802.11b standards Bullet 5 Built-in RJ45 10/100Mbps WAN and LAN ports Bullets (Compact) Create a Wireless-AC hot spot from a wired network connection or extend the range of an existing Wi-Fi network - AC750 dual band Wireless-AC access point, router & repeater - Wall plug Wi-Fi extender - Simultaneous 2.4GHz (300Mbps) & 5GHz (450Mbps) Bullets (Consolidated) Create a Wireless-AC hot spot from a wired network connection or extend the range of an existing Wi-Fi network - AC750 dual band Wireless-AC access point, router and repeater - Wireless dual band AC750 range extender - Simultaneous 2.4GHz (300Mbps) and 5GHz (450Mbps) commections - Wall plug design - Compatible with IEEE 802.11ac/802.11a /802.11n/802.11g/802.11b standards - Supports WEP, WPA and WPA2 wireless authentication Marketing Copy Applications - Extend the range or increase the signal strength of an 802.11ac signal to cover a larger area, with backward compatible support for wireless-B/G networks
- Eliminate wireless network dead spots or weak signals that result from obstructions such as walls
- Turn your existing wired Ethernet router into a wireless-AC access point, instead of buying a new router
- Create a private network by connecting multiple wireless devices together, allowing communication between the devices and with the Internet
Website Search Keyword - Wall Plug AC750 Dual-Band Wireless-AC Access Point, Router and Repeater
- AC750 Dual-Band Wireless-AC Access Point, Router and Repeater
- Dual-Band Wireless-AC Access Point, Router and Repeater
- Dual-Band Wireless Access Point
- Dual-Band Wireless AP
- Wireless Access Point
- wireless repeater
- wifi repeater
- wifi extender
- wireless network extender
- wireless access point
- portable wireless repeater
- travel AP
- Ethernet to wireless adapter
- AC750 repeater
- 802.11ac repeater
- 802.11ac ap
- ap
- AP
- router
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements Available AC electrical outlet Input Current 0.1A Max Input Voltage 100 - 240 AC Power Consumption (In Watts) 3W/4W (avg/max) Color White Humidity 10% ~ 90% Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 61.000 Product Width (mm) 50.000 Product Height (mm) 70.000 Product Weight (g) 102.000 Storage Temperature -10°C to 70°C (14°F to 149°F) TAA Compliant No Auto MDIX Yes Auto-Negotiation Yes Full Duplex Support Yes Max Distance 300m [984ft] Maximum Data Transfer Rate 300Mbps at 2.4GHz and 450Mbps at 5GHz Security Features - WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption

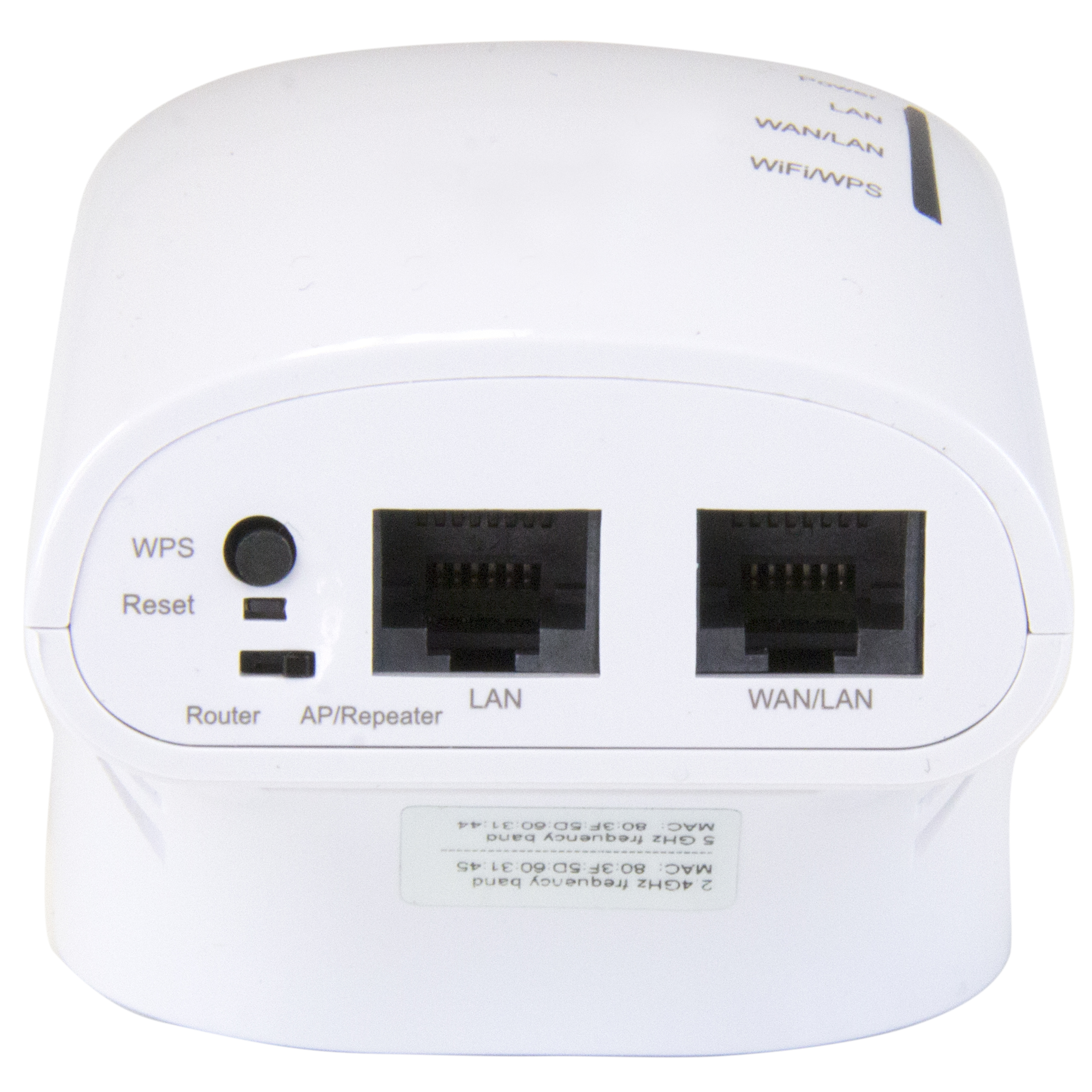

Antenna Configuration 2.4G 2T2R, 5G 1T1R Chipset ID Industry Standards IEEE 802.11ac/ 802.11a / 802.11n/ 802.11g/ 802.11b Interface/Bridge Wireless Ethernet LED Indicators - 1 - WAN Link/Activity
- 1 - LAN Link/Activity
- 1 - Power
- 1 - WiFi Link/Activity

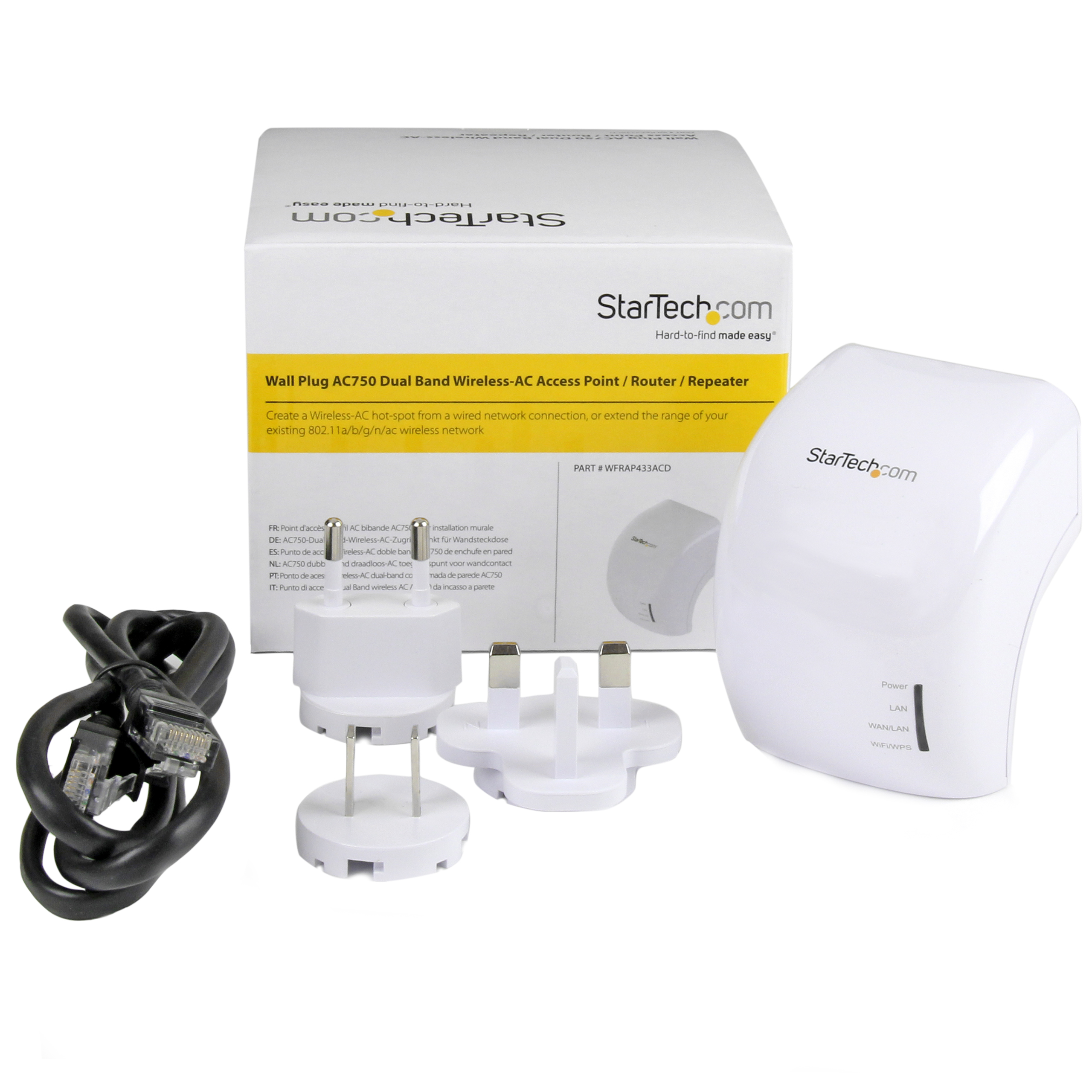

Carton Depth (mm) 491 Carton Height (mm) 270 Carton Quantity 50 Carton Weight Gross (g) 12630 Included in Package - 1 - Wall plug wireless-AC access point
- 3 - interchangeable Wall Plugs (NA/UK/EU)
- 1 - network cable
Package Depth (mm) 118 Package Height (mm) 97 Package Width (mm) 120 Package Quantity 1 Package Weight (g) 229 Packaging Description Wall Plug AC750 Dual Band Wireless-AC Access Point Packaging Description India Wall Plug AC750 Dual Band Wireless-AC Access Point Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 Wi-Fi 5 (802.11ac, 6.9 Gbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2015-04-16 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge No en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DE,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Target Production Release 2015-07-24 Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
