WFREPEAT300N

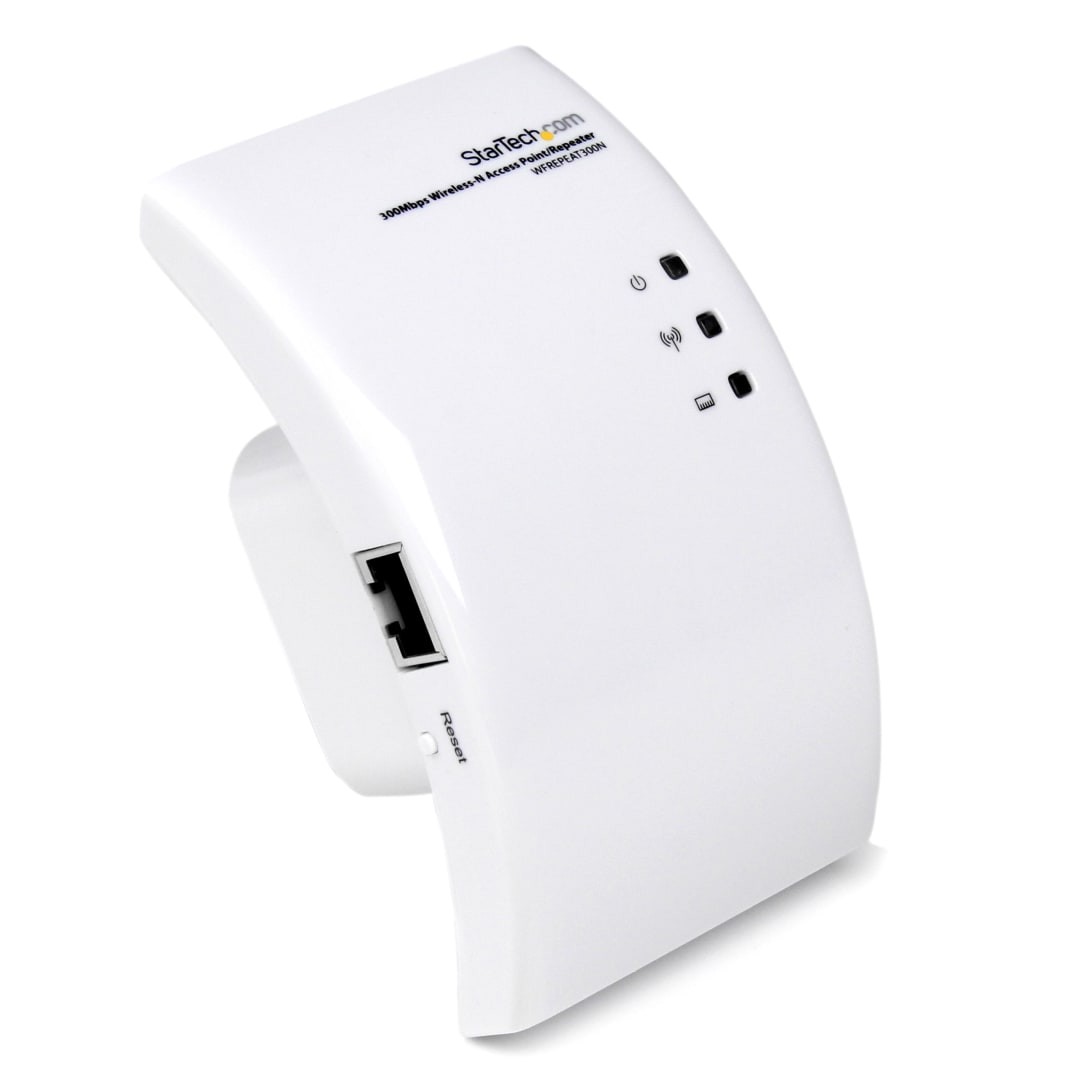

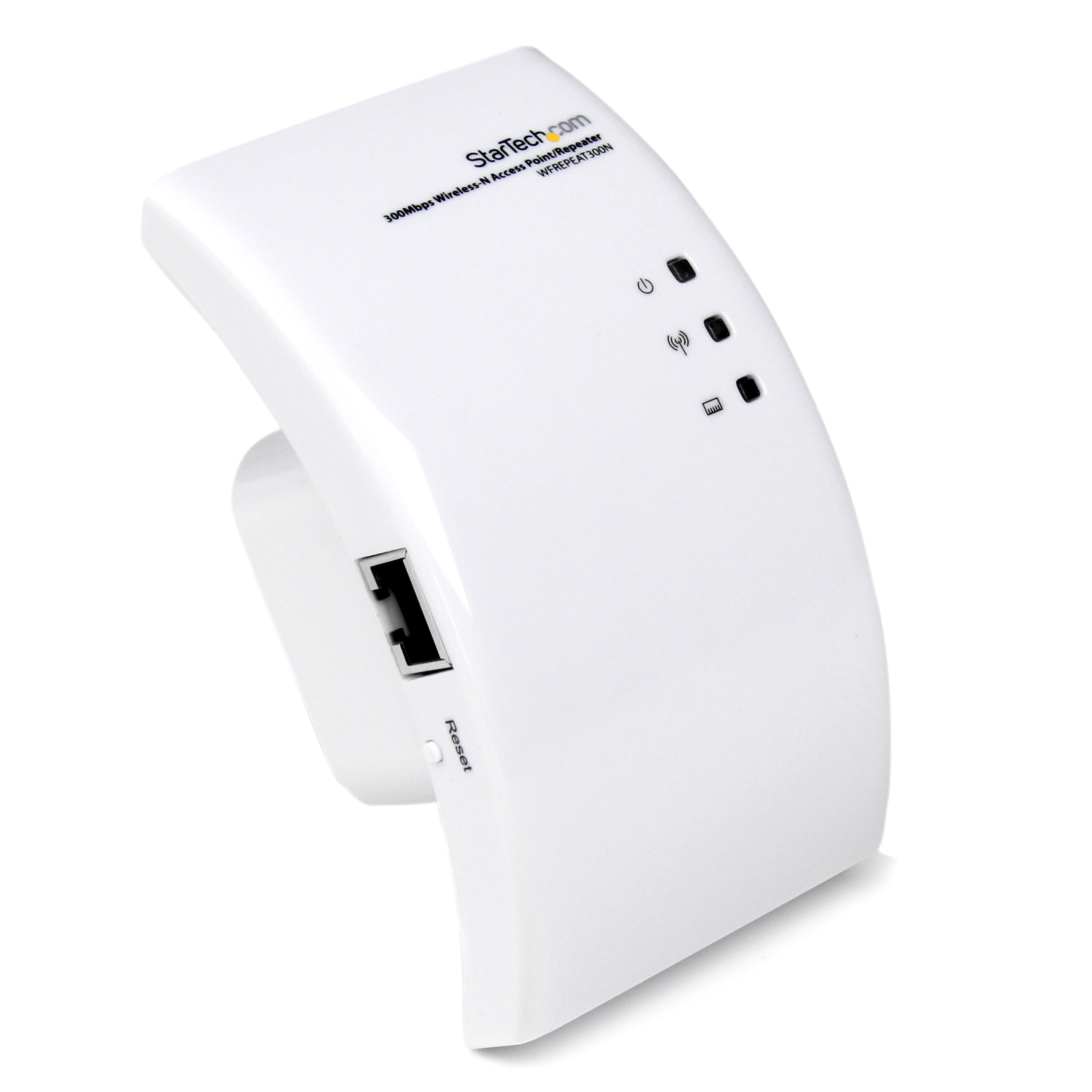

Wireless N 300 Mbps WiFi AP/Repeater
Create or extend the range of a Wireless-N (300Mbps) WiFi network
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Wireless N 300 Mbps WiFi AP/Repeater Product Number WFREPEAT300N UPC 065030848336 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Short) Wi-Fi Wireless N Range Extender Product Title (Standard) Wi-Fi Wireless Range Extender – 300 Mbps 802.11 b/g/n Access Point / Repeater / Signal Booster Product Title (Long) Wi-Fi Wireless Range Extender – 300 Mbps 802.11 b/g/n Access Point / Repeater / Signal Booster Product Title (AMZ) Wi-Fi Wireless Range Extender – 300Mbps 802.11 b/g/n Wireless N Access Point - Repeater and Range Extender - Signal Booster (WFREPEAT300N) Title Ingram (Part 1) Wireless N Access Point Repeater Title Ingram (Part 2) & Range Extender Signal Booster Website Product Headline Create or extend the range of a Wireless-N (300Mbps) WiFi network Bullet 1 Switchable operating modes, enabling you to choose between WiFi Access Point (AP) and wireless network Repeater functions Bullet 2 Convenient wall plug design compatible with NA/UK/EU outlets Bullet 3 Compliant with IEEE 802.11n (Wireless-N), with up to 300 Mbps of data bandwidth Bullet 4 Supports WEP, WPA and WPA2 wireless authentication Bullet 5 Backward compatible with IEEE 802.11g, and 802.11b WiFi networks Bullets (Consolidated) Create or extend the range of a Wireless-N (300Mbps) WiFi network - Compatible with Wireless N enabled Wi-Fi devices such as Apple iPhones iPads MacBook Air - Compliant with IEEE 802.11 N (300 Mbps) - Wireless Extender/WiFi Access point/Wireless Repeater/Range Extender/Wired to Wireless Network Solution - Create a long range wireless access point from a wired Ethernet connection - Built-in firewall for wireless security - Charge USB devices with built-in USB charge port Marketing Copy Applications - Extend the range or increase the signal strength of a Wireless-N signal to cover a larger area, with backward compatible support for Wireless-B/G networks
- Turn an existing wired Ethernet router into a wireless N access point, instead of buying a new router
- Eliminate wireless network dead spots or weak signals that result from obstructions such as walls
Website Search Keyword - wifi repeater
- wifi access point
- wireless repeater
- wifi signal booster
- wireless access point
- wifi range extender
- wireless range extender
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements Available AC electrical outlet Accessory Products - M45PATCH6BL
- M45PATCH100W
- M45PATCH20YL
- M45PATCH10BK
- 45PATCH30RD
- 45PATCH75GR
- 45PATCH50GN
- USB150WN1X1
- PEX300WN2X3
- PCI555WG
- USB300WN2X2
- USB555WG
Related Products - 110VDSLEXT
- 410VDSLEXT
- EOC110K
Input Voltage 110V-240V AC Color White Material Plastic Product Length (mm) 110 Product Width (mm) 60 Product Height (mm) 50 Product Weight (g) 130 TAA Compliant No Full Duplex Support Yes Max Distance 300m [984ft] Maximum Data Transfer Rate 300 Mbps Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Antenna Configuration 2x2:2 (TxR:S) Chipset ID Realtek - RTL8196C Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u Interface/Bridge Wireless Ethernet LED Indicators - 1 - Ethernet Link/Activity
- 1 - Power
- 1 - Wireless Link/Activity

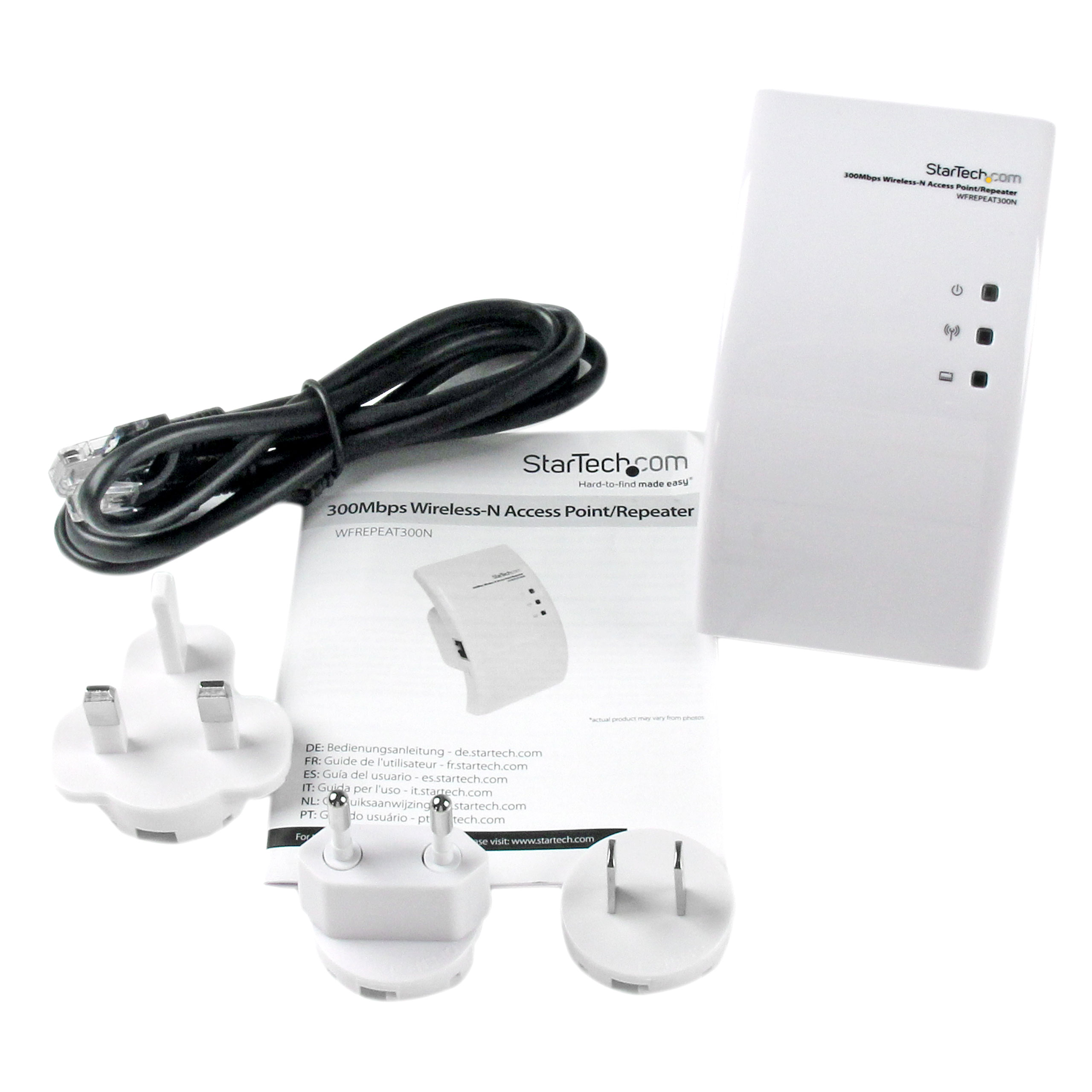

Carton Depth (mm) 380 Carton Height (mm) 385 Carton Quantity 50 Carton Weight Gross (g) 12220 Included in Package - 1 - Wireless-N Repeater
- 1 - RJ45 Ethernet Cable
- 3 - Interchangeable Wall Socket Plug (NA/UK/EU)
- 1 - Instruction Manual
Package Depth (mm) 115 Package Height (mm) 70 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 220 Packaging Description 300Mbps Wireless-N Access Point/Repeater Packaging Description India 300Mbps Wireless-N Access Point/Repeater Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 Wi-Fi 4 (802.11n, 600Mbps) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-21 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
