ZBRS2321

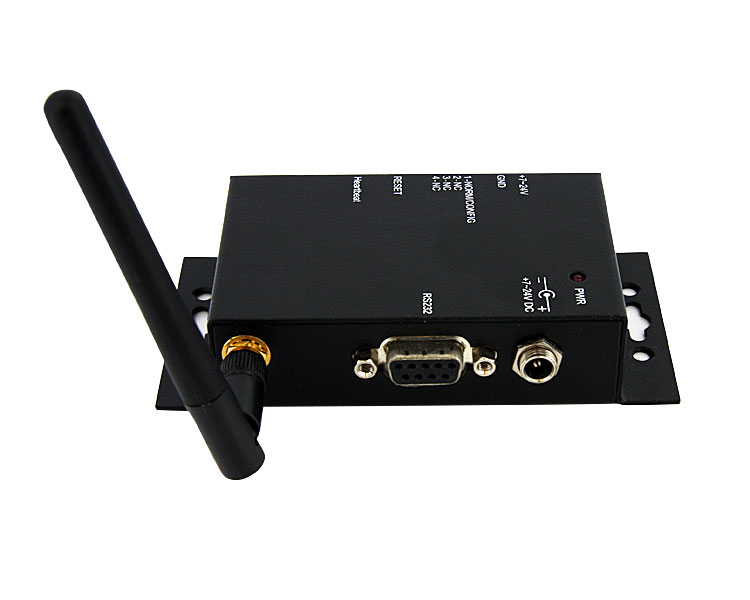

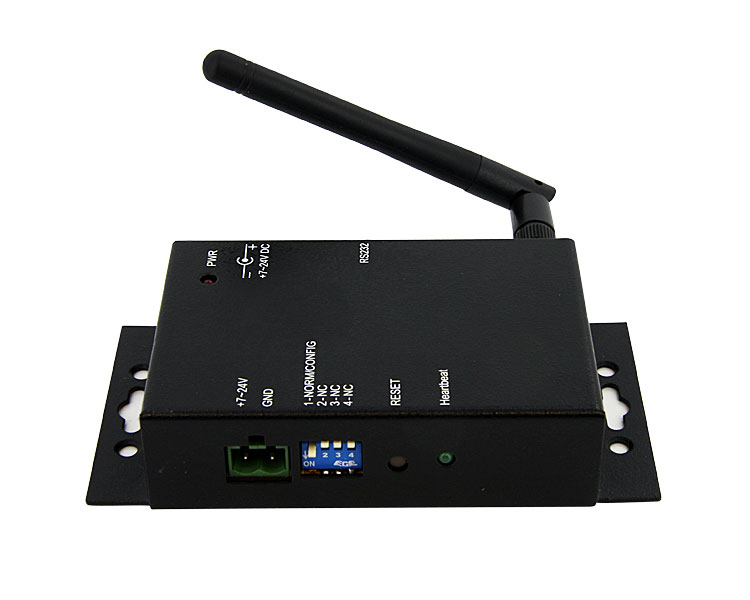

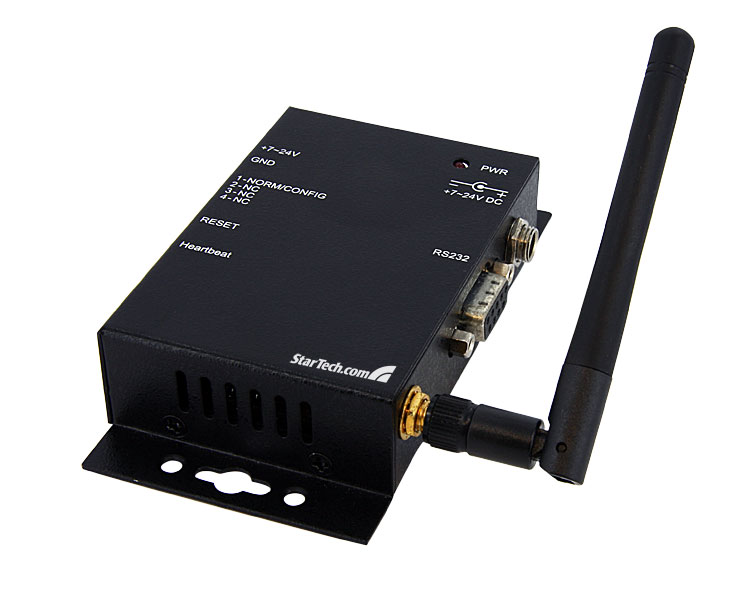

RS232 Zigbee Wireless Serial Transceiver Module
Access and Control a RS232 serial device remotely with this Zigbee wireless adapter
Main Image
Product Images
Product Images
Product Images
Product Name RS232 Zigbee Wireless Serial Transceiver Module Product Number ZBRS2321 UPC 065030839334 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Short) RS232 Zigbee Wireless Serial Transceiver Product Title (Standard) RS232 Zigbee Wireless Serial Transceiver Module Product Title (Long) RS232 Zigbee Wireless Serial Transceiver Module Title Ingram (Part 1) RS232 Zigbee Wireless Serial Tra Title Ingram (Part 2) nsceiver Module Website Product Headline Access and Control a RS232 serial device remotely with this Zigbee wireless adapter Bullet 1 Supports +7~24DC V from power adapter of Terminal block; Power adapter included Bullet 2 5 pin Terminal block for custom wiring Bullet 3 IEEE 802.15.4 Zigbee spec Compliant Bullet 4 Serial-based terminal command control and configuration Bullet 5 Able to address 65535 unique addressed nodes; Allows multiple large networks to coexist Marketing Copy Applications - Commercial Building Automation (Monitoring, HVAC, access and lighting control, security monitoring)
- Industrial Plants (Process control, device control, energy management, system monitoring)
- Home Automation (Smart appliances, entertainment systems, sensors, alarms, and power control)
- Mobile & Telecommunications Services (Payments, monitoring and control, and health care)
- AV and Digital Signage (Display, switchers, and broadcast controls)
Website Search Keyword - Zigbee
- Zigbee Pro
- 802.15.4
- Long range Zigbee
- Wireless RS232
- Wireless Serial
- Zigbee Wireless
- z-wave opensource
- opensource wireless
- industrial wireless
- industrial serial
- industrial zigbee
- industrial RS232
- mesh network
- wireless mesh
- Zigbee Module dataloggers modules kit radio modules transceiver radio wireless solution z-wave wireless relay module pro cba device digi wireless residential
- 2.4 modules lighting control xbee usb dongle wall router for industrial to serial serial sensor networks for industrial applications home automation modules
- products industrial environment building automation endpoint
Accessory Products - FIBCLDB9MF6
- GC99MFRA2
- GC9SM
- MC93MF
- MXT100
- MXT10010
- MXT106
- MXT100_25
- MXT100MM
- NM9MF
- NM9MM
- SCNM9FM
- SMARTUPS15
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- NETRS2321E
- NETRS2321POE
- ZBRS4851
Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12 AC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 113 Product Width (mm) 65 Product Height (mm) 24 Product Weight (g) 500 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Max Distance 500m [1640ft] Maximum Data Transfer Rate 115200 Kbps LED Indicators - 1 - Red - Power
- 1 - Green - Heartbeat/Wireless Link
Included in Package - 1 - Zigbee Wireless RS232 Adapter

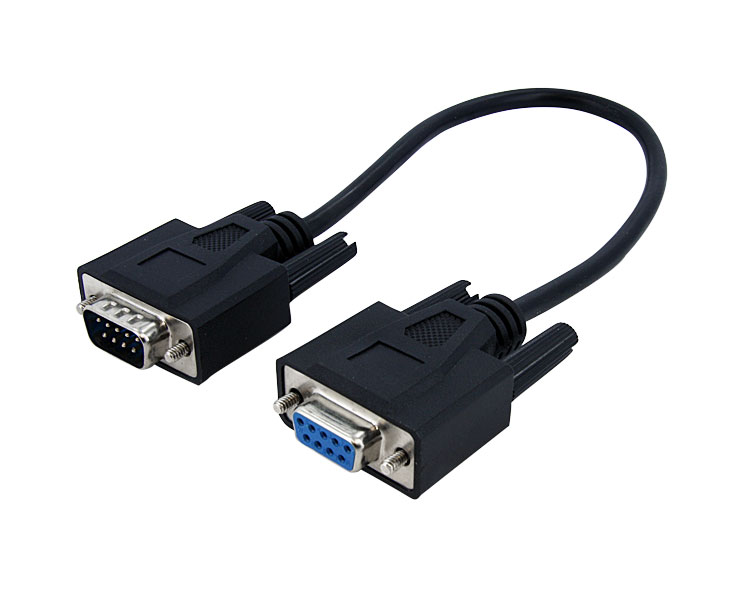

- 1 - 9in Straight through serial cable
- 1 - Power Adapter
- 1 - Power Cord
- 1 - Manual
Connector 1 DB-9 Serial Connector 1 (Quantity) 1 en-US Content Approved Yes
