ZBRS4851

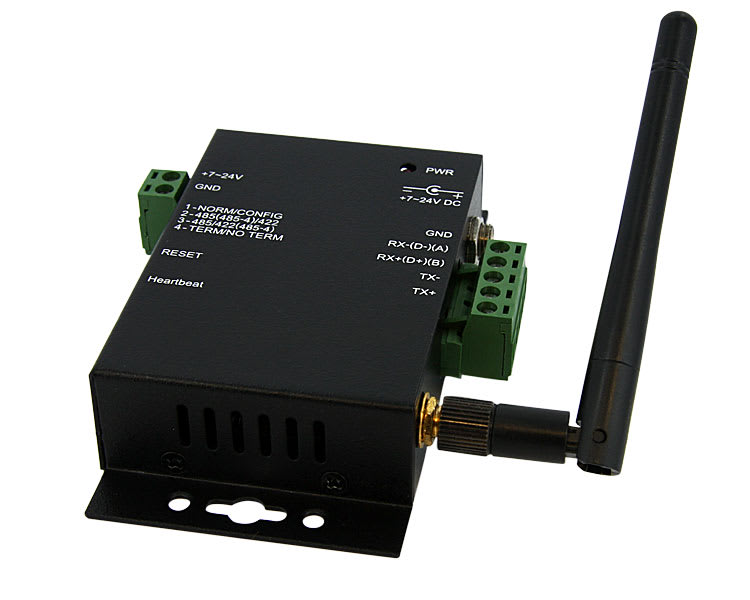

RS485/422 Zigbee Wireless Serial Transceiver/Repeater Module
Access and Control a RS485/RS422 serial device remotely with this Zigbee wireless adapter
Main Image
Product Images
Product Images
Product Name RS485/422 Zigbee Wireless Serial Transceiver/Repeater Module Product Number ZBRS4851 UPC 065030839341 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Product Title (Short) RS485/422 Zigbee Wireless Serial Module Product Title (Standard) RS485/422 Zigbee Wireless Serial Module Product Title (Long) RS485/422 Zigbee Wireless Serial Transceiver/Repeater Module Title Ingram (Part 1) RS485/422 Zigbee Wireless Serial Title Ingram (Part 2) Transceiver/Repeater Module Website Product Headline Access and Control a RS485/RS422 serial device remotely with this Zigbee wireless adapter Bullet 1 16 avaliable Zigbee channels (11 ~ 26) Bullet 2 Able to address 65535 unique addressed nodes; Allows multiple large networks to coexist Bullet 3 Average throughput rate of 250,000 bps Bullet 4 Supported Modes: RS422/ 2-Wire 485/ 4-Wire 485 with baud rate of 9600bps to 115200Kbps Bullet 5 Configurable destination address for point to point connection Marketing Copy Applications - AV and Digital Signage (Display, switchers, and broadcast controls)
- Commercial Building Automation (Monitoring, HVAC, access and lighting control, security monitoring)
- Home Automation (Smart appliances, entertainment systems, sensors, alarms, and power control)
- Industrial Plants (Process control, device control, energy management, system monitoring)
- Mobile & Telecommunications Services (Payments, monitoring and control, and health care)
Website Search Keyword - Zigbee
- Zigbee Pro
- 802.15.4
- Long range Zigbee
- Wireless RS422
- Wireless RS485
- Wireless Serial
- Zigbee Wireless
- z-wave opensource
- opensource wireless
- industrial wireless
- industrial serial
- industrial zigbee
- industrial RS422
- industrial RS485
- mesh network
- wireless mesh
- Zigbee Module dataloggers modules kit radio modules transceiver radio wireless solution z-wave wireless relay module pro cba device digi wireless residential
- 2.4 modules lighting control xbee usb dongle wall router for industrial to serial serial sensor networks for industrial applications home automation modules
- products industrial environment building automation endpoint
Related Products - NETRS232_1
- NETRS232_2
- NETRS232_4
- NETRS2321E
- NETRS2321POE
- ZBRS2321
Input Voltage 110V-240V AC Output Current 3A Output Voltage (V) 12 AC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH Material Steel Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 113 Product Width (mm) 65 Product Height (mm) 24 Product Weight (g) 500 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Max Distance 500m [1640ft] Maximum Data Transfer Rate 115200 Kbps LED Indicators - 1 - Green - Heartbeat/Wireless Link
- 1 - Red - Power
Included in Package - 1 - Manual
- 1 - Power Adapter
- 1 - Power Cord
- 1 - Zigbee Wireless RS232 Adapter
Connector 1 Terminal Block (5 Wire) Connector 1 (Quantity) 1 en-US Content Approved Yes
