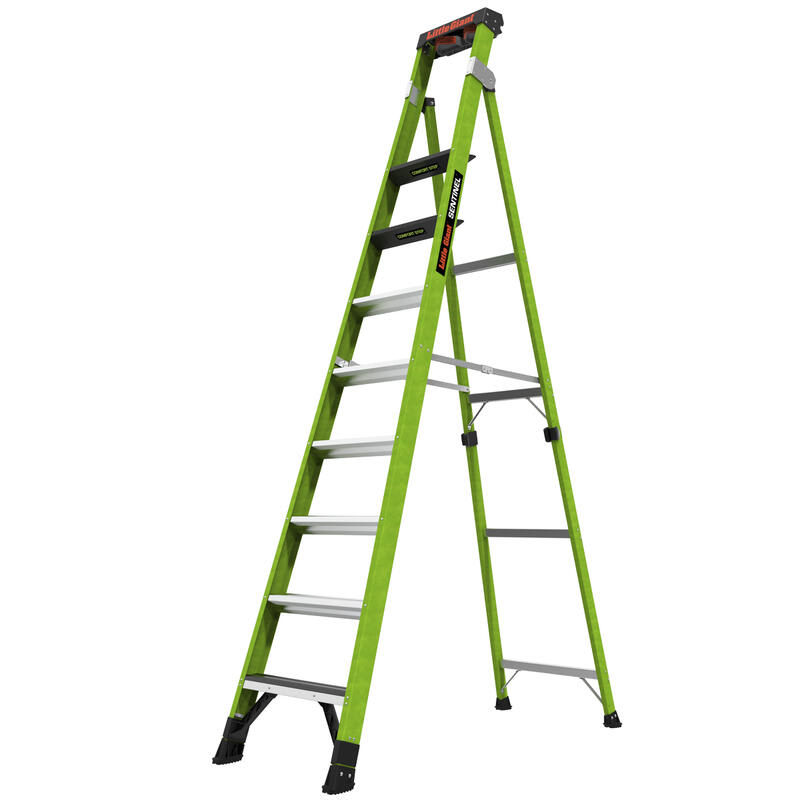

Sentinel
Hero ImageDownload

15910-002

Sentinel

Stepladder-Fixed

  • MaterialFiberglass
    Duty Rating (Weight)375 lbs.
    Country of OriginUSA
  • Ladder Weight (lbs)40
    Stepladder Max Reach (in.)170
    Stepladder Max Highest Standing Level (in.)92
    Stepladder Min Highest Standing Level (in.)92
    Stepladder Minimum Footprint (in.)64
    Stepladder Maximum Footprint (in.)64
    Extension Max Reach (in.)158
    Extension Max Highest Standing Level (in.)80
    Extension Minimum Highest Standing Level (in.)80
    Extension Max Working Length (in.)120
    Extension Minimum Working Length (in.)120
    Extension Total Length of Sections (in.)104
    Leaning Max Reach (in.)158
    Leaning Highest Standing Level (in.)80
    Storage Height (in.)125
    Storage Width (in.)26
    Storage Depth (in.)7
    Top Width (in.)15
    Clear Width (in.)13.5
    Inside Clear Width (in.)13.5
    Inner Rung Width (in.)6
    Outer Rung Width (in.)3
  • Freight Class300
    Freight Class DescriptionAL and/or FG Ladder
    NMFC108775-05
    Shipping MethodLTL
    Shipping Length (Ft.)10' 6"
    Shipping Length (in.)126
    Shipping Width (Ft.)2' 3"
    Shipping Width (in.)27
    Shipping Height (Ft.)0' 8"
    Shipping Height (in.)8
    Ship Weight41.7
    Pallet Size48 x 40 x 5
    Palletized Length126
    Palletized Width48
    Palletized Height73
    Palletized Weight842
    Qty per Pallet20
    Number of Pallets2
    Stackable PalletsNo
  • Marketing Collateral
    Marketing Description Sentinel Step Ladder, Type IAA - Special Duty, 10ft
    Short Marketing CopyThe Sentinel™ is a jobsite-tough, 2-in-1 combination ladder that works as a step ladder and leaning ladder in one. Built from non-conductive fiberglass, it’s safe around electricity and strong enough to take on brutal daily use. The rotating wall pad locks in securely on corners, studs, and walls, while Ground Cue® signals when you’ve reached the last step to help prevent falls. Rated Type IAA to 375 lbs and meets or exceeds OSHA and ANSI standards.
    Long Marketing Copy
    Marketing Bullet 1Multi-position ladder converts from A-frame to leaning ladder
    Marketing Bullet 2Rotating wall pad allows you to lean the ladder on inside and outside corners, walls and studs
    Marketing Bullet 3Equipped with Ground Cue® bottom-rung signal for a safe descent from the ladder
    Marketing Bullet 4Non-conductive, high-viz green fiberglass increases visibility and promotes safety
    Marketing Bullet 5Top two standing rungs are extra wide, at 6.25” for optimal comfort
    Marketing Bullet 6Available in 10’ and 12’ models
    Marketing Bullet 7Rated Type IAA ladder to hold up to 375 lbs
    Marketing Bullet 8This ladder meets or exceeds all OSHA and ANSI standards
  • HTS Code3926.90.9930
    Warranty StatementLittle Giant Warranty Terms and Conditions: Little Giant Ladder Systems warrants each new product t
  • UPC096764159108
