Sentinel
Hero ImageDownload

15912-002

Sentinel

    • MaterialFiberglass
      Duty Rating (Weight)375 lbs.
      Country of OriginUSA
    • Ladder Weight (lbs)48
      Stepladder Max Reach (in.)193
      Stepladder Max Highest Standing Level (in.)115
      Stepladder Min Highest Standing Level (in.)115
      Stepladder Minimum Footprint (in.)75
      Stepladder Maximum Footprint (in.)75
      Extension Max Reach (in.)181
      Extension Max Highest Standing Level (in.)103
      Extension Minimum Highest Standing Level (in.)103
      Extension Max Working Length (in.)144
      Extension Minimum Working Length (in.)144
      Extension Total Length of Sections (in.)138
      Leaning Max Reach (in.)181
      Leaning Highest Standing Level (in.)103
      Storage Height (in.)149
      Storage Width (in.)28
      Storage Depth (in.)7
      Top Width (in.)15
      Clear Width (in.)13.5
      Inside Clear Width (in.)13.5
      Inner Rung Width (in.)6
      Outer Rung Width (in.)3
    • Freight Class300
      Freight Class DescriptionAL and/or FG Ladder
      NMFC108775-05
      Shipping MethodLTL
      Shipping Length (Ft.)12' 6"
      Shipping Length (in.)150
      Shipping Width (Ft.)2' 6"
      Shipping Width (in.)30
      Shipping Height (Ft.)0' 8"
      Shipping Height (in.)8
      Ship Weight50.1
      Pallet Size48 x 40 x 53
      Palletized Length150
      Palletized Width48
      Palletized Height73
      Palletized Weight1002
      Qty per Pallet20
      Number of Pallets2
      Stackable PalletsNo
    • Marketing Collateral

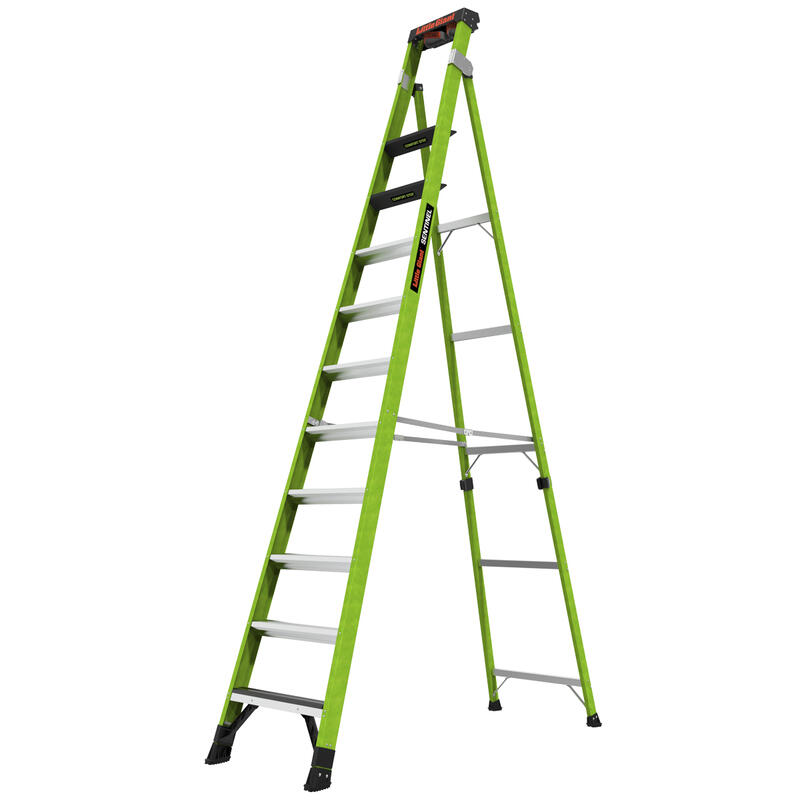

      Marketing Description Sentinel Step Ladder, Type IAA - Special Duty, 12ft
      Marketing Bullet 1Multi-position ladder converts from A-frame to leaning ladder
      Marketing Bullet 2Rotating wall pad allows you to lean the ladder on inside and outside corners, walls and studs
      Marketing Bullet 3Equipped with Ground Cue® bottom-rung signal for a safe descent from the ladder
      Marketing Bullet 4Non-conductive, high-viz green fiberglass increases visibility and promotes safety
      Marketing Bullet 5Top two standing rungs are extra wide, at 6.25” for optimal comfort
      Marketing Bullet 6Available in 10’ and 12’ models
      Marketing Bullet 7Rated Type IAA ladder to hold up to 375 lbs
      Marketing Bullet 8This ladder meets or exceeds all OSHA and ANSI standards
    • HTS Code3926.90.9930
      Warranty StatementLittle Giant Warranty Terms and Conditions: Little Giant Ladder Systems warrants each new product t
