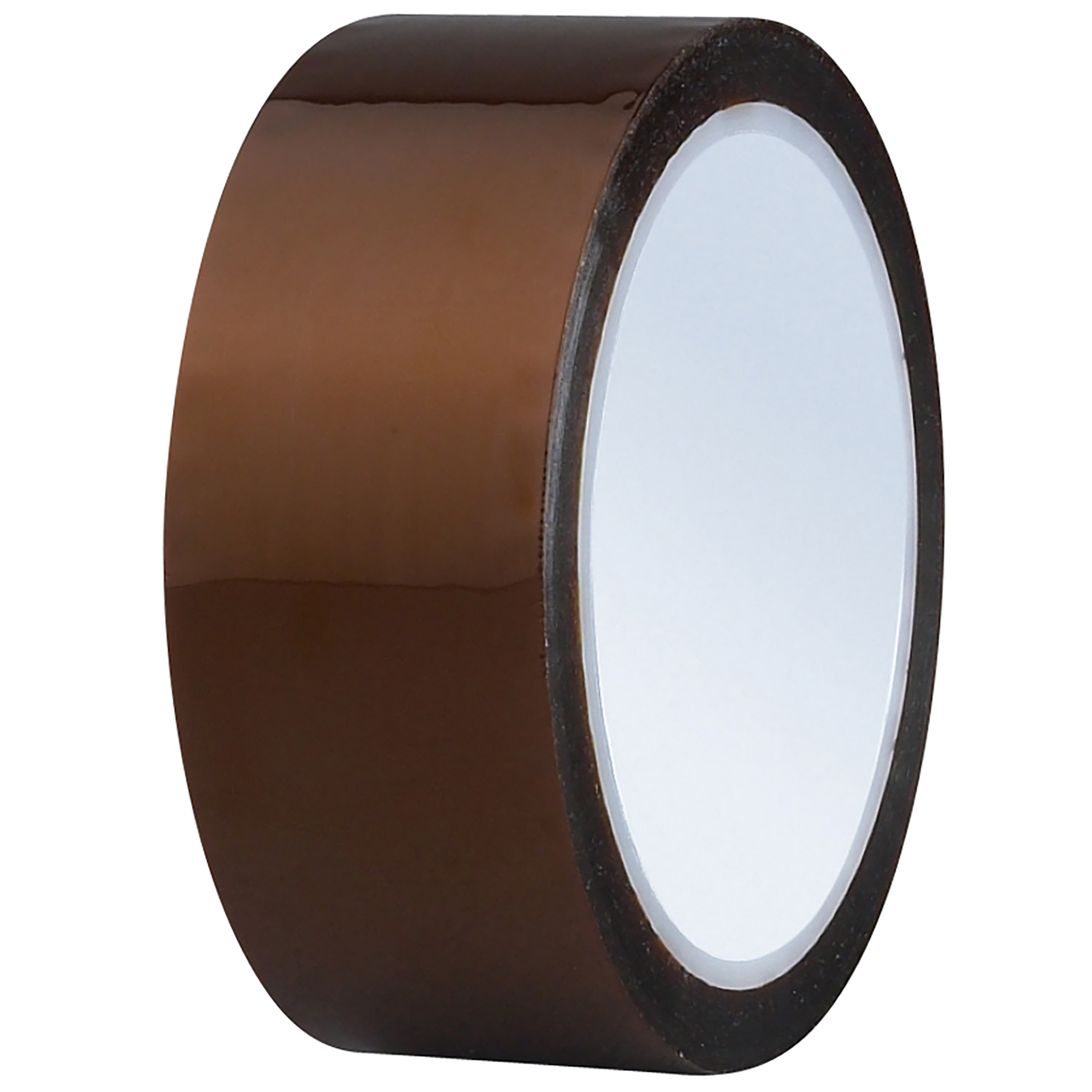

FM28 1 Mil Polyimide Silicone Adhesive
Image_HighDownload

ELECTRICAL

FM28 1 Mil Polyimide Silicone Adhesive

A pressure-sensitive masking tape designed for use in extreme high temperature conditions. The polyimide backing combined with backing combined with thermosetting silicone adhesive provides superior flame and chemical resistance. Can withstand exposure to temperatures up to and in excess of 400°F (204°C).

  • Masking gold fingers (printed circuit boards) during wave solder operation. Can also be used for powder coat masking.
  • SubClassDescriptionELECTRICAL
    StyleFM28
    SKUFM28..7
    ColorNATURAL
    UnitWidth0.5
    UnitWidthUOMIN
    UnitLength36
    UnitLengthUOMYD
    UnitWeight(lbs)0.111
    StandardUOMRL
    RollsPerCase72
    CasesPerPallet45
    CommodityCodeNSTK
    CountryOfOriginKR
    CaseUPC60077922007891
  • Backing MaterialPolyimide Film
    Adhesion to Steel (oz/in of width)25
    Elongation (% at break)0.8
    Tensile (lb/in of width)30
    Thickness (mil)2.5
    Color(s)Amber
  • Marketing Short Description1.0 MIL HIGH TEMP POLYIMIDE MASKING TAPE
    Marketing Long DescriptionA pressure-sensitive masking tape designed for use in extreme high temperature conditions. The polyimide backing combined with backing combined with thermosetting silicone adhesive provides superior flame and chemical resistance. Can withstand exposure to temperatures up to and in excess of 400°F (204°C).
    Product ApplicationMasking gold fingers (printed circuit boards) during wave solder operation. Can also be used for powder coat masking.
