RG46 7 Mil High Temperature Specialty Glass Cloth Tape
Image_HighDownload

ELECTRICAL

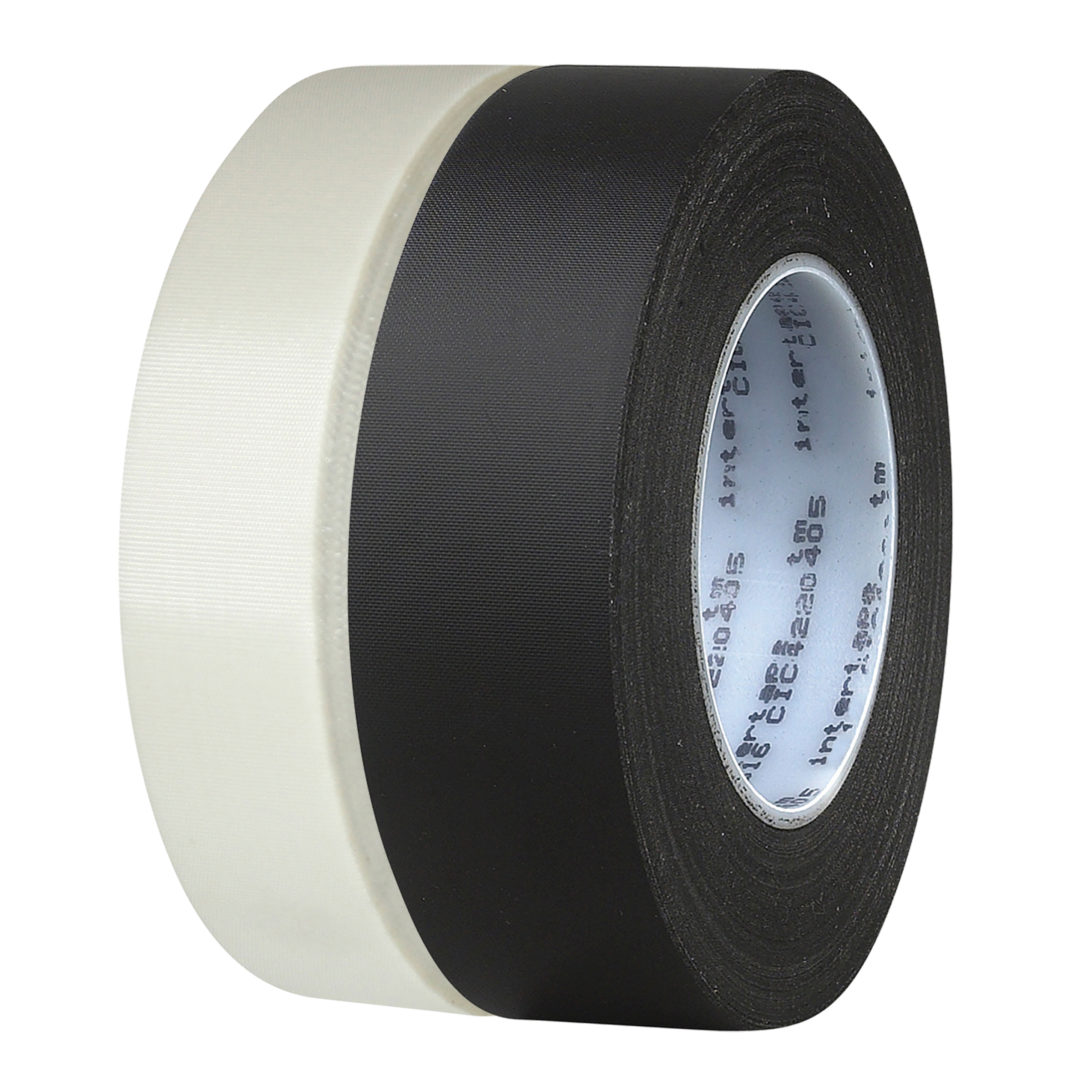

RG46 7 Mil High Temperature Specialty Glass Cloth Tape

Woven fiberglass pressure-sensitive tape. Can withstand exposure to temperatures up to 400ºF (204ºC) for many hours, 300ºF (148ºC) for several weeks, and 250ºF (121ºC) permanently. The thermosetting properties of the adhesive provide resistance to strong solvents (e.g. xylene, toluene). The cure rate of the adhesive is time / temperature dependant.

  • Tensile strength, dimensional stability, and consistent Thickness (mil), combined with high holding properties makes RG46 an excellent choice for splicing, especially materials having rough surfaces and/or low internal strength (e.g. textiles, roofing materials).
  • SubClassDescriptionELECTRICAL
    StyleRG46
    SKURG46..13
    ColorNATURAL
    UnitWidth2
    UnitWidthUOMIN
    UnitLength60
    UnitLengthUOMYD
    UnitWeight(lbs)1.612
    StandardUOMRL
    RollsPerCase24
    CasesPerPallet36
    CommodityCodeNSTK
    CountryOfOriginUS
    CaseUPC60077922007853
  • Backing MaterialGlass Cloth
    Adhesion to Steel (oz/in of width)50
    Elongation (% at break)0.03
    Tensile (lb/in of width)175
    Thickness (mil)7
    Color(s)White, Black
  • Marketing Short Description7.0 MIL HIGH TEMPERATURE SPECIALTY GLASS CLOTH TAPE
    Marketing Long DescriptionWoven fiberglass pressure-sensitive tape. Can withstand exposure to temperatures up to 400ºF (204ºC) for many hours, 300ºF (148ºC) for several weeks, and 250ºF (121ºC) permanently. The thermosetting properties of the adhesive provide resistance to strong solvents (e.g. xylene, toluene). The cure rate of the adhesive is time / temperature dependant.
    Product ApplicationTensile strength, dimensional stability, and consistent Thickness (mil), combined with high holding properties makes RG46 an excellent choice for splicing, especially materials having rough surfaces and/or low internal strength (e.g. textiles, roofing materials).
