Arrow Galvanized Steel Carport, 20x20x7

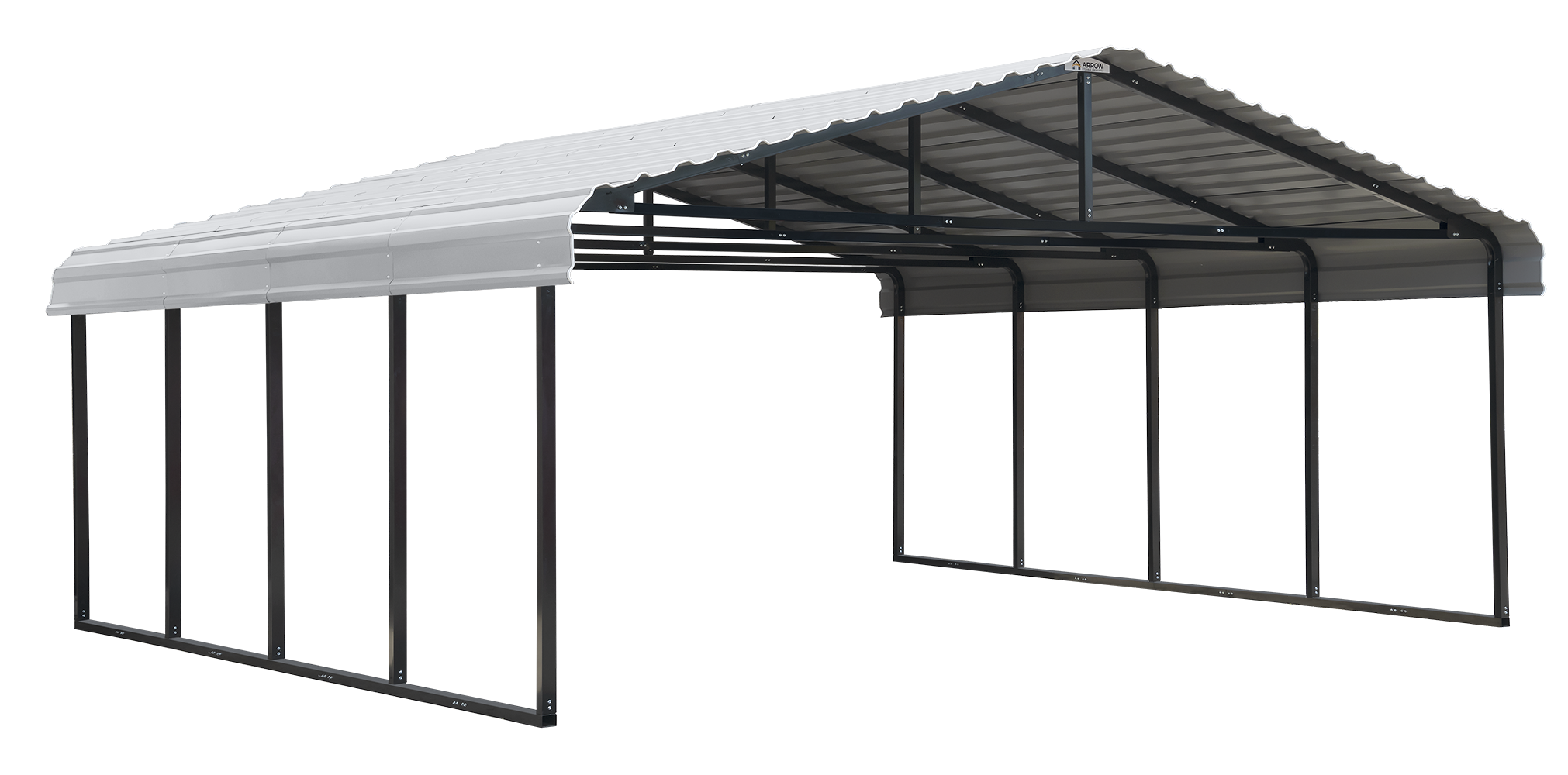

MAIN IMAGE - SILO 1Download

Arrow Galvanized Steel Carport, 20x20x7

    Add to export listOpen

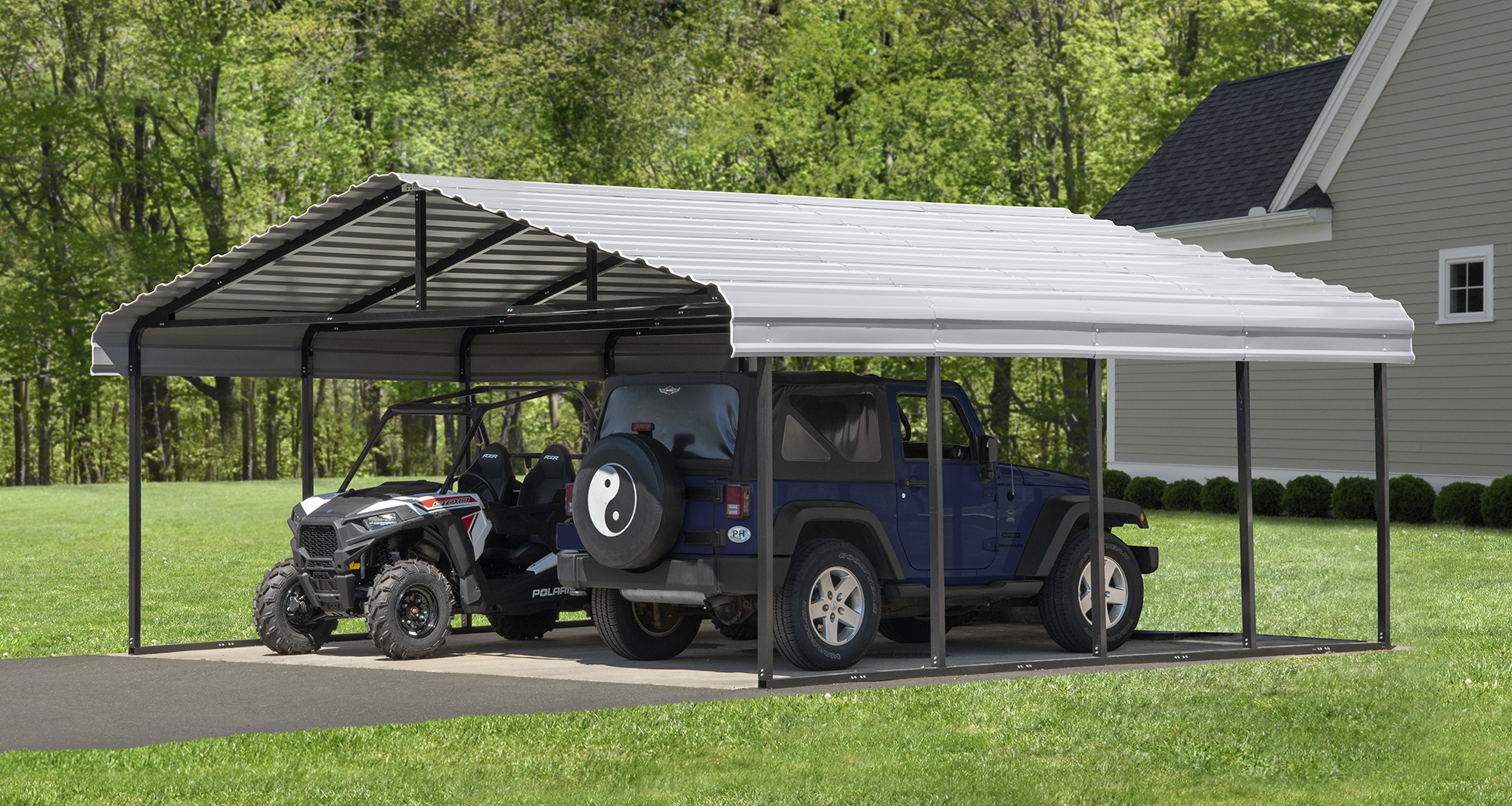

    LIFESTYLE - IMAGE 01Download
    SCHEMATICSDownload
    GRAPHIC IMAGE 3Download
    INFOGRAPHIC 4Download
    INFOGRAPHIC 5Download
    INFOGRAPHIC 2Download
    MONTAGE - IMAGE 1Download
    INFOGRAPHIC 3Download
    INFOGRAPHICDownload

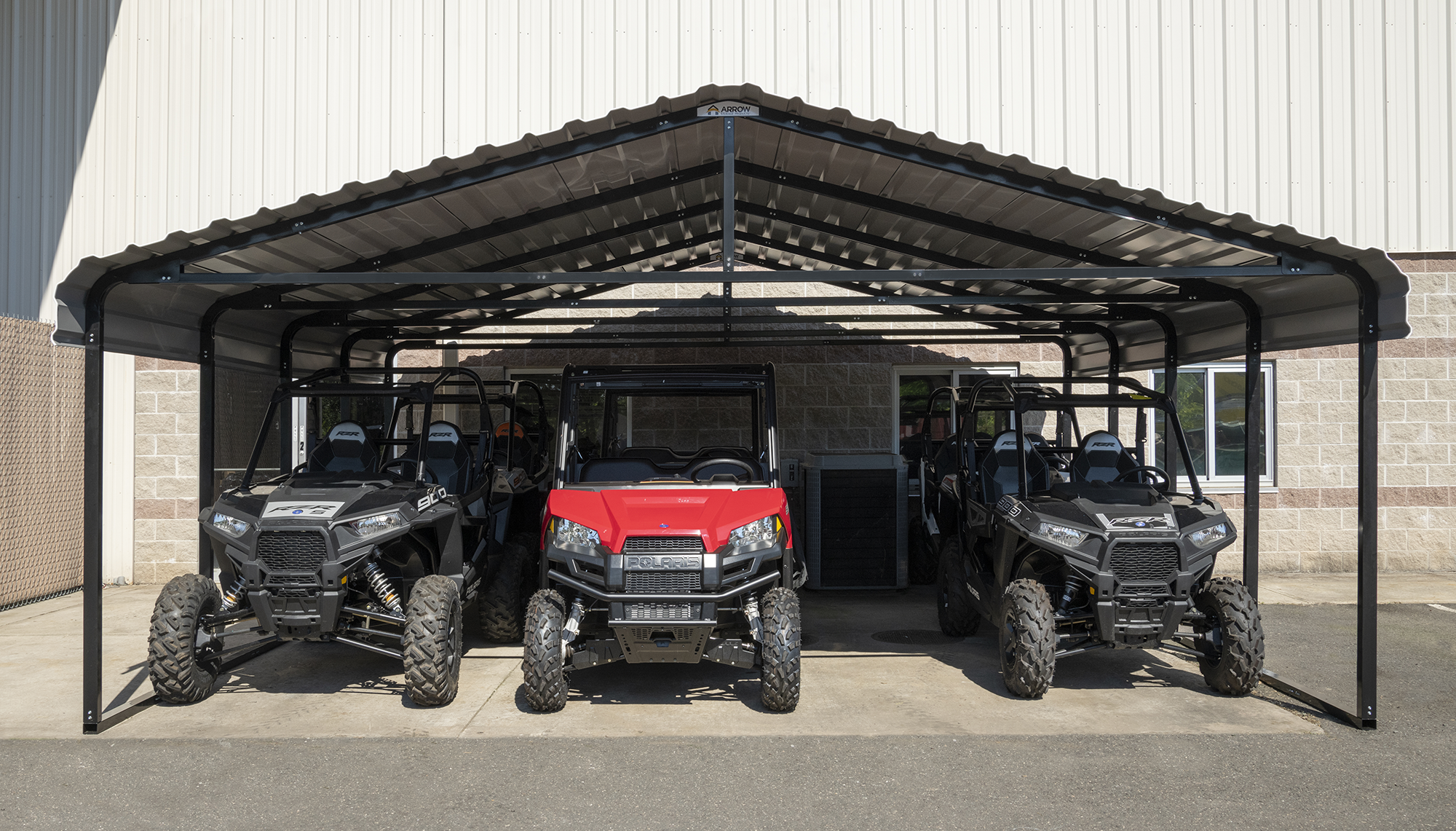

    LIFESTYLE - IMAGE 02Download

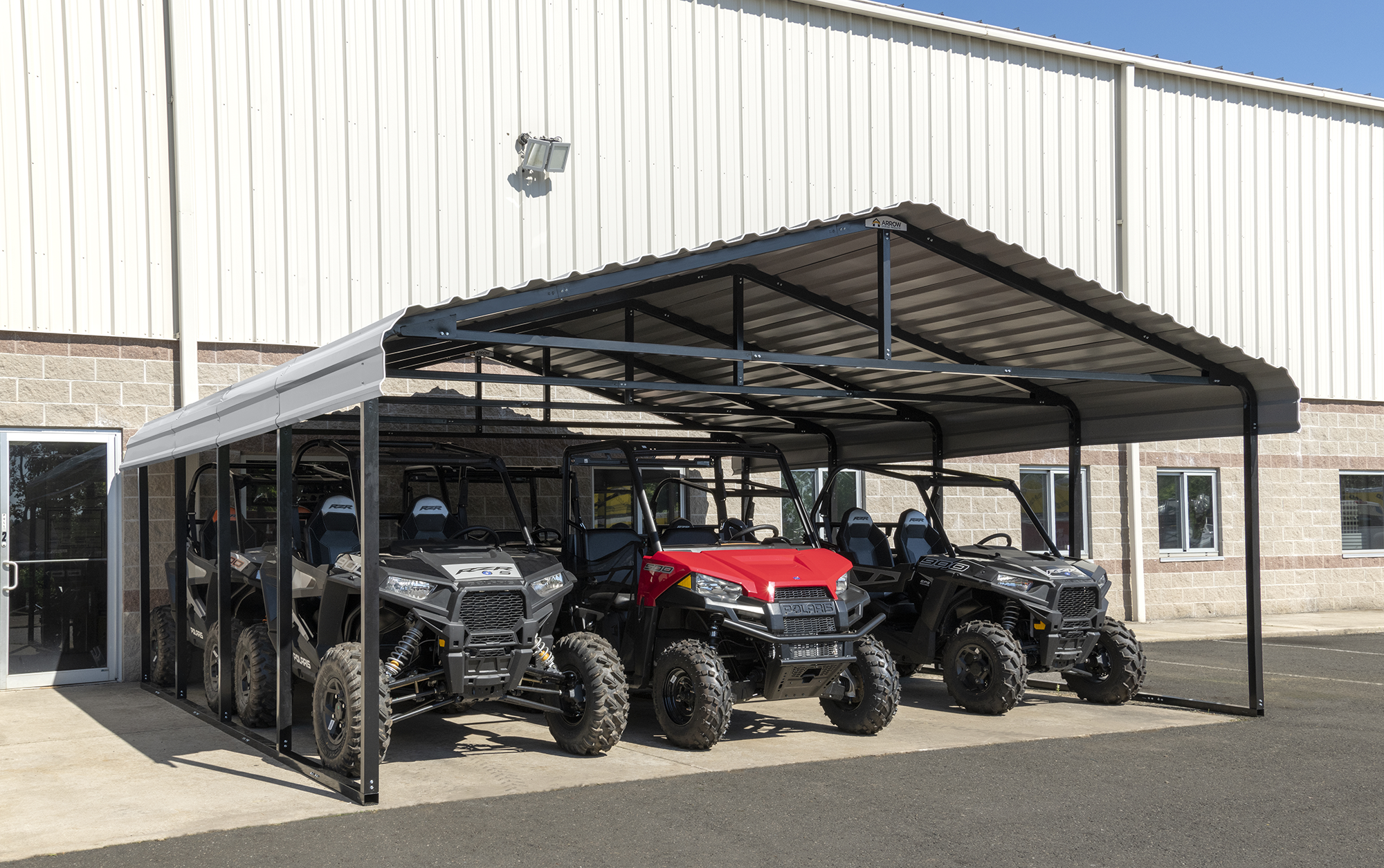

    LIFESTYLE - IMAGE 03Download
    GRAPHIC IMAGE 2Download

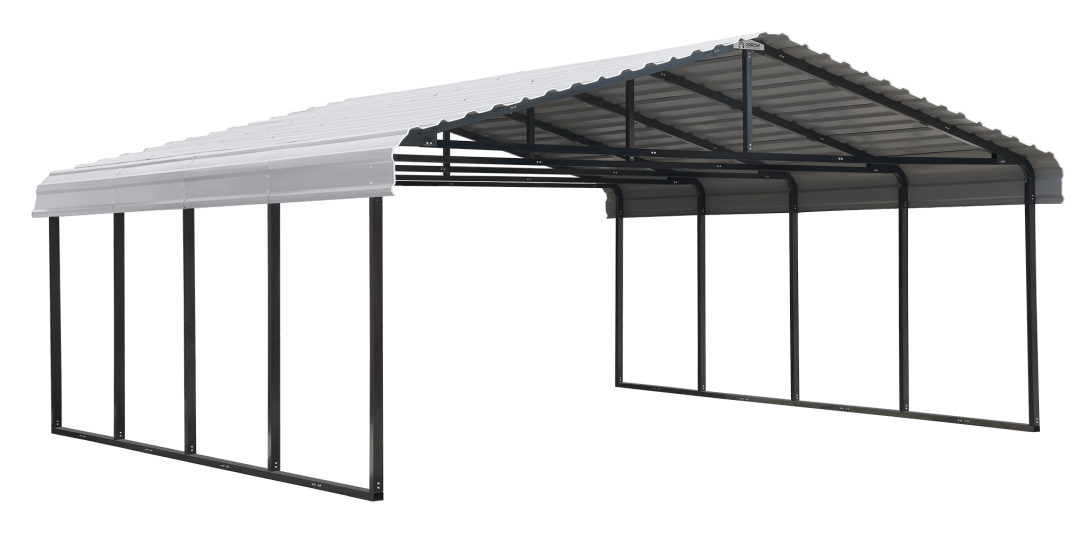

    MAIN IMAGE - SILO 1Download
    GRAPHIC IMAGE 4Download
    Play video
    MARKETING VIDEODownload
    Play video
    MARKETING VIDEO 2Download
    Play video
    YOUTUBE VIDEO LINKDownload
      PART IDCPH202007
      BRANDArrow
      UPC026862112231
      GTIN00026862112231
      DISPLAY NAME - RETAILArrow Galvanized Steel Carport, 20x20x7
      CATEGORY CODECarports
      PROP 65 WARNING REQUIRED (Y/N)No
      LONG DESCRIPTIONBuilt strong, wind and snow rated, and backed by a 10-year limited warranty is the 20 x 20 ft. Eggshell Arrow Carport. This galvanized steel carport from Arrow Storage Products features a powder coated steel frame for corrosion and rust resistance. The tough made galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area.
      BULLET 1Built strong with a 2x3 in. 15 gauge wall thickness. The Arrow Carport delivers wind and snow load strength and stability
      BULLET 2An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather - winds up to 100 mph, and a snow load of 35 PSF
      BULLET 3A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance
      BULLET 4Roof in an attractive eggshell finish, with a black powder coated steel frame
      BULLET 5Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area
      BULLET 6ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection
      BULLET 7Comes with a 10 year warranty
      BULLET 8Disclaimer- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame according to local building codes and ordinances. These loads have been calculated useing combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied structure. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser
      BULLET 9This Unit Contains 6 Packages - You will receive 4 Frame Cartons 2 Roof Panel Cartons
      FRAME MATERIALSteel
      ASSEMBLY REQUIRED (Y/N)Yes
      WATERPROOF (Y/N)Yes
      WATER-RESISTANT (Y/N)No
      STORAGE BAG INCLUDED (Y/N)No
      RELATED ACCESSORIES #110036
      RELATED ACCESSORIES #210073
      RELATED ACCESSORIES #310075
      NOMINAL ASSEMBLED HEIGHT FT.7
      NOMINAL ASSEMBLED LENGTH FT.20
      NOMINAL ASSEMBLED WIDTH FT.20
      NOMINAL CONC IMPERIAL20 x 20 x 7 ft
      RIB TUBING DIAMETER EDGE TO EDGE (IN)2.76
      SHAPE OF TUBERECTANGLE
      VALANCE HEIGHT (IN)73.1
      WIND LOAD RATING (MPH)0
      SNOW LOAD RATING (PSF)0
      ROOF PITCH - LOWER0
      ROOF PITCH - UPPER3
      DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER118
      DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS243
      DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS118
      DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS0
      SIDE DOOR / ENTRANCE WIDTH (IN)0
      SIDE DOOR OPENING HEIGHT (IN)0
      BUILDING SHAPEPEAK
      FOUNDATION LENGTH (IN)230
      FOUNDATION WIDTH (IN)255
      GABLE HEIGHT (IN)38.2
      WALL HEIGHT (IN)79.9
      ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN)217.1
      ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN)118.1
      ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN)242.7
      OPEN DIMENSIONS - DEPTH (IN)0
      OPEN DIMENSIONS - HEIGHT (IN)0
      OPEN DIMENSIONS - WIDTH (IN)0
      COVER COLORN/A
      DOOR COLORN/A
      DOOR JAMB COLORN/A
      FRAME COLORBlack
      GABLE COLORN/A
      ROOF COLORN/A
      ROOF TRIM COLORN/A
      TRACK COLORN/A
      WALL COLORN/A
      FREIGHT CLASS65
      HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)36.03
      WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)30.25
      WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS)1159.91
      ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.)1116
      LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)76.58
      HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (CM)91.52
      FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION36.03
      FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION76.58
      FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION1166.9
      FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION30.25
      UNITS PER 20' CONTAINER7
      UNITS PER 40' HCUBE CONTAINER15
      TRAILER QTY 53'22
