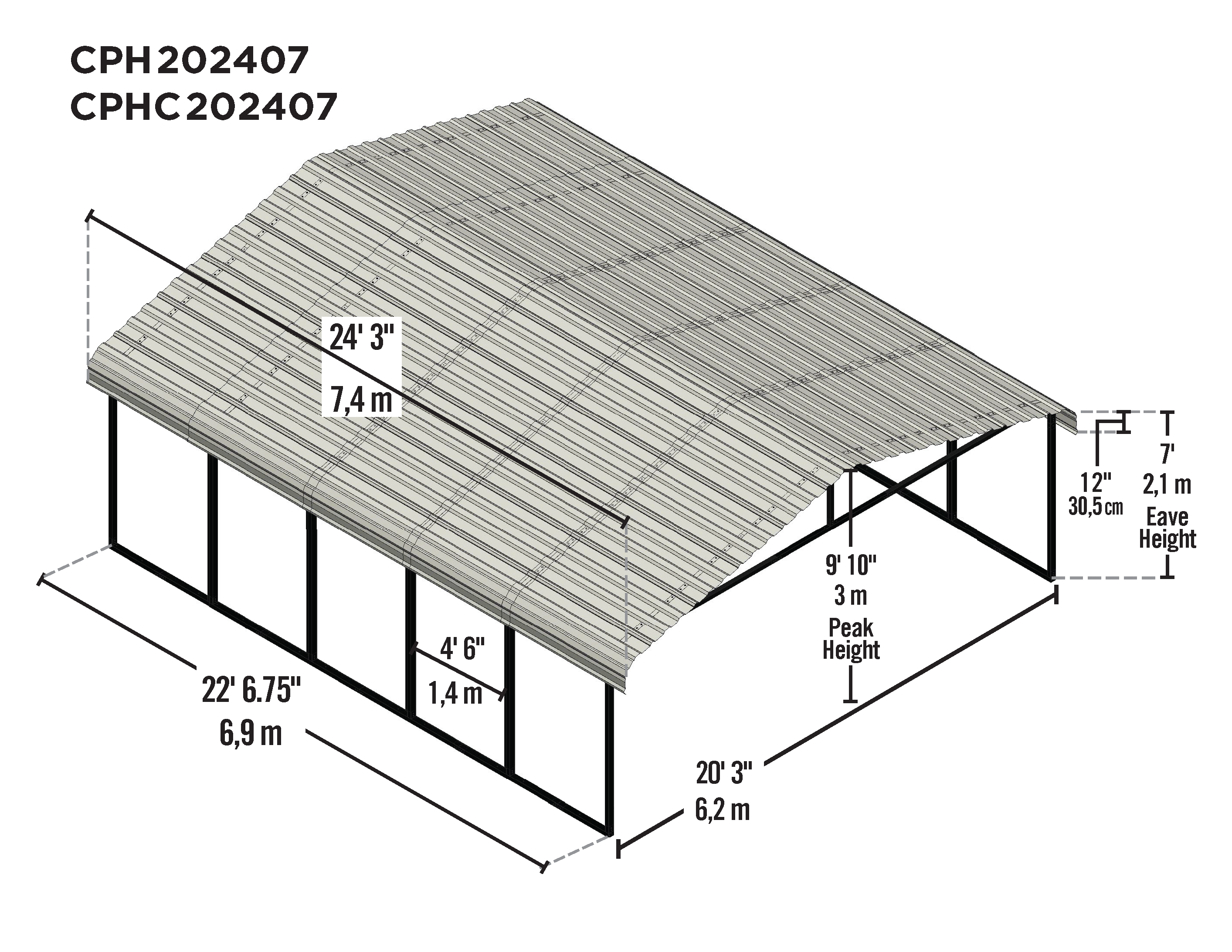

SCHEMATICS
GRAPHIC IMAGE 3
INFOGRAPHIC 4
INFOGRAPHIC 5
INFOGRAPHIC 2
MONTAGE - IMAGE 1
INFOGRAPHIC 3
INFOGRAPHIC
GRAPHIC IMAGE 2
MAIN IMAGE - SILO 1
GRAPHIC IMAGE 4
MARKETING VIDEO
MARKETING VIDEO 2
YOUTUBE VIDEO LINK

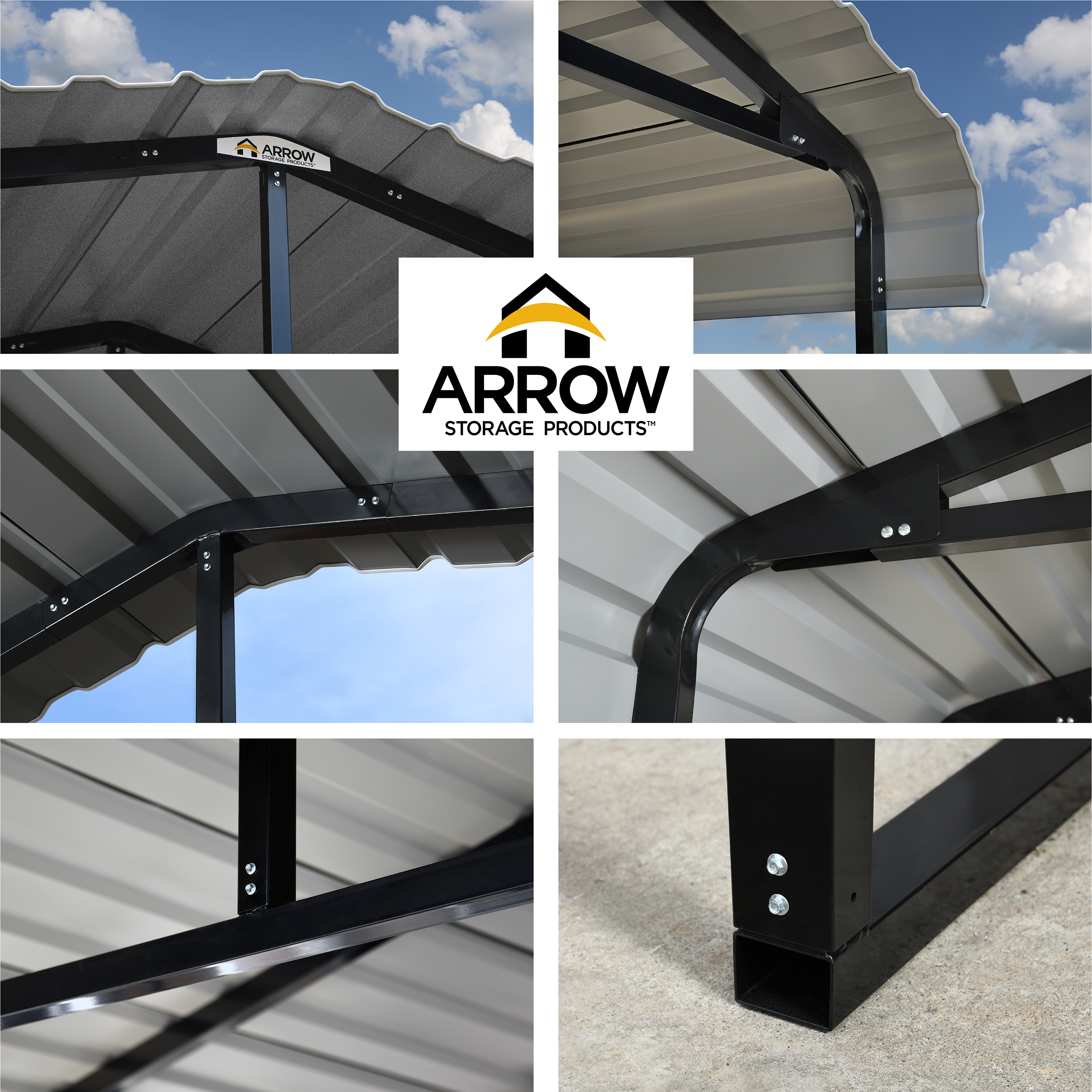

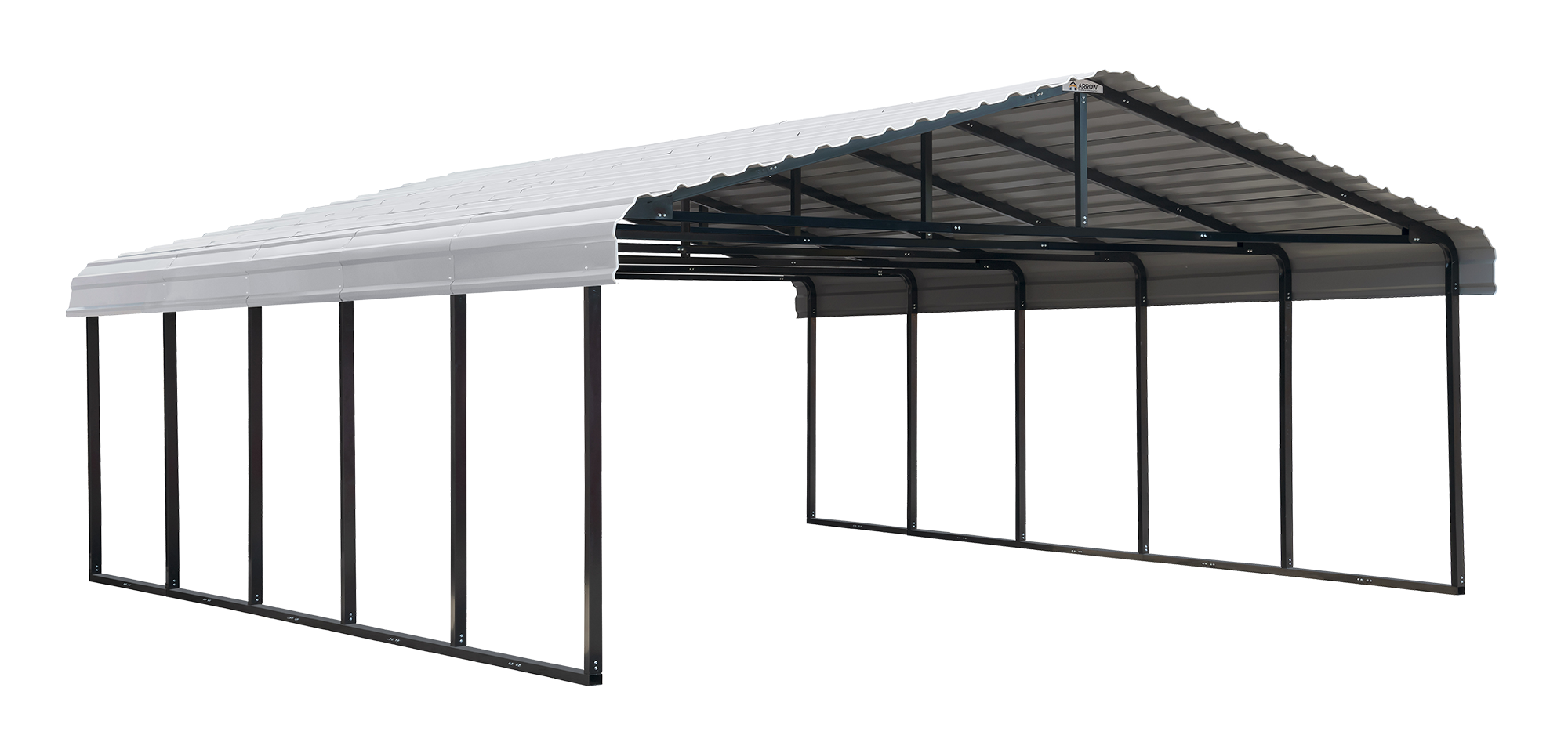

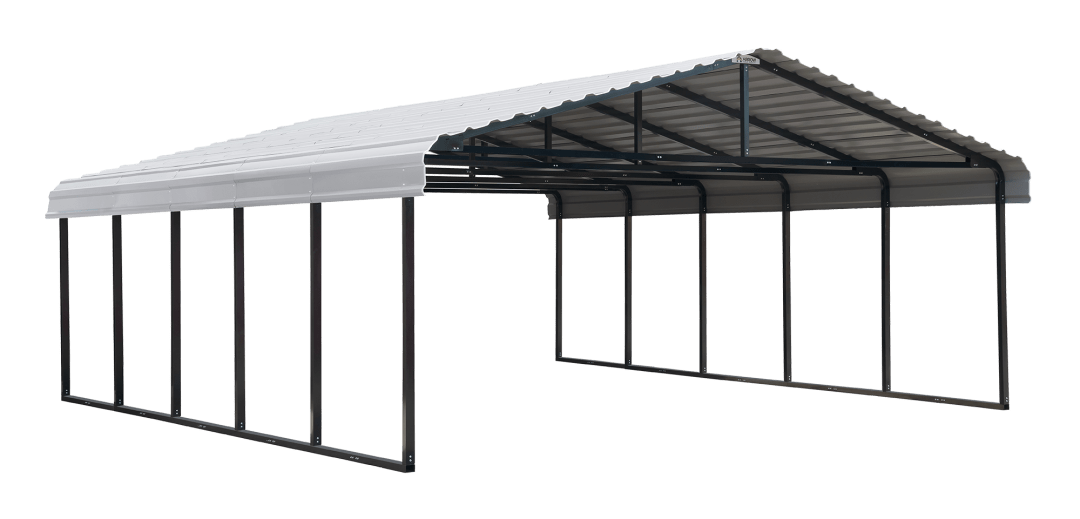

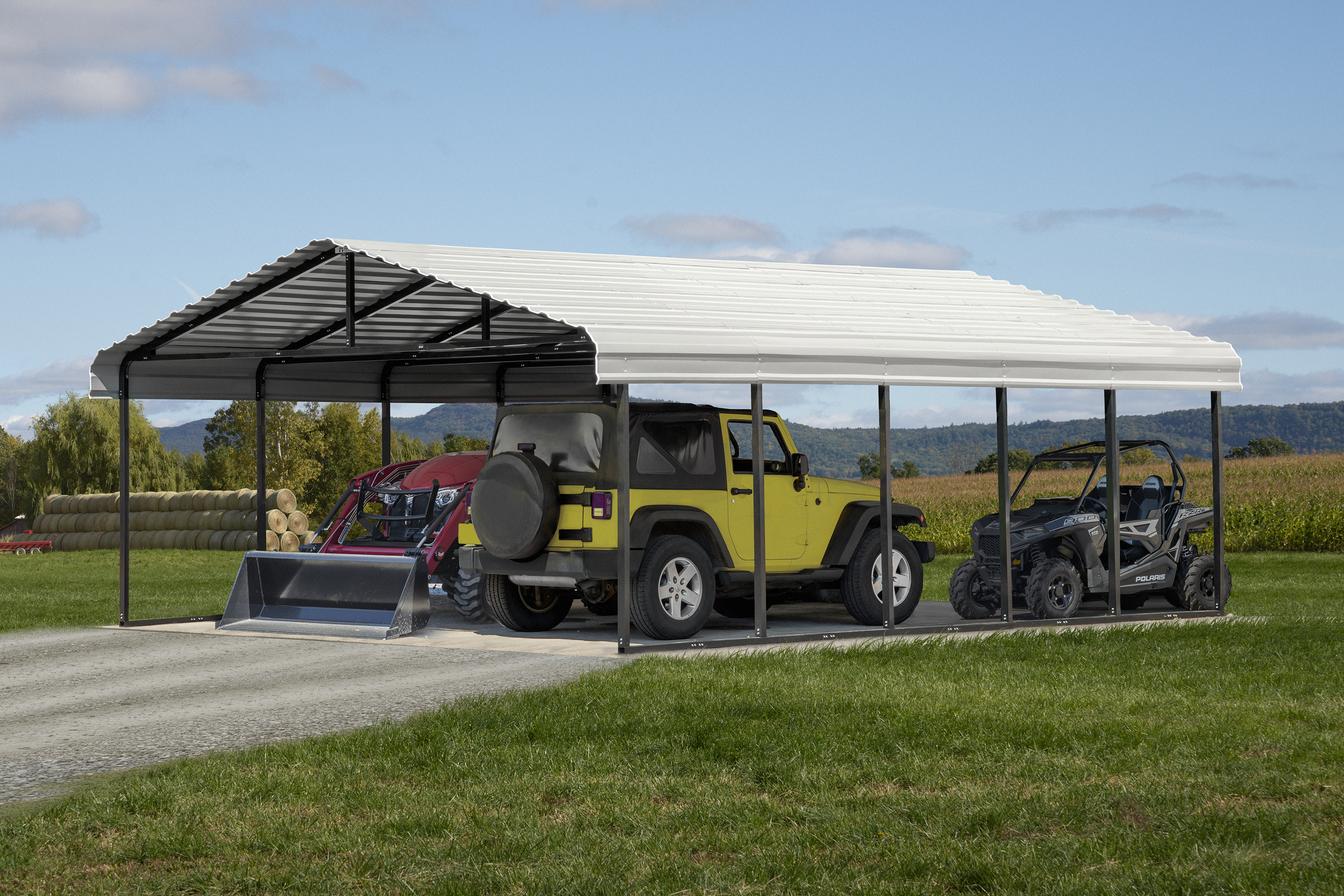

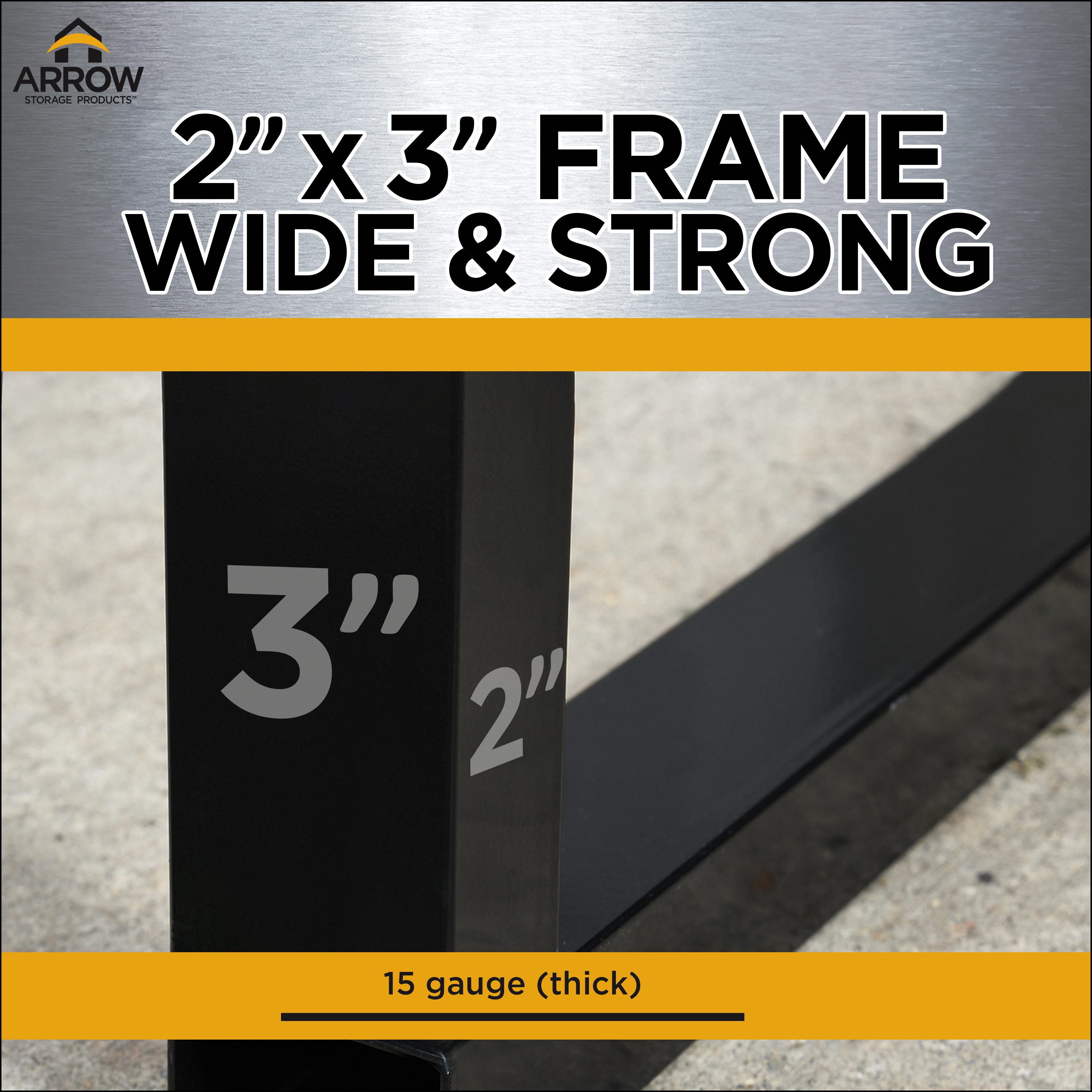

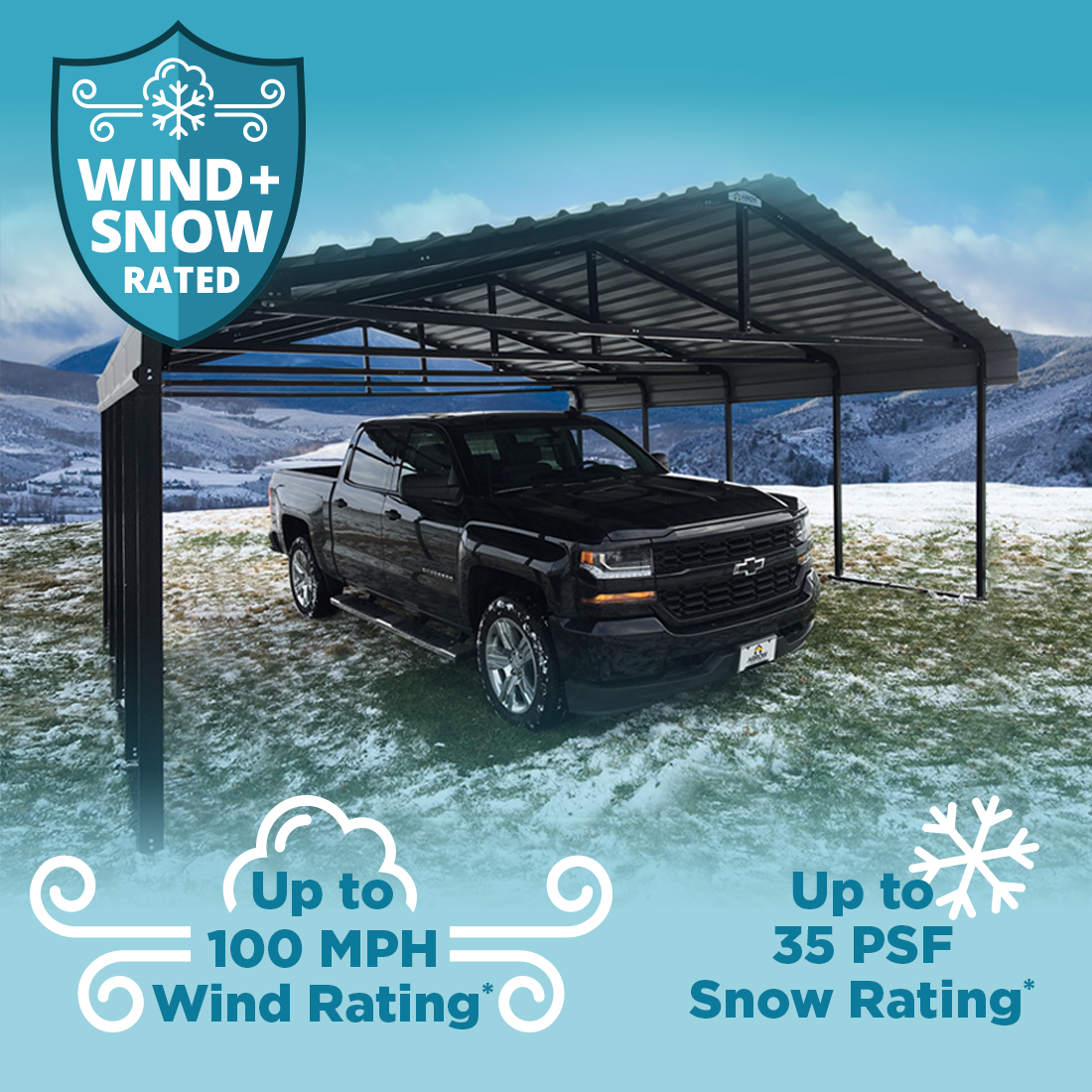

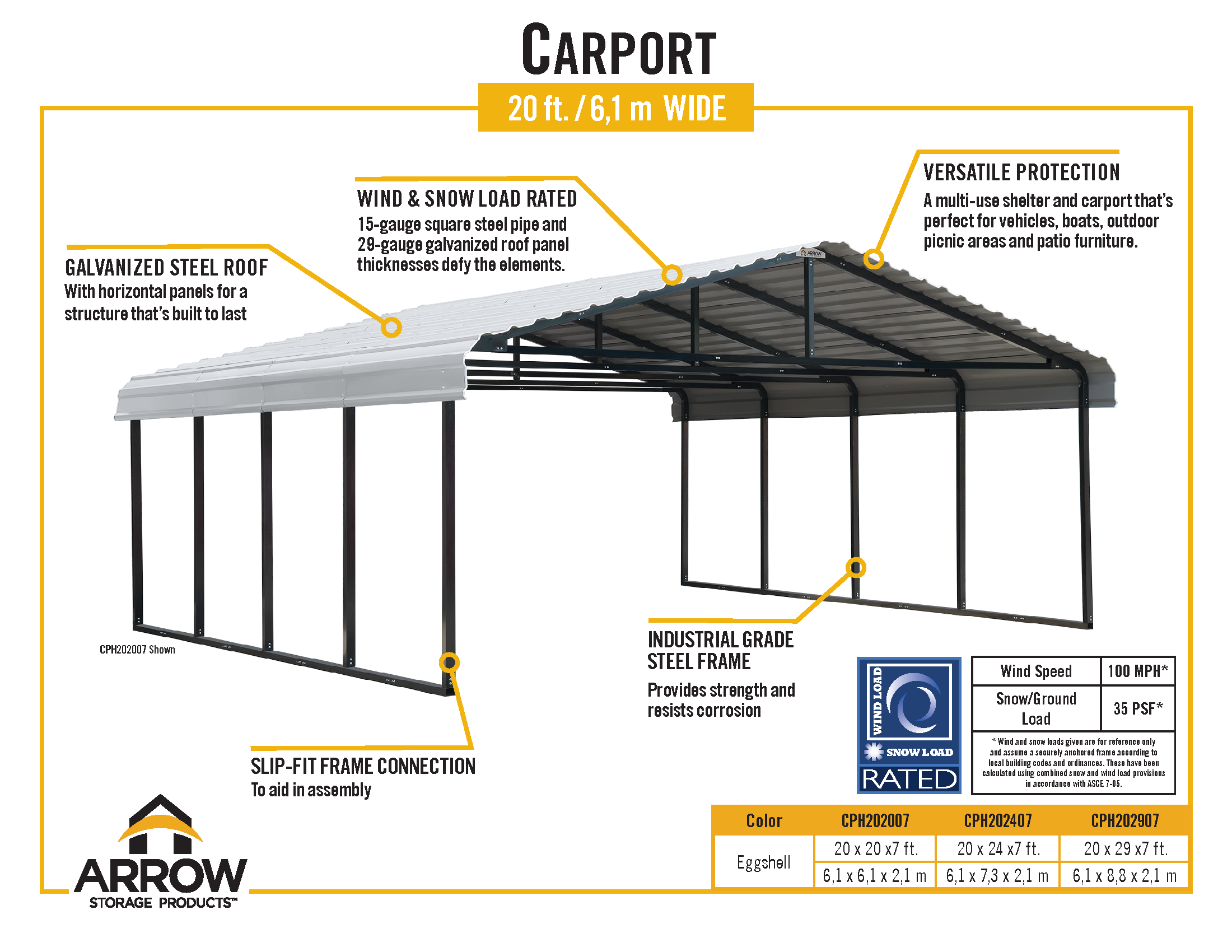

PART ID CPH202407 BRAND Arrow UPC 026862112682 GTIN 00026862112682 DISPLAY NAME - RETAIL Galvanized Steel Carport, 20X24X7 PROP 65 WARNING REQUIRED (Y/N) No LONG DESCRIPTION Built strong, wind and snow rated, and backed by a 10-year limited warranty is the Arrow Carport. This galvanized steel carport from Arrow Storage Products features a powder coated steel frame for corrosion and rust resistance. The tough made galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area. BULLET 1 Built strong with a 2x3 in. 15 gauge wall thickness. The Arrow Carport delivers wind and snow load strength and stability BULLET 2 An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather - winds up to 100 mph, and a snow load of 35 PSF BULLET 3 A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance BULLET 4 Roof in an attractive eggshell finish, with a black powder coated steel frame BULLET 5 Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area BULLET 6 ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection BULLET 7 Comes with a 10 year warranty BULLET 8 Disclaimer- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame according to local building codes and ordinances. These loads have been calculated useing combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied structure. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser BULLET 9 This Unit Contains 8 Packages - You will receive 5 Frame Cartons 3 Roof Panel Cartons FRAME MATERIAL Steel ASSEMBLY REQUIRED (Y/N) Yes WATERPROOF (Y/N) No WATER-RESISTANT (Y/N) Yes STORAGE BAG INCLUDED (Y/N) No RELATED ACCESSORIES #1 ECL2409EGX1 RELATED ACCESSORIES #2 ECL2409EGX2 RELATED ACCESSORIES #3 10075 NOMINAL ASSEMBLED HEIGHT FT. 7 NOMINAL ASSEMBLED LENGTH FT. 24 NOMINAL ASSEMBLED WIDTH FT. 20 NOMINAL CONC IMPERIAL 20 x 24 x 7 ft SHAPE OF TUBE Rectangle WIND LOAD RATING (MPH) 100.00 SNOW LOAD RATING (PSF) 35.00 ROOF PITCH - LOWER 3.00 ROOF PITCH - UPPER 0.00 DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS 237.00 DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS 84.00 DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS 237 BUILDING SHAPE Peak FOUNDATION LENGTH (IN) 300.00 FOUNDATION WIDTH (IN) 252.00 WALL HEIGHT (IN) 84.00 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 290.75 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 118.00 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 243.00 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (CM) 738.51 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (CM) 299.72 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (CM) 617.22 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (KG.) 592.39 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.) 1306.00 DOOR OPENING CM (CONC) 213.4 x 602.0 DOOR / ENTRANCE HEIGHT (CM) OUTSIDE ZIPPERS 213.36 DOOR / ENTRANCE WIDTH BOTTOM (CM) OUTSIDE ZIPPER 601.98 RIB TUBING DIAMETER EDGE TO EDGE (IN) 0 COVER COLOR Eggshell COLOR Eggshell FREIGHT CLASS 65 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (KG) 636.26 PALLET 1 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 43.34 PALLET 1 LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 76.58 PALLET 1 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS) ( DS LTL ONLY OUT OF WHSE) 1402.71 PALLET 1 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 30.25 UNITS PER 20' CONTAINER 7 UNITS PER 40' HCUBE CONTAINER 15 TRAILER QTY 53' 22 H.S. TARIFF # CANADA 7308.90.0099
