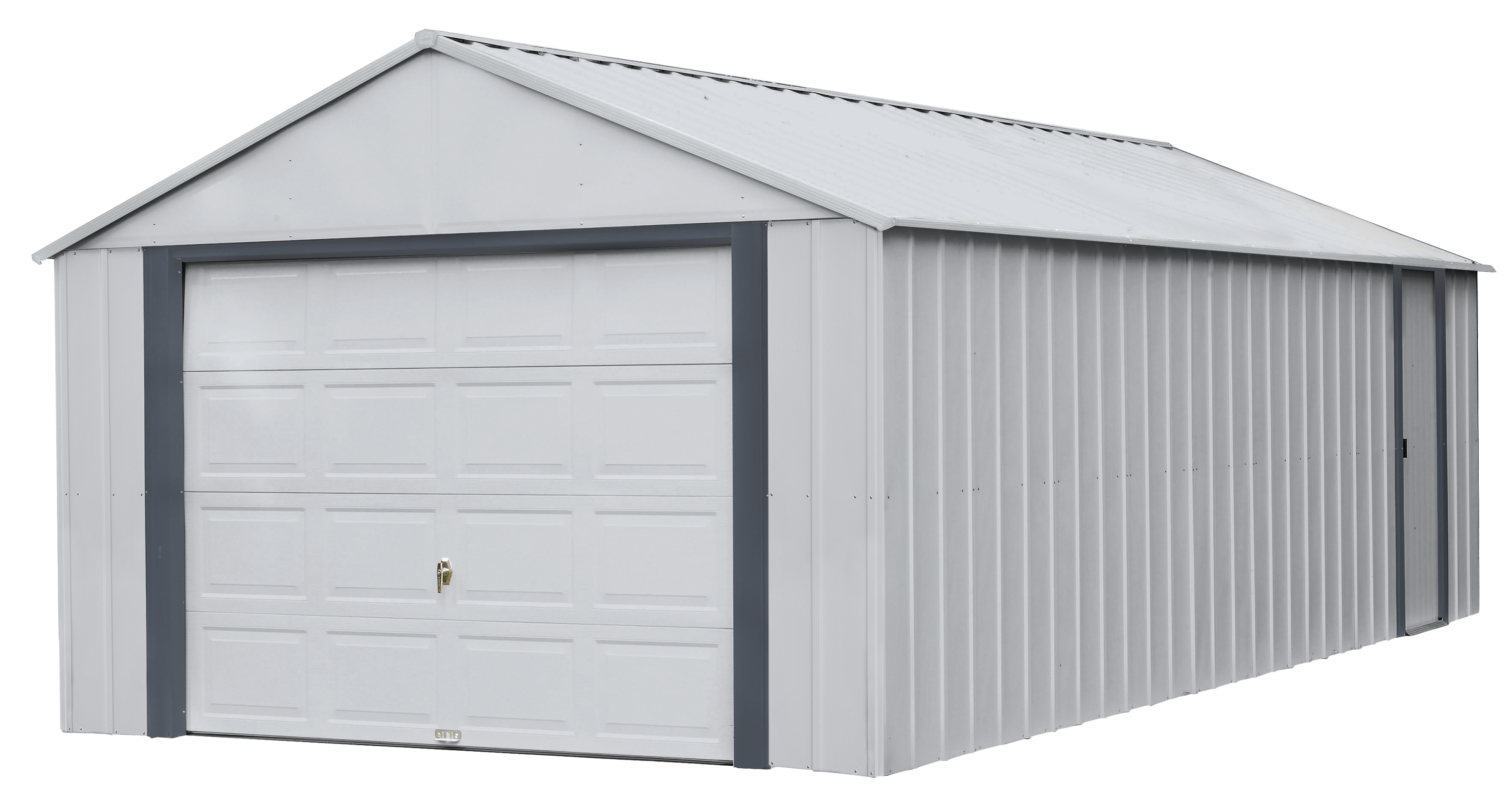

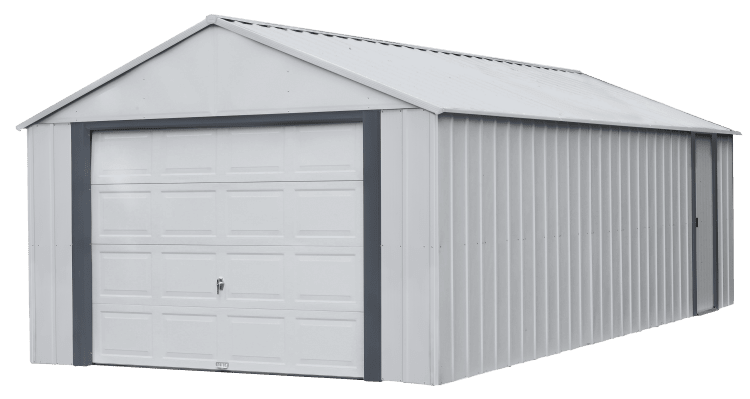

MAIN IMAGE - SILO 1
Arrow Murryhill 12 x 24 Garage, Steel Storage Building
Add to export list

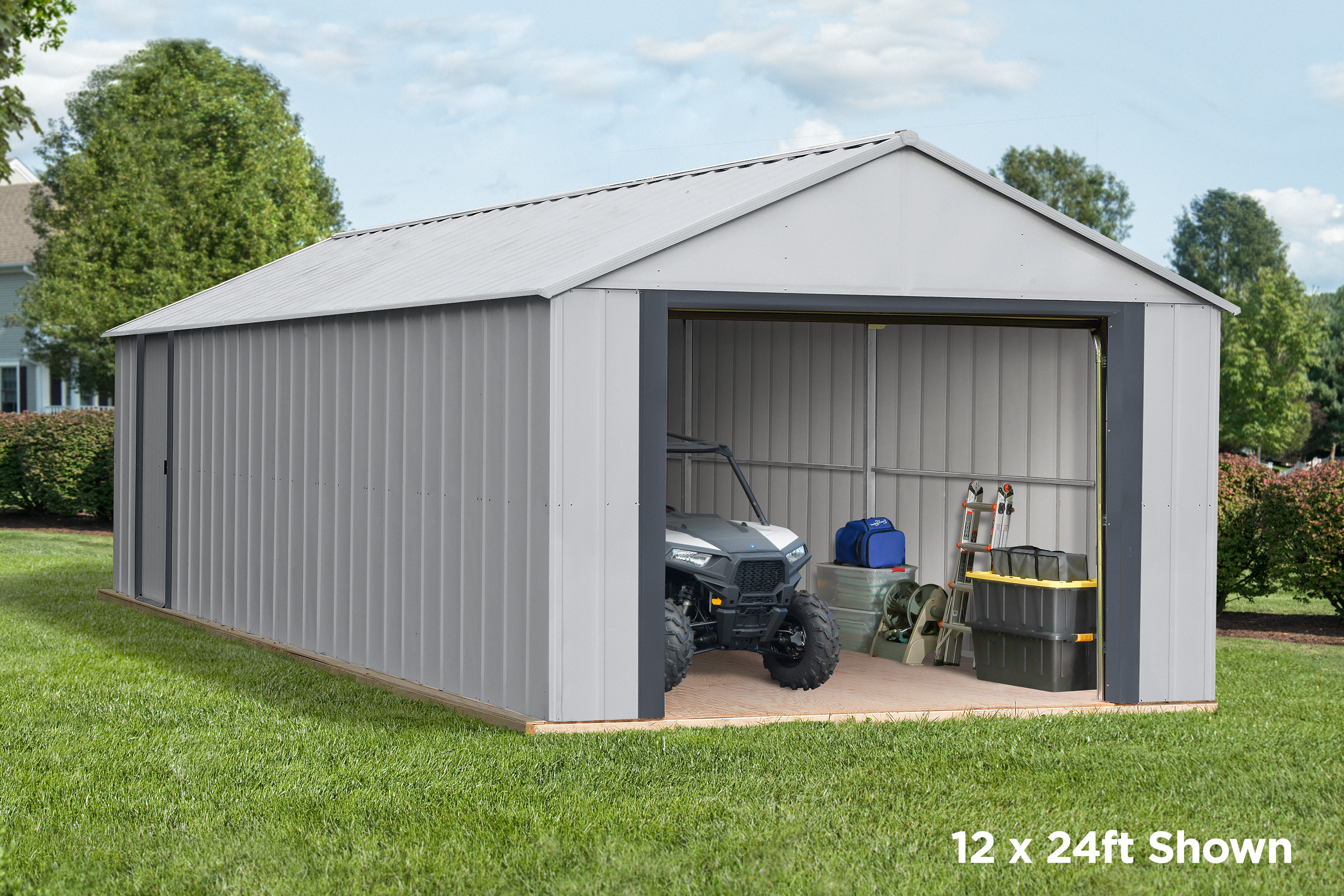

LIFESTYLE - IMAGE 01

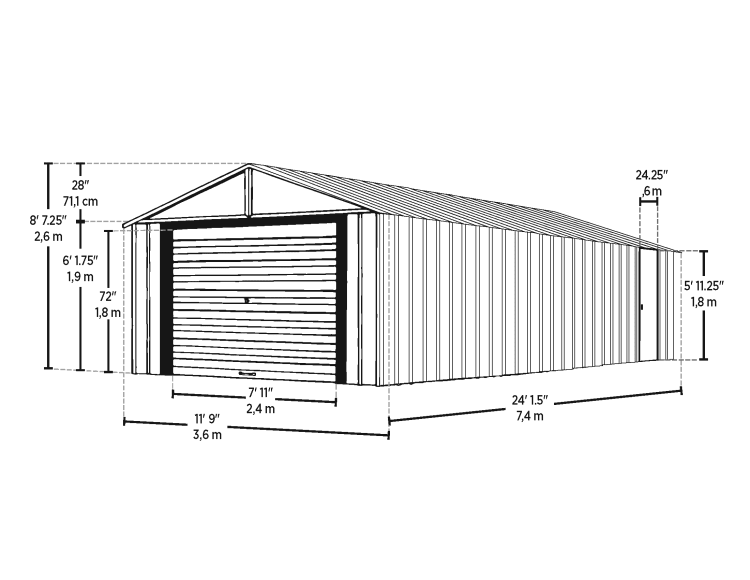

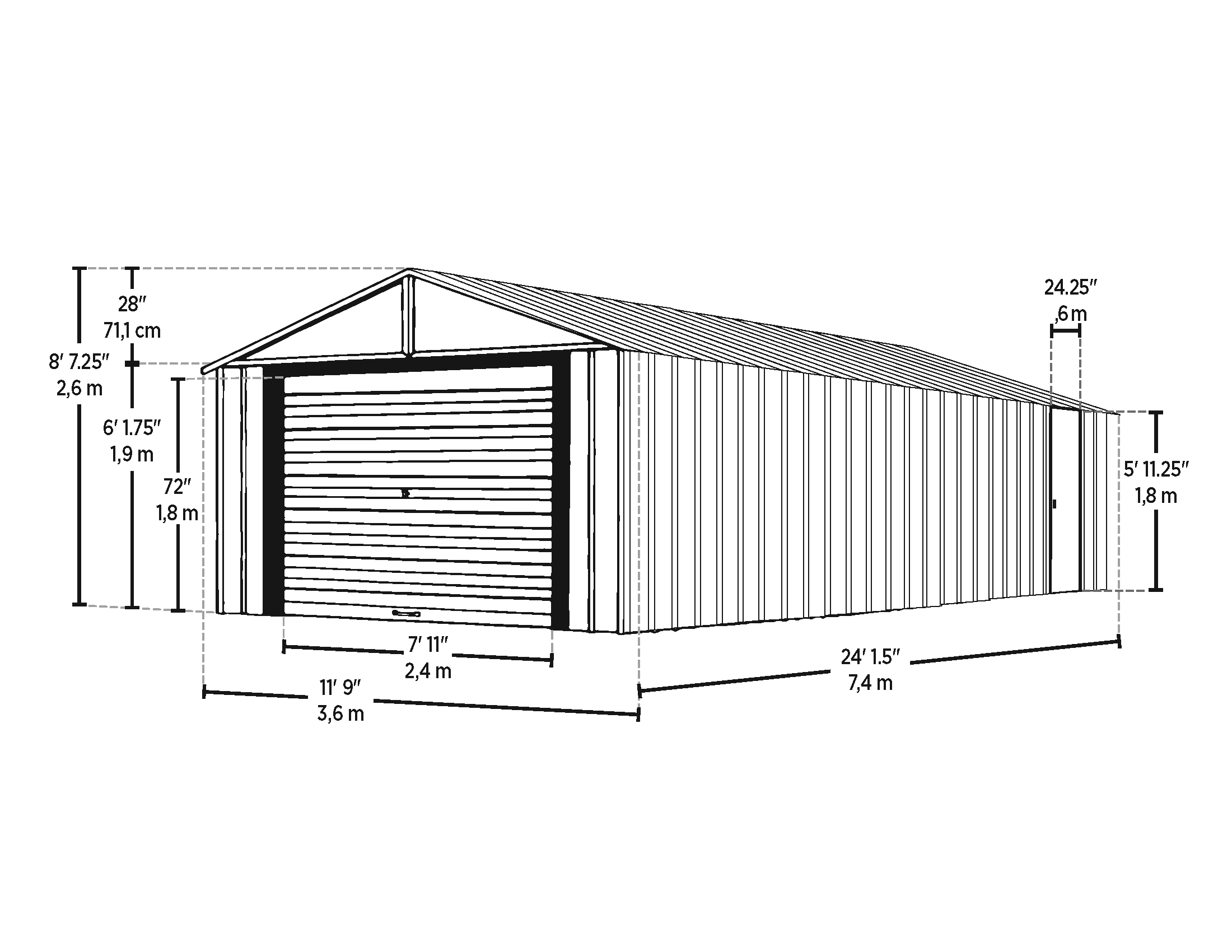

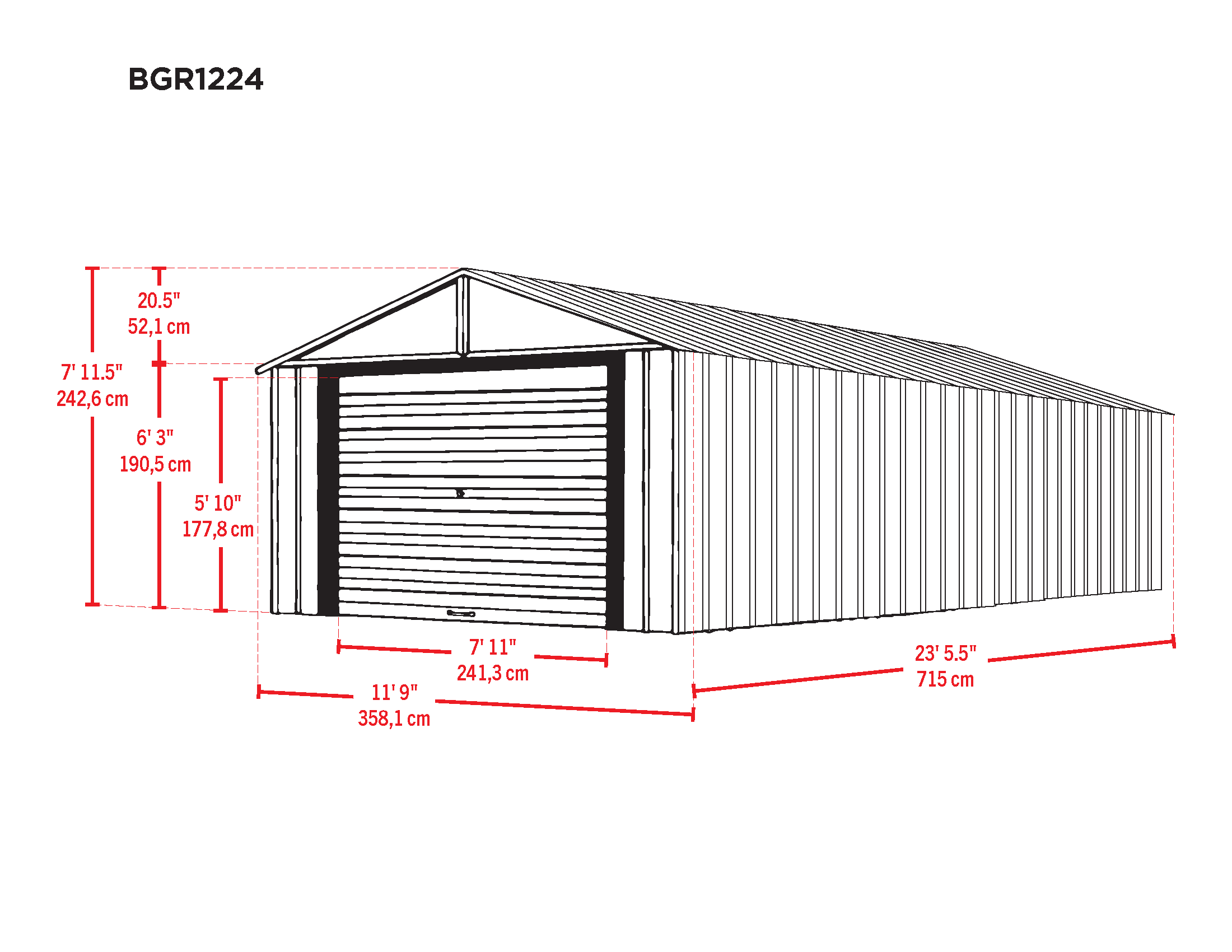

SCHEMATICS

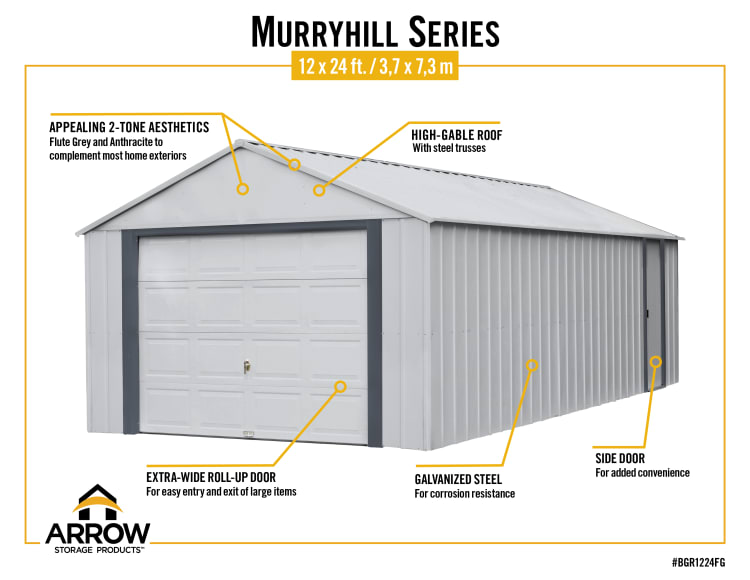

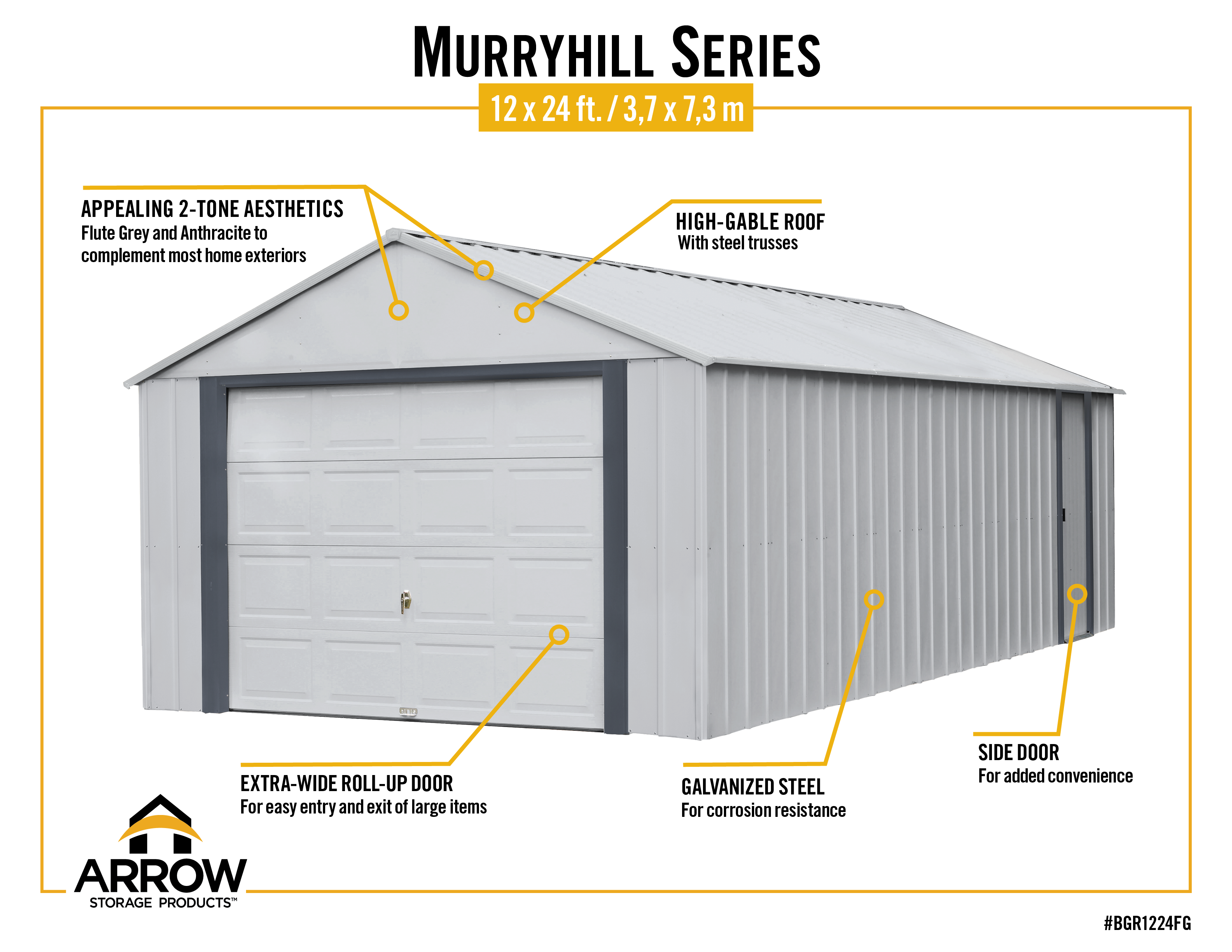

INFOGRAPHIC 4
INFOGRAPHIC 5
INFOGRAPHIC 2
INFOGRAPHIC 3
INFOGRAPHIC

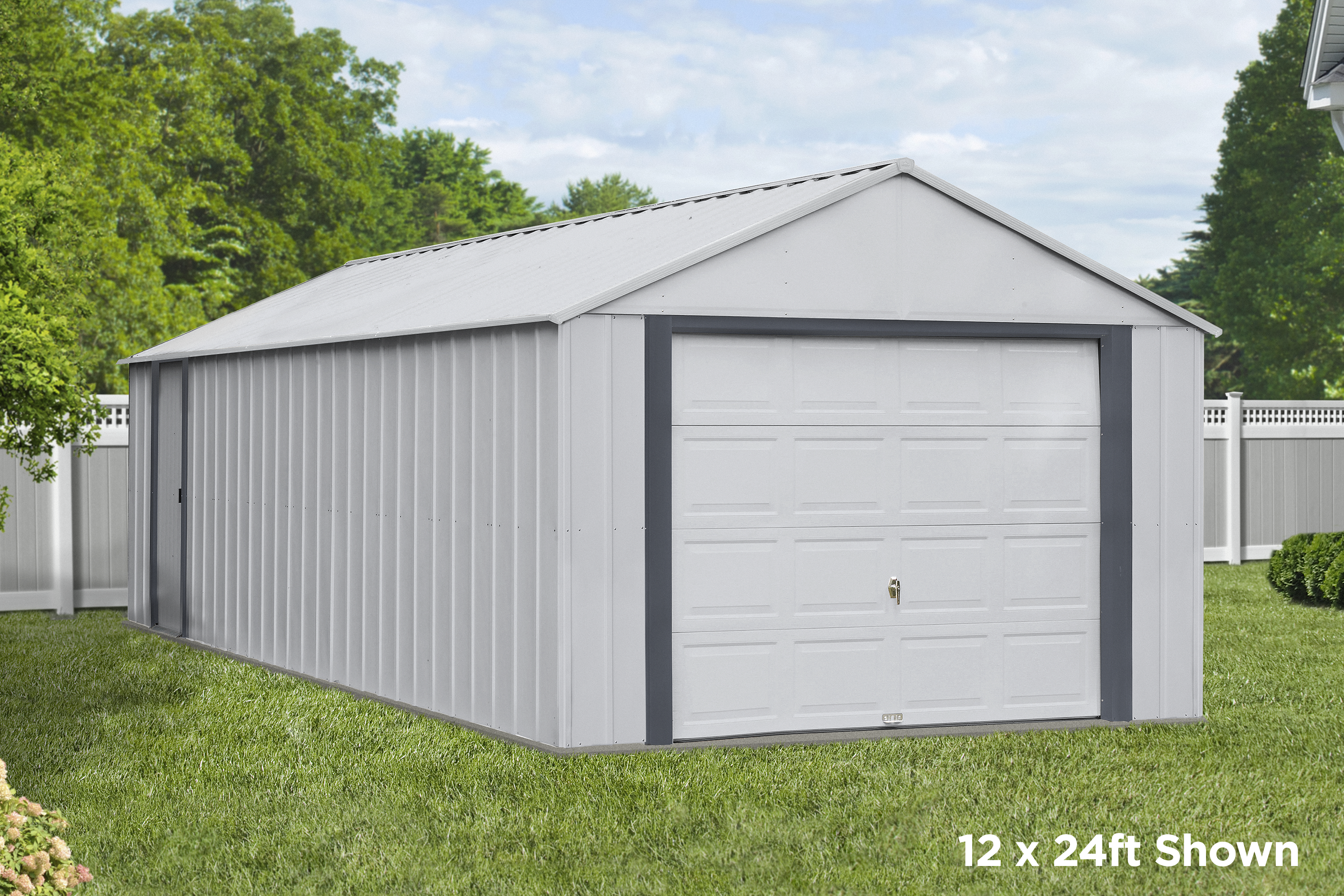

LIFESTYLE - IMAGE 02

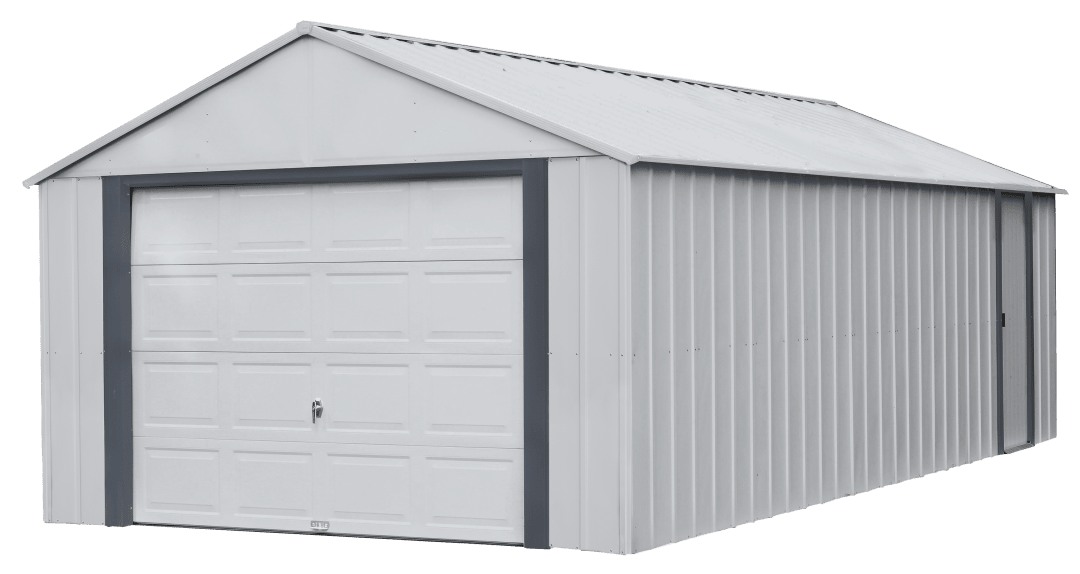

MAIN IMAGE - SILO 1
GRAPHIC IMAGE 4
MARKETING VIDEO 2
YOUTUBE VIDEO LINK 2
| PART ID | BGR1224FG |
| BRAND | Arrow |
| SUB-BRAND | Murryhill |
| UPC | 026862113184 |
| GTIN | 00026862113184 |
| DISPLAY NAME - RETAIL | Arrow Murryhill 12 x 24 Garage, Steel Storage Building |
| CATEGORY CODE | Garages |
| PROP 65 WARNING REQUIRED (Y/N) | No |
| LONG DESCRIPTION | Add functional storage space and classic good looks to your property with the Murryhill garage. This prefab building is thoughtfully designed to hold virtually anything you want to store. It features tall 73.75 in./ 187.3 cm walls topped with a high-gable roof for ample headroom and to ensure tall items and vertical storage shelves are never a problem. If you're storing wide or bulky items like a car, boat, or lawn equipment, you'll appreciate the 95 x 72 in/m 241.3 x 182.9 cm roll-up door. In addition to storage, the Murryhill Garage makes a spacious and affordable workshop for all kinds of projects. It provides plenty of room for tool benches, woodworking tools, automotive equipment, and more. The convenient side-entry door is 24.25 x 71.25 in./61.6 x 181 cm to make it easy to walk in and out of the garage to build, tinker, and work on projects without having to open the roll-up door. Its detached design also means you can work in the garage at any time day or night without disturbing family members inside your home with noises, odors, or fumes. The Murryhill Garage is made from strong galvanized steel. This construction delivers reliable durability and strength. The garage also features reinforced steel trusses in the roof for added strength and structural resilience. All of these well-designed features ensure the garage will maintain its beauty and integrity for years to come. This garage also includes a 12-year limited warranty so you can be sure of the building's quality and enjoy added peace of mind. Not only is it sturdy, functional, and built to last, the Murryhill Garage is designed to add aesthetic appeal to your property. It features a neutral Flute Gray finish with deep Anthracite trim to effortlessly complement your home and yard. It pairs seamlessly with a wide range of home colors and exudes the timeless good looks of a traditional garage--all at a fraction of the price of a brick and mortar structure. The Murryhill Garage comes ready to assemble so you put it together and have it ready to use in no time--a weekend is usually sufficient. Each piece is pre-cut and pre-drilled so you just need some basic tools and a helping hand to get it assembled. For the sturdiest assembly, it is recommended that you secure the structure to a concrete pad. No matter how you choose to secure the garage, you can be sure that you're getting a solidly built building that is the perfect choice for any do-it-yourselfer. |
| BULLET 1 | Steel frame construction: Made from strong galvanized steel to withstand the elements and resist corrosion |
| BULLET 2 | SPACE FOR YOU AND YOUR EQUIPMENT: Extra-tall walls and a high-gable roof provide additional headroom and storage space |
| BULLET 3 | EASY ENTRY OPTIONS: Sliding side door allows you to walk into the garage easily while an extra-wide roll-up door accommodates bigger item |
| BULLET 4 | Pre-cut and pre-drilled parts make it easy for a D.I.Y.er to build the garage on a weekend or day off |
| BULLET 5 | APPEALING TWO TONE ASTHETICS: Flute Grey finish with deep Anthracite trim to effortlessly complement your home and yard |
| BULLET 6 | SIZES TO FIT YOUR SPACE: Model BGR1210FG has assembled dimensions of 12 x 10 ft./ 3.7 x 3 m; model BGR1217FG has assembled dimensions of 12 x 17 ft./ 3.7 x 5.2 m; model BGR1224FG has assembled dimensions of 12 x 24 ft./ 3.7 x 7.3 m; and model BGR1231FG has assembled dimensions of 12 x 31 ft./ 3.7 x 9.5 |
| FRAME MATERIAL | Steel |
| ASSEMBLY REQUIRED (Y/N) | Yes |
| WATERPROOF (Y/N) | No |
| WATER-RESISTANT (Y/N) | No |
| STORAGE BAG INCLUDED (Y/N) | No |
| RELATED ACCESSORIES #1 | AK4 |
| RELATED ACCESSORIES #2 | AK100 |
| RELATED ACCESSORIES #3 | AK600 |
| RELATED ACCESSORIES #4 | 10075 |
| RELATED ACCESSORIES #5 | DK100-A |
| RELATED ACCESSORIES #6 | SS404 |
| RELATED ACCESSORIES #7 | SS900-B |
| RELATED ACCESSORIES #8 | TH100 |
| NOMINAL ASSEMBLED HEIGHT FT. | 9 |
| NOMINAL ASSEMBLED LENGTH FT. | 24 |
| NOMINAL ASSEMBLED WIDTH FT. | 12 |
| NOMINAL CONC IMPERIAL | 12 x 24 x 9 ft |
| RIB TUBING DIAMETER EDGE TO EDGE (IN) | 0 |
| SHAPE OF TUBE | N/A |
| VALANCE HEIGHT (IN) | 0 |
| WIND LOAD RATING (MPH) | 100 |
| SNOW LOAD RATING (PSF) | 35 |
| ROOF PITCH - LOWER | 4.8 |
| ROOF PITCH - UPPER | 0 |
| DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER | 0 |
| DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS | 95 |
| DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS | 72 |
| DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS | 95 |
| SIDE DOOR / ENTRANCE WIDTH (IN) | 24.25 |
| SIDE DOOR OPENING HEIGHT (IN) | 71.25 |
| BUILDING SHAPE | Peak |
| FOUNDATION LENGTH (IN) | 284.25 |
| FOUNDATION WIDTH (IN) | 141.13 |
| GABLE HEIGHT (IN) | 28 |
| WALL HEIGHT (IN) | 73.75 |
| ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) | 289.5 |
| ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) | 103.25 |
| ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) | 146.13 |
| OPEN DIMENSIONS - DEPTH (IN) | 0 |
| OPEN DIMENSIONS - HEIGHT (IN) | 0 |
| OPEN DIMENSIONS - WIDTH (IN) | 0 |
| COVER COLOR | Flute Grey |
| DOOR COLOR | Roll Up White, Side Door Flute Grey |
| DOOR JAMB COLOR | Anthracite |
| FRAME COLOR | N/A |
| GABLE COLOR | Flute Grey |
| ROOF COLOR | Flute Grey |
| ROOF TRIM COLOR | Flute Grey |
| TRACK COLOR | Anthracite |
| WALL COLOR | Flute Grey |
| HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) | 25.3 |
| WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) | 34.3 |
| WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS) | 772 |
| ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.) | 732 |
| LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) | 115 |
| HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (CM) | 64.26 |
| FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION | 25.25 |
| FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION | 115 |
| FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION | 791 |
| FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION | 34.25 |
| UNITS PER 20' CONTAINER | 2 |
| UNITS PER 40' HCUBE CONTAINER | 8 |
| TRAILER QTY 53' | 10 |
