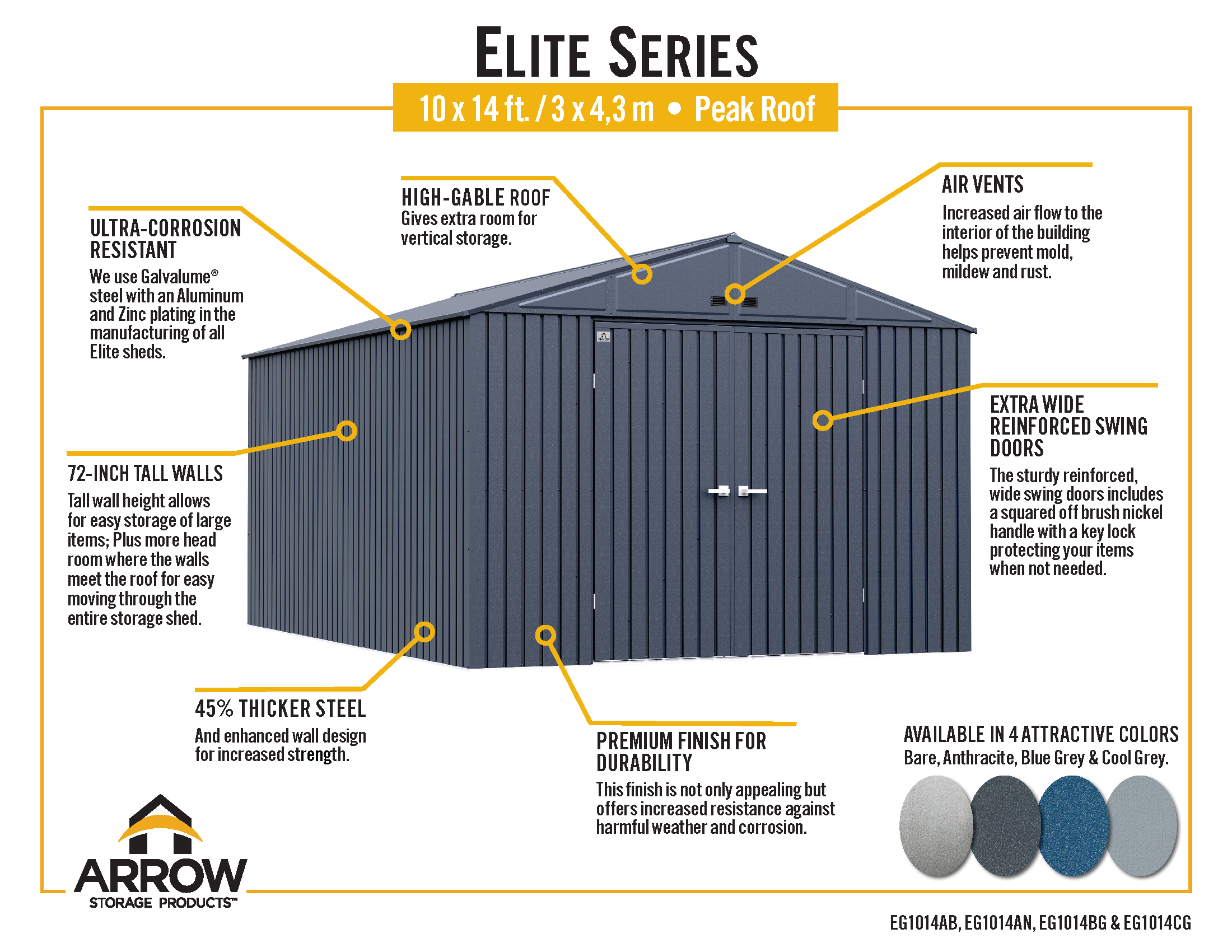

PART ID EG1014CG BRAND Arrow SUB-BRAND Elite UPC 026862122650 GTIN 00026862122650 DISPLAY NAME - RETAIL Elite Steel Storage Shed, 10X14, Cool Grey CATEGORY CODE Sheds and Storage Buildings PROP 65 WARNING REQUIRED (Y/N) No LONG DESCRIPTION The Arrow Elite series storage shed has an attractive squared wall design and textured wrinkle paint in an anthracite finish, making it a welcome fixture in any backyard, garden or outdoor setting. Made from Galvalume steel with highly anti-corrosive aluminum and zinc plating, this steel shed is built to last! The Arrow Elite series sheds also feature a tall 72 in wall height for added headroom, plus extra walk around space. The rigid reinforced swing open doors with brushed nickel key lock handle allows for easy access to the interior, while allowing storage against the front wall. In addition, gable vents provide increased air flow to the shed's interior. All hardware is included for assembly BULLET 1 The shed is crafted from Galvalume steel, plated with aluminum, zinc, and silicon for exceptional corrosion resistance BULLET 2 The wrinkle paint textured finish is not only appealing, but offers increased resistance against harmful weather and corrosion BULLET 3 The contemporary, new squared wall panel design of this steel shed gives a modern clean appearance BULLET 4 The sturdy reinforced, wide swing doors includes a squared off brush nickel handle with a key lock protecting your items when not needed BULLET 5 The tall 72-inch wall height allows for easy storage of large items; Plus more head room where the walls meet the roof for easy moving through the entire storage shed BULLET 6 Vented gables allow for increased air flow to the interior of the building CPAI-84 COMPLIANT (Y/N) No COUNTRY OF ORIGIN USA H.S. TARIFF # U.S. 9406.90.0130 NMFC # 38470 FREIGHT CLASS 70 DUTY % U.S. 2.9 H.S. TARIFF # CANADA 9406.90.9090 NUMBER OF CUP HOLDERS 0 COLOR Cool Grey COVER COLOR Cool Grey DOOR COLOR Cool Grey DOOR JAMB COLOR Cool Grey FRAME COLOR Cool Grey GABLE COLOR Cool Grey ROOF COLOR Cool Grey ROOF TRIM COLOR Cool Grey TRACK COLOR Cool Grey WALL COLOR Cool Grey FRAME MATERIAL Steel BUILDING SHAPE Peak SHAPE OF TUBE N/A NUMBER OF AWNINGS 0 ROOF PITCH - LOWER 0.00 ROOF PITCH - UPPER 0.00 FOUNDATION WIDTH (IN) 121.11 FOUNDATION LENGTH (IN) 169.11 DOOR TYPE Swing DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS 63.44 DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS 69.77 DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS 63.44 GABLE HEIGHT (IN) 17.50 WALL HEIGHT (IN) 72.00 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 168.70 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 91.40 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 122.90 TOTAL STORAGE VOLUME (CU. FT.) 927.00 TOTAL STORAGE AREA (SQ/FT) 137.00 WHAT'S IN THE BOX Roof, Walls, Gables, Frame, Doors, Hardware, Instructions STORAGE BAG INCLUDED (Y/N) No MATERIAL BREAKDOWN FABRIC % 0 NOMINAL ASSEMBLED HEIGHT FT. 8 NOMINAL ASSEMBLED LENGTH FT. 14 NOMINAL ASSEMBLED WIDTH FT. 10 NOMINAL CONC IMPERIAL 10 x 14 x 8 ft RIB TUBING DIAMETER EDGE TO EDGE (IN) 0 SHIP METHOD (PARCEL OR LTL) LTL HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 18.00 LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 80.00 WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 34.00 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS) 498.00 CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) CALCULATED 28.33 ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.) 457 # OF BOXES 2 CARTON 1 GROSS WEIGHT (LBS) 213.00 CARTON 1 HEIGHT (IN) 6.69 CARTON 1 LENGTH (IN) 76.25 CARTON 1 WIDTH (IN) 28.00 CARTON 2 GROSS WEIGHT (LBS) 244.00 CARTON 2 HEIGHT (IN) 6.69 CARTON 2 LENGTH (IN) 76.25 CARTON 2 WIDTH (IN) 28.00 FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 11.19 FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 76.50 FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 492.00 FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 28.00 UNITS PER 40' CONTAINER 89 UNITS PER 40' HCUBE CONTAINER 89 UNITS PER 48' TRAILER 89 TRAILER QTY 53' 89 LOADING TYPE (FLOOR, SLIP OR PALLET) PALLET
