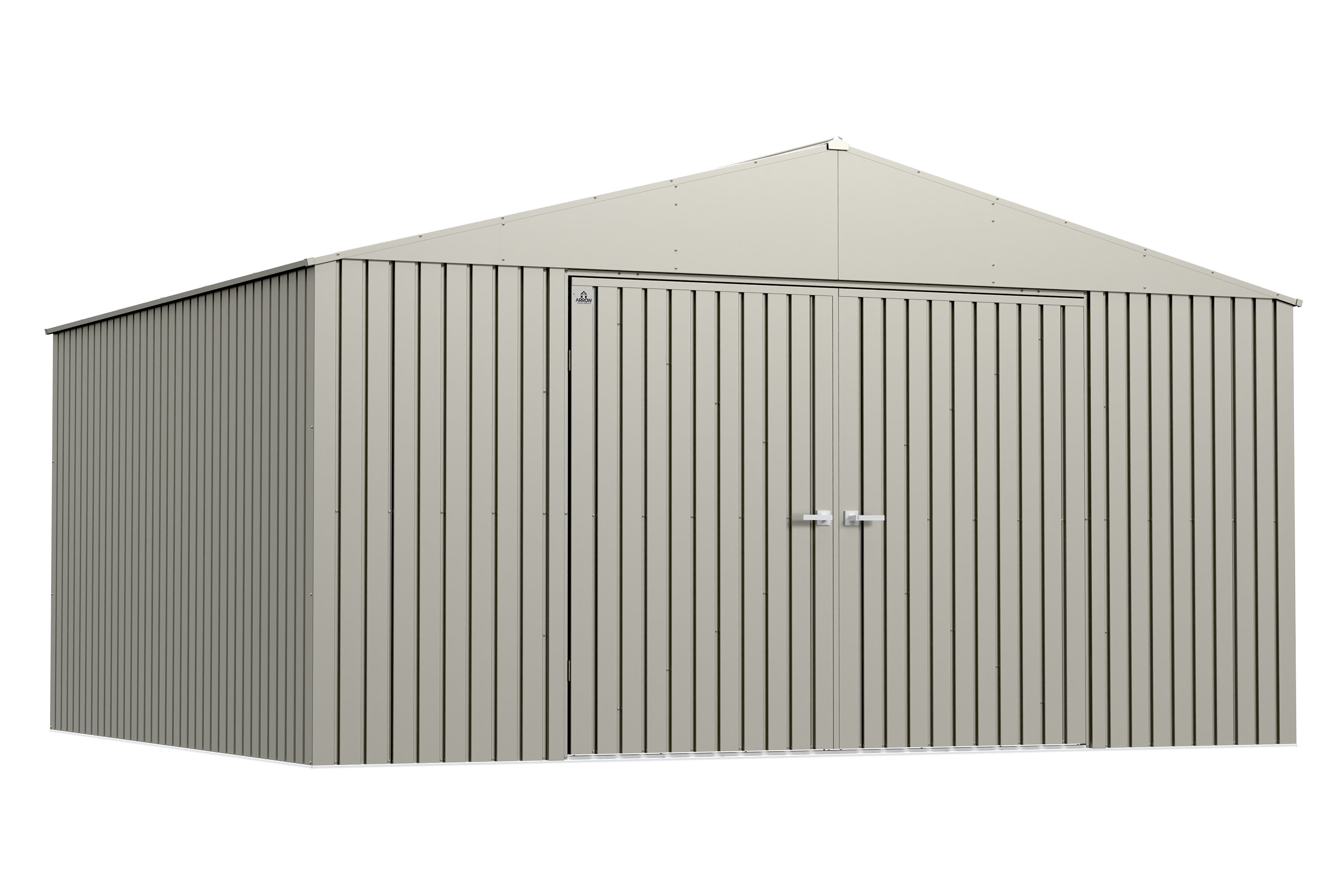

Arrow Elite Steel Storage Shed, 14x12, Cool Grey

MAIN IMAGE - SILO 1

Arrow Elite Steel Storage Shed, 14x12, Cool Grey

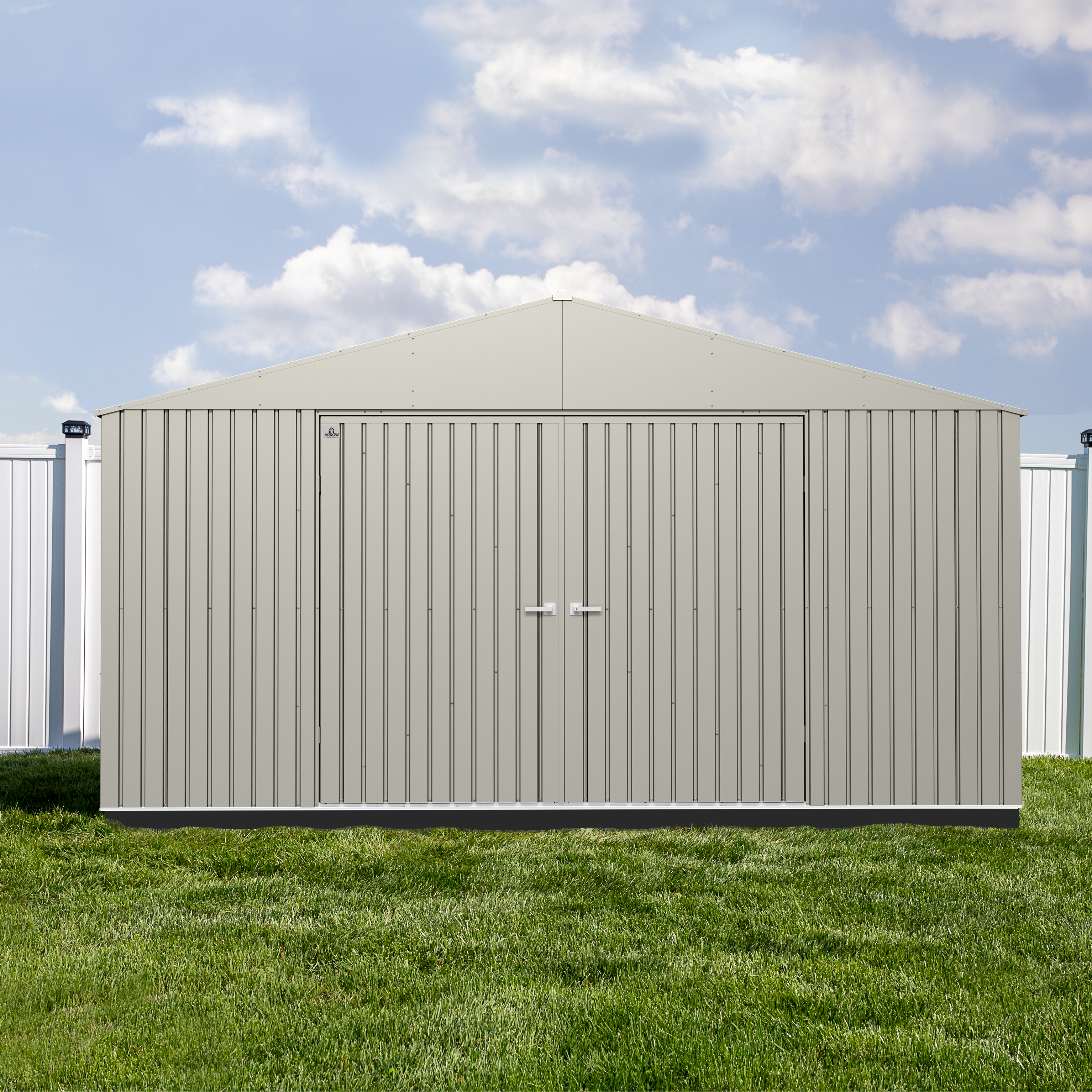

LIFESTYLE - IMAGE 01

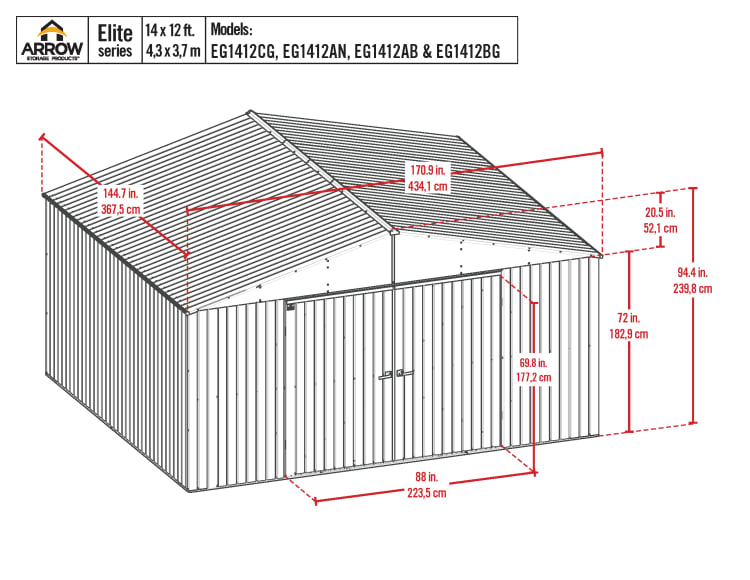

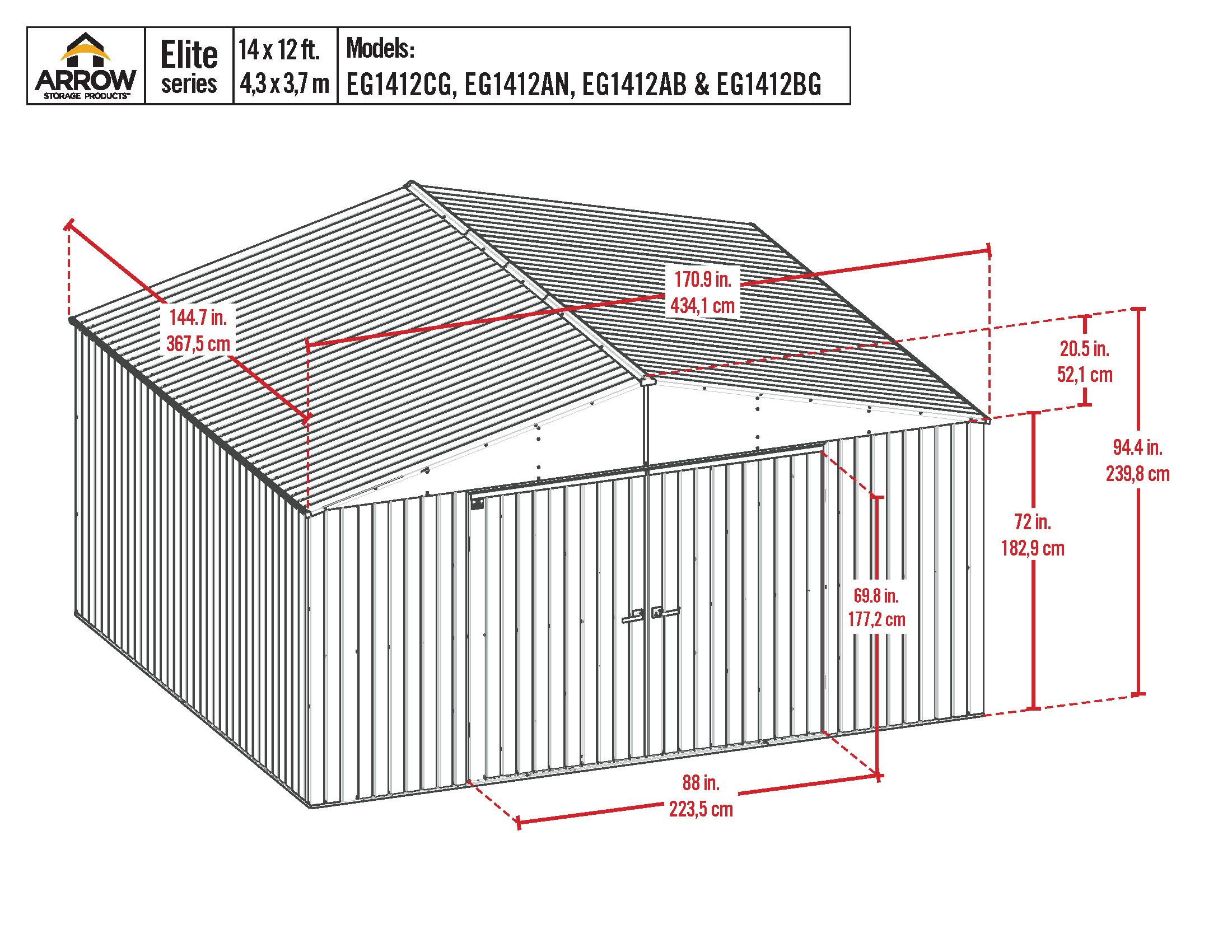

SCHEMATICS

GRAPHIC IMAGE 3

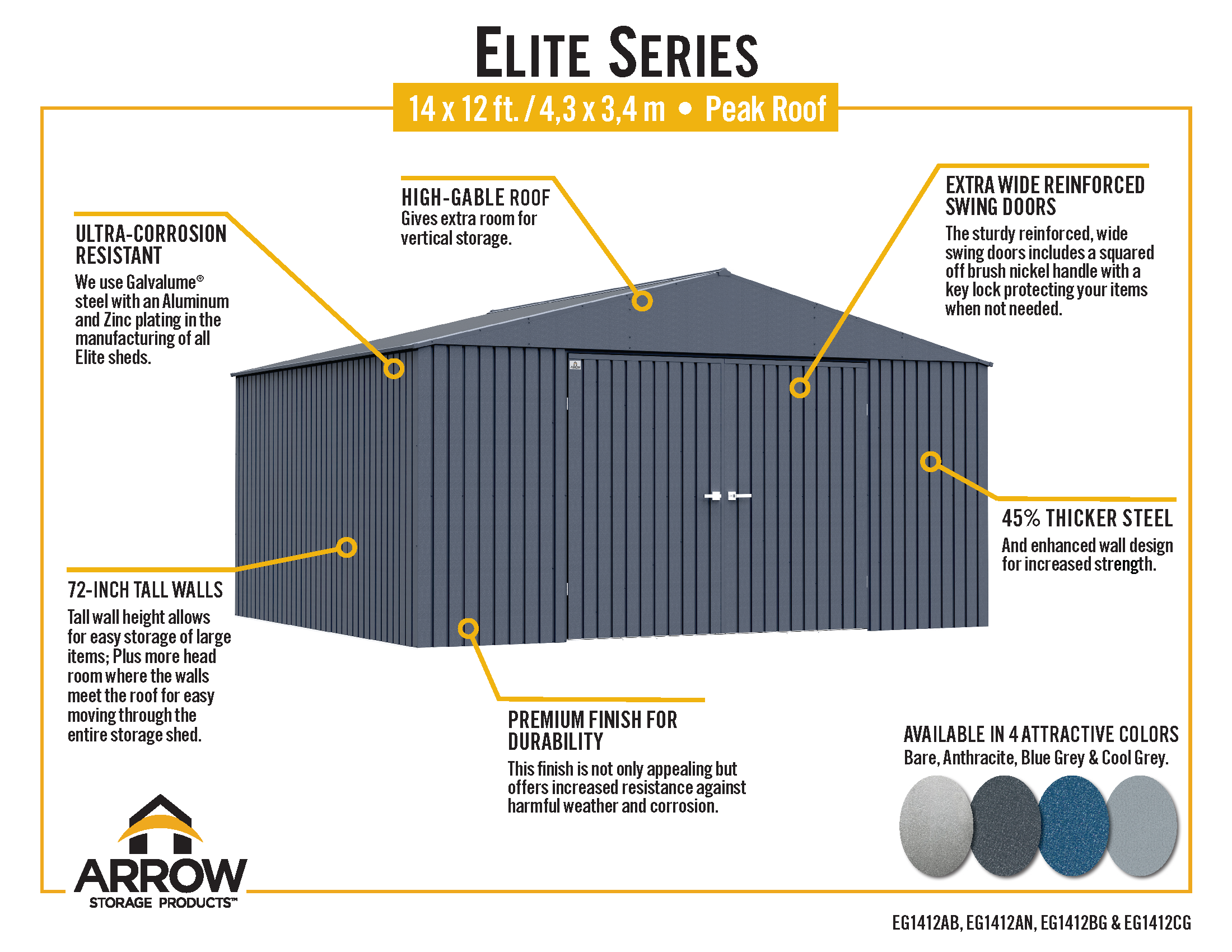

INFOGRAPHIC 4

INFOGRAPHIC 5

INFOGRAPHIC 2

INFOGRAPHIC 3

INFOGRAPHIC

GRAPHIC IMAGE 2

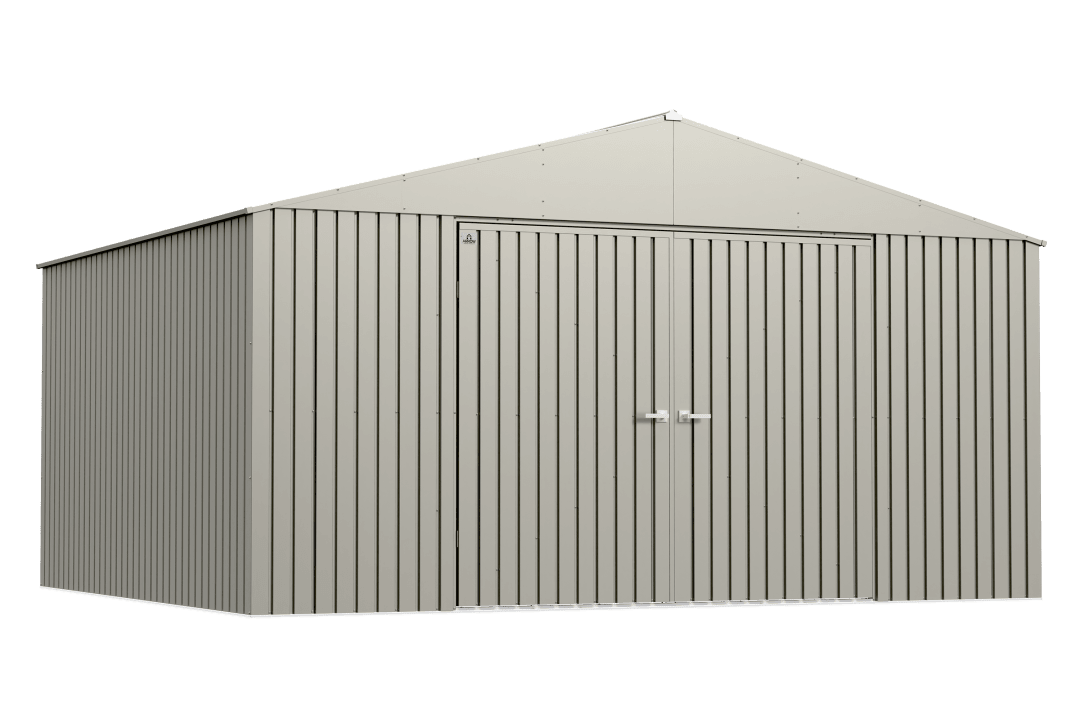

MAIN IMAGE - SILO 1

GRAPHIC IMAGE 4

360 Spin Video

MARKETING VIDEO

MARKETING VIDEO 2

YOUTUBE VIDEO LINK

YOUTUBE VIDEO LINK 2

PART ID	EG1412CG
BRAND	Arrow
SUB-BRAND	Elite
UPC	026862122810
GTIN	00026862122810

DISPLAY NAME - RETAIL	Arrow Elite Steel Storage Shed, 14x12, Cool Grey
CATEGORY CODE	Sheds and Storage Buildings
PROP 65 WARNING REQUIRED (Y/N)	No
LONG DESCRIPTION	The Arrow Elite series storage shed has an attractive squared wall design and textured wrinkle paint in an anthracite finish, making it a welcome fixture in any backyard, garden or outdoor setting. Made from Galvalume steel with highly anti-corrosive aluminum and zinc plating, this steel shed is built to last! The Elite series sheds also feature a tall 72 in wall height for added headroom, plus extra walk around space. The rigid reinforced swing open doors with brushed nickel key lock handle allows for easy access to the interior, while allowing storage against the front wall. In addition, gable vents provide increased air flow to the shed's interior. All hardware is included for assembly
BULLET 1	The shed is crafted from Galvalume steel, plated with aluminum, zinc, and silicon for exceptional corrosion resistance
BULLET 2	The wrinkle paint textured finish is not only appealing, but offers increased resistance against harmful weather and corrosion
BULLET 3	The contemporary, new squared wall panel design of this steel shed gives a modern clean appearance
BULLET 4	The sturdy reinforced, wide swing doors includes a squared off brush nickel handle with a key lock protecting your items when not needed
BULLET 5	The tall 72-inch wall height allows for easy storage of large items; Plus more head room where the walls meet the roof for easy moving through the entire storage shed
BULLET 6	Vented gables allow for increased air flow to the interior of the building
BULLET 7	Includes a 15 year limited warranty
BULLET 8	Manufactured in the USA, with globally sourced material

COUNTRY OF ORIGIN	USA
H.S. TARIFF # U.S.	9406.90.0130
NMFC #	38470
FREIGHT CLASS	70
DUTY % U.S.	2.9

SEAT HEIGHT (IN)	N/A
CHAIR BACK HEIGHT (IN)	N/A
Chair Back Width (in.) widest point	N/A
CHAIR SEAT DEPTH (IN)	N/A
CHAIR SEAT WIDTH (IN)	N/A
NUMBER OF CUP HOLDERS	0
Arm Rest Height	0
Arm Rest Width - widest points	0
OPEN DIMENSIONS - DEPTH (IN)	0
OPEN DIMENSIONS - HEIGHT (IN)	0
OPEN DIMENSIONS - WIDTH (IN)	0
FOLDED DIMENSIONS - DEPTH (IN)	0
FOLDED DIMENSIONS - HEIGHT (IN)	0
FOLDED DIMENSIONS - WIDTH (IN)	0

COLOR	Cool Grey
COVER COLOR	Cool Grey
DOOR COLOR	Cool Grey
DOOR JAMB COLOR	Cool Grey
FRAME COLOR	Cool Grey
GABLE COLOR	Cool Grey
ROOF COLOR	Cool Grey
ROOF TRIM COLOR	Cool Grey
TRACK COLOR	Cool Grey
WALL COLOR	Cool Grey

FRAME MATERIAL	Steel
PRODUCT FABRIC (PE-PVC-Polyester)	N/A
VALANCE HEIGHT (IN)	0
BUILDING SHAPE	Peak
SHAPE OF TUBE	N/A
RIB TUBING DIAMETER EDGE TO EDGE (IN)	0
NUMBER OF AWNINGS	0
ROOF PITCH - LOWER	0
ROOF PITCH - UPPER	0
FOUNDATION WIDTH (IN)	169.11
FOUNDATION LENGTH (IN)	145.11
DOOR TYPE	Swing
DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER	0
DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS	88
DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS	69.77
DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS	88
SIDE DOOR / ENTRANCE WIDTH (IN)	0
SIDE DOOR OPENING HEIGHT (IN)	0
GABLE HEIGHT (IN)	28
WALL HEIGHT (IN)	72
ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN)	144.7
ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN)	94.4
ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN)	170.9
TOTAL STORAGE VOLUME (CU. FT.)	1135
TOTAL STORAGE AREA (SQ/FT)	164
WHAT'S IN THE BOX	Roof, Walls, Gables, Frame, Doors, Hardware, Instructions
STORAGE BAG INCLUDED (Y/N)	No
FABRIC WEIGHT	N/A
MATERIAL BREAKDOWN FABRIC %	0
FABRIC WEIGHT UOM	N/A
NOMINAL ASSEMBLED HEIGHT FT.	8
NOMINAL ASSEMBLED LENGTH FT.	12
NOMINAL ASSEMBLED WIDTH FT.	14
NOMINAL CONC IMPERIAL	14 x 12 x 8 ft

SHIP METHOD (PARCEL OR LTL)	LTL
HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	19.57
LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	92
WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	34
WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS)	610.4
CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	35.43
ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.)	556

# OF BOXES	3
CARTON 1 GROSS WEIGHT (LBS)	240
CARTON 1 HEIGHT (IN)	5.69
CARTON 1 LENGTH (IN)	90.31
CARTON 1 WIDTH (IN)	32.63
CARTON 2 GROSS WEIGHT (LBS)	186
CARTON 2 HEIGHT (IN)	4.69
CARTON 2 LENGTH (IN)	90.31
CARTON 2 WIDTH (IN)	32.63
CARTON 3 GROSS WEIGHT (LBS)	140
CARTON 3 HEIGHT (IN)	4.69
CARTON 3 LENGTH (IN)	90.31
CARTON 3 WIDTH (IN)	32.63
CARTON 4 GROSS WEIGHT (LBS)	N/A
CARTON 4 HEIGHT (IN)	N/A
CARTON 4 LENGTH (IN)	N/A
CARTON 4 WIDTH (IN)	N/A
CARTON 5 GROSS WEIGHT (LBS)	0
CARTON 5 HEIGHT (IN)	0
CARTON 5 LENGTH (IN)	0
CARTON 5 WIDTH (IN)	0
CARTON 6 GROSS WEIGHT (LBS)	0
CARTON 6 HEIGHT (IN)	0
CARTON 6 LENGTH (IN)	0
CARTON 6 WIDTH (IN)	0
CARTON 7 GROSS WEIGHT (LBS)	0
CARTON 7 HEIGHT (IN)	0
CARTON 7 LENGTH (IN)	0
CARTON 7 WIDTH (IN)	0
CARTON 8 GROSS WEIGHT (LBS)	0
CARTON 8 HEIGHT (IN)	0
CARTON 8 LENGTH (IN)	0
CARTON 8 WIDTH (IN)	0
CARTON 9 GROSS WEIGHT (LBS)	N/A
CARTON 9 HEIGHT (IN)	N/A
CARTON 9 LENGTH (IN)	N/A
CARTON 9 WIDTH (IN)	N/A
CARTON 10 GROSS WEIGHT (LBS)	N/A
CARTON 10 HEIGHT (IN)	N/A
CARTON 10 LENGTH (IN)	N/A
CARTON 10 WIDTH (IN)	N/A

# OF PIECES PER PALLET	1
FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION	19.56
FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION	90.5
FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION	607
FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION	32.75

UNITS PER 40' CONTAINER	56
UNITS PER 40' HCUBE CONTAINER	70
UNITS PER 48' TRAILER	72
TRAILER QTY 53'	72
LOADING TYPE (FLOOR, SLIP OR PALLET)	PALLET
