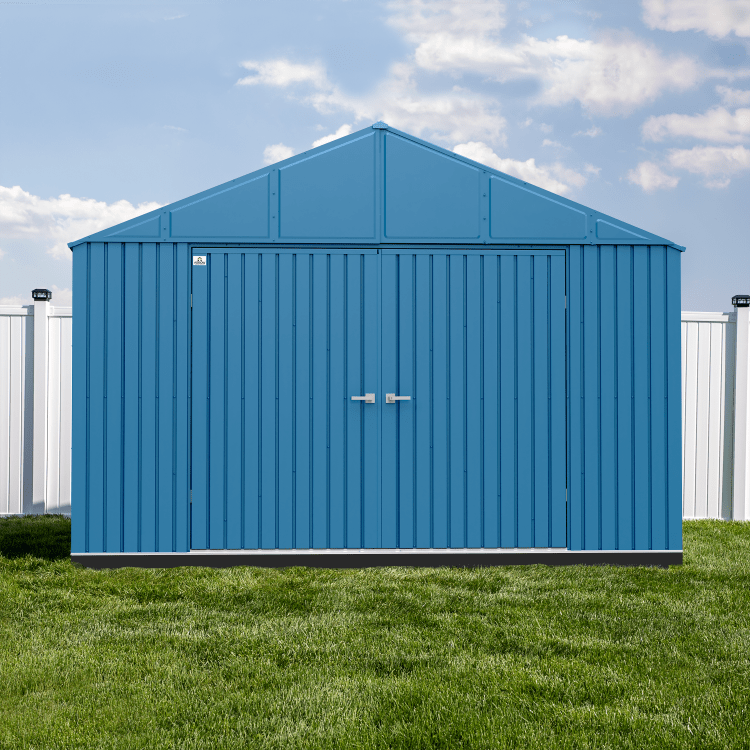

Arrow Elite Steel Storage Shed, 12x16, Blue Grey

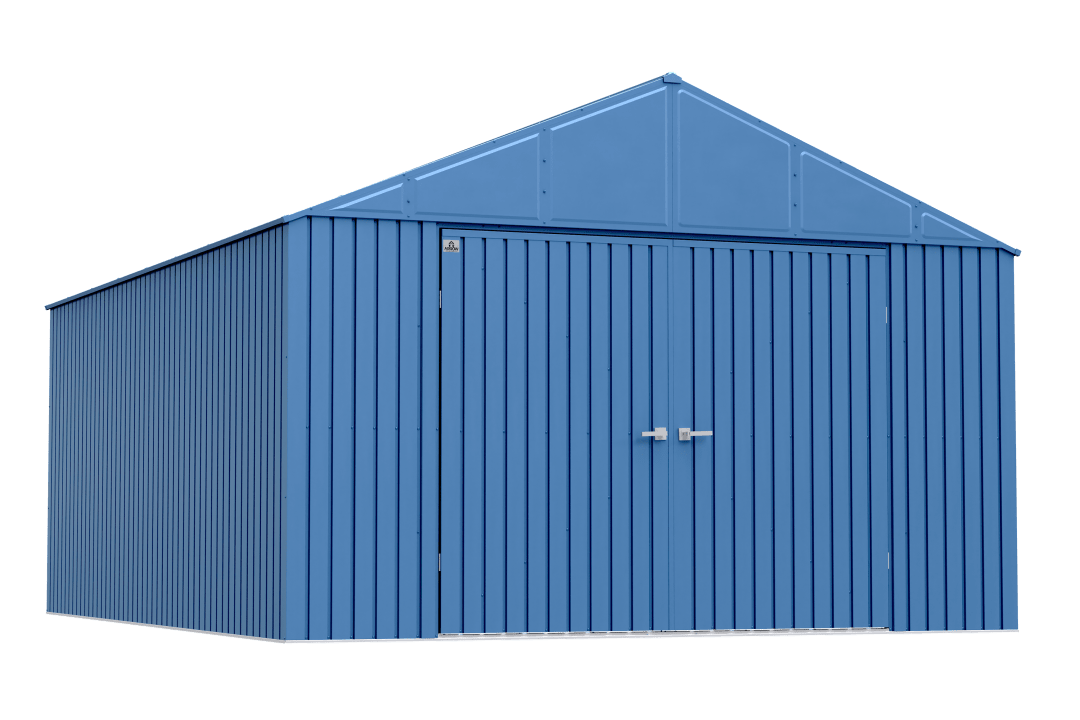

MAIN IMAGE - SILO 1Download

Arrow Elite Steel Storage Shed, 12x16, Blue Grey

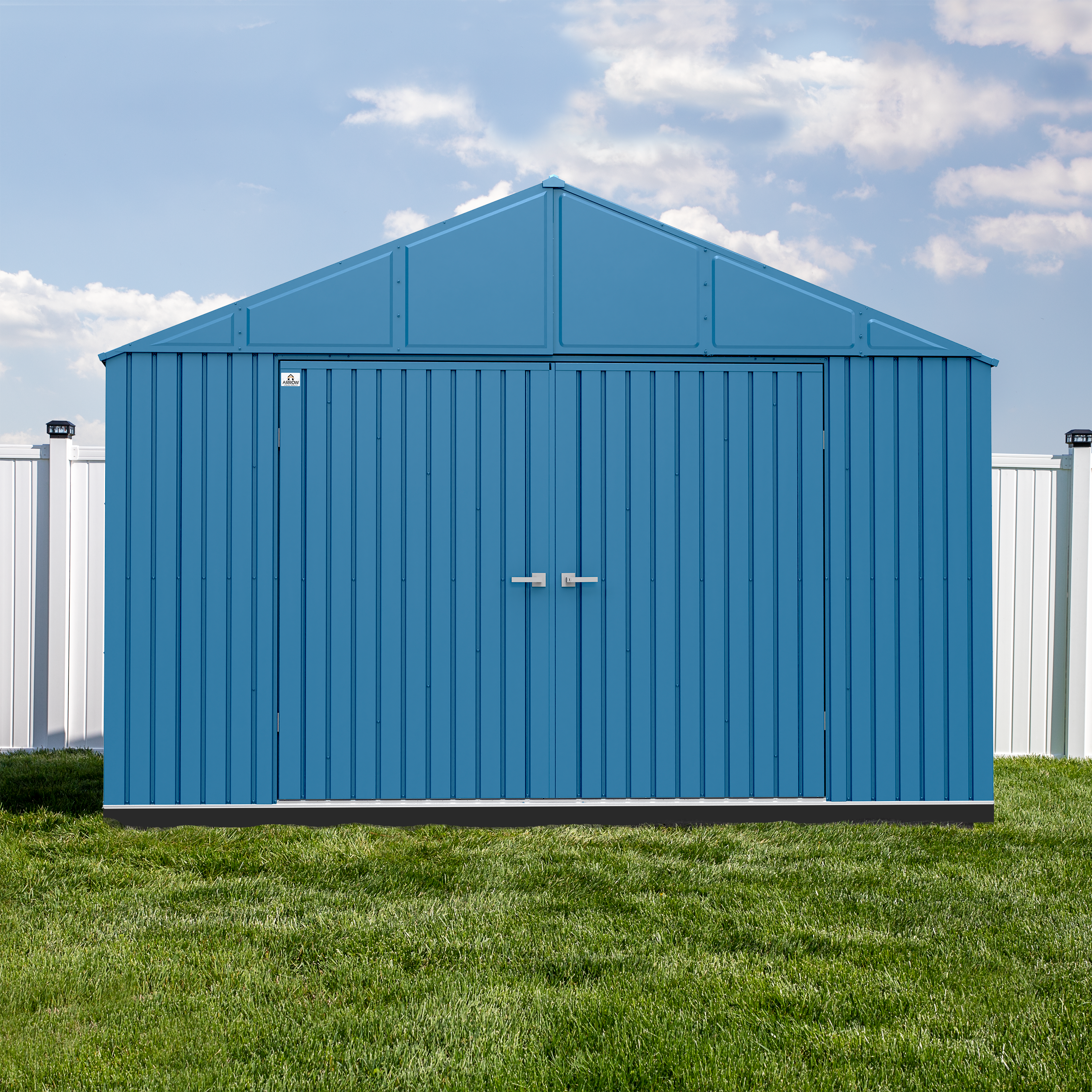

    LIFESTYLE - IMAGE 01Download
    SCHEMATICSDownload
    GRAPHIC IMAGE 3Download
    INFOGRAPHIC 4Download
    INFOGRAPHIC 5Download
    INFOGRAPHIC 2Download
    INFOGRAPHIC 3Download
    INFOGRAPHICDownload
    GRAPHIC IMAGE 2Download

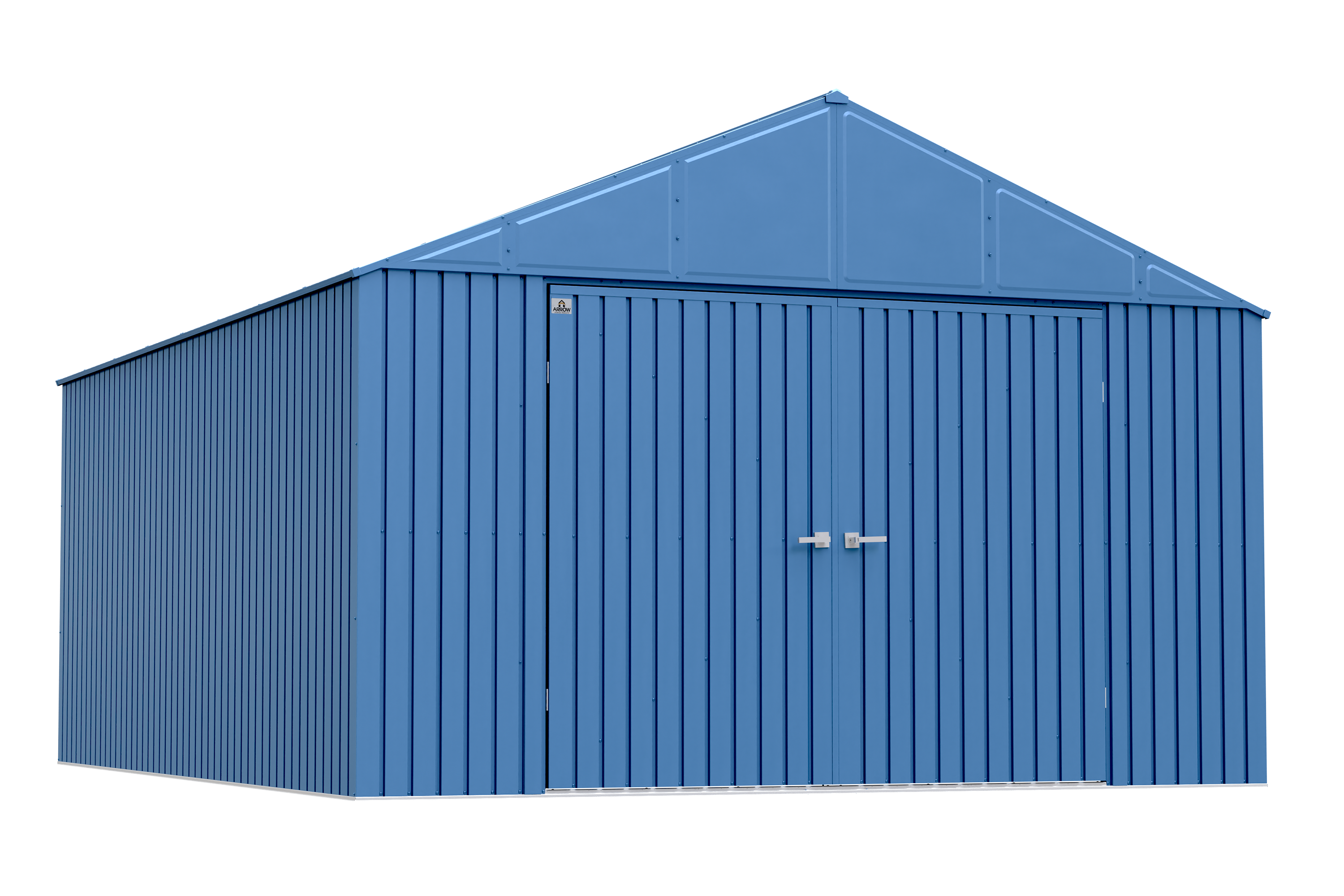

    MAIN IMAGE - SILO 1Download
    GRAPHIC IMAGE 4Download
    Play video
    360 Spin VideoDownload
    Play video
    MARKETING VIDEODownload
    Play video
    MARKETING VIDEODownload
    Play video
    MARKETING VIDEO 2Download
    Play video
    YOUTUBE VIDEO LINKDownload
    Play video
    YOUTUBE VIDEO LINK 2Download
      PART IDEG1216BG
      BRANDArrow
      SUB-BRANDElite
      UPC026862122766
      GTIN00026862122766
      DISPLAY NAME - RETAILArrow Elite Steel Storage Shed, 12x16, Blue Grey
      CATEGORY CODESheds and Storage Buildings
      PROP 65 WARNING REQUIRED (Y/N)No

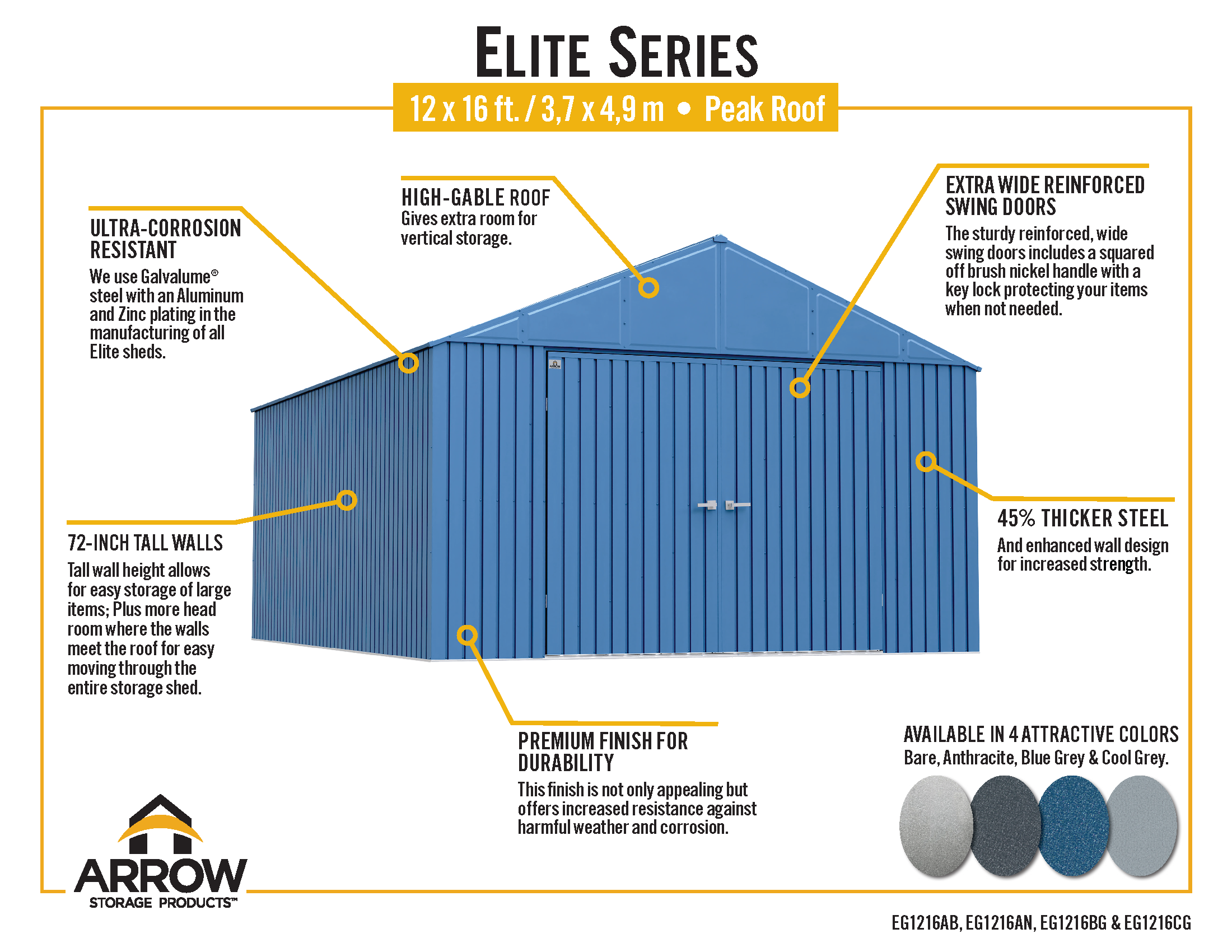

      LONG DESCRIPTIONThe Arrow Elite series storage shed has an attractive squared wall design and textured wrinkle paint in an anthracite finish, making it a welcome fixture in any backyard, garden or outdoor setting. Made from Galvalume steel with highly anti-corrosive aluminum and zinc plating, this steel shed is built to last! The Arrow Elite series sheds also feature a tall 72 in wall height for added headroom, plus extra walk around space. The rigid reinforced swing open doors with brushed nickel key lock handle allows for easy access to the interior, while allowing storage against the front wall. In addition, gable vents provide increased air flow to the shed's interior. All hardware is included for assembly

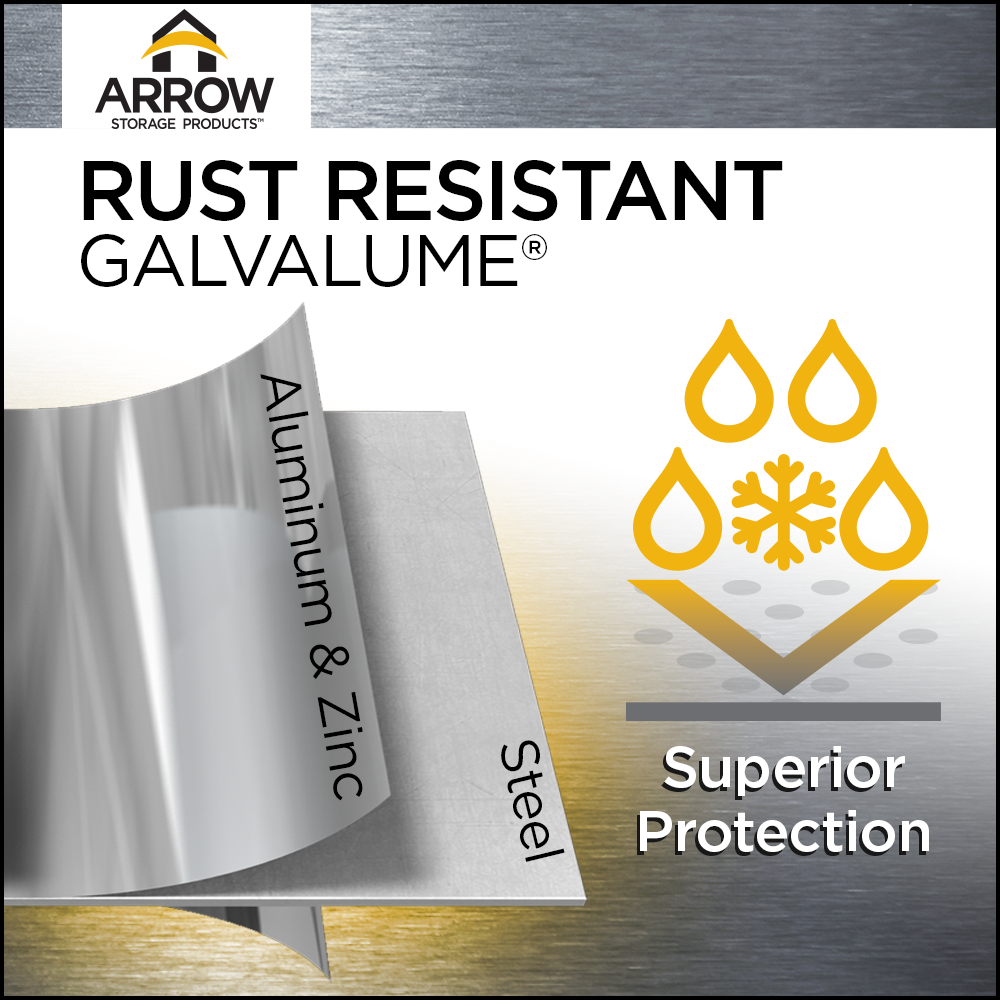

      BULLET 1The shed is crafted from Galvalume steel, plated with aluminum, zinc, and silicon for exceptional corrosion resistance
      BULLET 2The wrinkle paint textured finish is not only appealing, but offers increased resistance against harmful weather and corrosion
      BULLET 3The contemporary, new squared wall panel design of this steel shed gives a modern clean appearance
      BULLET 4The sturdy reinforced, wide swing doors includes a squared off brush nickel handle with a key lock protecting your items when not needed
      BULLET 5The tall 72-inch wall height allows for easy storage of large items; Plus more head room where the walls meet the roof for easy moving through the entire storage shed
      BULLET 6Vented gables allow for increased air flow to the interior of the building
      CPAI-84 COMPLIANT (Y/N)false
      COUNTRY OF ORIGINUSA
      H.S. TARIFF # U.S.9406.90.0130
      NMFC #38470
      FREIGHT CLASS70
      DUTY % U.S.2.9
      SEAT HEIGHT (IN)0
      CHAIR BACK HEIGHT (IN)0
      Chair Back Width (in.) widest point0
      CHAIR SEAT DEPTH (IN)0
      CHAIR SEAT WIDTH (IN)0
      NUMBER OF CUP HOLDERS0
      Arm Rest Height0
      Arm Rest Width - widest points0
      OPEN DIMENSIONS - DEPTH (IN)0
      OPEN DIMENSIONS - HEIGHT (IN)0
      OPEN DIMENSIONS - WIDTH (IN)0
      FOLDED DIMENSIONS - DEPTH (IN)0
      FOLDED DIMENSIONS - HEIGHT (IN)0
      FOLDED DIMENSIONS - WIDTH (IN)0
      COLORBlue Grey
      COVER COLORBlue Grey
      DOOR COLORBlue Grey
      DOOR JAMB COLORBlue Grey
      FRAME COLORBlue Grey
      GABLE COLORBlue Grey
      ROOF COLORBlue Grey
      ROOF TRIM COLORBlue Grey
      TRACK COLORBlue Grey
      WALL COLORBlue Grey
      FRAME MATERIALSteel
      VALANCE HEIGHT (IN)0
      BUILDING SHAPEPeak
      SHAPE OF TUBEN/A
      RIB TUBING DIAMETER EDGE TO EDGE (IN)0
      NUMBER OF AWNINGS0
      ROOF PITCH - LOWER0
      ROOF PITCH - UPPER0
      FOUNDATION WIDTH (IN)145.11
      FOUNDATION LENGTH (IN)193.11
      DOOR TYPESwing
      DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER0
      DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS88
      DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS69.77
      DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS88
      SIDE DOOR / ENTRANCE WIDTH (IN)0
      SIDE DOOR OPENING HEIGHT (IN)0

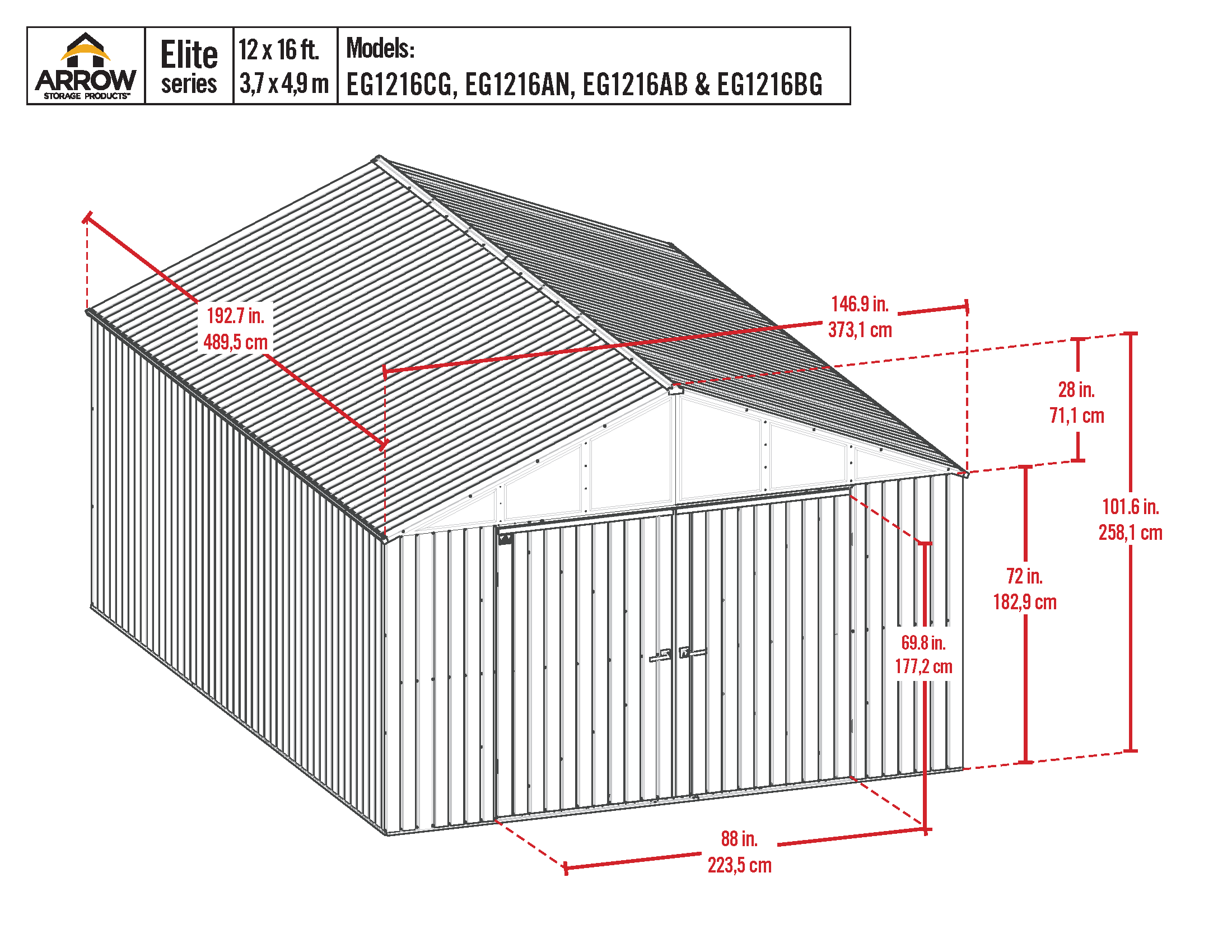

      GABLE HEIGHT (IN)28
      WALL HEIGHT (IN)72
      ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN)192.7
      ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN)101.6
      ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN)146.9
      TOTAL STORAGE VOLUME (CU. FT.)1358
      TOTAL STORAGE AREA (SQ/FT)188
      WHAT'S IN THE BOXRoof, Walls, Gables, Frame, Doors, Hardware, Instructions
      STORAGE BAG INCLUDED (Y/N)No
      MATERIAL BREAKDOWN FABRIC %0
      NOMINAL ASSEMBLED HEIGHT FT.8
      NOMINAL ASSEMBLED LENGTH FT.16
      NOMINAL ASSEMBLED WIDTH FT.12
      NOMINAL CONC IMPERIAL12 x 16 x 8 ft
      SHIP METHOD (PARCEL OR LTL)LTL
      HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)20.56
      LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)83
      WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)32.75
      WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS)685
      CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)32.34
      ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.)646
      # OF BOXES3
      CARTON 1 GROSS WEIGHT (LBS)258
      CARTON 1 HEIGHT (IN)5.69
      CARTON 1 LENGTH (IN)82.75
      CARTON 1 WIDTH (IN)32.63
      CARTON 2 GROSS WEIGHT (LBS)199
      CARTON 2 HEIGHT (IN)4.69
      CARTON 2 LENGTH (IN)82.75
      CARTON 2 WIDTH (IN)32.63
      CARTON 3 GROSS WEIGHT (LBS)189
      CARTON 3 HEIGHT (IN)5.69
      CARTON 3 LENGTH (IN)82.75
      CARTON 3 WIDTH (IN)32.63
      CARTON 4 GROSS WEIGHT (LBS)0
      CARTON 4 HEIGHT (IN)0
      CARTON 4 LENGTH (IN)0
      CARTON 4 WIDTH (IN)0
      CARTON 5 GROSS WEIGHT (LBS)0
      CARTON 5 HEIGHT (IN)0
      CARTON 5 LENGTH (IN)0
      CARTON 5 WIDTH (IN)0
      CARTON 6 GROSS WEIGHT (LBS)0
      CARTON 6 HEIGHT (IN)0
      CARTON 6 LENGTH (IN)0
      CARTON 6 WIDTH (IN)0
      CARTON 7 GROSS WEIGHT (LBS)0
      CARTON 7 HEIGHT (IN)0
      CARTON 7 LENGTH (IN)0
      CARTON 7 WIDTH (IN)0
      CARTON 8 GROSS WEIGHT (LBS)0
      CARTON 8 HEIGHT (IN)0
      CARTON 8 LENGTH (IN)0
      CARTON 8 WIDTH (IN)0
      CARTON 9 GROSS WEIGHT (LBS)0
      CARTON 9 HEIGHT (IN)0
      CARTON 9 LENGTH (IN)0
      CARTON 9 WIDTH (IN)0
      CARTON 10 GROSS WEIGHT (LBS)0
      CARTON 10 HEIGHT (IN)0
      CARTON 10 LENGTH (IN)0
      CARTON 10 WIDTH (IN)0
      # OF PIECES PER PALLET1
      FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION20.56
      FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION83
      FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION685
      FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION32.75
      UNITS PER 40' CONTAINER56
      UNITS PER 40' HCUBE CONTAINER56
      UNITS PER 48' TRAILER64
      TRAILER QTY 53'64
      LOADING TYPE (FLOOR, SLIP OR PALLET)PALLET
