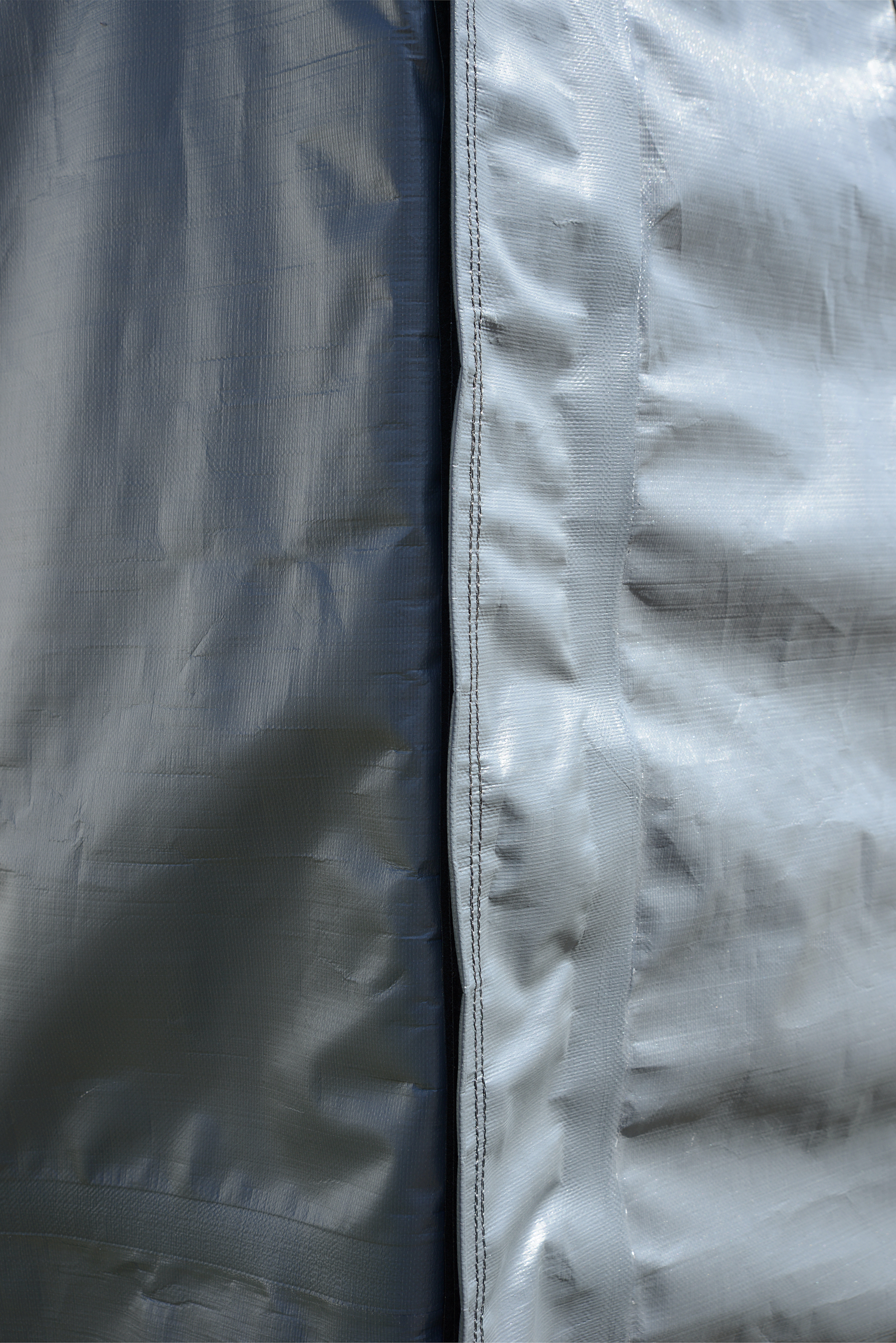

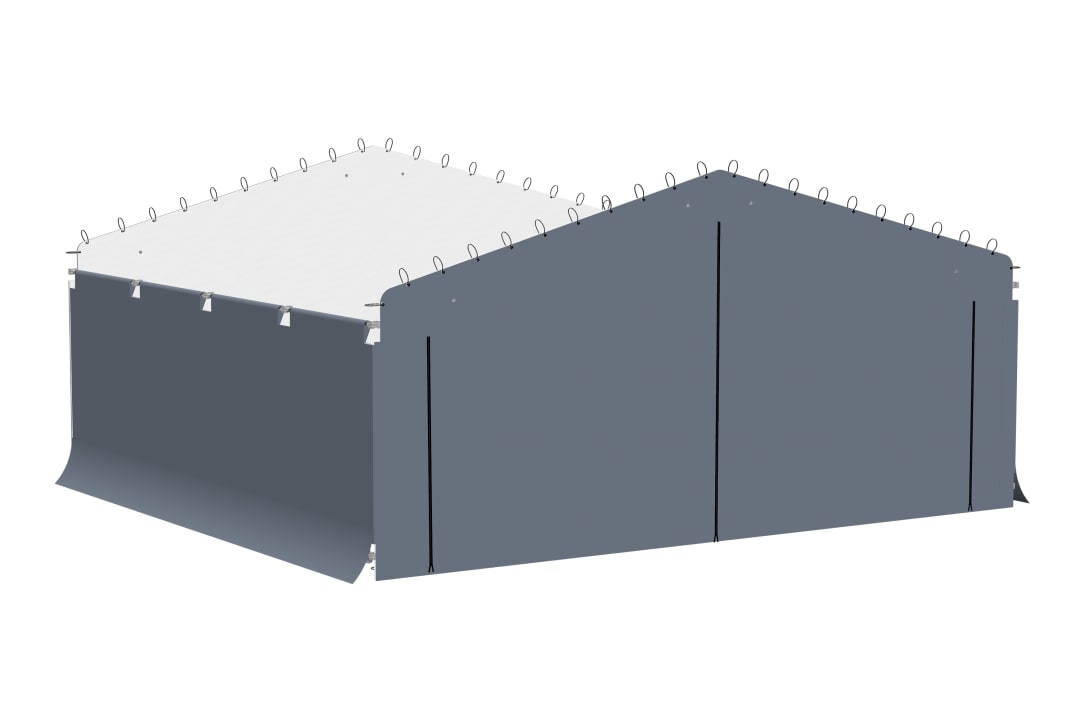

PART ID 10183 BRAND Arrow UPC 026862112637 GTIN 00026862112637 CATEGORY CODE Carport Accessories DISPLAY NAME - RETAIL Carports Enclosure Kit For Galvanized Steel Carport, Fabric Carport Wall Panels, 20' X 20' X 7' LONG DESCRIPTION Convert your 20 ft. x 20 ft. Arrow Carport into a fully-enclosed structure easily with the Arrow Carport enclosure. These durable ripstop-tough wall panels attach quickly and easily to your steel carport unit and can be removed just as easily. The water-resistant triple-layer polyethylene fabric will keep your valuable items protected from inclement weather. The enclosure includes front and rear doors for easy drive-through access. This kit is compatible with the Pull-Eaze Roll-Up Door Kit. BULLET 1 This Enclosure Kit fits the Arrow Carport 20 x 20 x 7 ft BULLET 2 The fabric cover is UV treated inside and out to protect against fading, aging, yellowing, and mold BULLET 3 Features heat-sealed seams, which makes the cover 100% water resistant and prevents moisture damage to stored items BULLET 4 Front and rear door panels for convenient vehicle drive through BULLET 5 The Pull-Eaze Roll-Up Door Kit, model 10077, can be used with this carport enclosure, and is sold SEPARATELY Warranty 1 Year Limited CPAI-84 COMPLIANT (Y/N) No COUNTRY OF ORIGIN China US HTS # 3926.90.9985 NMFC # 182130 CALCULATED NMFC 38470 FREIGHT CLASS 70 DUTY % U.S. 5.3 NUMBER OF CUP HOLDERS 0 WALL COLOR Grey Color Grey Frame Color N/A Frame Material N/A PRODUCT FABRIC (PE-PVC-Polyester) PE BUILDING SHAPE Peak NUMBER OF AWNINGS 0 ROOF PITCH - LOWER 0.00 ROOF PITCH - UPPER 0.00 DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS 0 WALL HEIGHT (IN) 0.00 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 240.00 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 120.00 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 240.00 TOTAL STORAGE VOLUME (CU. FT.) 2.31 TOTAL STORAGE AREA (SQ/FT) 400.00 WHAT'S IN THE BOX 2- 3 Zipper Door Panels, 2 Side Panels, Steel Bracing, Instructions STORAGE BAG INCLUDED (Y/N) No WATER-RESISTANT (Y/N) Yes WATERPROOF (Y/N) Yes ASSEMBLY REQUIRED (Y/N) Yes # OF PEOPLE FOR ASSEMBLY 1 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.) 85.00 NOMINAL ASSEMBLED HEIGHT FT. 7 NOMINAL ASSEMBLED LENGTH FT. 20 NOMINAL ASSEMBLED WIDTH FT. 20 NOMINAL CONC IMPERIAL 20 x 20 x 7 ft RELATED ACCESSORIES #1 10077 RELATED ACCESSORIES #2 10077 SHIP METHOD (PARCEL OR LTL) PARCEL HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 11.80 LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 28.54 WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 21.65 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS) 91.00 CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) CALCULATED 4.22 ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.) 91 # OF BOXES 1 CARTON 1 GROSS WEIGHT (LBS) 91.00 CARTON 1 HEIGHT (IN) 11.80 CARTON 1 LENGTH (IN) 28.54 CARTON 1 WIDTH (IN) 21.65 QTY PER PALLET 8 # OF PCS PER PALLET 8 UNITS PER 40' CONTAINER 480 LOADING TYPE (FLOOR, SLIP OR PALLET) FLOOR
