MAIN IMAGE - SILO 1

PS53

Arrow Spacemaker 5 x 3 x 6 ft Flute Grey Patio Shed

LIFESTYLE - IMAGE 01

SCHEMATICS

INFOGRAPHIC 4

INFOGRAPHIC 5

INFOGRAPHIC 2

INFOGRAPHIC 3

INFOGRAPHIC

LIFESTYLE - IMAGE 02

LIFESTYLE - IMAGE 03

GRAPHIC IMAGE 2

MAIN IMAGE - SILO 1

GRAPHIC IMAGE 4

MARKETING VIDEO 2

YOUTUBE VIDEO LINK

YOUTUBE VIDEO LINK 2

INFOGRAPHIC 6

DETAIL - IMAGE 1

DETAIL - IMAGE 2

DETAIL - IMAGE 3

DETAIL - IMAGE 5

USA LOGO

PART ID PS53
BRAND Arrow
SUB-BRAND Spacemaker
UPC 026862112668
GTIN 00026862112668

DISPLAY NAME - RETAIL	Spacemaker Patio Shed, 5X3, Flute Grey And Anthracite
LONG DESCRIPTION	The Spacemaker Patio Steel Storage Shed is a perfect size to store all those items you use on your deck and patio. Store your cushions, serving carts and much more when not in use, keeping them safe from mother nature. Tall walls and wide swing door openings allows you to move items in and out with easy. This galvanized steel shed come with a limited 12 year warranty and is proudly Manufactured in the USA with globally sourced material. Get the storage you need from this affordable, aesthetically pleasing and perfect sized package for your backyard patio or deck.
BULLET 1	The perfect size to fit any patio, deck, or small backyard space
BULLET 2	Great for storing patio cushions, grilling gear, gardening tools, outdoor toys and more

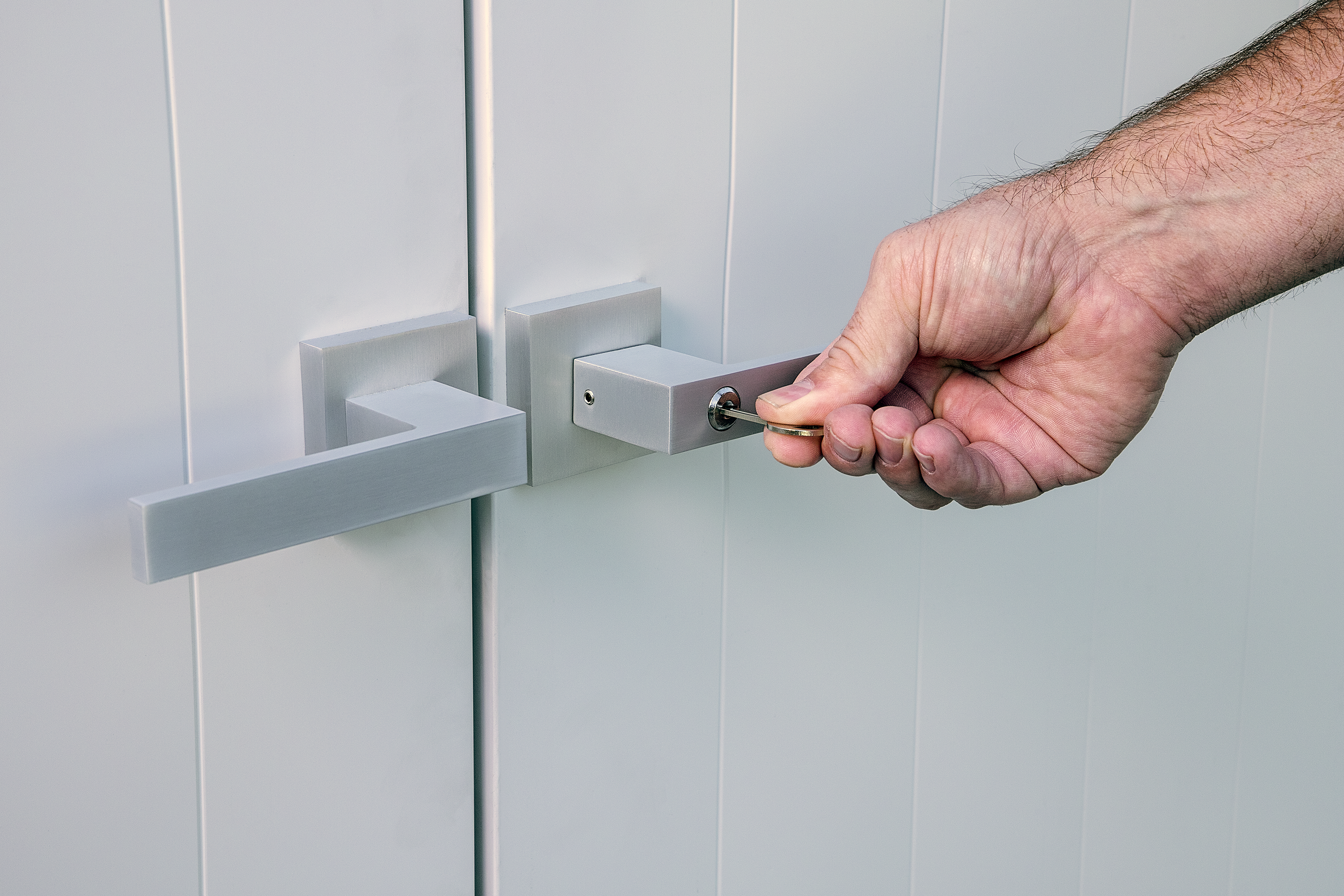

BULLET 3	The wide swing doors with brushed metal locking handles offers easy in and out access for all your items
BULLET 4	Tall 6 foot walls allows for storing and leaning larger items inside the shed
BULLET 5	The attractive 2 tone aesthetics in Blue Grey and Anthracite compliments many home exteriors
BULLET 6	Do It Yourself assembly, this steel storage shed comes in kit form with pre-cut and pre-drilled parts for easier assembly
BULLET 7	Proudly made in the USA with globally sourced material

FRAME MATERIAL	Steel
BUILDING SHAPE	Pent
SHAPE OF TUBE	N/A
ROOF PITCH - LOWER	0.60
ROOF PITCH - UPPER	0.00
FOUNDATION WIDTH (IN)	65.06
FOUNDATION LENGTH (IN)	38.36
DOOR TYPE	Swing
DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER	69.70
DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS	48.70
DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS	69.70
DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS	48.7
GABLE HEIGHT (IN)	2.00
WALL HEIGHT (IN)	71.25
ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN)	39.27
ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN)	74.25
ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN)	67.50
TOTAL STORAGE VOLUME (CU. FT.)	93.00
TOTAL STORAGE AREA (SQ/FT)	15.00
WHAT'S IN THE BOX	Roof, Walls, Gables, Frame, Doors, Hardware, Instructions
STORAGE BAG INCLUDED (Y/N)	No
WATER-RESISTANT (Y/N)	No
WATERPROOF (Y/N)	No
SNOW LOAD RATING (PSF)	N/A
WIND LOAD RATING (MPH)	N/A
ASSEMBLY REQUIRED (Y/N)	Yes
# OF PEOPLE FOR ASSEMBLY	2
ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.)	84.00
NOMINAL ASSEMBLED HEIGHT FT.	6
NOMINAL ASSEMBLED LENGTH FT.	3
NOMINAL ASSEMBLED WIDTH FT.	5
NOMINAL CONC IMPERIAL	5 x 3 x 6 ft
RIB TUBING DIAMETER EDGE TO EDGE (IN)	0

SHIP METHOD (PARCEL OR LTL)	PARCEL
HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	4.38
LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	75.13
WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	34.00
WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS)	95
CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) CALCULATED	6.47
ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.)	95

QTY PER PALLET 9
# OF PIECES PER PALLET 9
UNITS PER 20' CONTAINER 108
UNITS PER 40' CONTAINER 234
UNITS PER 40' HCUBE CONTAINER 234
TRAILER QTY 53' 288
