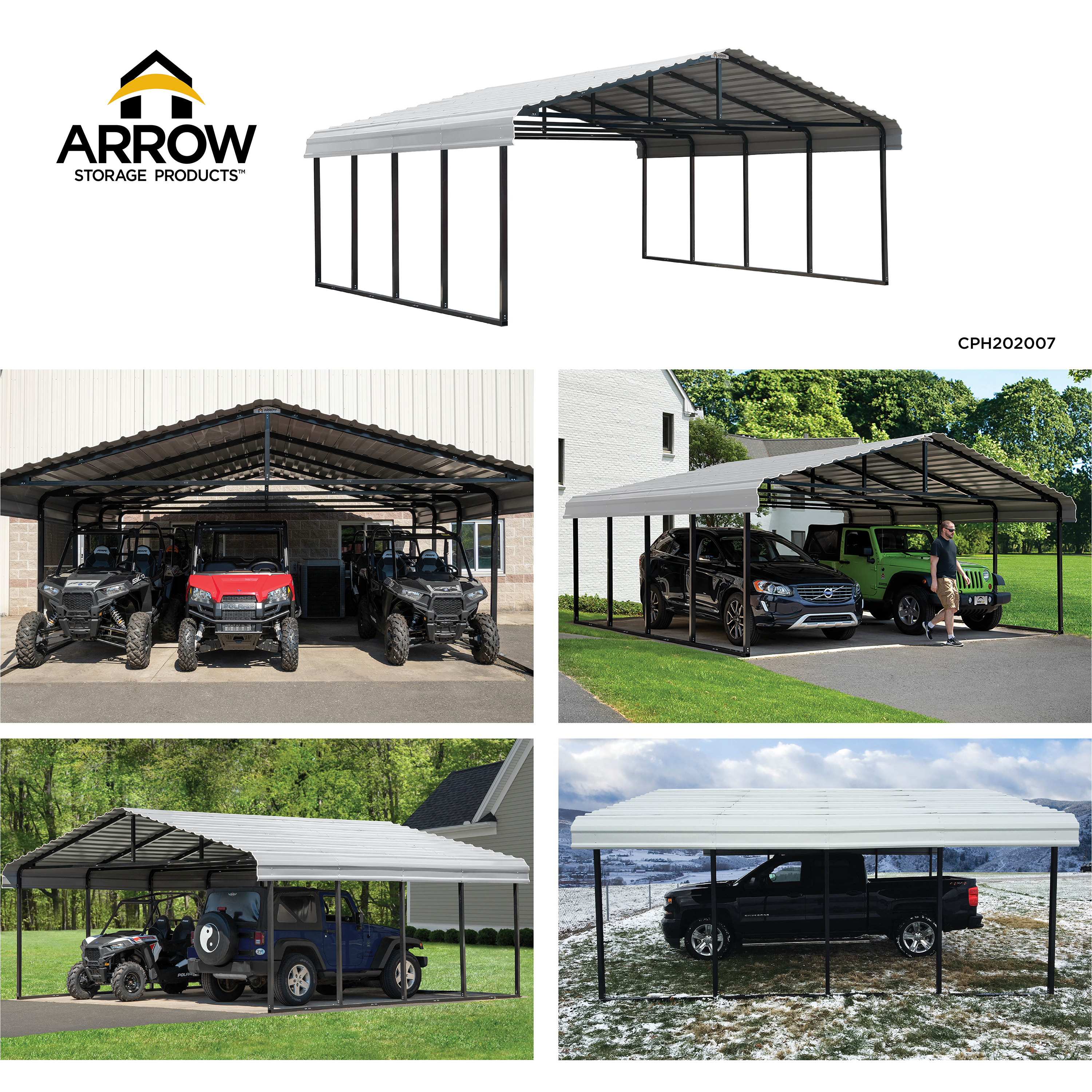

PART ID CPH202007 BRAND Arrow UPC 026862112231 GTIN 00026862112231 DISPLAY NAME - RETAIL Galvanized Steel Carport, 20X20X7 LONG DESCRIPTION Built strong, wind and snow rated, and backed by a 10-year limited warranty is the 20 x 20 ft. Eggshell Arrow Carport. This galvanized steel carport from Arrow Storage Products features a powder coated steel frame for corrosion and rust resistance. The tough made galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area. BULLET 1 Built strong with a 2x3 in. 15 gauge wall thickness. The Arrow Carport delivers wind and snow load strength and stability BULLET 2 An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather - winds up to 100 mph, and a snow load of 35 PSF BULLET 3 A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance BULLET 4 Roof in an attractive eggshell finish, with a black powder coated steel frame BULLET 5 Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area BULLET 6 ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection BULLET 7 Comes with a 10 year warranty BULLET 8 Disclaimer- Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame according to local building codes and ordinances. These loads have been calculated useing combined snow and wind load provisions in accordance with ASCE 7-05. These calculations are based on an unoccupied structure. Local building code requirements vary by location; conformance to local codes is the responsibility of the purchaser BULLET 9 This Unit Contains 6 Packages - You will receive 4 Frame Cartons 2 Roof Panel Cartons CPAI-84 COMPLIANT (Y/N) No COUNTRY OF ORIGIN USA H.S. TARIFF # U.S. 7308.90.9590 NMFC # 38470 CALCULATED NMFC 38470 FREIGHT CLASS 65 DUTY % U.S. 0 NUMBER OF CUP HOLDERS 0 FOLDABLE (Y/N) No COLOR Eggshell COVER COLOR N/A DOOR COLOR N/A DOOR JAMB COLOR N/A FRAME COLOR Black GABLE COLOR N/A ROOF COLOR N/A ROOF TRIM COLOR N/A TRACK COLOR N/A WALL COLOR N/A FRAME MATERIAL Steel VALANCE HEIGHT (IN) 73.10 BUILDING SHAPE Peak SHAPE OF TUBE Rectangle NUMBER OF AWNINGS 0 ROOF PITCH - LOWER 0.00 ROOF PITCH - UPPER 3.00 FOUNDATION WIDTH (IN) 255.00 FOUNDATION LENGTH (IN) 230.00 DOOR TYPE N/A DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER 118.00 DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS 243.00 DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS 118.00 DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS 237 GABLE HEIGHT (IN) 38.20 WALL HEIGHT (IN) 79.90 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 217.10 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 118.10 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 242.70 TOTAL STORAGE VOLUME (CU. FT.) 2969.15 TOTAL STORAGE AREA (SQ/FT) 365.90 WHAT'S IN THE BOX Roof Panels, Frame, Anchors, Hardware, Instructions STORAGE BAG INCLUDED (Y/N) No WATER-RESISTANT (Y/N) No WATERPROOF (Y/N) Yes ASSEMBLY REQUIRED (Y/N) Yes # OF PEOPLE FOR ASSEMBLY 2 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.) 1066.00 NOMINAL ASSEMBLED HEIGHT FT. 7 NOMINAL ASSEMBLED LENGTH FT. 20 NOMINAL ASSEMBLED WIDTH FT. 20 NOMINAL CONC IMPERIAL 20 x 20 x 7 ft RIB TUBING DIAMETER EDGE TO EDGE (IN) 2.76 RELATED ACCESSORIES #1 ECL2009EGX1 RELATED ACCESSORIES #2 ECL2009EGX2 RELATED ACCESSORIES #3 10075 SHIP METHOD (PARCEL OR LTL) LTL HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 36.03 LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 76.58 WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 30.25 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS) 1159.91 CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) CALCULATED 48.3 ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.) 1116 # OF BOXES 6 CARTON 1 GROSS WEIGHT (LBS) 171.00 CARTON 1 HEIGHT (IN) 5.50 CARTON 1 LENGTH (IN) 76.58 CARTON 1 WIDTH (IN) 22.25 CARTON 2 GROSS WEIGHT (LBS) 159.00 CARTON 2 HEIGHT (IN) 5.12 CARTON 2 LENGTH (IN) 76.58 CARTON 2 WIDTH (IN) 22.25 CARTON 3 GROSS WEIGHT (LBS) 205.00 CARTON 3 HEIGHT (IN) 7.10 CARTON 3 LENGTH (IN) 76.58 CARTON 3 WIDTH (IN) 22.25 CARTON 4 GROSS WEIGHT (LBS) 229.00 CARTON 4 HEIGHT (IN) 7.10 CARTON 4 LENGTH (IN) 76.58 CARTON 4 WIDTH (IN) 22.25 CARTON 5 GROSS WEIGHT (LBS) 176.00 CARTON 5 HEIGHT (IN) 3.25 CARTON 5 LENGTH (IN) 70.75 CARTON 5 WIDTH (IN) 30.50 CARTON 6 GROSS WEIGHT (LBS) 176.00 CARTON 6 HEIGHT (IN) 3.25 CARTON 6 LENGTH (IN) 70.75 CARTON 6 WIDTH (IN) 30.50 NUMBER OF PALLETS 1 PALLET 1 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 36.03 PALLET 1 LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 76.58 PALLET 1 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS) ( DS LTL ONLY OUT OF WHSE) 1159.91 PALLET 1 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 30.25 QTY PER PALLET 1 # OF PIECES PER PALLET 1 UNITS PER 20' CONTAINER 7 UNITS PER 40' CONTAINER 15 UNITS PER 40' HCUBE CONTAINER 15 UNITS PER 48' TRAILER 22 TRAILER QTY 53' 22 LOADING TYPE (FLOOR, SLIP OR PALLET) PALLET
