U.S. Drop Ship Catalog 2024
Arrow Galvanized Steel Carport, 20x24x7

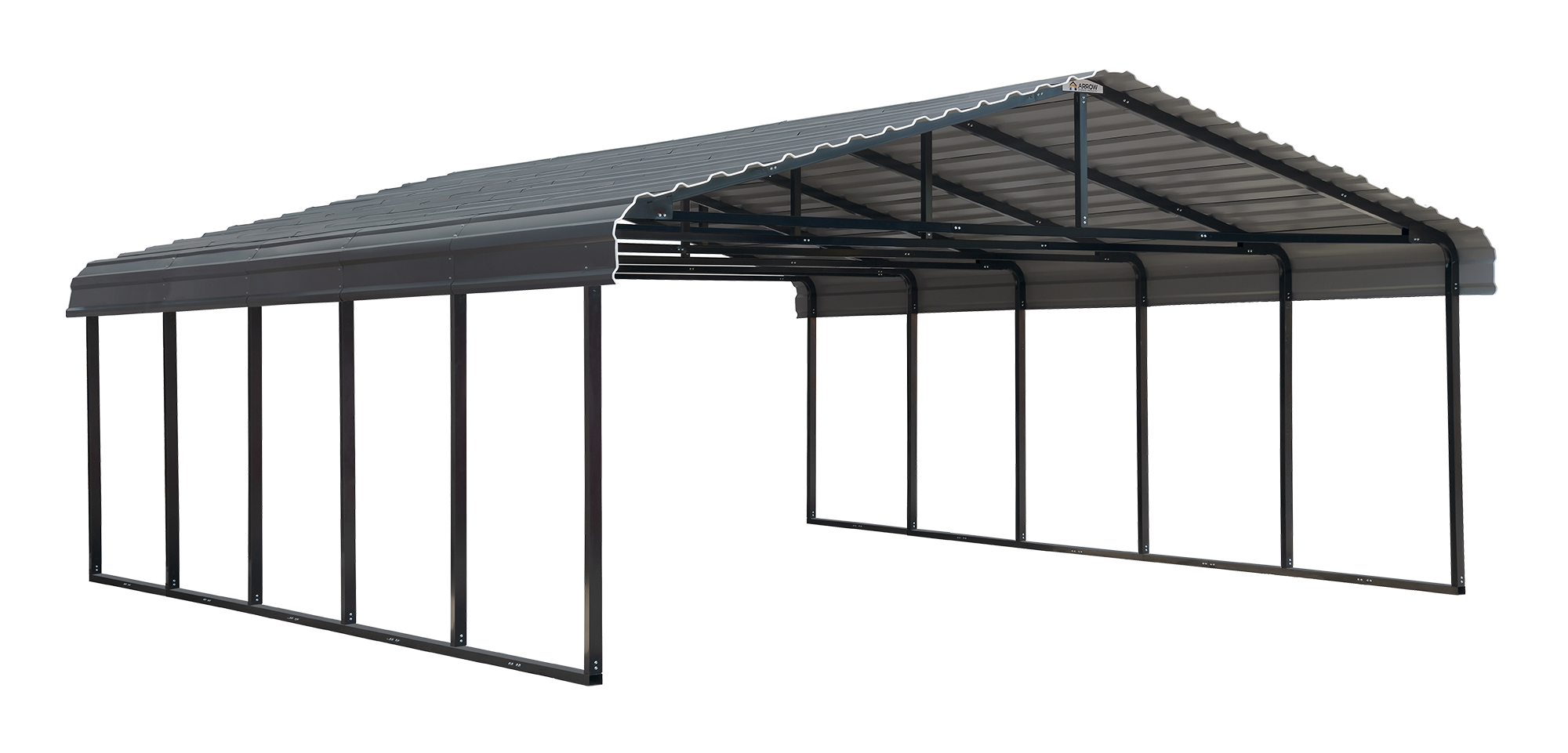

MAIN IMAGE - SILO 1Download

CPHC202407

Arrow Galvanized Steel Carport, 20x24x7

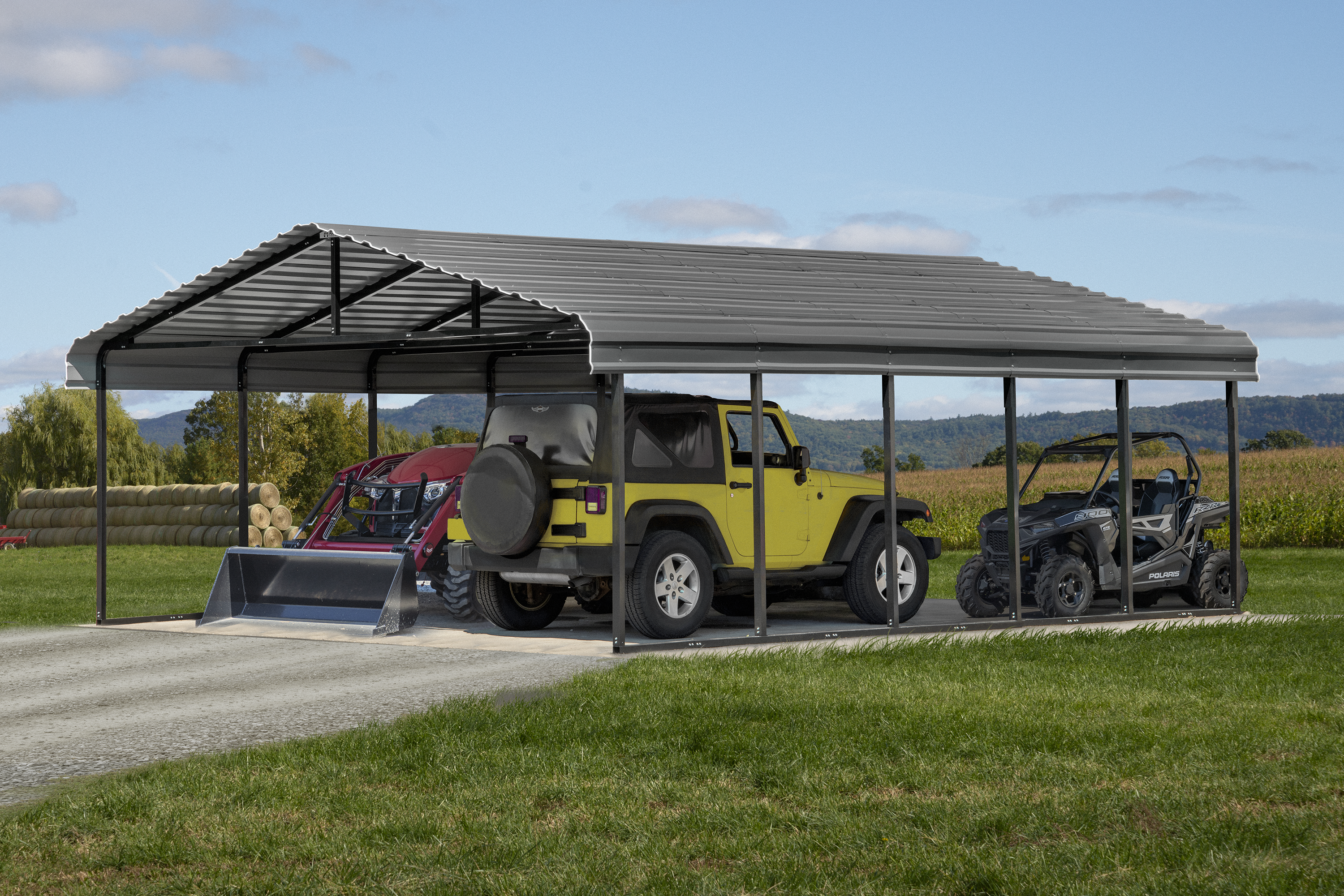

    LIFESTYLE - IMAGE 01Download
    SCHEMATICSDownload
    GRAPHIC IMAGE 3Download
    INFOGRAPHIC 4Download
    INFOGRAPHIC 5Download
    INFOGRAPHIC 2Download
    MONTAGE - IMAGE 1Download
    INFOGRAPHIC 3Download
    INFOGRAPHICDownload
    GRAPHIC IMAGE 2Download

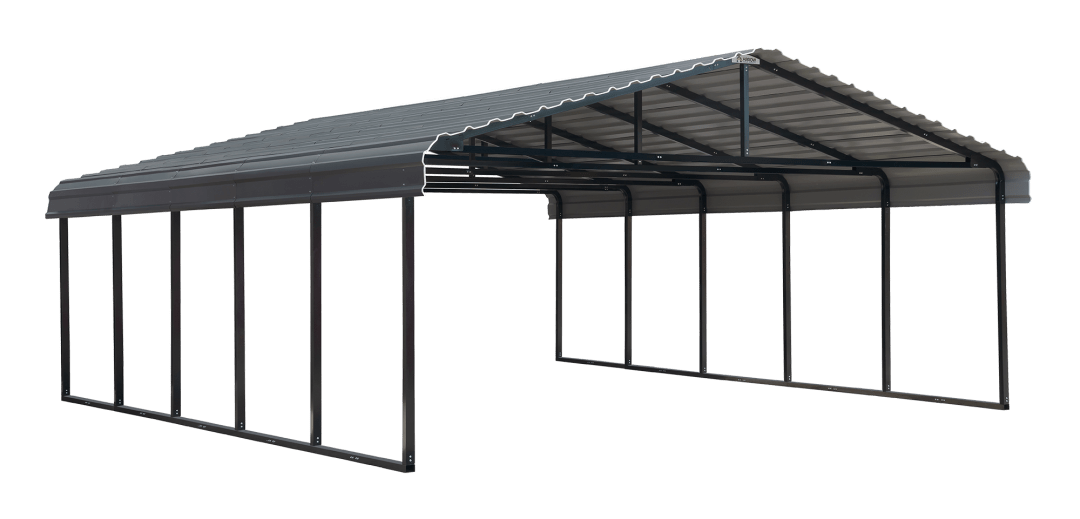

    MAIN IMAGE - SILO 1Download
    GRAPHIC IMAGE 4Download
    Play video
    MARKETING VIDEODownload
    Play video
    MARKETING VIDEO 2Download
    Play video
    YOUTUBE VIDEO LINKDownload
    INFOGRAPHIC 6Download
    DETAIL - IMAGE 1Download
    DETAIL - IMAGE 2Download
    DETAIL - IMAGE 3Download
    DETAIL - IMAGE 4Download
    DETAIL - IMAGE 5Download
    USA LOGODownload
      PART IDCPHC202407
      BRANDArrow
      UPC026862112705
      GTIN00026862112705
      DISPLAY NAME - RETAILArrow Galvanized Steel Carport, 20x24x7
      LONG DESCRIPTIONBuilt strong, wind and snow rated, and backed by a 10-year limited warranty is the Arrow Carport. This galvanized steel carport from Arrow Storage Products features a powder coated steel frame for corrosion and rust resistance. The tough made galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area.
      BULLET 1Built strong with a 2x3 in. 15 gauge wall thickness. The Arrow Carport delivers wind and snow load strength and stability
      BULLET 2The all-weather Arrow Carport is built to take on tough weather – winds up to 100 mph, and a snow load of up to 35 PSF
      BULLET 3A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance
      BULLET 4Roof in an attractive charcoal finish, with a black powder coated steel frame
      BULLET 5Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area
      BULLET 6ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection
      BULLET 7Comes with a 10 year warranty
      BULLET 8Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame.
      BULLET 9This Unit Contains 8 Packages - You will receive 5 Frame Cartons 3 Roof Panel Cartons
      CPAI-84 COMPLIANT (Y/N)false
      COUNTRY OF ORIGINUSA
      H.S. TARIFF # U.S.7308.90.9590
      NMFC #38470
      CALCULATED NMFC38470
      FREIGHT CLASS65
      DUTY % U.S.0
      SEAT HEIGHT (IN)0
      CHAIR BACK HEIGHT (IN)0
      Chair Back Width (in.) widest point0
      CHAIR SEAT DEPTH (IN)0
      CHAIR SEAT WIDTH (IN)0
      NUMBER OF CUP HOLDERS0
      Arm Rest Height0
      Arm Rest Width - widest points0
      OPEN DIMENSIONS - DEPTH (IN)0
      OPEN DIMENSIONS - HEIGHT (IN)0
      OPEN DIMENSIONS - WIDTH (IN)0
      FOLDABLE (Y/N)No
      FOLDED DIMENSIONS - DEPTH (IN)0
      FOLDED DIMENSIONS - HEIGHT (IN)0
      FOLDED DIMENSIONS - WIDTH (IN)0
      COLORCharcoal
      COVER COLORCharcoal
      DOOR COLORN/A
      DOOR JAMB COLORN/A
      FRAME COLORBlack
      GABLE COLORN/A
      ROOF COLORCharcoal
      ROOF TRIM COLORCharcoal
      TRACK COLORN/A
      WALL COLORN/A
      FRAME MATERIALSteel
      VALANCE HEIGHT (IN)0
      BUILDING SHAPEPeak
      SHAPE OF TUBERectangle
      RIB TUBING DIAMETER EDGE TO EDGE (IN)0
      NUMBER OF AWNINGS0
      ROOF PITCH - LOWER3
      ROOF PITCH - UPPER0
      FOUNDATION WIDTH (IN)252
      FOUNDATION LENGTH (IN)300
      DOOR TYPEN/A
      DOOR / ENTRANCE HEIGHT (IN) CENTER ZIPPER0
      DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS237
      DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS84
      DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS0
      SIDE DOOR / ENTRANCE WIDTH (IN)0
      SIDE DOOR OPENING HEIGHT (IN)0
      GABLE HEIGHT (IN)0
      WALL HEIGHT (IN)84
      ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN)290.75
      ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN)118
      ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN)243
      TOTAL STORAGE VOLUME (CU. FT.)3968
      TOTAL STORAGE AREA (SQ/FT)479
      WHAT'S IN THE BOXRoof Panels, Frame, Anchors, Hardware, Instructions
      STORAGE BAG INCLUDED (Y/N)No
      WATER-RESISTANT (Y/N)Yes
      WATERPROOF (Y/N)No
      SNOW LOAD RATING (PSF)35
      WIND LOAD RATING (MPH)100
      ASSEMBLY REQUIRED (Y/N)Yes
      # OF PEOPLE FOR ASSEMBLY2
      ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.)1306
      NOMINAL ASSEMBLED HEIGHT FT.7
      NOMINAL ASSEMBLED LENGTH FT.24
      NOMINAL ASSEMBLED WIDTH FT.20
      NOMINAL CONC IMPERIAL20 x 24 x 7 ft
      RELATED ACCESSORIES #110036
      RELATED ACCESSORIES #210073
      RELATED ACCESSORIES #310075
      SHIP METHOD (PARCEL OR LTL)LTL
      HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)43.34
      LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)76.58
      WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)30.25
      WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS)1402.71
      CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)58.1
      ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.)1371
      # OF BOXES8
      CARTON 1 GROSS WEIGHT (LBS)171
      CARTON 1 HEIGHT (IN)5.5
      CARTON 1 LENGTH (IN)76.58
      CARTON 1 WIDTH (IN)22.25
      CARTON 2 GROSS WEIGHT (LBS)159
      CARTON 2 HEIGHT (IN)5.12
      CARTON 2 LENGTH (IN)76.58
      CARTON 2 WIDTH (IN)22.25
      CARTON 3 GROSS WEIGHT (LBS)205
      CARTON 3 HEIGHT (IN)7.1
      CARTON 3 LENGTH (IN)76.58
      CARTON 3 WIDTH (IN)22.25
      CARTON 4 GROSS WEIGHT (LBS)229
      CARTON 4 HEIGHT (IN)7.1
      CARTON 4 LENGTH (IN)76.58
      CARTON 4 WIDTH (IN)22.25
      CARTON 5 GROSS WEIGHT (LBS)176
      CARTON 5 HEIGHT (IN)3.25
      CARTON 5 LENGTH (IN)70.75
      CARTON 5 WIDTH (IN)30.5
      CARTON 6 GROSS WEIGHT (LBS)176
      CARTON 6 HEIGHT (IN)3.25
      CARTON 6 LENGTH (IN)70.75
      CARTON 6 WIDTH (IN)30.5
      CARTON 7 GROSS WEIGHT (LBS)172
      CARTON 7 HEIGHT (IN)5.31
      CARTON 7 LENGTH (IN)75.98
      CARTON 7 WIDTH (IN)21.65
      CARTON 8 GROSS WEIGHT (LBS)83
      CARTON 8 HEIGHT (IN)2.19
      CARTON 8 LENGTH (IN)61.25
      CARTON 8 WIDTH (IN)30.31
      CARTON 9 GROSS WEIGHT (LBS)0
      CARTON 9 HEIGHT (IN)0
      CARTON 9 LENGTH (IN)0
      CARTON 9 WIDTH (IN)0
      CARTON 10 GROSS WEIGHT (LBS)0
      CARTON 10 HEIGHT (IN)0
      CARTON 10 LENGTH (IN)0
      CARTON 10 WIDTH (IN)0
      PALLET 1 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN)0
      PALLET 1 LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (IN)0
      PALLET 1 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS)0
      PALLET 1 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN)0
      PALLET 2 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN)0
      PALLET 2 LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (IN)0
      PALLET 2 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS)0
      PALLET 2 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN)0
      PALLET 3 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN)0
      PALLET 3 LENGTH (FLOOR TO BACK) FULL PALLET CONFIGURATION (IN)0
      PALLET 3 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS)0
      PALLET 3 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN)0
      NUMBER OF PALLETS1
      UNITS PER 20' CONTAINER7
      UNITS PER 40' CONTAINER15
      UNITS PER 40' HCUBE CONTAINER15
      UNITS PER 48' TRAILER22
      TRAILER QTY 53'22
      LOADING TYPE (FLOOR, SLIP OR PALLET)PALLET
