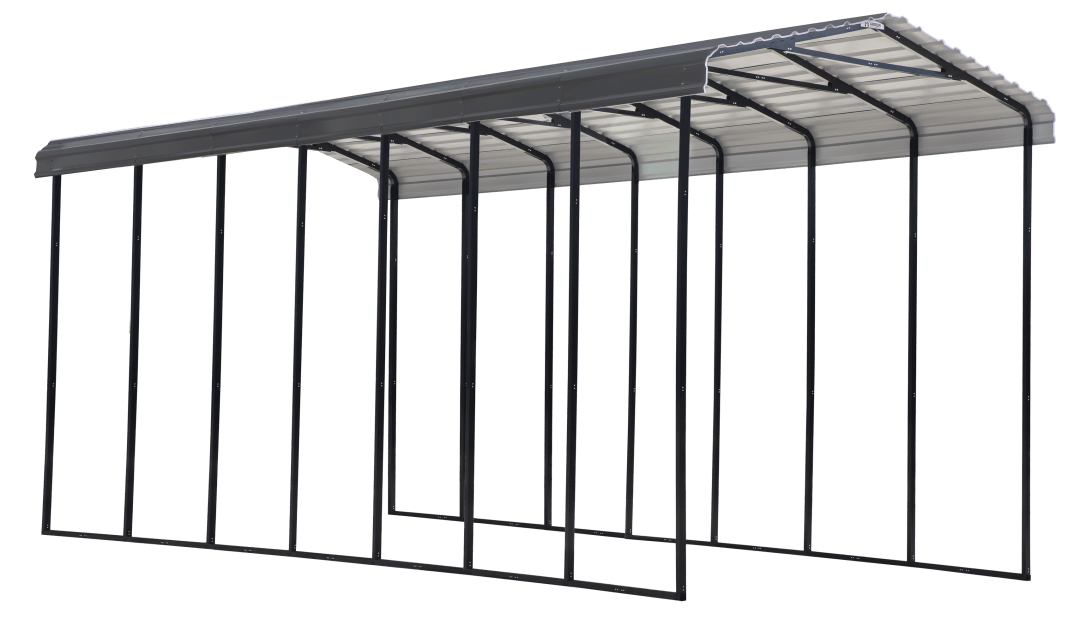

PART ID CPHC143314 BRAND Arrow UPC 026862113511 GTIN 00026862113511 CATEGORY CODE Carports DISPLAY NAME - RETAIL Galvanized Steel Rv Carport, 14X33X14 LONG DESCRIPTION The all-steel RV Carport from Arrow is a convenient, all-weather shade and shelter solution that's versatile and practical. The Arrow Steel RV Carport with Metal Cover is equipped to protect a variety of vehicles including your RV, Motorhome, Camper, Truck, Tractor or 5th Wheel camper. Each Arrow RV Carport is made strong with a wind and snow load rating, meaning they are designed to take on tough weather and snow storms. The 14 foot high Metal cover is made from galvanized steel to offer your vehicle years of protection from the weather and harmful UV rays. The steel frame is durable and is made with a powder coating finish to protect the carport for extended corrosion protection. Easy to install, the Carport comes with slip-fit connections with pilot holes and self-taping screws making this unit easy to build straight out of the box. BULLET 1 STRONG AND WEATHERTOUGH - The Arrow Carport delivers a 100-mph wind rating and a 35-psf snow load rating BULLET 2 TALL MULTI USE SHADE STRUCTURE- The Arrow 14-foot-tall steel carport is perfect for protecting your vehicle. Also great as a multi-use shade and picnic area cover BULLET 3 DURABLE AND RELIABLE - The Arrow RV Carports have a 2x3-inch galvanized steel frame with a black powder coated finish for superior rust and corrosion resistance BULLET 4 PROTECTION THAT LASTS - The roof canopy is made from galvanized steel to protect your vehicle from harmful UV Rays and other damaging weather BULLET 5 ASSEMBLY MADE EASY FOR THE DIYer- The RV carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection BULLET 6 Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame BULLET 8 This Unit Contains 11 Packages - You will receive 6 Frame Cartons 5 Roof Panel Cartons Warranty 10 Year Limited CPAI-84 COMPLIANT (Y/N) No COUNTRY OF ORIGIN USA US HTS # 7308.90.9590 NMFC # 38470 CALCULATED NMFC 38470 FREIGHT CLASS 60 DUTY % U.S. 0 NUMBER OF CUP HOLDERS 0 FOLDABLE (Y/N) No DOOR COLOR N/A DOOR JAMB COLOR N/A GABLE COLOR N/A ROOF COLOR Charcoal ROOF TRIM COLOR Charcoal TRACK COLOR N/A WALL COLOR N/A Color Charcoal Cover Color Charcoal Frame Color Black Frame Material Steel BUILDING SHAPE Rectangle SHAPE OF TUBE Rectangle NUMBER OF AWNINGS 0 ROOF PITCH - LOWER 3.00 ROOF PITCH - UPPER 0.00 FOUNDATION WIDTH (IN) 180.0 FOUNDATION LENGTH (IN) 408.0 DOOR TYPE N/A DOOR / ENTRANCE WIDTH BOTTOM (IN) OUTSIDE ZIPPERS 165.0 DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS 166.0 DOOR OPENING WIDTH TOP (IN) OUTSIDE ZIPPERS 165 WALL HEIGHT (IN) 169.0 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 398.25 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 192.0 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 171.0 TOTAL STORAGE VOLUME (CU. FT.) 6807.00 TOTAL STORAGE AREA (SQ/FT) 456.00 WHAT'S IN THE BOX Roof Panels, Frame, Anchors, Hardware, Instructions STORAGE BAG INCLUDED (Y/N) No WATER-RESISTANT (Y/N) Yes WATERPROOF (Y/N) No SNOW LOAD RATING (PSF) 35.00 WIND LOAD RATING (MPH) 100.00 ASSEMBLY REQUIRED (Y/N) Yes # OF PEOPLE FOR ASSEMBLY 2 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.) 1577.00 NOMINAL ASSEMBLED HEIGHT FT. 14 NOMINAL ASSEMBLED LENGTH FT. 33 NOMINAL ASSEMBLED WIDTH FT. 14 NOMINAL CONC IMPERIAL 14 x 33 x 14 ft RIB TUBING DIAMETER EDGE TO EDGE (IN) 0 RELATED ACCESSORIES #1 10036 RELATED ACCESSORIES #2 10073 RELATED ACCESSORIES #3 10075 SHIP METHOD (PARCEL OR LTL) LTL HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 44.09 LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 71.06 WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 30.25 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS) 1695.60 CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) CALCULATED 54.85 ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.) 1663 # OF BOXES 11 CARTON 1 GROSS WEIGHT (LBS) 195.00 CARTON 1 HEIGHT (IN) 5.25 CARTON 1 LENGTH (IN) 66.88 CARTON 1 WIDTH (IN) 28.00 CARTON 2 GROSS WEIGHT (LBS) 264.00 CARTON 2 HEIGHT (IN) 6.50 CARTON 2 LENGTH (IN) 66.88 CARTON 2 WIDTH (IN) 28.00 CARTON 3 GROSS WEIGHT (LBS) 263.00 CARTON 3 HEIGHT (IN) 6.63 CARTON 3 LENGTH (IN) 66.88 CARTON 3 WIDTH (IN) 28.00 CARTON 4 GROSS WEIGHT (LBS) 145.00 CARTON 4 HEIGHT (IN) 3.25 CARTON 4 LENGTH (IN) 70.75 CARTON 4 WIDTH (IN) 30.50 CARTON 5 GROSS WEIGHT (LBS) 145.00 CARTON 5 HEIGHT (IN) 3.25 CARTON 5 LENGTH (IN) 70.75 CARTON 5 WIDTH (IN) 30.50 CARTON 6 GROSS WEIGHT (LBS) 152.00 CARTON 6 HEIGHT (IN) 5.25 CARTON 6 LENGTH (IN) 70.75 CARTON 6 WIDTH (IN) 27.63 CARTON 7 GROSS WEIGHT (LBS) 65.00 CARTON 7 HEIGHT (IN) 2.19 CARTON 7 LENGTH (IN) 61.25 CARTON 7 WIDTH (IN) 30.31 CARTON 8 GROSS WEIGHT (LBS) 152.00 CARTON 8 HEIGHT (IN) 5.25 CARTON 8 LENGTH (IN) 66.50 CARTON 8 WIDTH (IN) 27.63 CARTON 9 GROSS WEIGHT (LBS) 65.00 CARTON 9 HEIGHT (IN) 2.19 CARTON 9 LENGTH (IN) 61.25 CARTON 9 WIDTH (IN) 30.31 CARTON 10 GROSS WEIGHT (LBS) 152.00 CARTON 10 HEIGHT (IN) 5.25 CARTON 10 LENGTH (IN) 66.50 CARTON 10 WIDTH (IN) 27.63 NUMBER OF PALLETS 1 PALLET 1 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 44.09 PALLET 1 LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 71.06 PALLET 1 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS) ( DS LTL ONLY OUT OF WHSE) 1695.6 PALLET 1 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE) 30.25 QTY PER PALLET 1 # OF PCS PER PALLET 1 UNITS PER 20' CONTAINER 7 UNITS PER 40' CONTAINER 15 UNITS PER 40' HCUBE CONTAINER 15 UNITS PER 48' TRAILER 24 UNITS PER 53' TRAILER 25 LOADING TYPE (FLOOR, SLIP OR PALLET) PALLET
