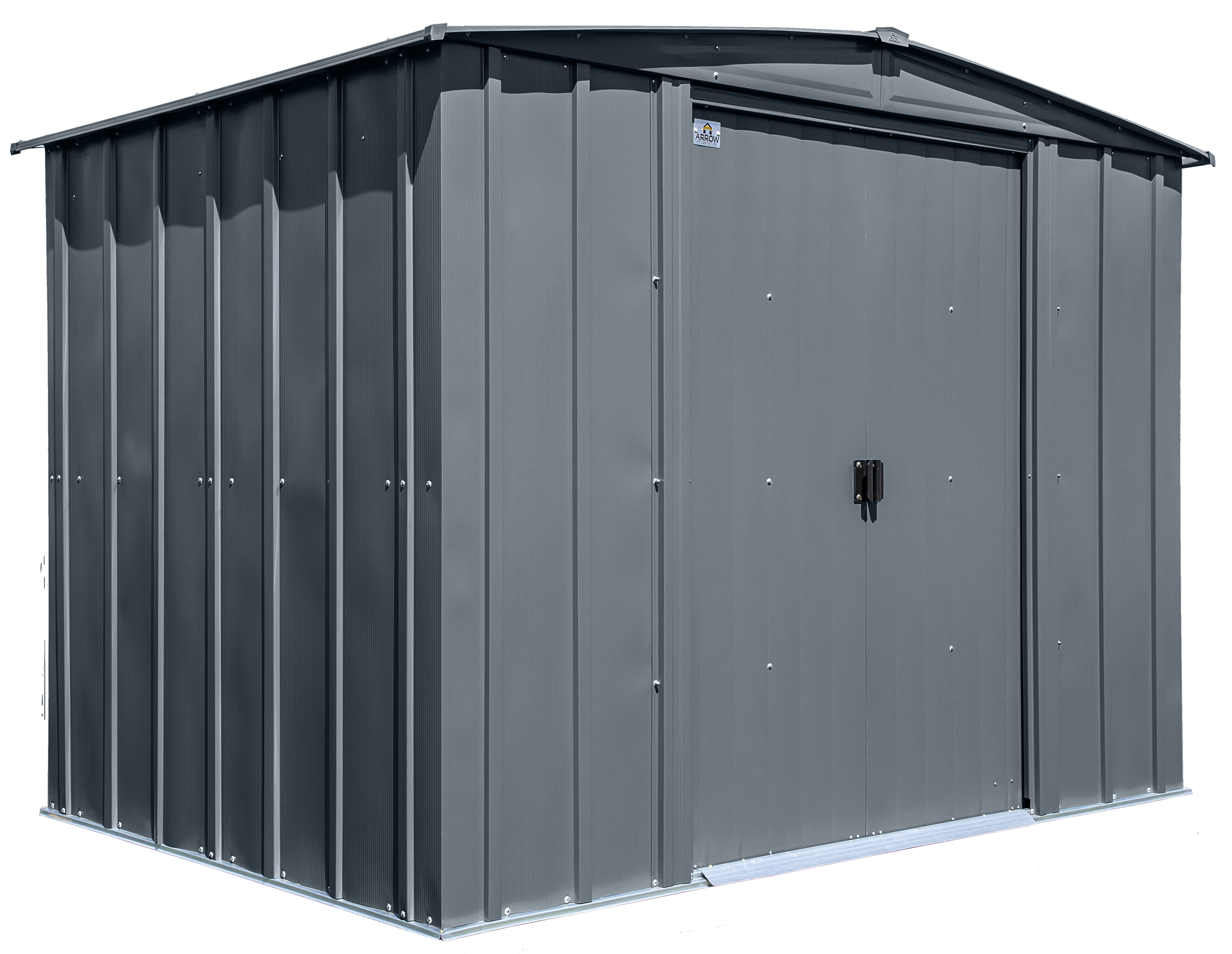

MAIN IMAGE - SILO 1

NWPG86CC

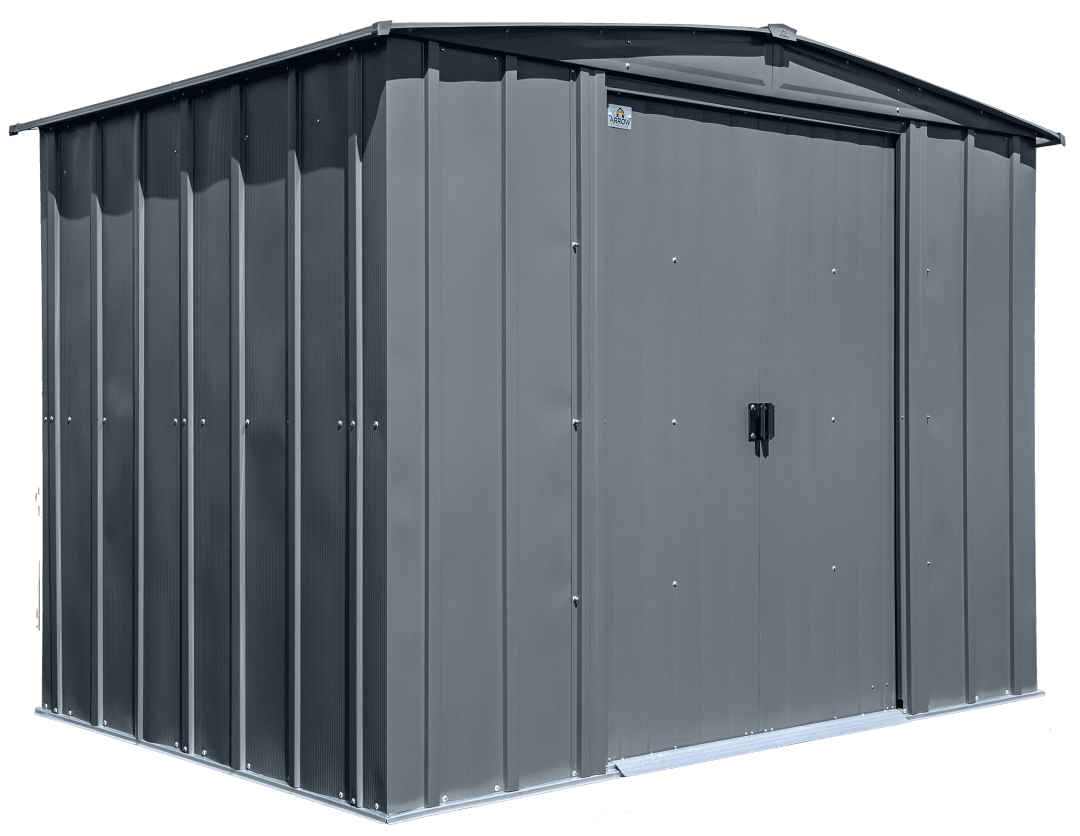

8 x 6 x 6 ft Charcoal Steel Storage Shed

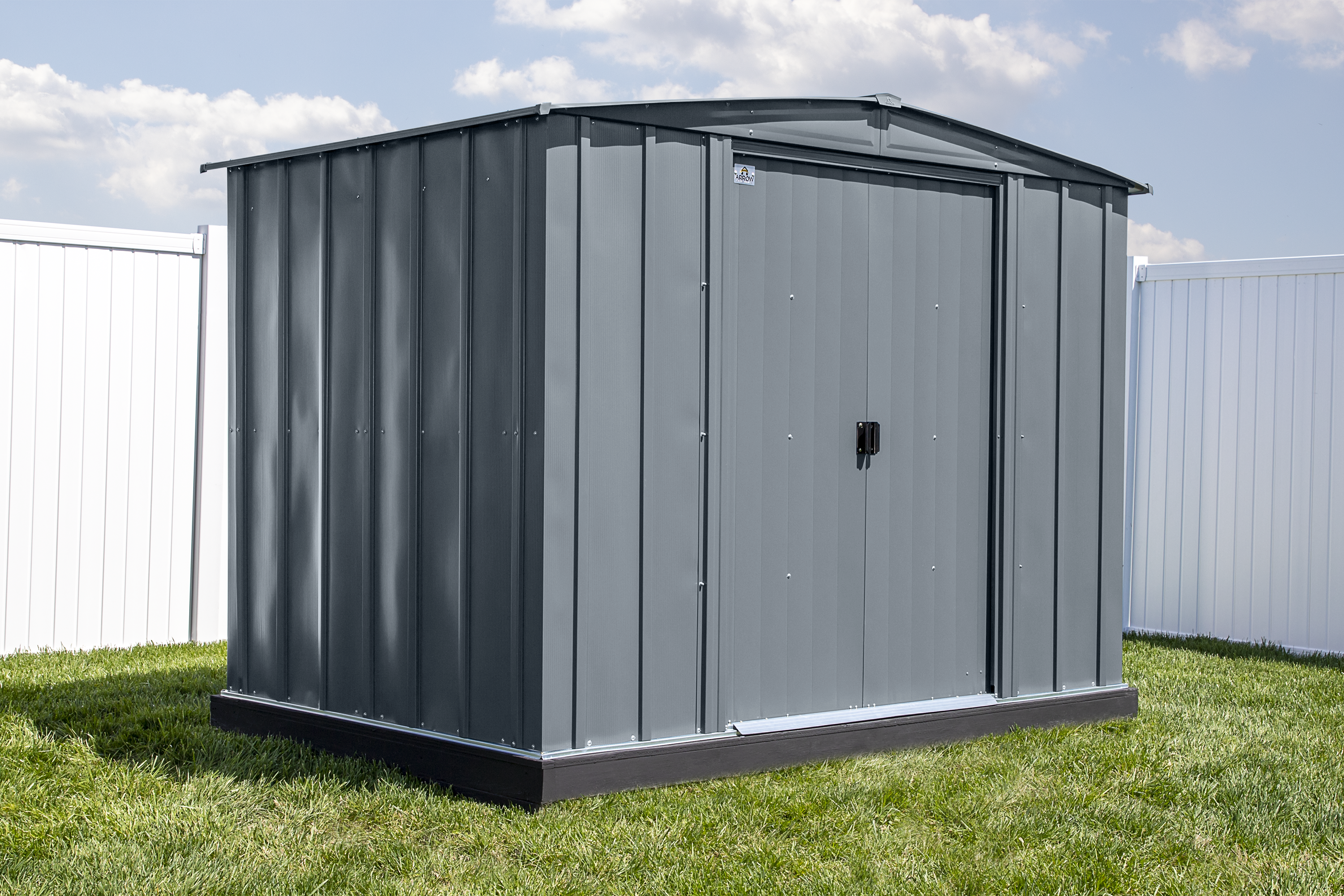

LIFESTYLE - IMAGE 01

SCHEMATICS

MONTAGE - IMAGE 1

INFOGRAPHIC

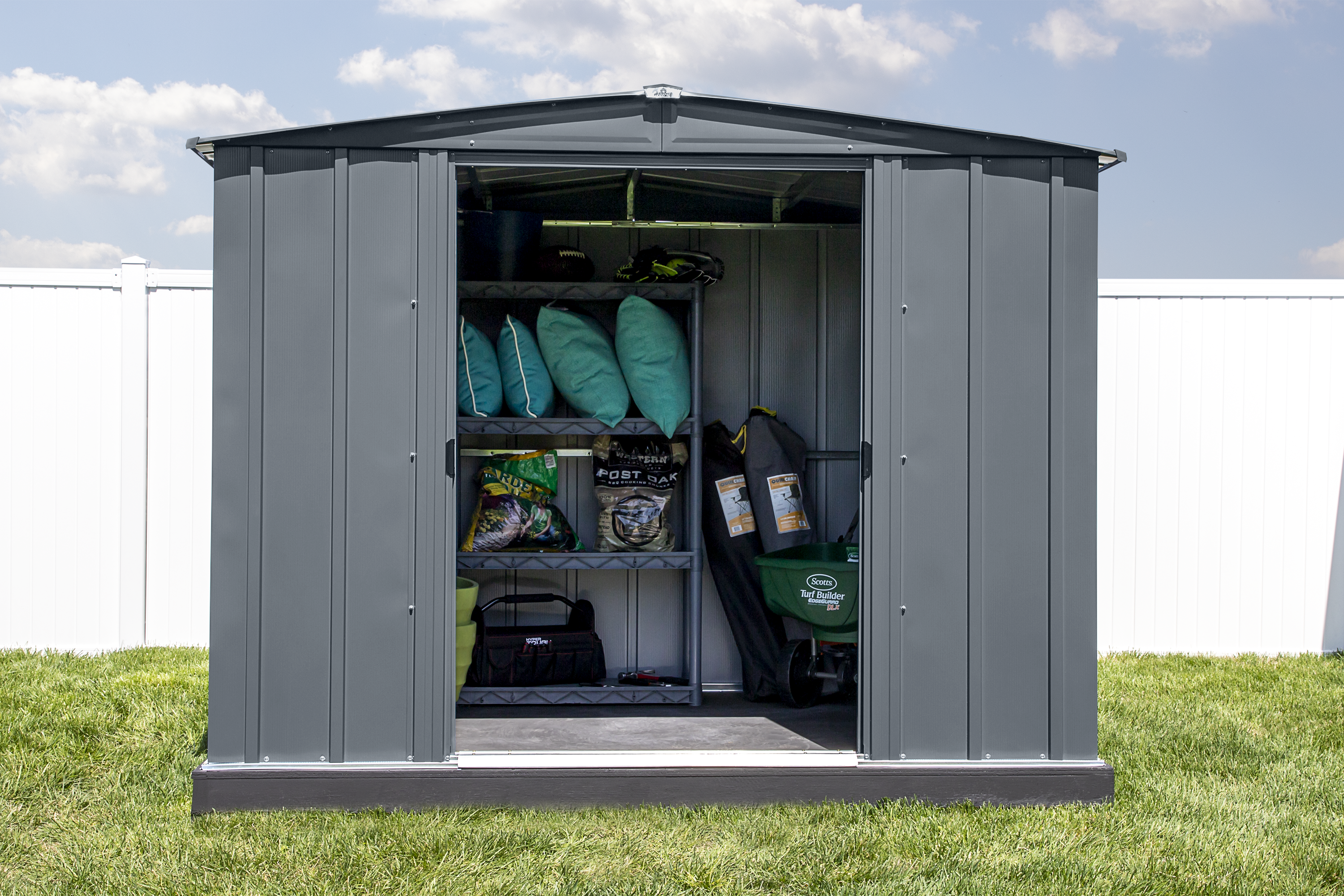

LIFESTYLE - IMAGE 02

MAIN IMAGE - SILO 1

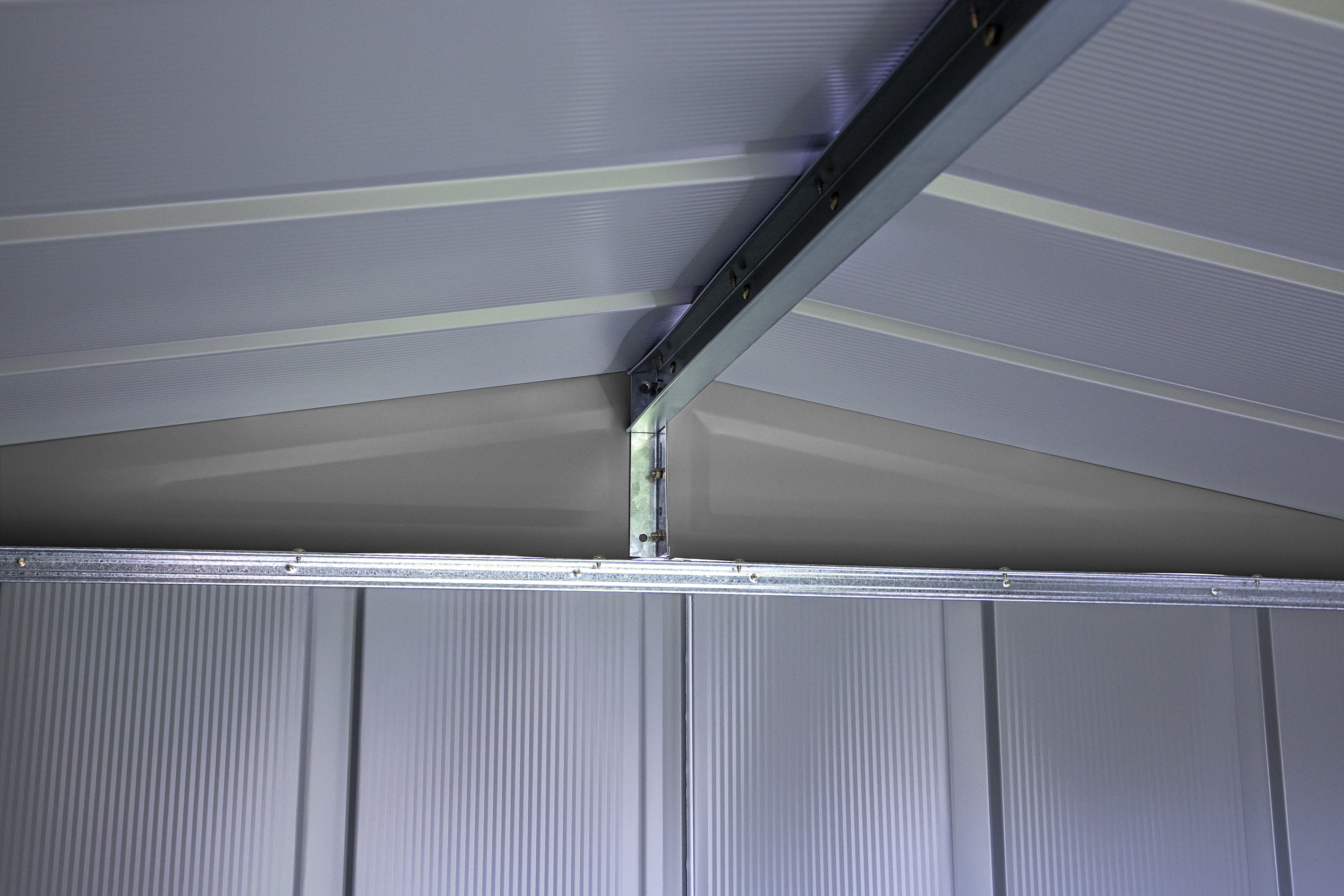

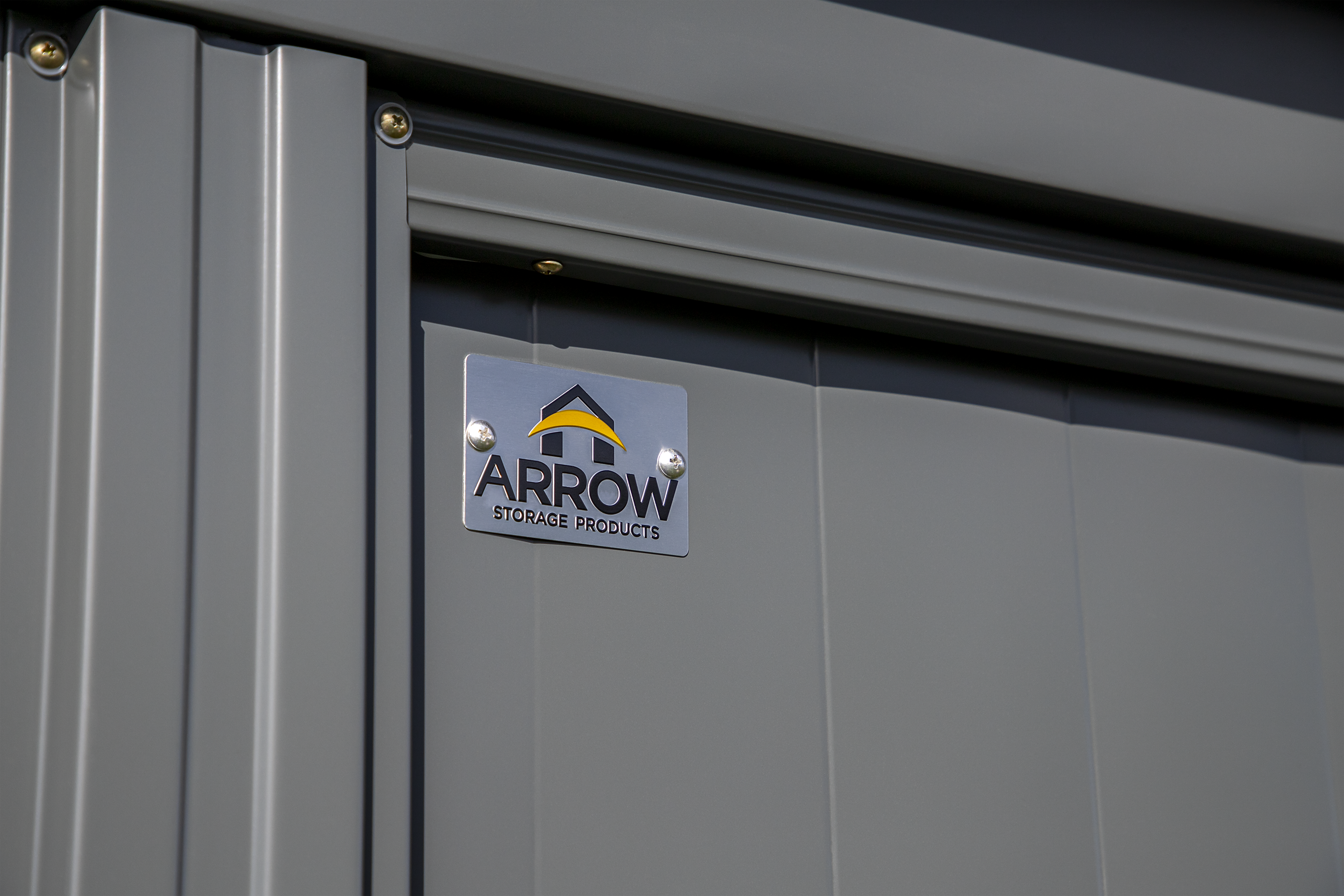

DETAIL - IMAGE 1

DETAIL - IMAGE 2

DETAIL - IMAGE 3

DETAIL - IMAGE 4

DETAIL - IMAGE 5

USA LOGO

PART ID	NWPG86CC
CATEGORY CODE	Sheds and Storage Buildings

DISPLAY NAME - RETAIL	Arrow Steel Storage Shed, 8x6 ft., Charcoal
LONG DESCRIPTION	The Arrow Steel Storage Shed is engineered to protect your landscaping equipment, tools, and gardening supplies, safe from the elements. The sturdy, practical shed has a low gable roof that’s designed to prevent water from pooling. It has sliding doors that can be secured with a padlock. The shed’s timeless vertical wall panels are finished with smooth, hard-wearing Sherwin-Williams charcoal-colored paint finish to protect the shed from rust and corrosion.
BULLET 1	Sturdy galvanized steel is treated to protect the shed against corrosion and rust
BULLET 2	Smooth and hard-wearing Sherwin-Williams Paint finish protects against the elements and seals the steel against rust and corrosion
BULLET 3	65 in. walls provide easy access to stored items from lawn mowers to garden tools

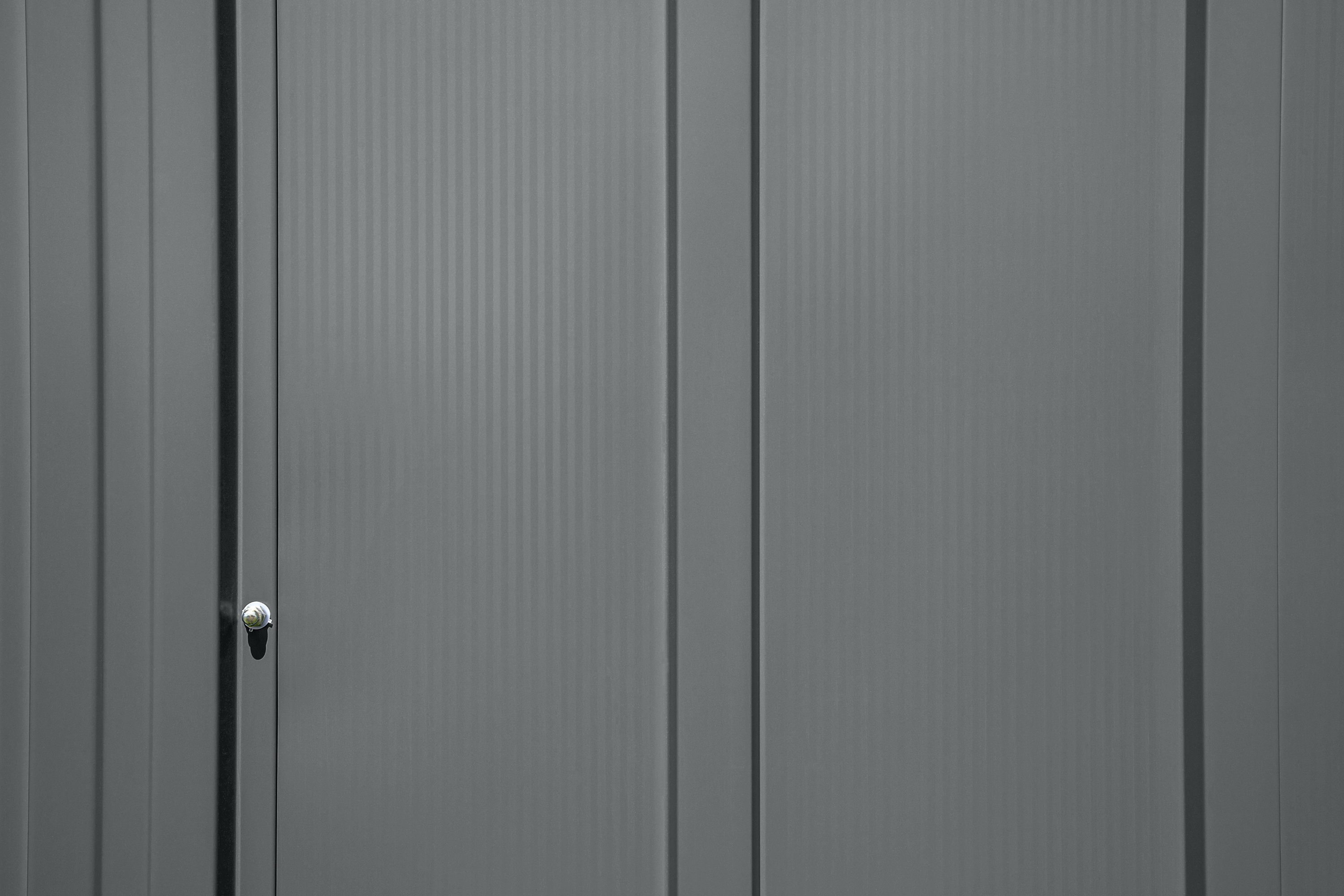

BULLET 4	Traditional vertical wall panels give the classic line a timeless aesthetic

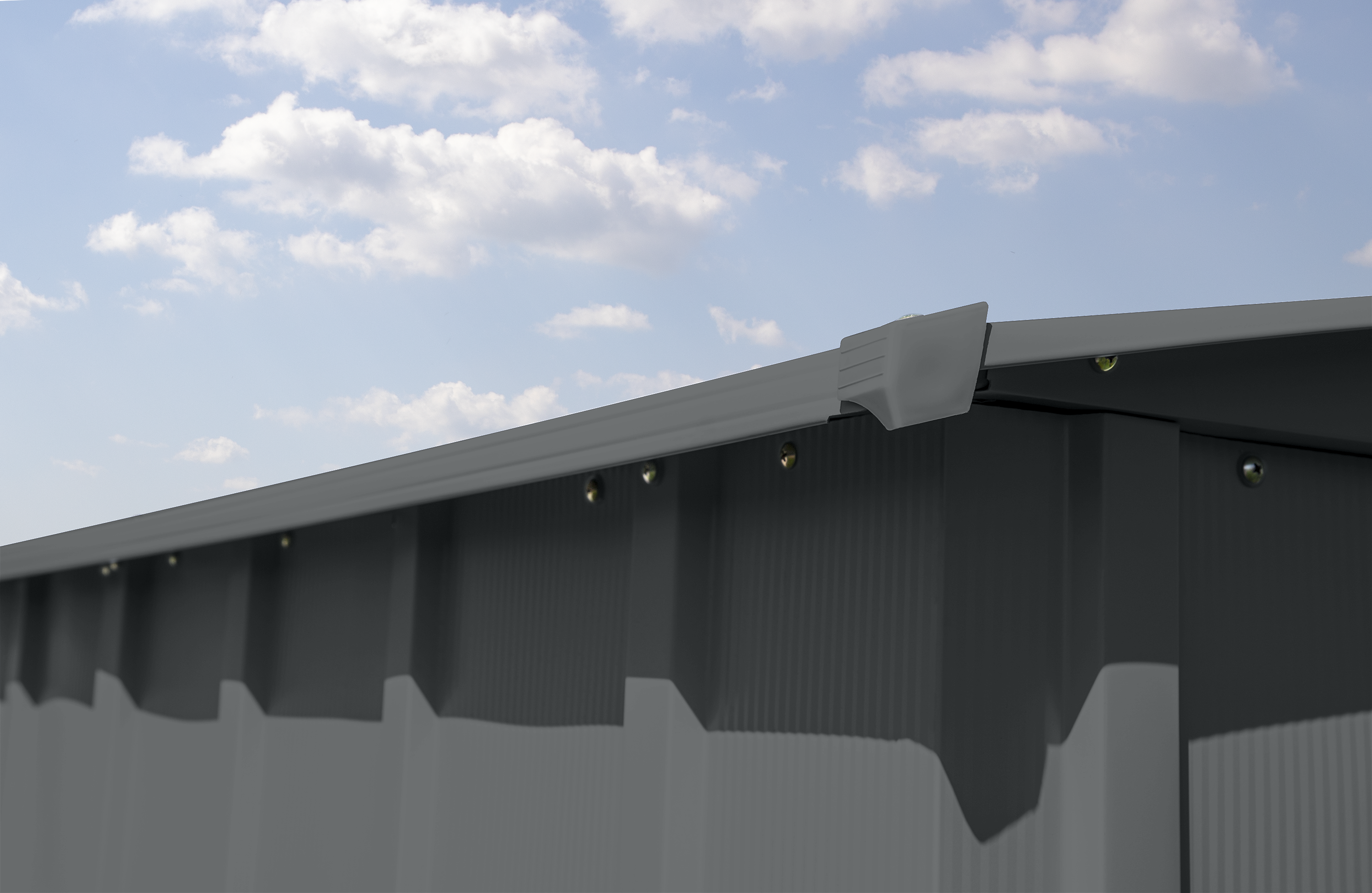

BULLET 5	Properly pitched roof is designed to prevent water from pooling

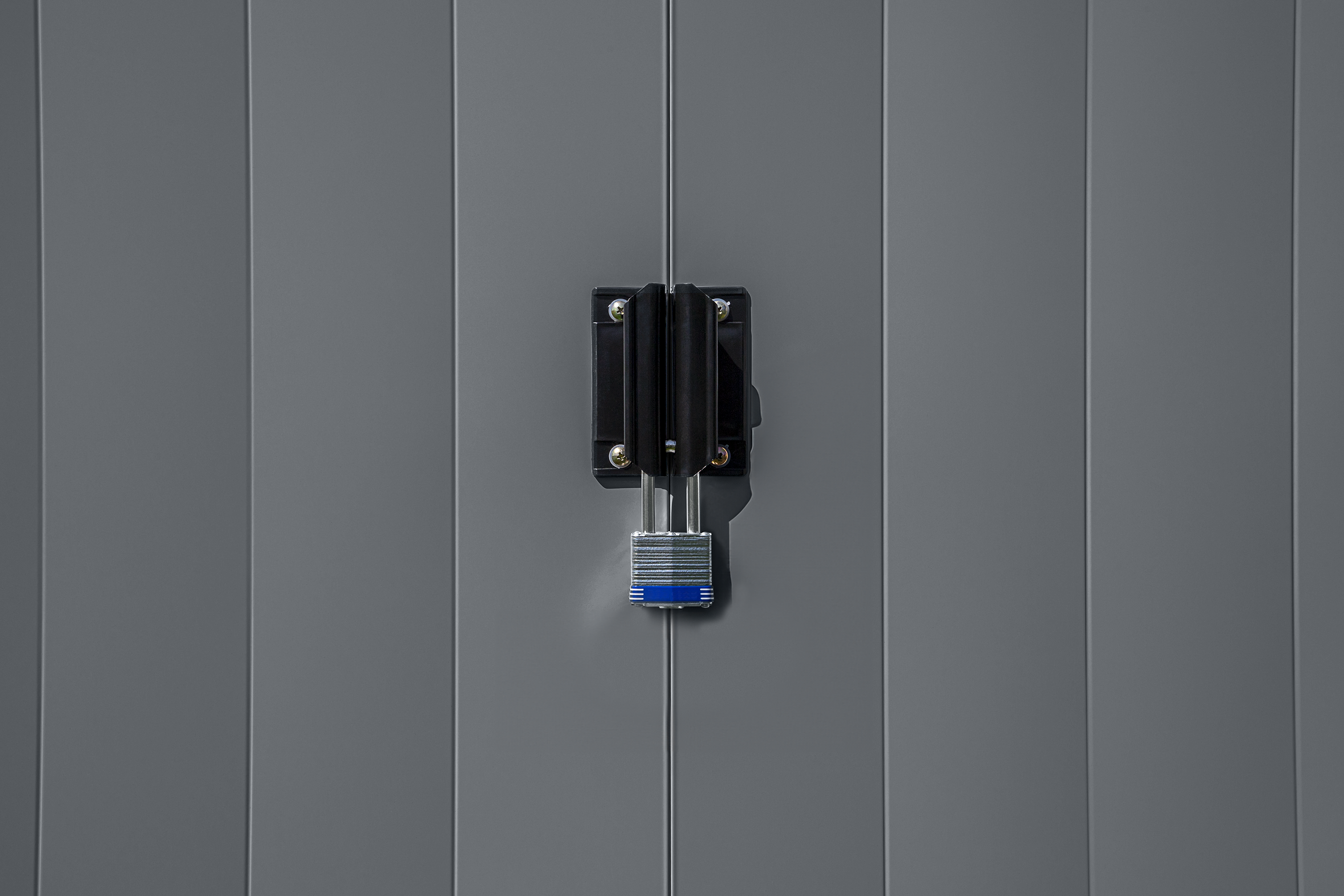

BULLET 6	Pad lockable sliding doors sit on large glides that prevent sticking and derailing
BULLET 7	Includes a 12 Year Limited warranty
BULLET 8	Manufactured in the USA with globally sourced material
BULLET 9	Compatible with Arrow Floor Kit Item FKCS02
Warranty	12 Year Limited

Color	Charcoal

Frame Material	Steel
BUILDING SHAPE	Rectangle
FOUNDATION WIDTH (IN)	97.5
FOUNDATION LENGTH (IN)	74.63
DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS	63
WALL HEIGHT (IN)	65
ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN)	77.13
ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN)	72.88
ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN)	99.75
TOTAL STORAGE VOLUME (CU. FT.)	270.00
TOTAL STORAGE AREA (SQ/FT)	47.00
WHAT'S IN THE BOX	Roof, Walls, Doors, Framework, Hardware, Instructions
WATER-RESISTANT (Y/N)	Yes
WATERPROOF (Y/N)	No
ASSEMBLY REQUIRED (Y/N)	Yes
# OF PEOPLE FOR ASSEMBLY	2
NOMINAL ASSEMBLED HEIGHT FT.	6
NOMINAL ASSEMBLED LENGTH FT.	6
NOMINAL ASSEMBLED WIDTH FT.	8
NOMINAL CONC IMPERIAL	8 x 6 x 6 ft

SHIP METHOD (PARCEL OR LTL)	LTL
HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	9
LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	72
WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN)	34
WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS)	182
CU FT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) CALCULATED	12.75
ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.)	147

# OF BOXES 1
CARTON 1 GROSS WEIGHT (LBS) 147
CARTON 1 HEIGHT (IN) 4.38
CARTON 1 LENGTH (IN) 71.75
CARTON 1 WIDTH (IN) 34

NUMBER OF PALLETS	1
PALLET 1 HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE)	9
PALLET 1 LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE)	72
PALLET 1 TOTAL WEIGHT FULL PALLET CONFIGURATION (LBS) ( DS LTL ONLY OUT OF WHSE)	182
PALLET 1 WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (IN) ( DS LTL ONLY OUT OF WHSE)	34
