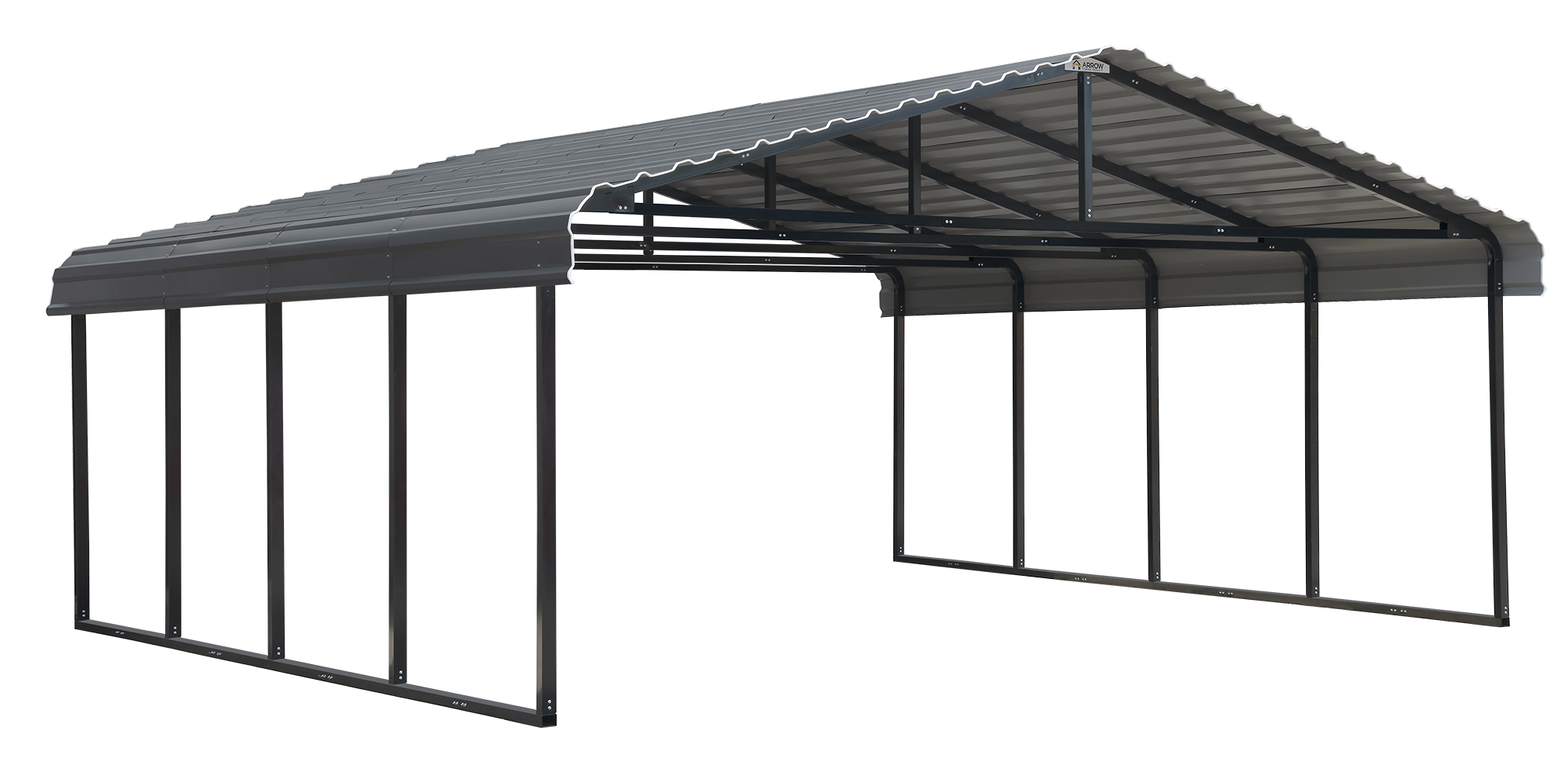

Arrow Galvanized Steel Carport, 20x20x7

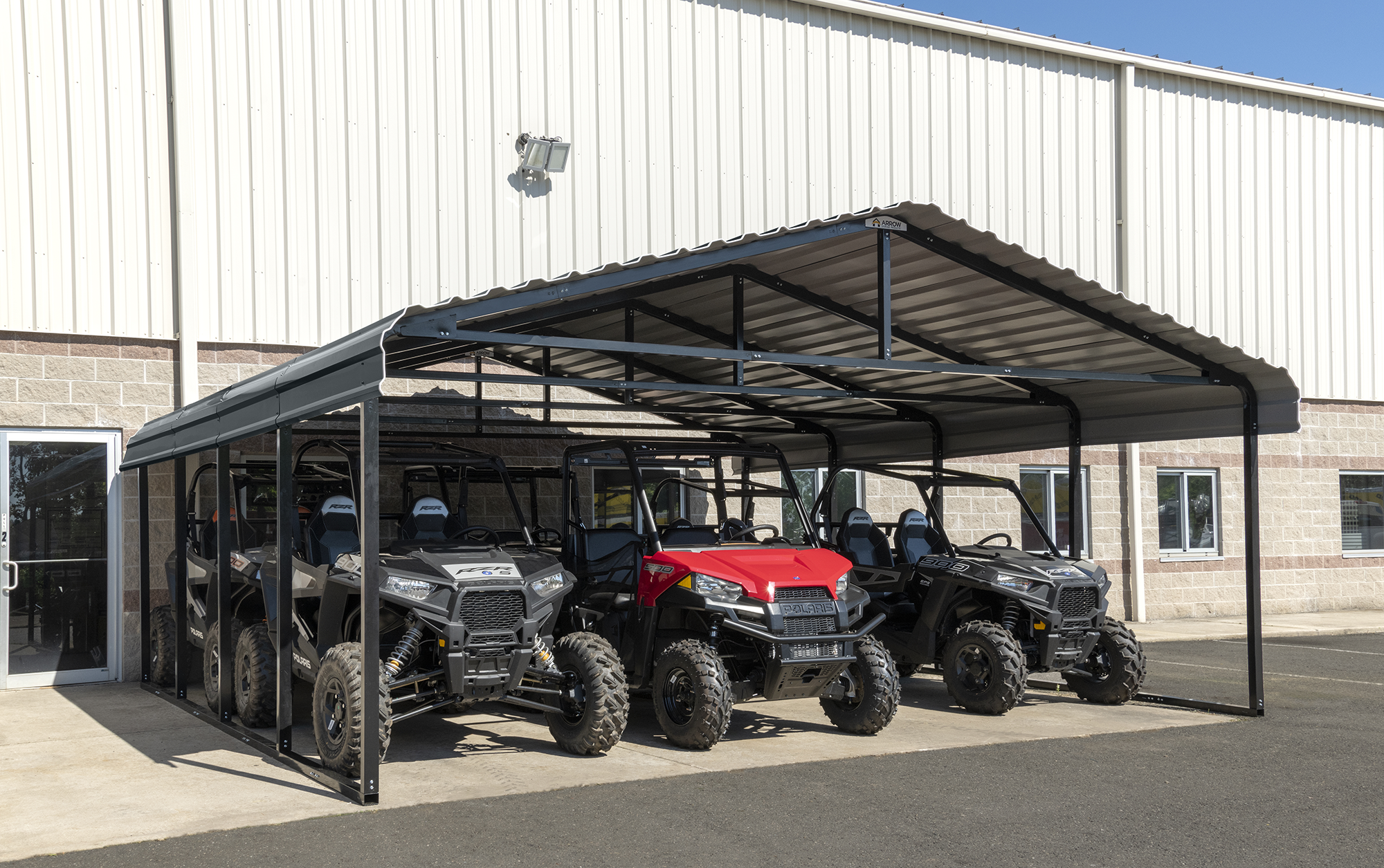

LIFESTYLE - IMAGE 01

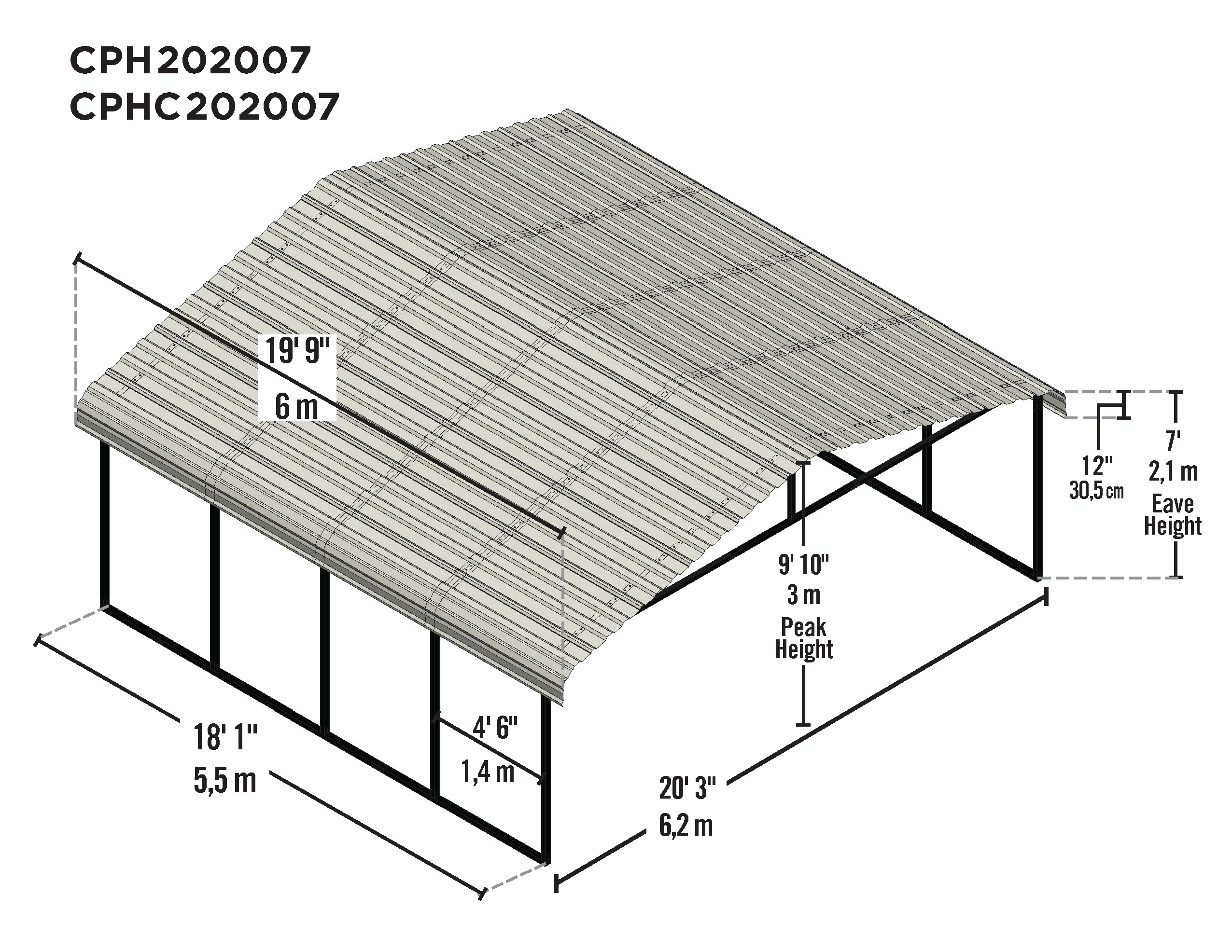

SCHEMATICS

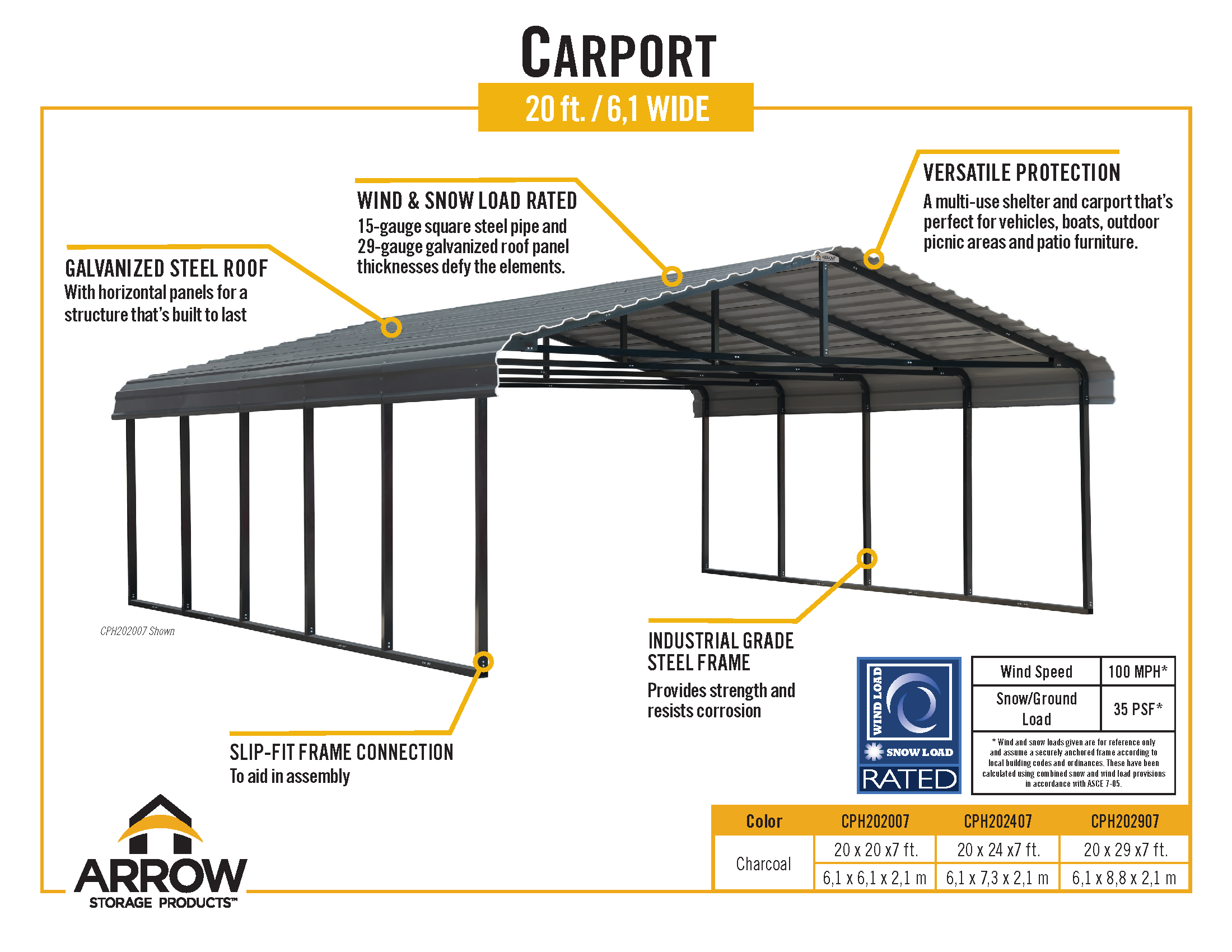

INFOGRAPHIC 4
INFOGRAPHIC 5
INFOGRAPHIC 2
MONTAGE - IMAGE 1
INFOGRAPHIC 3
INFOGRAPHIC

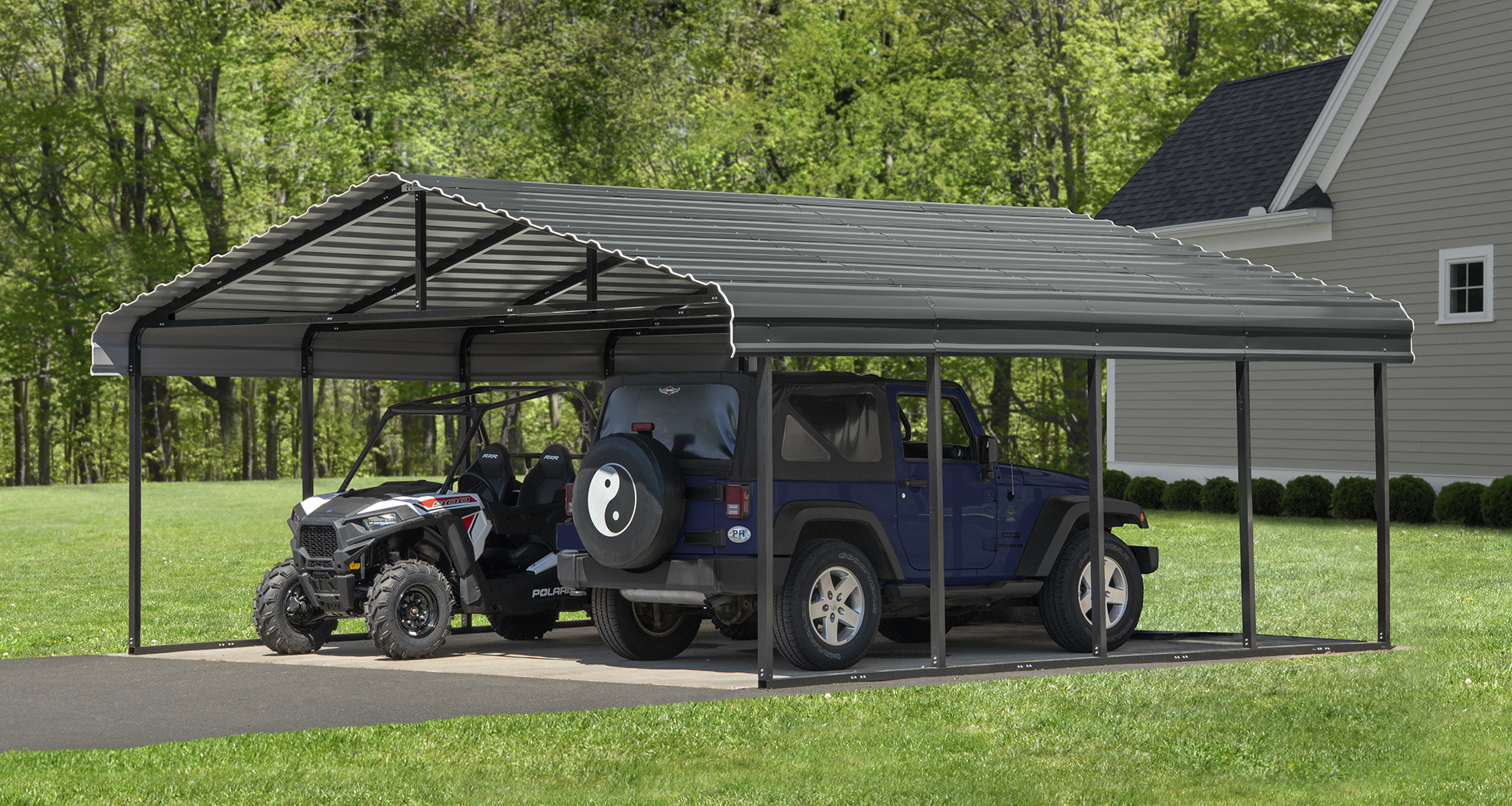

LIFESTYLE - IMAGE 02

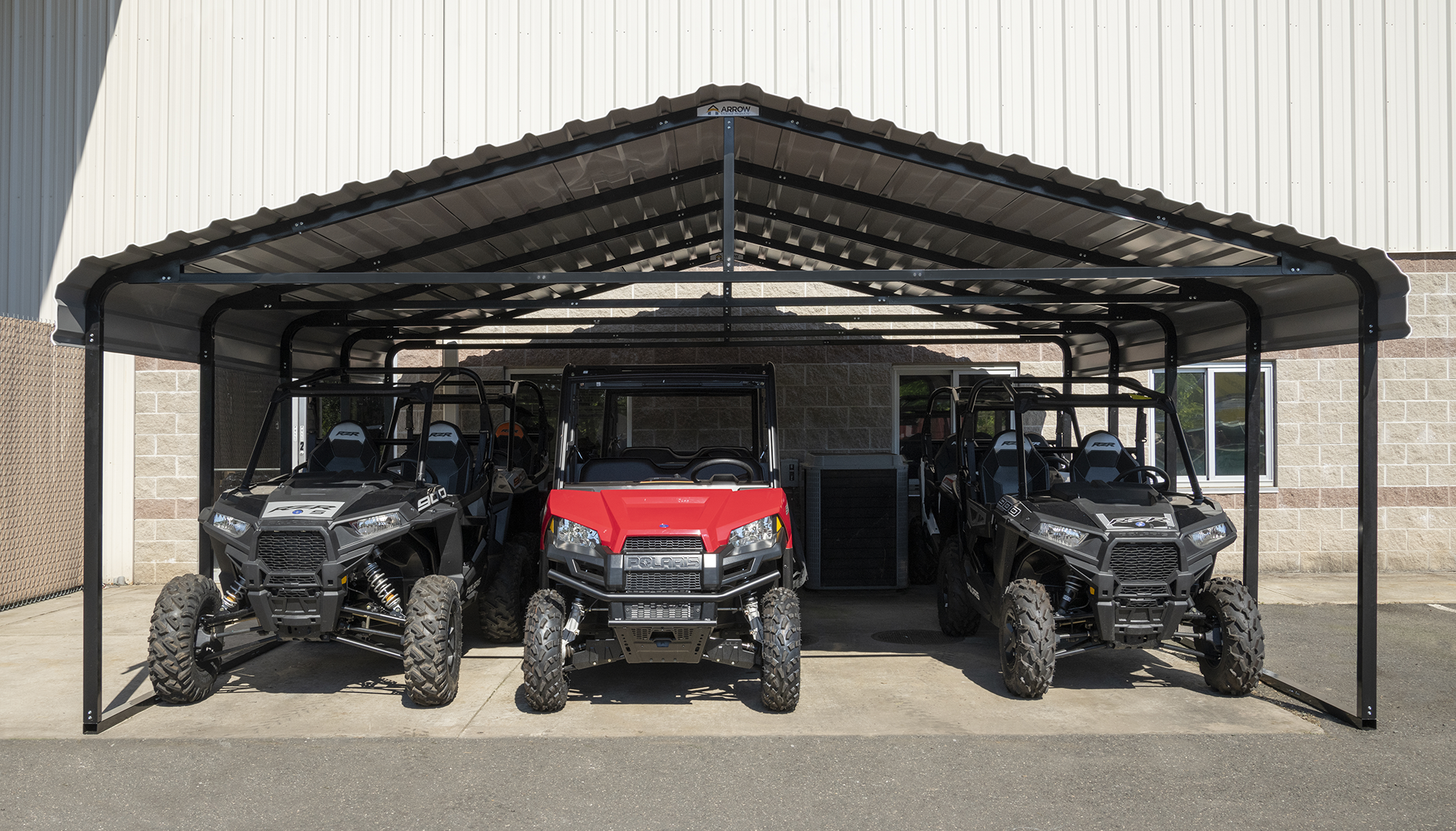

LIFESTYLE - IMAGE 03
GRAPHIC IMAGE 2

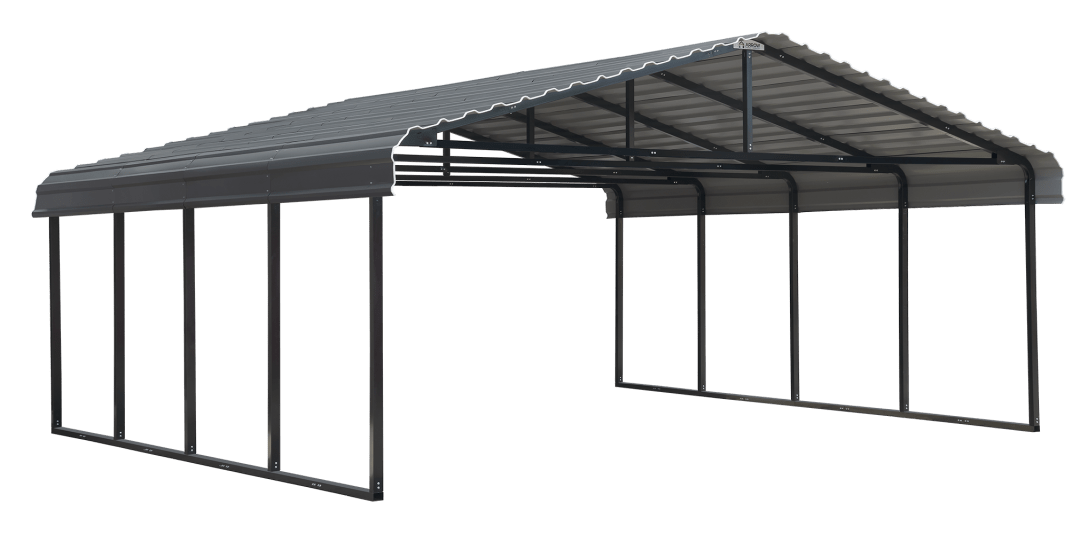

MAIN IMAGE - SILO 1
GRAPHIC IMAGE 4
MARKETING VIDEO
MARKETING VIDEO 2
YOUTUBE VIDEO LINK
| PART ID | CPHC202007 |
| BRAND | Arrow |
| UPC | 026862112316 |
| EU DROP SHIP | Yes |
| DISPLAY NAME - RETAIL | Arrow Galvanized Steel Carport, 20x20x7 |
| CATEGORY CODE | Carports |
| LONG DESCRIPTION | Built strong, wind and snow rated, and backed by a 10-year limited warranty is the Arrow Carport. This galvanized steel carport from Arrow Storage Products features a powder coated steel frame for corrosion and rust resistance. The tough made galvanized steel roof is made strong. Perfect for use as a carport, shelter, shade and storage for boats, vehicles, tractors and even as an outdoor picnic area. |
| BULLET 1 | Built strong with a 2x3 in. 15 gauge wall thickness. The Arrow Carport delivers wind and snow load strength and stability |
| BULLET 2 | The all-weather Arrow Carport is built to take on tough weather – winds up to 100 mph, and a snow load of up to 35 PSF |
| BULLET 3 | A heavy-duty, galvanized steel roof that's built to last - features a 29-gauge painted galvanized steel for corrosion resistance |
| BULLET 4 | Roof in an attractive charcoal finish, with a black powder coated steel frame |
| BULLET 5 | Perfect for car storage and shelter, truck shelter, vehicle shelter, boat shelter or as a multi-use shade and picnic area |
| BULLET 6 | ASSEMBLY MADE EASY FOR THE DIYer- The Arrow carport is designed for easy assembly and installation with slip-fit connections and self-taping screws for long lasting protection |
| BULLET 7 | Comes with a 10 year warranty |
| BULLET 8 | Wind and snow loads given are for reference only and assume a standalone unit without enclosure kit, and a securely anchored frame. |
| BULLET 9 | This Unit Contains 6 Packages - You will receive 4 Frame Cartons 2 Roof Panel Cartons |
| COUNTRY OF ORIGIN | USA |
| FRAME MATERIAL | Steel |
| ASSEMBLY REQUIRED (Y/N) | Yes |
| WATERPROOF (Y/N) | No |
| WATER-RESISTANT (Y/N) | Yes |
| STORAGE BAG INCLUDED (Y/N) | No |
| RELATED ACCESSORIES #1 | 10036 |
| RELATED ACCESSORIES #2 | 10073 |
| RELATED ACCESSORIES #3 | 10075 |
| WEIGHT CAPACITY (LBS) | 0 |
| NOMINAL ASSEMBLED HEIGHT FT. | 7 |
| NOMINAL ASSEMBLED LENGTH FT. | 20 |
| NOMINAL ASSEMBLED WIDTH FT. | 20 |
| NOMINAL CONC IMPERIAL | 20 x 20 x 7 ft |
| WIND LOAD RATING (MPH) | 100 |
| WIND LOAD RATING (KM/HOUR) | 0 |
| SNOW LOAD RATING (PSF) | 35 |
| SNOW LOAD RATING (KG/M2) | 171.0 |
| TOTAL STORAGE AREA (SQ/M) | 35.1 |
| TOTAL STORAGE VOLUME (CU.M) | 91.5765312 |
| ITEM GROSS WEIGHT (PACKAGING INCLUDED) (KG.) | 506.21 |
| FOUNDATION LENGTH (CM) | 640.08 |
| FOUNDATION WIDTH (CM) | 640.08 |
| GABLE HEIGHT (CM) | 0.0 |
| WALL HEIGHT (CM) | 213.36 |
| BUILDING SHAPE | Peak |
| COLOR | Charcoal |
| COVER COLOR | Charcoal |
| DOOR COLOR | N/A |
| DOOR JAMB COLOR | N/A |
| FRAME COLOR | Black |
| GABLE COLOR | N/A |
| ROOF COLOR | Charcoal |
| ROOF TRIM COLOR | Charcoal |
| TRACK COLOR | N/A |
| WALL COLOR | N/A |
| FREIGHT CLASS | 65 |
| SHIP METHOD (PARCEL OR LTL) | LTL |
| NMFC # | 38470 |
| HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (CM) | 91.52 |
| # OF BOXES | 6 |
| WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (KG) | 526.13 |
| FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION | 36.03 |
| FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION | 76.58 |
| FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION | 1166.9 |
| FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION | 30.25 |
| UNITS PER 40' CONTAINER | 15 |
| UNITS PER 40' HCUBE CONTAINER | 15 |
| UNITS PER 20' CONTAINER | 7 |
| TRAILER QTY 53' | 22 |
| UNITS PER 48' TRAILER | 22 |
