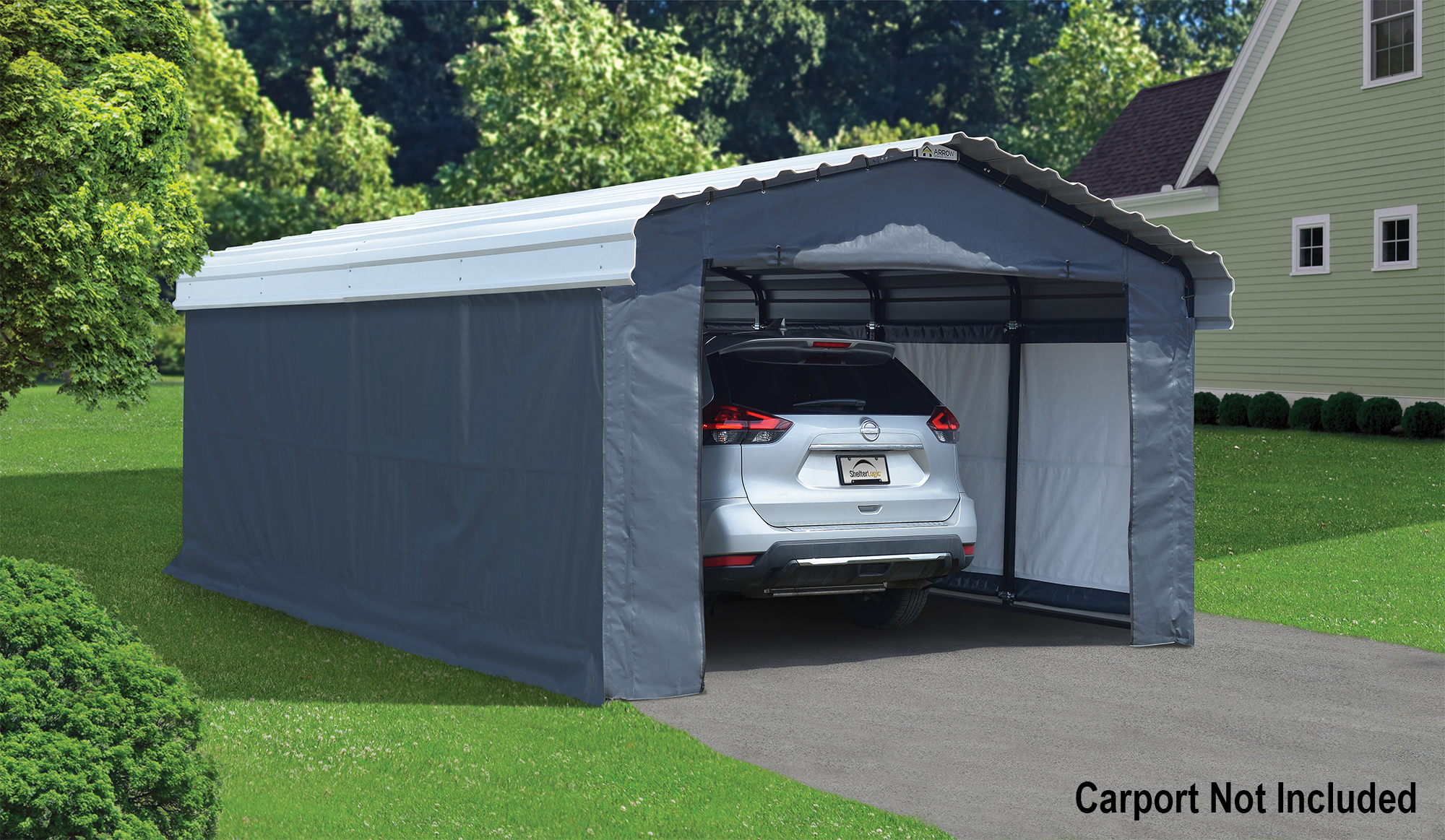

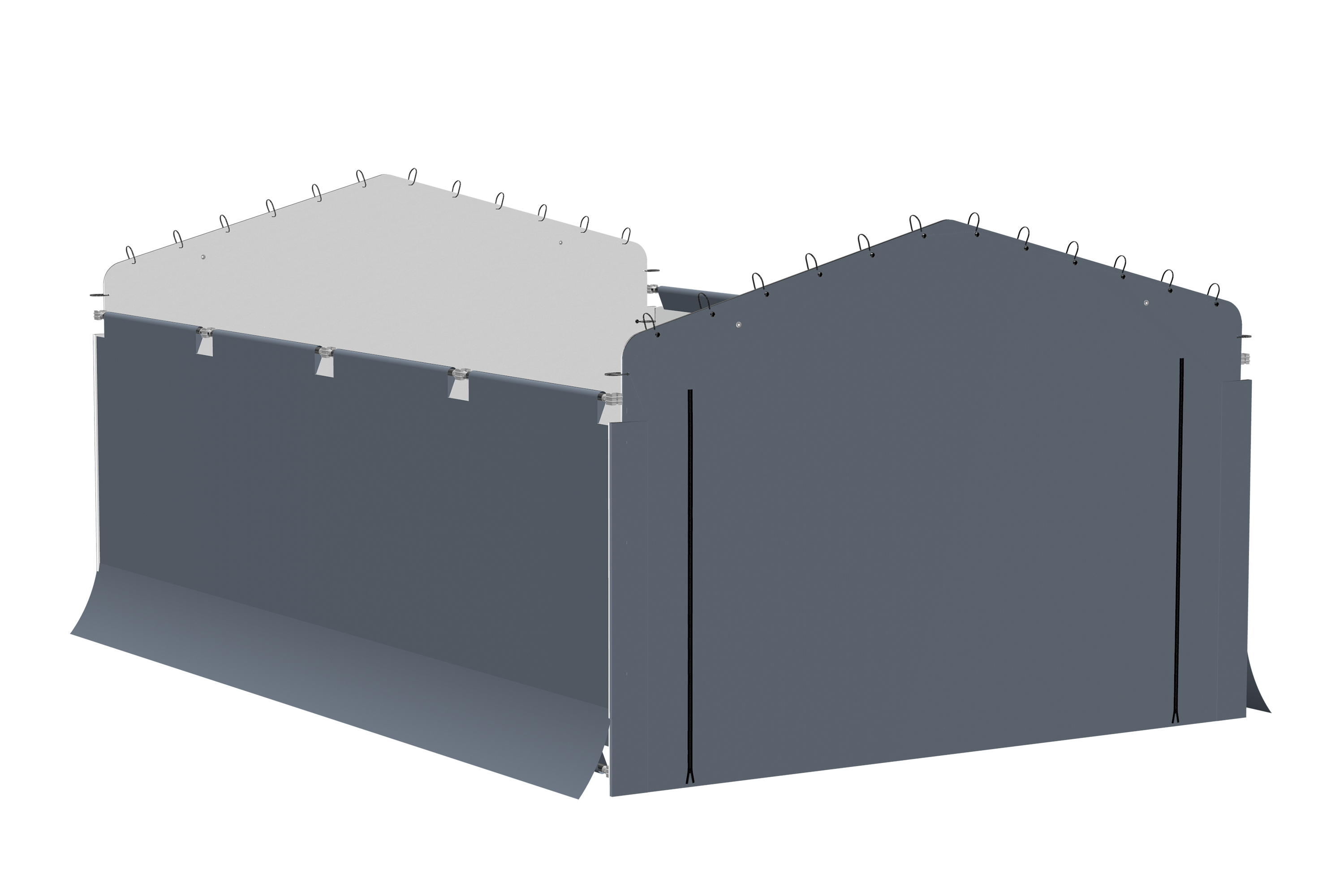

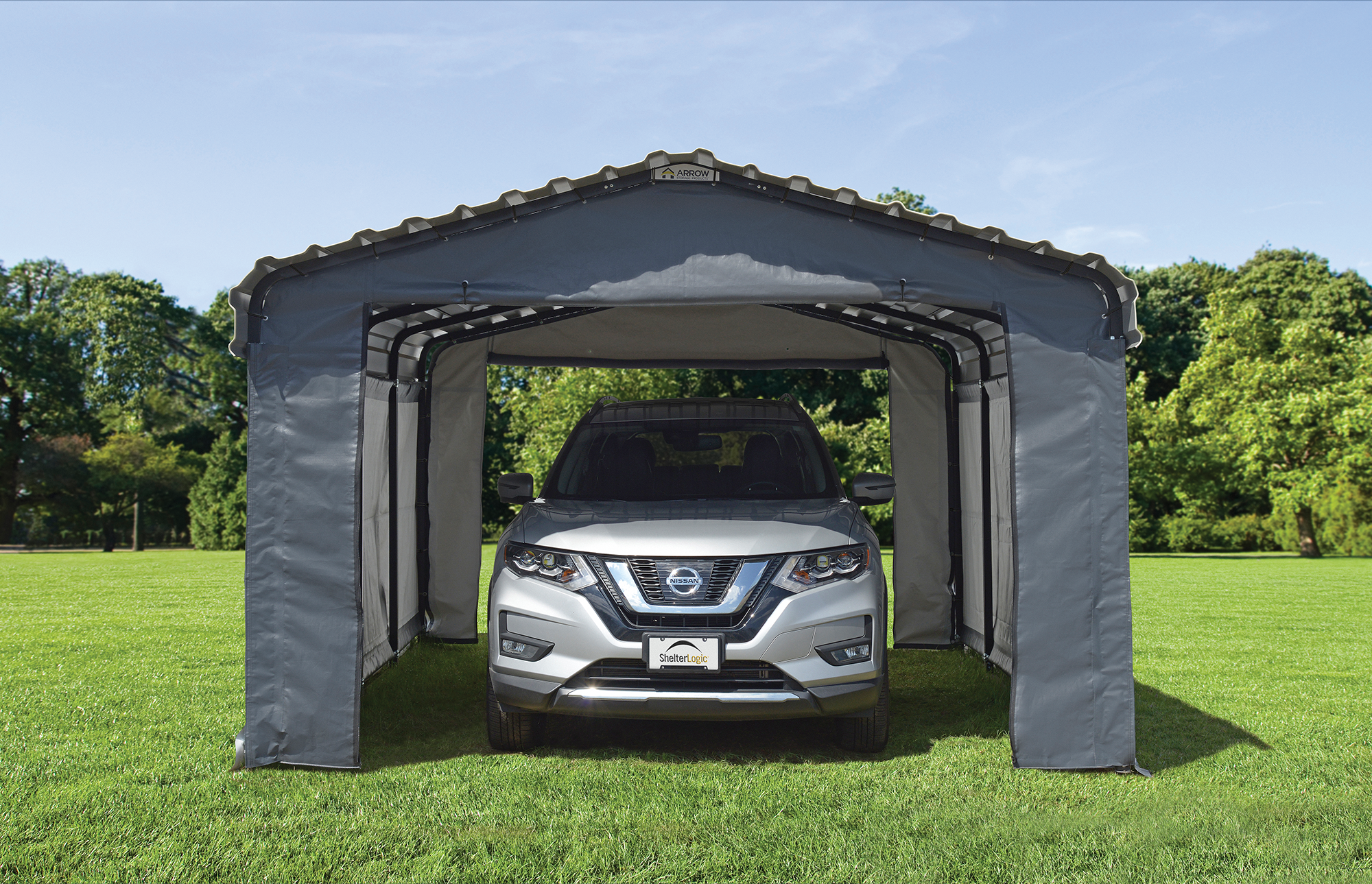

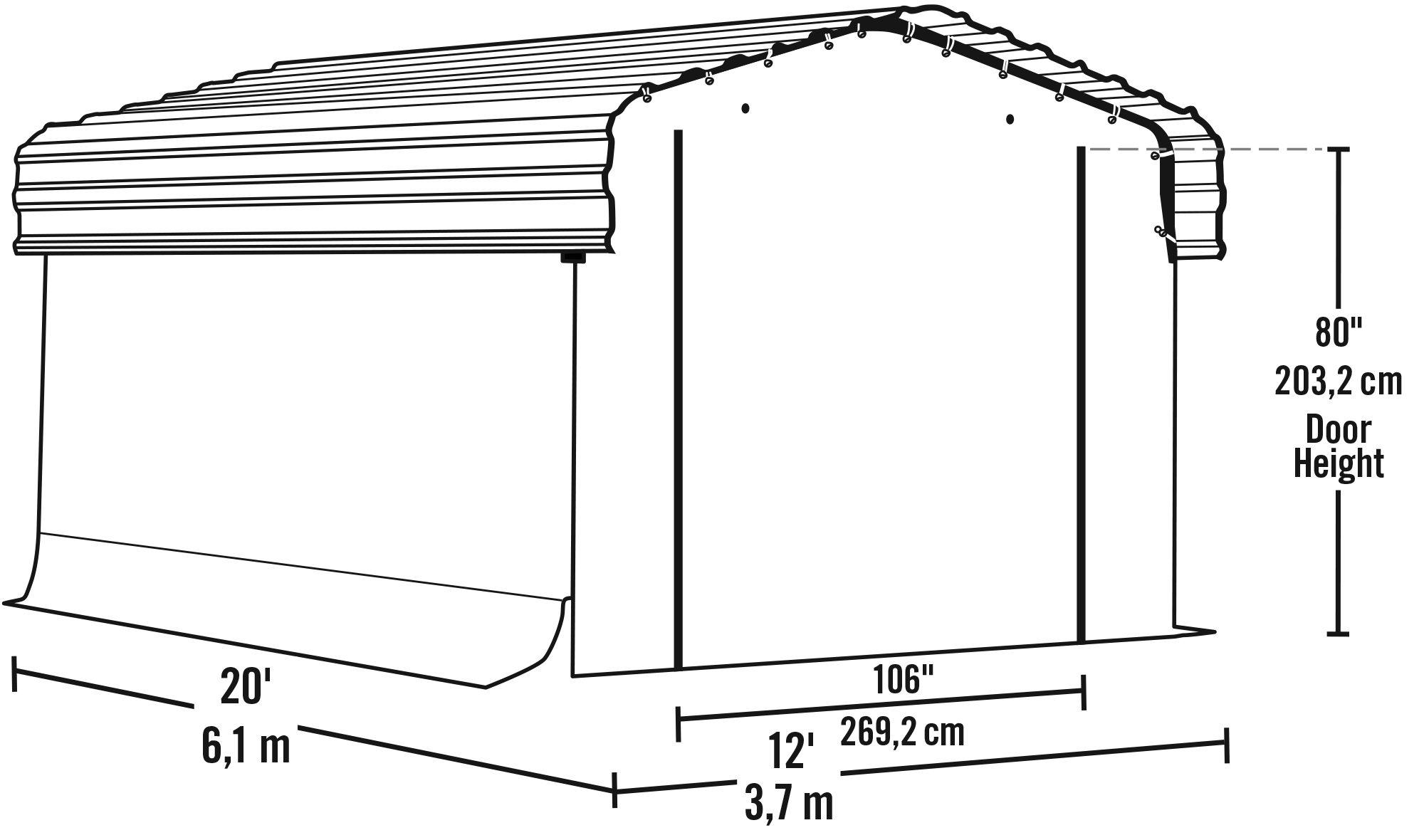

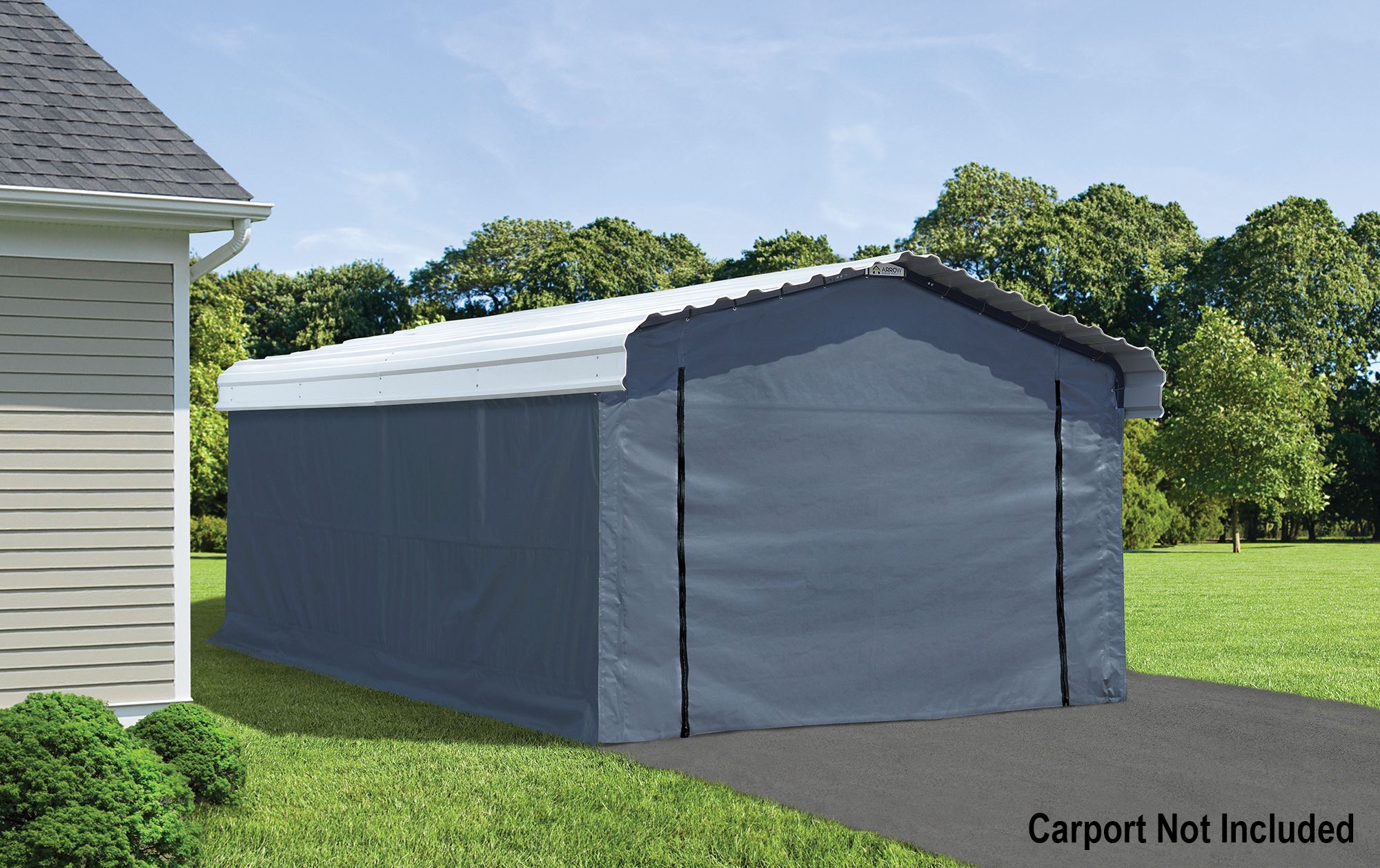

PART ID 10181 BRAND Arrow UPC 026862112163 DUTY % EU 2.7 EU DROP SHIP Yes DISPLAY NAME - RETAIL Carports Enclosure Kit For Galvanized Steel Carport, Fabric Carport Wall Panels, 12' X 20' X 7' CATEGORY CODE Carport Accessories LONG DESCRIPTION Convert your 12 ft. x 20 ft. Arrow Carport into a fully-enclosed structure easily with the Arrow Carport enclosure. These durable ripstop-tough wall panels attach quickly and easily to your steel carport unit and can be removed just as easily. The water-resistant triple-layer polyethylene fabric will keep your valuable items protected from inclement weather. The enclosure includes front and rear doors for easy drive-through access. This kit is compatible with the Pull-Eaze Roll-Up Door Kit. BULLET 1 This Enclosure Kit fits the Arrow Carport 12 x 20 x 7 ft BULLET 2 The fabric cover is UV treated inside and out to protect against fading, aging, yellowing, and mold BULLET 3 Features heat-sealed seams, which makes the cover 100% water resistant and prevents moisture damage to stored items BULLET 4 Front and rear door panels for convenient vehicle drive through BULLET 5 The Pull-Eaze Roll-Up Door Kit, model 10077, can be used with this carport enclosure, and is sold SEPARATELY COUNTRY OF ORIGIN China FRAME MATERIAL N/A ASSEMBLY REQUIRED (Y/N) Yes WATERPROOF (Y/N) Yes WATER-RESISTANT (Y/N) Yes STORAGE BAG INCLUDED (Y/N) No RELATED ACCESSORIES #1 53510 RELATED ACCESSORIES #2 10077 NOMINAL ASSEMBLED HEIGHT FT. 8 NOMINAL ASSEMBLED LENGTH FT. 20 NOMINAL ASSEMBLED WIDTH FT. 12 NOMINAL CONC IMPERIAL 12 x 20 x 8 ft NOMINAL ASSEMBLED HEIGHT METER 2.5 NOMINAL ASSEMBLED LENGTH METER 6.1 NOMINAL ASSEMBLED WIDTH METER 3.6 NOMINAL CONC METRIC 3.6 x 6.1 x 2.5 m WIND LOAD RATING (MPH) N/A WIND LOAD RATING (KM/HOUR) 0.00 SNOW LOAD RATING (PSF) N/A ITEM GROSS WEIGHT (PACKAGING INCLUDED) (KG.) 37.65 ITEM GROSS WEIGHT (PACKAGING INCLUDED) (LBS.) 83 WALL HEIGHT (CM) 0.0 WALL HEIGHT (IN) 0.00 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (KG.) 34.93 ITEM NET WEIGHT - WITHOUT PACKAGING / ASSEMBLED (LBS.) 77.00 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (CM) 609.09 ASSEMBLED EXTERIOR DIMENSIONS DEPTH (IN) 239.80 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (CM) 249.94 ASSEMBLED EXTERIOR DIMENSIONS HEIGHT (IN) 98.40 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (CM) 365.0 ASSEMBLED EXTERIOR DIMENSIONS WIDTH (IN) 143.70 TOTAL STORAGE AREA (SQ/FT) 240.00 TOTAL STORAGE AREA (SQ/M) 21.6 TOTAL STORAGE VOLUME (CU. FT.) 1.11 TOTAL STORAGE VOLUME (CU.M) 0.031431648 DOOR / ENTRANCE HEIGHT (CM) OUTSIDE ZIPPERS 203.2 DOOR / ENTRANCE HEIGHT (IN) OUTSIDE ZIPPERS 80.00 COLOR Grey COVER COLOR N/A DOOR COLOR N/A DOOR JAMB COLOR N/A FRAME COLOR N/A GABLE COLOR N/A ROOF COLOR N/A ROOF TRIM COLOR N/A TRACK COLOR N/A WALL COLOR Grey FREIGHT CLASS 65 SHIP METHOD (PARCEL OR LTL) PARCEL NMFC # 182130 # OF BOXES 1 FULL PALLET HEIGHT (FLOOR TO TOP) FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 44.96 FULL PALLET LENGTH (LONGEST SIDE) FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 48.00 FULL PALLET TOTAL WEIGHT FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 726.00 FULL PALLET WIDTH (FRONT TO BACK) FULL PALLET CONFIGURATION (OUT OF WHSE OR BREESE PLANT ARROW ONLY) PALLET CUSTS 40.00 HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 9.84 HEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (CM) 24.99 LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 28.35 LENGTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (CM) 72.01 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) (CONC) 83.0 lbs / 37.7 kg WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(LBS) 83.00 WEIGHT AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (KG) 37.65 WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE)(IN) 22.05 WIDTH AS SHIPPED (INCLUDING PALLET IF APPLICABLE) METRIC (CM) 56.01 UNITS PER 40' CONTAINER 530 (Floor Loaded China)
