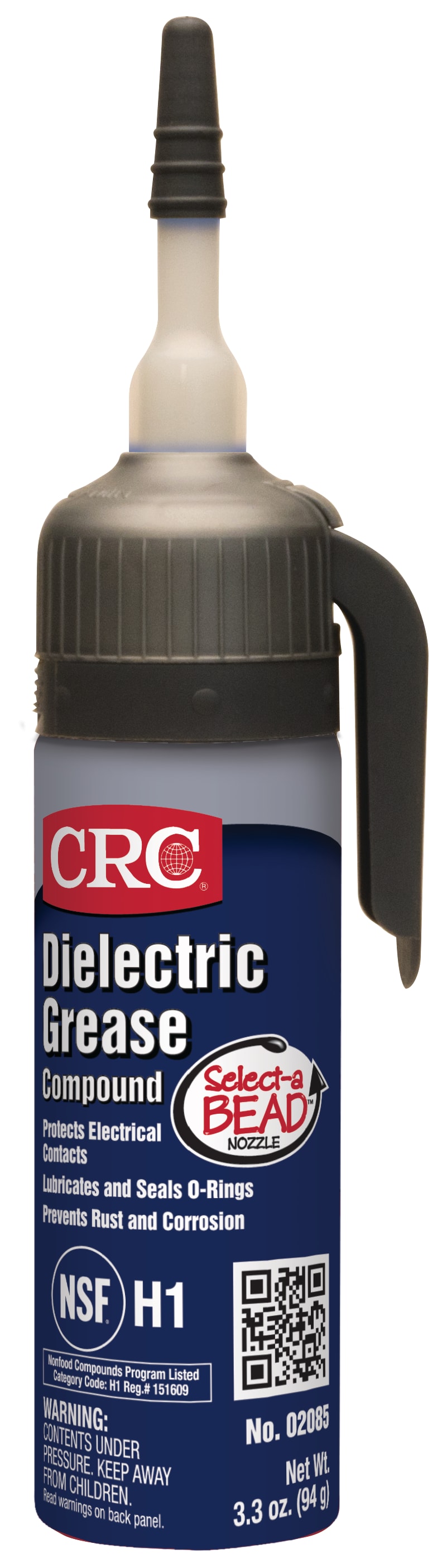

CRC Dielectric Grease 1X3.3OZ
Main ImageDownload

CRC Dielectric Grease 1X3.3OZ

CRC Dielectric Grease

    • Item Number1003199
      Case Number1003198
      Legacy Number02085
      Product DescriptionNon-curing silicone compound used for electrical sealing, lubricating, protecting and insulating. Waterproofs electrical connections and components. Improves electrical performance in adverse weather conditions.
      ApplicationsElectrical panels, outdoor lighting, scoreboards, traffic lights, high voltage poles, transformers, disconnects, switching mechanisms, electrical contacts, spark plugs, battery terminals, fasteners, o-rings, rubber and plastic parts.
      Unit Package Description6 Ounce Pressurized Tube with Select-a-BEAD® Nozzle
      BrandCRC
      Net Fill3.3 wt oz
      UPC Code078254020853
      Unit Dimensions8.75H x 2.25W x 2.25D in
      Units Per Case12
      Case Dimensions8.75H x 7.37W x 7.37D in
      Cases per pallet USA120
      AppearanceOpaque White Gel
      Base TypeSilicone
      Flash point (F)>572°F
      Flash point (C)>300°C
      Flammability Class - CPSCNone
      Spec Gravity Concentrate0.97
      KB ValueN/A
      Plastic SafeSafe on Most Plastics (test small area)
      Film TypeNon-Curing Silicone Paste
      Dielectric Strength>450 Volts/Mil
      Timken Ok Load (lbs)Not Determined
      PropellantNitrogen
      NSF Category CodeH1
      NSF Number151609
      Aerosol Flammability LevelI
      Military Specification NumberSAE-AS-8660
      DOT Proper Shipping NameAerosols, Non-Flammable, Limited Quantity
      4 Ball EPN/A
      4 Ball WearN/A
      Drop PointNone
      pHN/A
      NLGI Grade2
      SAE GradeN/A
      Water WashoutNot Determined
      Working Temp (F)-70 to 400°F
      Working Temp (C)-56.7 to 204.4°C
      VOC % (Consumer Product def)0.21
      VOC g/L (Consumer Product def)1.97
      VOC lbs/gal (Consumer Prod def)0.016
      VOC CategoryNot Regulated
