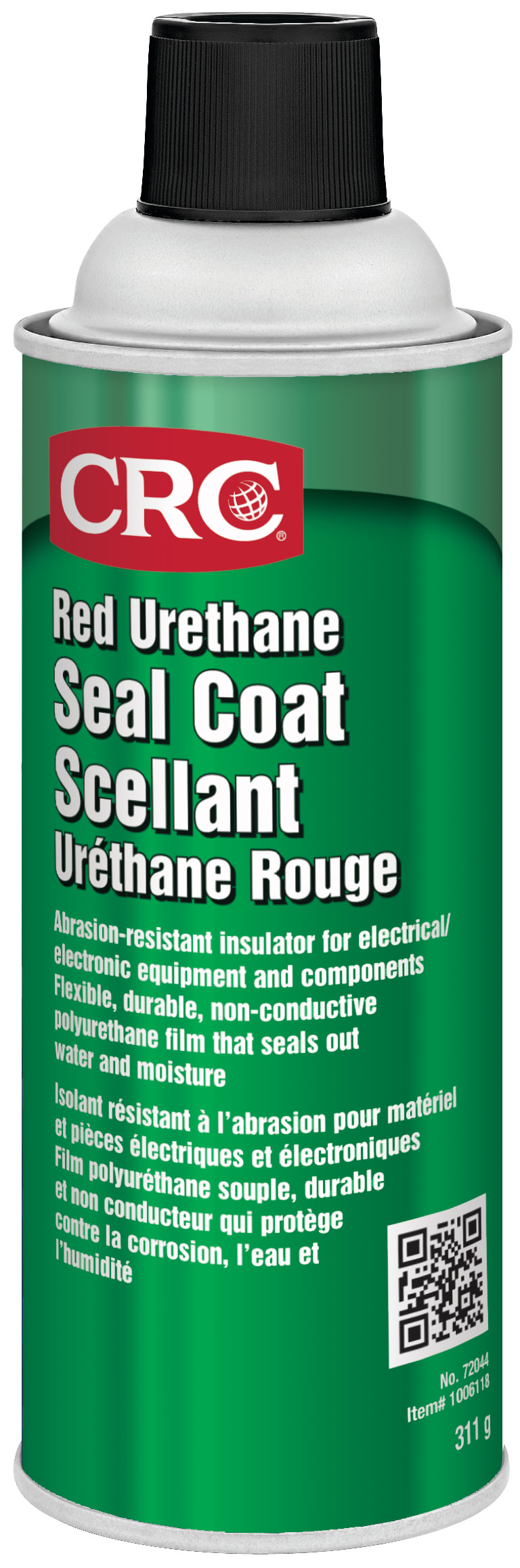

CRC Red Urethane Seal Coat 1X312G
Main ImageDownload

CRC Red Urethane Seal Coat 1X312G

CRC Red Urethane Seal Coat

  • Item Number1006118
    Case Number1006117
    Legacy Number72044
    Product DescriptionPolyurethane coating that insulates electrical equipment and seals out water and moisture. The red formula provides a striking contrast on the surface where the product is being used.
    ApplicationsOn motor windings, terminals, bus bars, commutator ends, stator coils, and PC boards
    Unit Package Description16 Ounce (473 ml) Aerosol
    BrandCRC
    Net Fill311 g
    UPC Code078254720449
    Unit Dimensions19.69H x 6.68W x 6.68D cm
    Units Per Case12
    Case Dimensions21.86H x 21.33W x 28.7D cm
    AppearanceRed Liquid
    Base TypeOil Modified Urethane
    Flash point (F)-4°F
    Flash point (C)-20°C
    Flammability Class - CPSCExtremely Flammable
    Spec Gravity Concentrate0.731
    KB ValueN/A
    Plastic SafeYes
    Film TypeDry
    Film ThicknessNot Determined
    Evaporation RateModerate
    Dielectric Strength3,100 Volts/Mil
    Timken Ok Load (lbs)N/A
    PropellantHydrocarbon
    Aerosol Flammability LevelIII
    DOT Proper Shipping NameAerosols, Flammable, Limited Quantity
    4 Ball EPN/A
    4 Ball WearN/A
    Drop PointN/A
    ISO Viscosity GradeN/A
    NLGI GradeN/A
    SAE GradeN/A
    Water WashoutN/A
    Working Temp (F)-90 to 250°F
    Working Temp (C)-67.8 to 121.1°C
    Restricted from Sale In:Not for sale in United States.
