Main Pictures
3M™

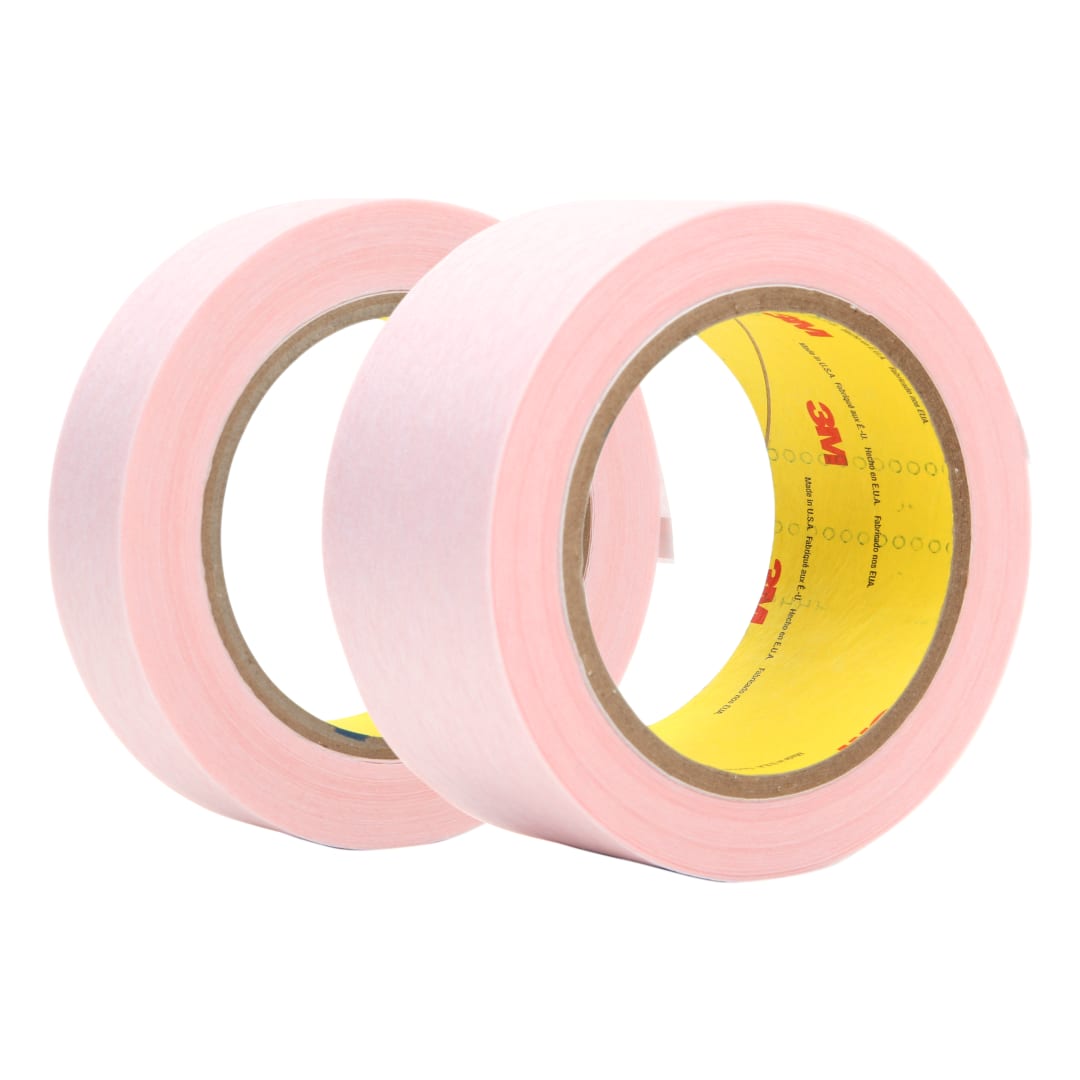

3M™ Venting Tape 3294, Pink, 51 mm x 33 m, 0.13 mm
7000048712
3M ID 7000048712 Division Name Industrial Adhesives & Tapes Commodity Class Code 2730 Product Type Páska Brand 3M™ Commodity Class Description Engineered Industrial Tapes Product Name 3M™ Venting Tape 3294, Pink, 51 mm x 33 m, 0.13 mm Description 3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates. Long Description We manufacture 3M™ Venting Tape 3294 to meet various high outgassing requirements for foam-in-place insulation processes in appliance and other industries. The acrylic adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids. The non-woven, synthetic backing is conformable with good burst strength for effective sealing and minimal foaming voids to help reduce clean-up. Recommended applications: To allow the confinement and outgassing of foam insulation. Bullet 1 Features a unique non-woven conformable backing that has high air/gas permeability Bullet 2 Meets most outgassing requirements for foam-in-place insulation processes Bullet 3 Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids Bullet 4 Commonly used for outgas venting in appliance manufacturing Keywords - 3 m vhb
- 3 m vhb tape
- 3m vhb tapes
- 3m vhb tape
- Acrylic Foam Tape
- 3m vhb double sided tape
- 3m vhb
- vhb
- vhb double sided tape
- vhb tape
Product Color Ružová Overall Length (Metric) 32.9 Meter Overall Width (Metric) 50.8 milimeter Dangerous Goods Indicator ZND TDS Required Nie EU Taric Code 5603129090 eCl@ss 10 classification group 23330202 eCl@ss 11 classification group 23330202 Base Unit (B) - Article Number 00021200266645 Base Unit (B) - Base Unit ROL Base Unit (B) - Unit ROL Base Unit (B) - Item Quantity 1.0 Base Unit (B) - Mapped From Activity Unit Base Unit (B) - Metric Cubic Dimension 0.673 CDM Base Unit (B) - Metric Height Dimension 115.062 MM Base Unit (B) - Metric Length Dimension 50.8 MM Base Unit (B) - Metric Weight 144.25 G Base Unit (B) - Metric Width Dimension 115.06 MM Shipper (6) - Unit CS Shipper (6) - Article Number 50021200266640 Shipper (6) - Item Quantity 24.0 Shipper (6) - Metric Cubic Dimension 25138.08 CCM Shipper (6) - Metric Height Dimension 0.33 M Shipper (6) - Metric Length Dimension 0.276 M Shipper (6) - Metric Net Weight 3.462 KG Shipper (6) - Metric Weight 3.792 KG Shipper (6) - Metric Width Dimension 0.276 M Pallet (8) - Item Quantity 1152.0 Pallet (8) - Metric Cubic Dimension 1.477 M3 Pallet (8) - Metric Height Dimension 1.11 M Pallet (8) - Metric Length Dimension 1.21 M Pallet (8) - Metric Net Weight 166.176 KG Pallet (8) - Metric Weight 195.0 KG Pallet (8) - Metric Width Dimension 1.1 M Pallet (8) - Unit PAL Adhesive Type Akryl Backing Material Netkané Backing Thickness (Imperial) 4.0 Mili-palec (mil) Backing Thickness (Metric) 0.1 Elongation at Break 15% Maximum Operating Temperature (Celsius) 49.0 Maximum Operating Temperature (Fahrenheit) 120.0 Stupeň Fahrenheit Tensile Strength (Metric) 14.0 Product Form Rolka
