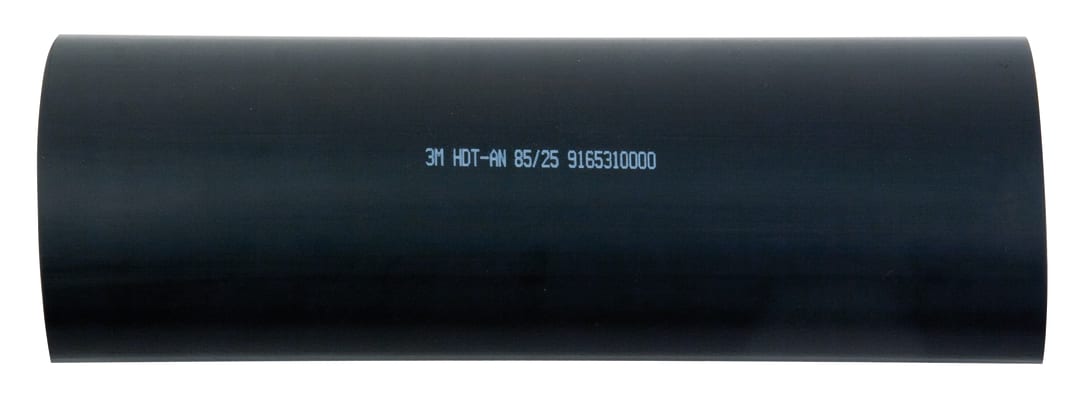

3M™ HDT-AN Heat Shrink Tubing, Polyolefin with Adhesive, Black, 85.0/25.0 mm, 1 m Piece
Main PicturesDownload

3M™

3M™ HDT-AN Heat Shrink Tubing, Polyolefin with Adhesive, Black, 85.0/25.0 mm, 1 m Piece

7000099383

  • 3M ID7000099383
    old 3M IDTE100048665
    Distribution Chain Material Status Code10
    Division NameElectrical Markets Division
    Commodity Class Code2340
    Product TypePotrubia pre ťažké steny (s lepiacou vrstvou)
    Brand3M™
    Commodity Class DescriptionElectrical Supplies
  • Product Name3M™ HDT-AN Heat Shrink Tubing, Polyolefin with Adhesive, Black, 85.0/25.0 mm, 1 m Piece
    Description3M™ HDT-AN je rad teplom zmrštiteľných hadičiek bez halogénov s hrubou stenou, navrhnutý tak, aby poskytoval spoľahlivý výkon pre elektrické spoje, spoje a koncovky do 1,0 kV, ako aj mechanickú ochranu a ochranu životného prostredia. Teplom zmrštiteľné bužírky HDT-AN majú vonkajšiu stenu zosieťovanú polyolefínom bez obsahu halogénov s továrensky aplikovanou lepiacou vnútornou vrstvou.
    Long Description3M™ HDT-AN is a thickwall polyolefin heatshrink tubing with coextruded hot melt adhesive. Shrink ratio is up to 4:1, min. shrink temperature is 135°C, operating temperature is -55°C to +130°C. HDT-AN provides good chemical resistance, IP 68 sealing and is halogen free. The toughness and durability of the tubing make it well suited for exposed applications. HDT-AN is supplied with a specially designed hot melt adhesive layer. The adhesive is applied during extrusion of the tubing thus achieving a very smooth, constant adhesive layer which ensures excellent sealing properties. HDT-AN is ideal for sealing underground or exposed inline cable joints and terminations. HDT-AN is available in sizes from 12,0/3,0 mm to 130,0/36,0 mm with a wall thickness (recovered) of 2,5-5,5 mm in color black. Standard packaging 1 m pieces in display-pack. Certificate: RoHS compliant.
    ApplicationElektrická izolácia
  • Bullet 1Ťažká stena
    Bullet 2Ochrana Káblov
    Bullet 3Dlžka 1 meter
    Bullet 4S lepidlom
    Bullet 5Odoláva teplotám -55 až 130 stupňov C.
    Bullet 6Bez halogénov
    Keywords3M, trubice, silnostenná, lepidlo, teplom zmrštiteľná hadička, bez halogénov, elektrické spoje, mechanická ochrana, ochrana životného prostredia, polyolefín, IP 68, odolnosť voči chemikáliám, spoľahlivý výkon, zmrštiteľná bužírka, bez obsahu halogénov, ochrana káblov, tepelná ochrana, spojky, koncovky, odoláva teplotám, teplotný rozsah, zosieťovanie, podzemné aplikácie, vystavené aplikácie, tepelné zmraštiteľné trubky, black, RoHS, elektronika, energia, ochrana káblov, spojovacie materiály, tesniace vlastnosti, zmršťovací pomer, minimálna zmršťovacia teplota, vonkajšie použitie, odolnosť, trvácnosť, teplom zmrštiteľné, káblové spoje, bezhalogénové, elektronické komponenety, energetická infraštruktúra, spoľahlivosť, robustnosť.
  • Product ColorČierna
    Overall Length (Metric)1.0 Meter
    Dangerous Goods IndicatorZND
    TDS RequiredNie
    EU Taric Code3917320090
  • eCl@ss 8.1 classification group21011318
    eCl@ss 9 classification group27400105
    eCl@ss 10 classification group27400105
    eCl@ss 11 classification group27400105
  • Base Unit (B) - Article Number04046719486212
    Base Unit (B) - Base UnitEA
    Base Unit (B) - UnitEA
    Base Unit (B) - Item Quantity1.0
    Base Unit (B) - Mapped FromActivity Unit
    Base Unit (B) - Metric Cubic Dimension9887.695 CCM
    Base Unit (B) - Metric Weight733.0 G
  • Shipper (6) - UnitCS
    Shipper (6) - Article Number08712403573402
    Shipper (6) - Item Quantity1.0
    Shipper (6) - Metric Cubic Dimension9887.695 CCM
    Shipper (6) - Metric Height Dimension0.097 M
    Shipper (6) - Metric Length Dimension1.073 M
    Shipper (6) - Metric Net Weight460.0 G
    Shipper (6) - Metric Weight733.0 G
    Shipper (6) - Metric Width Dimension0.095 M
  • Pallet (8) - Article Number04046719486229
    Pallet (8) - Item Quantity80.0
    Pallet (8) - Metric Cubic Dimension1.075 M3
    Pallet (8) - Metric Height Dimension1.12 M
    Pallet (8) - Metric Length Dimension1.2 M
    Pallet (8) - Metric Net Weight36.8 KG
    Pallet (8) - Metric Weight83.84 KG
    Pallet (8) - Metric Width Dimension0.8 M
    Pallet (8) - UnitPAL
  • Inner Diameter After Shrink (Imperial)0.984 palec
    Inner Diameter After Shrink (Metric)25.0 milimeter
    Inner Diameter Before Shrink (Imperial)3.346 palec
    Inner Diameter Before Shrink (Metric)85.0 milimeter
    Maximum Operating Temperature (Celsius)130.0
    Maximum Operating Temperature (Fahrenheit)266.0 Stupeň Fahrenheit
    Splice TypeTeplom zmrštiteľné
  • Flame RetardantNie
