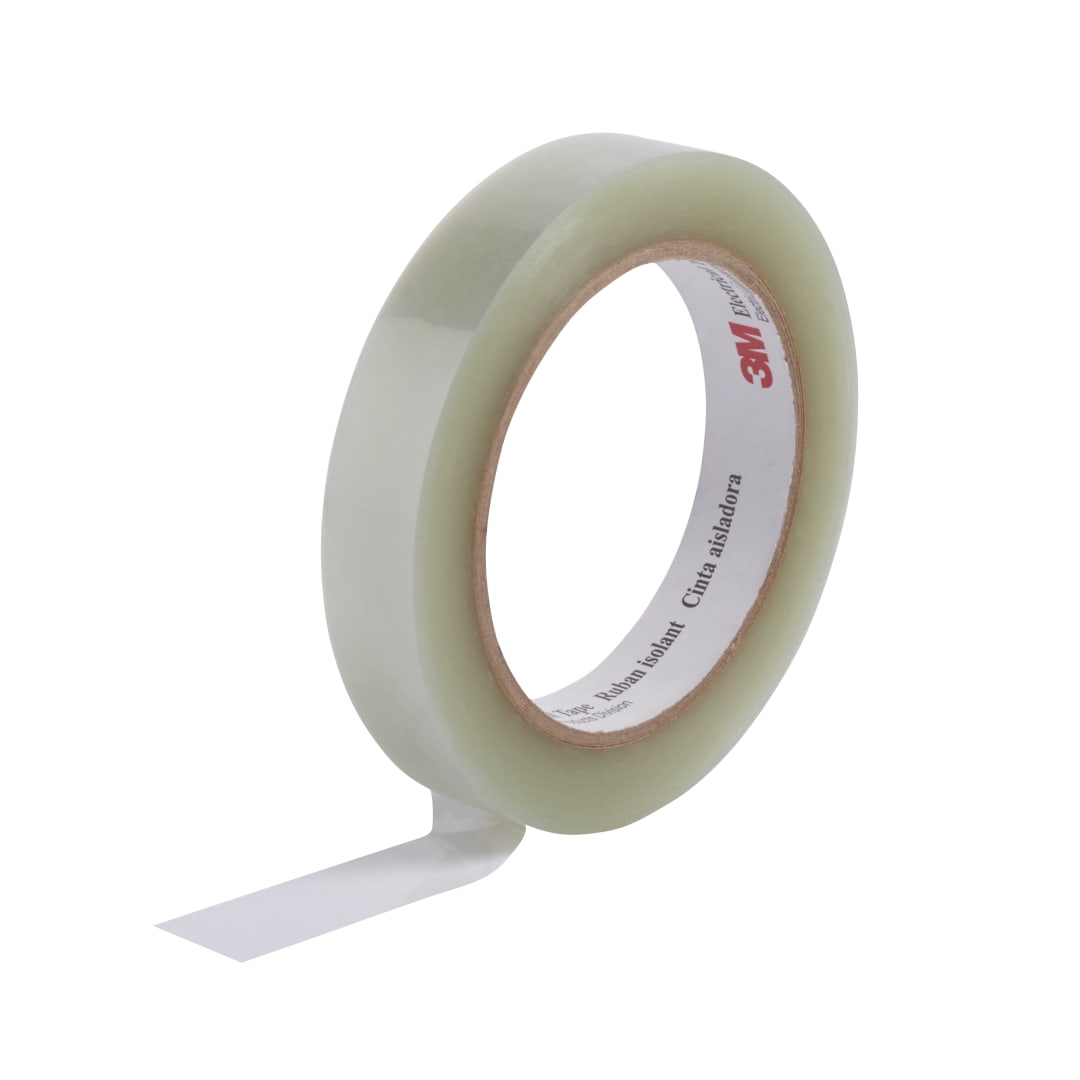

3M™ Polyester Film Electrical Tape 5, MC4, 50 mm x 66 m
Main PicturesDownload

3M™

3M™ Polyester Film Electrical Tape 5, MC4, 50 mm x 66 m

7100091566

  • 3M ID7100091566
    old 3M IDUU005263940
    Distribution Chain Material Status Code10
    Division NameElectrical Markets Division
    Commodity Class Code2310
    Brand3M™
    Commodity Class DescriptionOEM Electrical
  • Product Name3M™ Polyester Film Electrical Tape 5, MC4, 50 mm x 66 m
    Description3M™ Polyester Film Electrical Tape 5 is a general purpose, electrical tape with a polyester film backing. This single coated tape is designed for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
    Long Description3M™ Polyester Film Electrical Tape 5 has an acrylic adhesive that offers optimized adherence. This transparent tape resists oil, chemicals, solvents, moisture, abrasion and cut through. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
    ApplicationIzolácia
  • Bullet 1General purpose polyester tape with acrylic adhesive
    Bullet 2Withstands higher-temperature conditions than tapes with acetate cloth backings
    Bullet 3Conformable, exhibits excellent chemical, solvent and moisture resistance and resists cut-through and abrasion
    Bullet 4UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
    Keywords3M, polyester film electrical tape, elektrikárska páska, izolácia, vysoké dielektrické napätie, tepelne odolná páska, akrylátové lepidlo, chemická odolnosť, odolnosť voči rozpúšťadlám, vlhkosť, odolnosť voči oderu, UL Listed, CSA Certified, RoHS Compliant, všeobecné použitie, transparentná páska, elektrická izolácia, tepelná odolnosť, resistentná páska, pevnosť lepidla, odolnosť voči olejom, odolnosť voči prerezaniu, dielenská páska, priemyselná páska, elektroizolačná páska, tepelná odolnosť, izolácia káblov, elektrické aplikácie.
  • Product ColorTransparentné
    Overall Length (Metric)66.0 Meter
    Overall Width (Metric)50.0 milimeter
    Dangerous Goods IndicatorZND
    TDS RequiredÁno
    EU Taric Code3919108090
  • eCl@ss 8.1 classification group21011318
    eCl@ss 9 classification group27144427
    eCl@ss 10 classification group27140708
    eCl@ss 11 classification group27140708
  • Base Unit (B) - Base UnitROL
    Base Unit (B) - UnitROL
    Base Unit (B) - Item Quantity1.0
    Base Unit (B) - Mapped FromActivity Unit
    Base Unit (B) - Metric Cubic Dimension1806.25 CCM
    Base Unit (B) - Metric Weight356.25 G
  • Shipper (6) - UnitCS
    Shipper (6) - Article Number04054596153462
    Shipper (6) - Item Quantity4.0
    Shipper (6) - Metric Cubic Dimension7225.0 CCM
    Shipper (6) - Metric Height Dimension250.0 MM
    Shipper (6) - Metric Length Dimension170.0 MM
    Shipper (6) - Metric Net Weight1.135 KG
    Shipper (6) - Metric Weight1.425 KG
    Shipper (6) - Metric Width Dimension170.0 MM
  • Pallet (8) - Article Number04054596153479
    Pallet (8) - Item Quantity448.0
    Pallet (8) - Metric Cubic Dimension1104000.0 CCM
    Pallet (8) - Metric Height Dimension1150.0 MM
    Pallet (8) - Metric Length Dimension1200.0 MM
    Pallet (8) - Metric Net Weight127.12 KG
    Pallet (8) - Metric Weight184.645 KG
    Pallet (8) - Metric Width Dimension800.0 MM
    Pallet (8) - UnitPAL
  • Adhesive TypeAkryl
    Elongation at Break100%
    Maximum Operating Temperature (Celsius)130.0
    Maximum Operating Temperature (Fahrenheit)266.0 Stupeň Fahrenheit
    Minimum Operating Temperature (Celsius)0.0
    Tensile Strength (Metric)44.0
