Main Pictures
VHB™

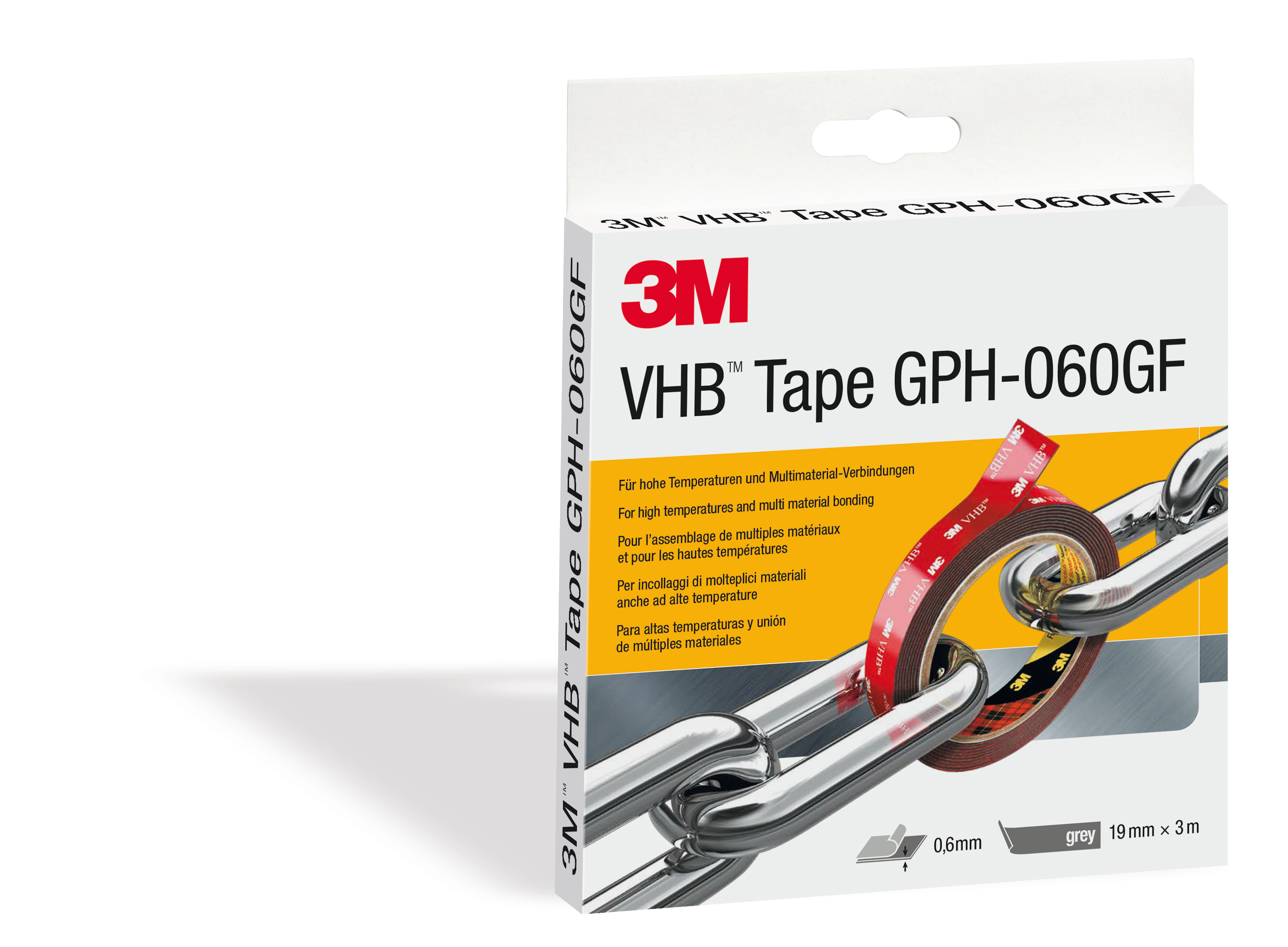

3M™ VHB™ Tape GPH-060GF Grey, 19 mm x 3 m, 0.6 mm
7100101623
3M ID 7100101623 old 3M ID UU008049114 Distribution Chain Material Status Code 10 Division Name Industrial Adhesives & Tapes Commodity Class Code 2790 Brand VHB™ Commodity Class Description Foam Tape & Fasteners Product Name 3M™ VHB™ Tape GPH-060GF Grey, 19 mm x 3 m, 0.6 mm Description The GPH family of 3M VHB tapes utilises modified acrylic adhesive on both sides of a conformable, adhesive foam core. The unique feature combination of high temperature resistance, multi material bonding and high initial tackiness with a conformable foam core makes this family one of the most capable and well-rounded 3M VHB tapes. Its high temperature performance enables bonding of materials in applications with high long term (up to +150 °C) as well as short term (up to +230 °C) operating temperatures. It is specifically designed for being capable for bonding prior to heat cured processes such as liquid or pre powder coat paint processing. It is typically used on metal substrates such as aluminium, galvanised steel and stainless steel. Applications for this tape include stiffener and panel attachment, including assembly before paint ovens as well as decorative material and trim. Further, its capability to bond to a wide variety of substrates makes it a good fit for multi material bonding. Those substrates have a high or medium surface energy including many metals (e. g. stainless steel) and plastics (e. g. Polyamide, PMMA, ABS). 3M™ VHB™ Tape GPH-060GF is 0.6 mm thick, grey and has a 3M branded red siliconised polyethylene film. Long Description Designed to create durable and reliable bonds for high temperatures and multi material bonding. Application - Alternatívy nitovania alebo zvárania
- Konštrukčné lepenie
- Lepenie kovov
- Pripevňovanie inštalácií a obkladov
- Spojenie kompozitných materiálov
- Spôsoby montáže pri lepení panelov k rámom/výstuh k panelom
Bullet 1 0.60 thickness (mm) Bullet 2 3M Branded red siliconised PE film liner liner Bullet 3 Modified Acrylic adhesive family Bullet 4 type of adhesiveMSE, for high temperatures and multi material bonding Bullet 5 High aging resistance Bullet 6 Creates a permanent seal against water, moisture and more Bullet 7 High dynamic stress absorption reduces vibration and impact stress Keywords - 3 m vhb
- 3 m vhb tape
- 3m vhb tapes
- 3m vhb tape
- Acrylic Foam Tape
- 3m vhb double sided tape
- 3m vhb
- vhb
- vhb double sided tape
- vhb tape
Product Color Šedá Overall Length (Metric) 3.02 Meter Overall Width (Metric) 3.0 Meter Dangerous Goods Indicator ZND TDS Required Áno Indoor/Outdoor Vnútri/vonku EU Taric Code 3919108090 eCl@ss 8.1 classification group 23330390 eCl@ss 10 classification group 23330390 eCl@ss 11 classification group 23330390 Base Unit (B) - Article Number 04054596233775 Base Unit (B) - Base Unit ROL Base Unit (B) - Unit ROL Base Unit (B) - Item Quantity 1.0 Base Unit (B) - Mapped From Activity Unit Base Unit (B) - Metric Cubic Dimension 605.52 CCM Base Unit (B) - Metric Height Dimension 20.0 MM Base Unit (B) - Metric Length Dimension 174.0 MM Base Unit (B) - Metric Weight 79.9 G Base Unit (B) - Metric Width Dimension 174.0 MM Consumer (2) - Unit ROL Consumer (2) - Article Number 04054596233775 Consumer (2) - Item Quantity 1.0 Consumer (2) - Metric Cubic Dimension 605.52 CCM Consumer (2) - Metric Height Dimension 20.0 MM Consumer (2) - Metric Length Dimension 174.0 MM Consumer (2) - Metric Net Weight 33.0 G Consumer (2) - Metric Weight 79.9 G Consumer (2) - Metric Width Dimension 174.0 MM Inner (3) - Article Number 04054596208551 Inner (3) - Item Quantity 12.0 Inner (3) - Metric Cubic Dimension 8174.52 CCM Inner (3) - Metric Height Dimension 270.0 MM Inner (3) - Metric Length Dimension 174.0 MM Inner (3) - Metric Net Weight 396.0 G Inner (3) - Metric Weight 1107.8 G Inner (3) - Metric Width Dimension 174.0 MM Inner (3) - Unit KAR Shipper (6) - Unit CS Shipper (6) - Article Number 04054596208568 Shipper (6) - Item Quantity 48.0 Shipper (6) - Metric Cubic Dimension 39530.7 CCM Shipper (6) - Metric Height Dimension 300.0 MM Shipper (6) - Metric Length Dimension 363.0 MM Shipper (6) - Metric Net Weight 1.584 KG Shipper (6) - Metric Weight 4.848 KG Shipper (6) - Metric Width Dimension 363.0 MM Pallet (8) - Article Number 04054596210349 Pallet (8) - Item Quantity 864.0 Pallet (8) - Metric Cubic Dimension 1008.0 CDM Pallet (8) - Metric Height Dimension 1050.0 MM Pallet (8) - Metric Length Dimension 1200.0 MM Pallet (8) - Metric Net Weight 28.512 KG Pallet (8) - Metric Weight 112.47 KG Pallet (8) - Metric Width Dimension 800.0 MM Pallet (8) - Unit PAL Adhesive Type Akryl Maximum Operating Temperature (Celsius) 150.0 Maximum Operating Temperature (Fahrenheit) 300.0 Stupeň Fahrenheit
