3M™ Scotchlok™ IDC Connector 557, Red, 22-16 AWG, 100 per carton, 1000 per case
Main PicturesDownload

Scotchlok™

3M™ Scotchlok™ IDC Connector 557, Red, 22-16 AWG, 100 per carton, 1000 per case

7100166937

  • 3M ID7100166937
    old 3M ID80000209587
    Distribution Chain Material Status Code10
    Division NameElectrical Markets Division
    Commodity Class Code2340
    BrandScotchlok™
    Commodity Class DescriptionElectrical Supplies
  • Product Name3M™ Scotchlok™ IDC Connector 557, Red, 22-16 AWG, 100 per carton, 1000 per case

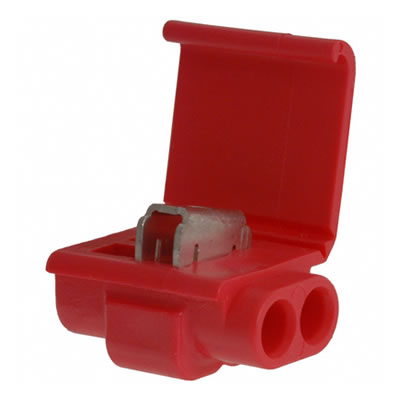

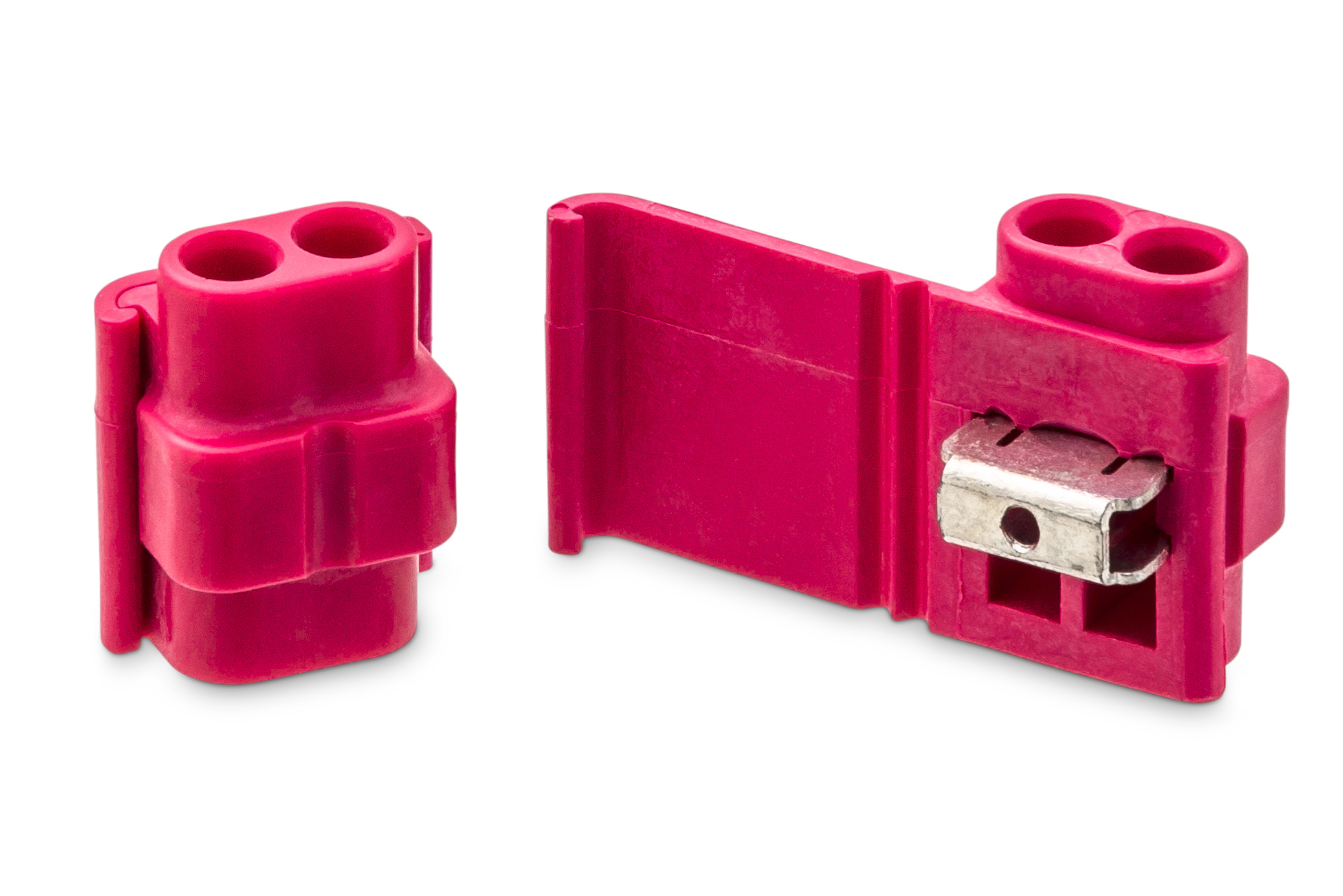

    Description3M™ Scotchlok™ IDC Connector 557 has a dual element connection that electrically connects two 0.5 mm2 to 1.5 mm2 wire ends. This flame retardant connector has a maximum insulation O.D. diameter of 3.05 mm and an operating temperature of 105 °C.
    Long DescriptionThe dual element connection of flame retardant 3M™ Scotchlok™ IDC Connector 557 has a maximum insulation O.D. diameter of 3.05 mm and an operating temperature of 105 °C. This pigtail connector electrically connects two 0.5 mm² to 1.5 mm² wire ends and insulates the connection by using our unique ‘U’ contact. It’s quick and simple to use and is UL and CSA approved.
  • Bullet 1Unique ‘U’ contact provides a dependable electrical connection
    Bullet 2Accommodates 0.5 mm² to 1.5 mm² wire, solid/stranded
    Bullet 3UL Listed and RoHS 2011/65/EU Compliant
    Bullet 4Quick and simple to use
    Keywords3M, Scotchlok, IDC konektor, konektor 557, dvojitý element spojenia, elektrické spojenie, retardant plameňa, izolácia, maximálny priemer izolácie, teplota prevádzky, jednoduché použitie, pigtail konektor, UL certifikované, UL Listed, RoHS kompatibilné, pevné vodiče, spletané vodiče, spoľahlivé elektrické spojenie, elektrické pripojenie, spojenia vodičov, konektory pre vodiče, CSA schválené, bezpečnosť, ochrana pred plameňom, rýchla montáž, elektroinštalácie, konektory 3M, 3M™ konektory, spoľahlivosť spojenia, teplotná odolnosť, elektrotechnické aplikácie, kabeláž, montáž konektora, elektro komponenty, elektro pripojenia, 3M™ elektrický pigtail konektor, 3M produkty.
  • Dangerous Goods IndicatorZND
    TDS RequiredNie
    EU Taric Code8536901000
  • eCl@ss 9 classification group27400215
    eCl@ss 10 classification group27400215
    eCl@ss 11 classification group27400215
  • Base Unit (B) - Article Number10054007214943
    Base Unit (B) - Base UnitEA
    Base Unit (B) - UnitEA
    Base Unit (B) - Item Quantity1.0
    Base Unit (B) - Mapped FromActivity Unit
    Base Unit (B) - Metric Cubic Dimension12.052 CCM
    Base Unit (B) - Metric Weight1.926 G
  • Consumer (2) - UnitBAG
    Consumer (2) - Article Number00054007214946
    Consumer (2) - Item Quantity100.0
    Consumer (2) - Metric Cubic Dimension2716.155 CCM
    Consumer (2) - Metric Height Dimension21.59 CM
    Consumer (2) - Metric Length Dimension16.51 CM
    Consumer (2) - Metric Net Weight160.0 G
    Consumer (2) - Metric Weight172.365 G
    Consumer (2) - Metric Width Dimension7.62 CM
  • Shipper (6) - UnitCS
    Shipper (6) - Article Number50076308924510
    Shipper (6) - Item Quantity1000.0
    Shipper (6) - Metric Cubic Dimension12052.49 CCM
    Shipper (6) - Metric Height Dimension17.272 CM
    Shipper (6) - Metric Length Dimension26.416 CM
    Shipper (6) - Metric Net Weight1600.0 G
    Shipper (6) - Metric Weight1925.5 G
    Shipper (6) - Metric Width Dimension26.416 CM
  • Pallet (8) - Item Quantity96000.0
    Pallet (8) - Metric Cubic Dimension1.513 M3
    Pallet (8) - Metric Height Dimension116.332 CM
    Pallet (8) - Metric Length Dimension121.92 CM
    Pallet (8) - Metric Net Weight153.6 KG
    Pallet (8) - Metric Weight201.0 KG
    Pallet (8) - Metric Width Dimension106.68 CM
    Pallet (8) - UnitPAL
  • Flame RetardantÁno
