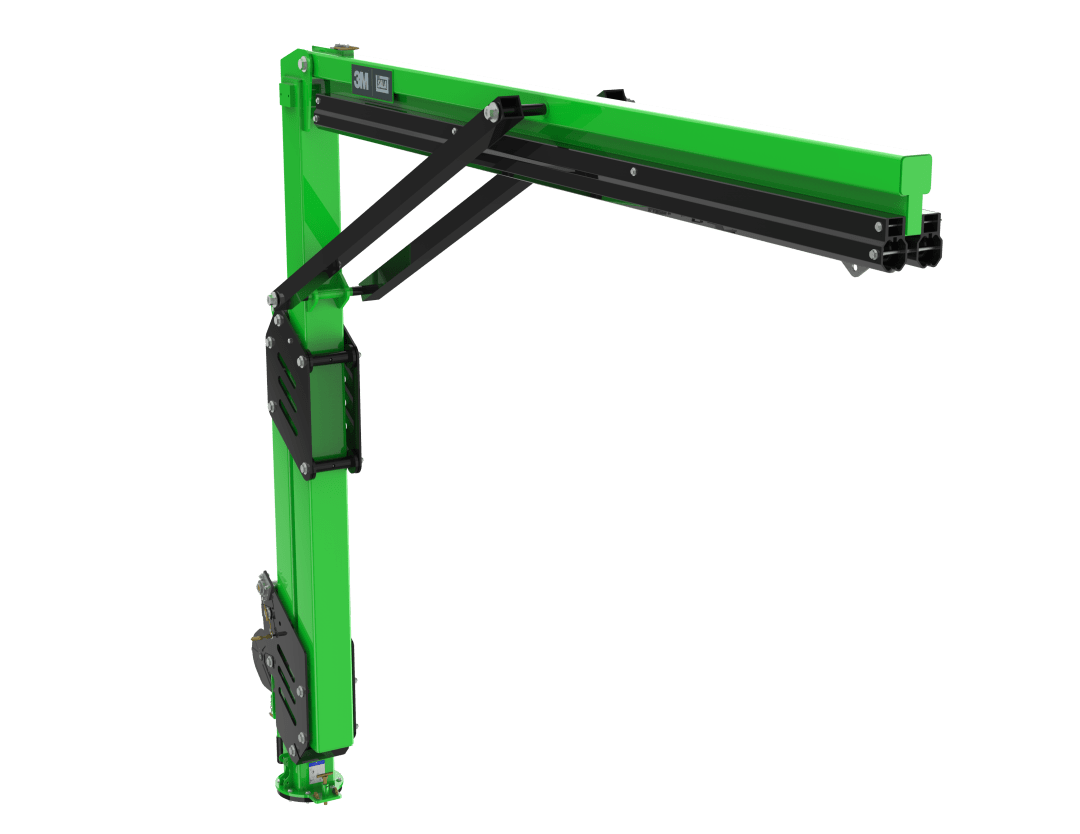

3M™ DBI-SALA® FlexiGuard™ M200 Modular Jib Adjustable Height Mast Anchor, 2 User, 3.8-4.6m Height, 3.7m Width, 8530895
Main PicturesDownload

DBI-SALA®

3M™ DBI-SALA® FlexiGuard™ M200 Modular Jib Adjustable Height Mast Anchor, 2 User, 3.8-4.6m Height, 3.7m Width, 8530895

7100271462

  • 3M ID7100271462
    Division NamePersonal Safety Division
    Commodity Class Code6090
    BrandDBI-SALA®
    Commodity Class DescriptionFall Protection Solutions
  • Product Name3M™ DBI-SALA® FlexiGuard™ M200 Modular Jib Adjustable Height Mast Anchor, 2 User, 3.8-4.6m Height, 3.7m Width, 8530895
    DescriptionThe 3M™ DBI-SALA® Flexiguard™ Modular Jib System is comprised of a modular set of components that when properly configured constitute a unique overhead anchorage system. The M200 adjustable height mast is built with powder coated steel. The fully height adjustable design allows for maximum transportability and adaptation to unique work environments. Adjustment of the system can be accomplished manually with integrated winching handle, or up to 4 times faster using optional power drill overload clutch adapter.
    Long DescriptionThe 3M™ DBI SALA® Flexiguard™ Modular Jib System is a collection of modular components that can be configured in a multitude of ways to create highly portable and highly configurable overhead anchorage solutions. A combination of base and mast assemblies can be interchanged with a variety of accessories to custom tailor a solution for a specific application or environment. Significant measures were taken to create a design that maximized portability via a wide variety of transport methods. Many adjustable mast height options are paired with a variety of cantilever distances and user capacity ratings to meet unique and dynamic customer requirements.
  • Bullet 1Extended rail-length increases safe working area
    Bullet 2Extended anchor height enhances capabilities in various applications
    Bullet 3Automatic fail-safe mast lock prevents uncontrolled mast movement
    Bullet 4Power assisted height adjustment capability
    Bullet 5Rotating mast up to 360 degrees
    Bullet 6Stainless Steel Anchor Trolley
    Bullet 7Aluminium Extruded Glyde-Saf Trolley Rail
    Keywords"3M, DBI-SALA, FlexiGuard, Modular Jib System, nastaviteľný výška stožiar, práškovo lakovaná oceľ, prenosnosť, jedinečné pracovné prostredia, integrovaná ručná kľuka, prekonanie preťaženia, vysoká bezpečnosť, automatické zablokovanie, elektricky podporované nastavenie výšky, otočný stožiar 360 stupňov, nerezová oceľ kotvové vozíky, hliníkové extrudované Glyde-Saf vozíkové koľajnice, robustná oceľová konštrukcia, modulárne komponenty, konfigurácia, kotviace riešenia, transportné metódy, nastaviteľné možnosti výšky stožiarov, kantileverové vzdialenosti, dynamické požiadavky zákazníkov."
  • Overall Length (Metric)0.0 milimeter
    Overall Width (Metric)0.0 milimeter
    Overall Height (Metric)0.0 milimeter
    Net Weight (Metric)458.58
    Dangerous Goods IndicatorZND
    EU Taric Code7326909890
  • Base Unit (B) - Article Number00648250177266
    Base Unit (B) - Base UnitEA
    Base Unit (B) - UnitEA
    Base Unit (B) - Item Quantity1.0
    Base Unit (B) - Mapped FromActivity Unit
    Base Unit (B) - Metric Cubic Dimension166752.66 IN3
    Base Unit (B) - Metric Height Dimension48.0 IN
    Base Unit (B) - Metric Length Dimension193.0 IN
    Base Unit (B) - Metric Weight1100.0 LB
    Base Unit (B) - Metric Width Dimension18.0 IN
  • Consumer (2) - UnitEA
    Consumer (2) - Article Number00648250177266
    Consumer (2) - Item Quantity1.0
